NP 205 Torque mount help

[thealien]

I am going to be reinstalling my NP205 soon and I need a picture of how the torque arm bushings are oriented. I know what mine looked like when I took it out but I have seen a picture that showed it different.

There is the big L type bracket that bolts to the transfer case.

There is also a smaller plate that has the same holes for the bushings as the L bracket.

There is also the L bracket that bolts to the frame.

Please post any pictures you have of this.

Thanks
Mark



[sponsoredbydad]

This is what i have



[GreenieK30]

Another picture



[thealien]

Thanks



[thealien]

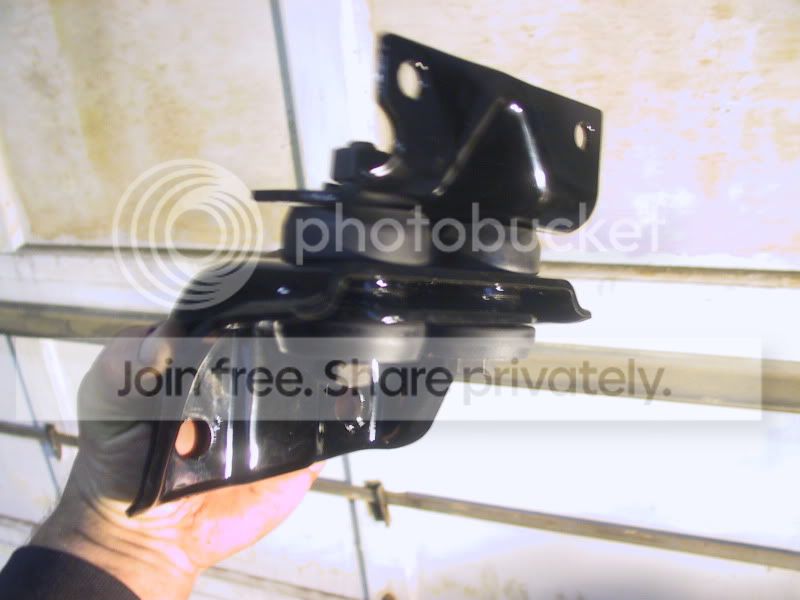

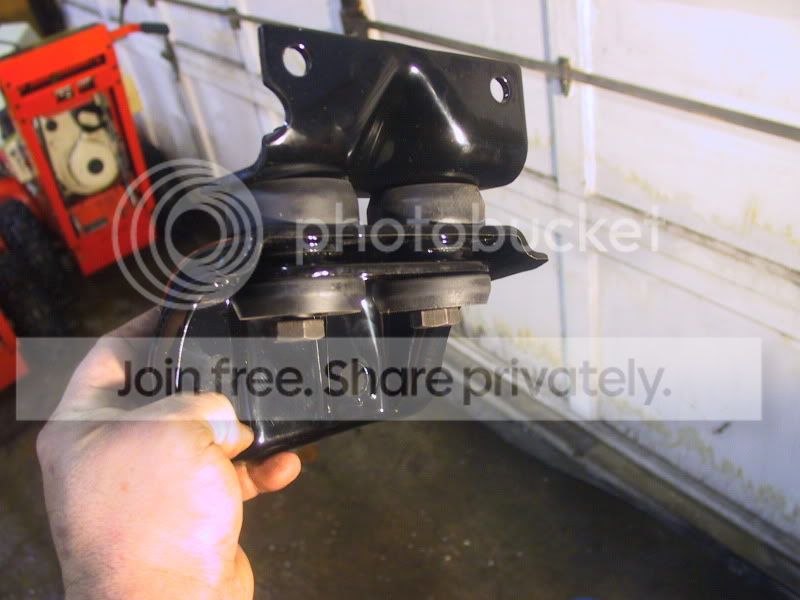

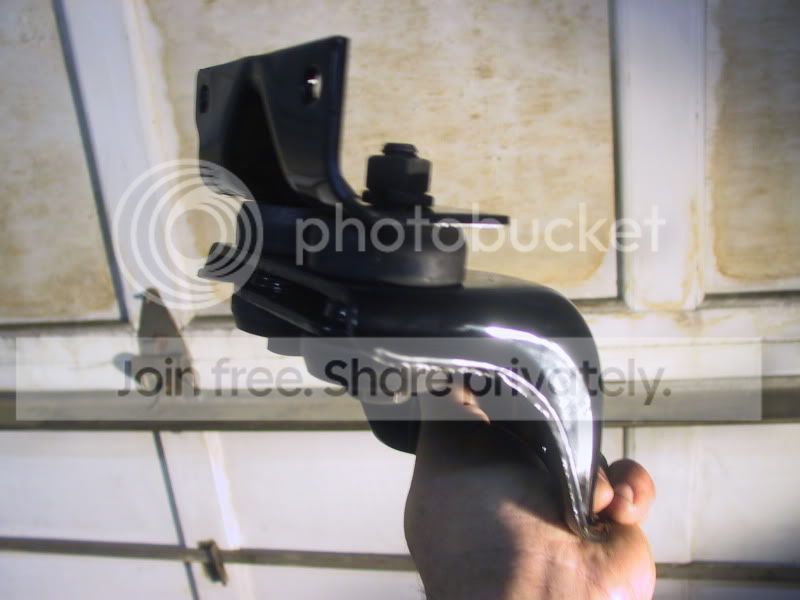

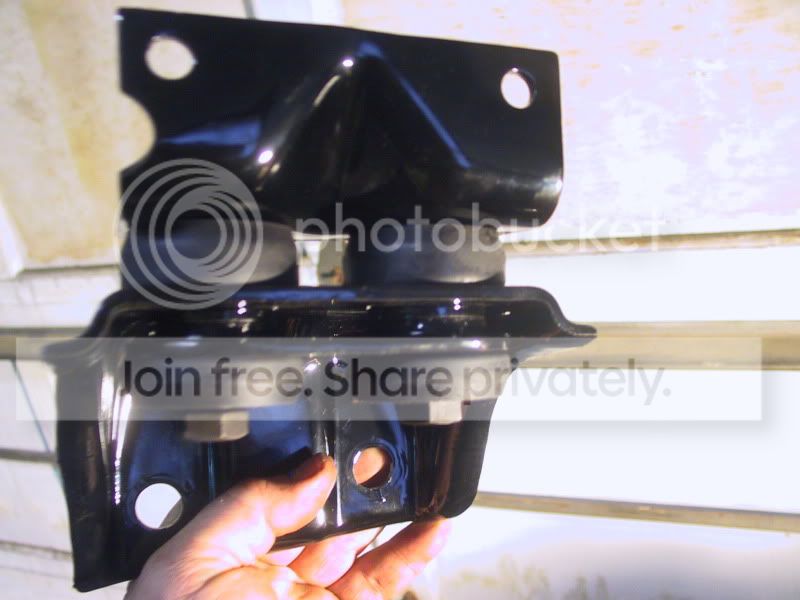

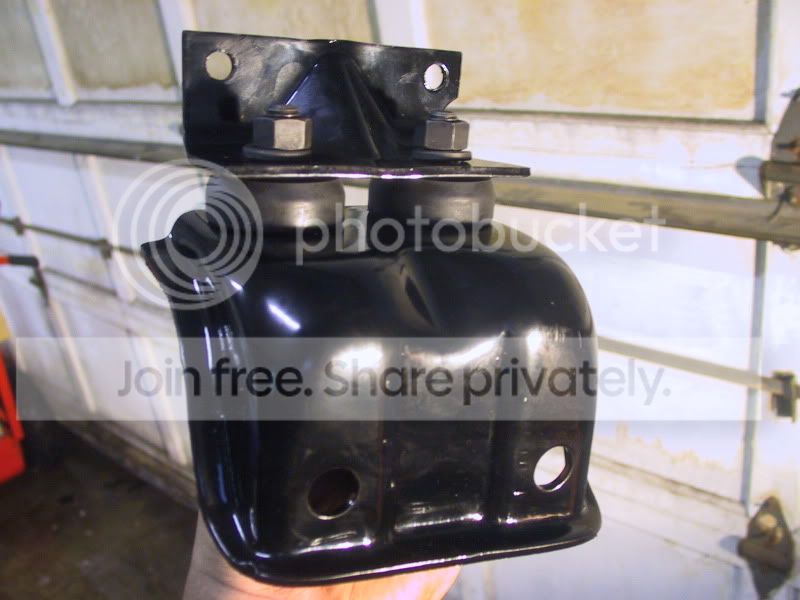

I put mine together today. In case anyone else ever needs pictures I took a few of the assembly

Have mine assembled today



[fesser]

That explains the little stump of cut off steel on the side of my transfer case. I suppose its bad to run one without, right?



[thealien]

The transfer case is very heavy to be hanging off the adapter and transmission hitting bumps let alone the torque applied under heavy acceleration and deceleration. I would want it there?
