rear quater elliptic

[k5blaz]

I'm thinking of a rear elliptic set up for my k5 anybody done this or have any info or even better photos. seen plenty on sammys and jeeps. but not on full size.



[Bubba Ray Boudreaux]

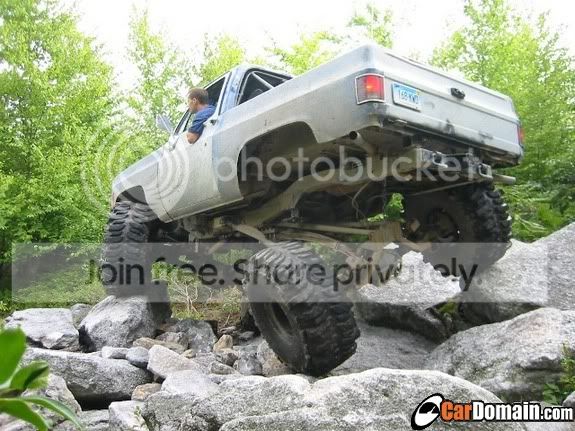

Linkage



[blackblazer717]

sweet linkage!

LUKE



[Masiony]

this is a guy on pirate:



[79k20350]

hes on here to, look under center of gravity, theres a few posts there.



[sled_dog]

this is a guy on pirate:

he used to be around here some too. We have discussed 1/4 eliptical setups a couple of times, check these CoG threads:
http://coloradok5.com/forums/showthread.php?t=127376
http://coloradok5.com/forums/showthread.php?t=96193



[FWP]

"Oh paging Marv Springer, Mr. Springer to the white courtesy phone please"



[marv_springer]

1/4 el. seems to have faded away in the wake of coilovers and air shox.... but I think it still is a cheaper option to suspend a linked setup that is commonly overlooked.

I've not done it on a fullsize Blazer, but this buggy had it [past tense] on both ends:

...and this buggy runs it in the rear in an "unusual way" - where the springs also serve as upper locating links...

Marv



[desertrat67]

I see some green on that there buggy
