STC Top Owners - I need measurements

[AZ79K5Project]

I bought a like new STC soft top for my 79 K5. The thing was missing the 4 brackets that bolt to the truck. I need the dimensions so I can make them.

bracket #1
a= height of the hole from bottom
b=length of bracket
c=distance in between holes
d=overall height

bracket #2
e=length of bracket
f=overall height
g (e oops)=distance from base to center of hole

thanks



[ryoken]

I can get ya that stuff in the morn... stay tuned...



[ryoken]

a = 29/32"
b = 5 5/8"
c = 5 1/8"
d = 1 1/8"

e = 3/8"
f = 1"
g = 4"

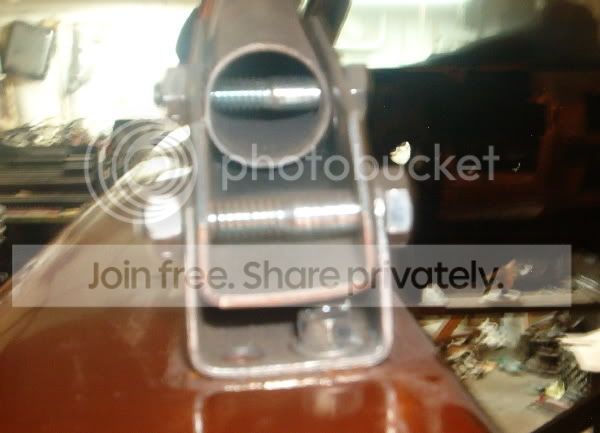

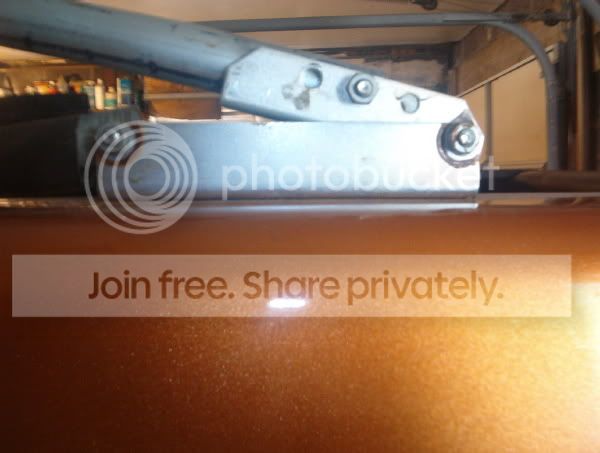

bracket 2 fits just inside of #1

haha, note the fred flintstone floor!



[AZ79K5Project]

Thank you VERY MUCH!!!! Thanks for including some pics.


Let the fab begin on this.
