I will be eternally grateful to whoever can point me towards a schematic for the bulkhead connector for a 89 k5. Particularly the section exposed in picture. Trying to integrate my stock harness for the 5.3 swap! Thanks y'all
CK5
Register an account today to become a member! Once signed in, you'll be able to participate on this site by adding your own topics and posts, as well as connect with other members.
Wiring help! Bulkhead connector
- Thread starter MAX89K5
- Start date
readymix
3/4 ton status
I'll post what I have handy
readymix
3/4 ton status
Another
readymix
3/4 ton status
The first two we're for the van connectors
readymix
3/4 ton status

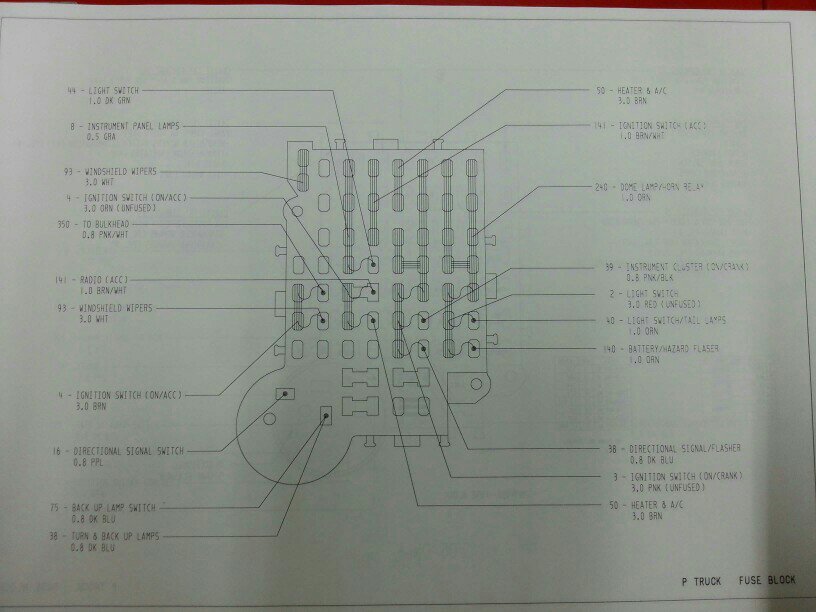

Here are the ones from a 87 p truck
readymix
3/4 ton status
P truck 2
readymix
3/4 ton status

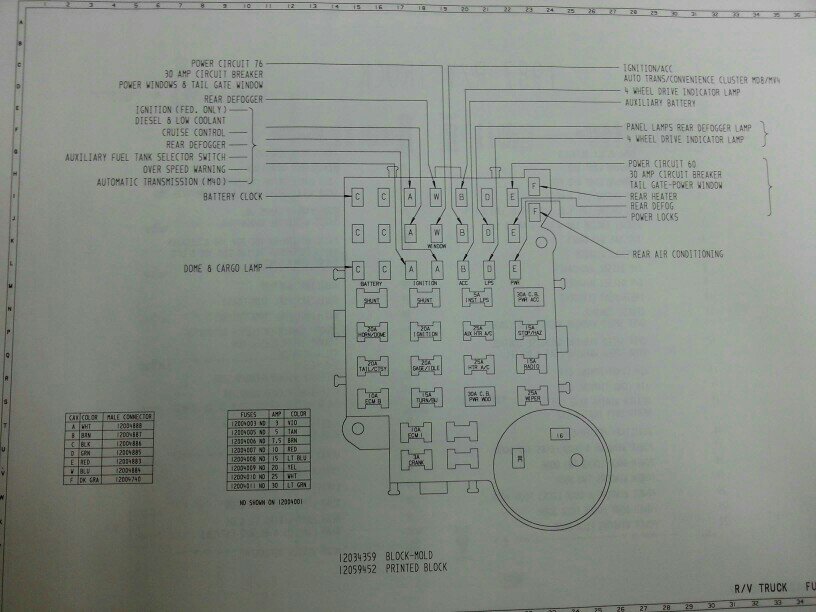

Here is for the r/v truck
readymix
3/4 ton status
R/v truck 2
Awesome thanks, I guess a more specific question would be, what do the light gauge wires do that enter the cab in the right most section? I've got all of the vital wires figured out now im down to 9 thin gauge wires. Any input would be appreciated!
4 tan/blk
1 tan/wht
1 pnk/blk
1 org
1 prp
1 prp/wht
4 tan/blk
1 tan/wht
1 pnk/blk
1 org
1 prp
1 prp/wht
Comon guys I know someone has a pinout for the firewall connector!
readymix
3/4 ton status
I have the full set of factory books. Just need to get the time to look through them for you.
That would be awesome! From what I've read its the C100 firewall connector. Thanks [emoji41]
Awesome thanks, I guess a more specific question would be, what do the light gauge wires do that enter the cab in the right most section? I've got all of the vital wires figured out now im down to 9 thin gauge wires. Any input would be appreciated!
4 tan/blk
1 tan/wht
1 pnk/blk
1 org
1 prp
1 prp/wht
If you have 700r4 purple should be the power to TCC I believe.
Orange is oil pressure switch wiring related or 12v batt I believe. Pink / black is 12v ign. All I remeber off the top of my head.
Google the 67-72 chevy site. They have a whole thread full of FSM's for all different year trucks.
Sweet thanks, I traced these wire back to their sensors, or ecm pins and am deciphering as we speak. [emoji12]
