1990 K5 Duramax Blazer (BroDozer)
- Thread starter Fancy
- Start date
LB7 Duramax and Allison 1000 5 speed in a 1990 Chevy K5 Blazer
Ordered a new billet cap and cover from PSC Motorsports, cleaned up all the internals and components and resealed everything. After doing a lot of research i was lead to believe that Saginaw steering boxes always came with an even number of ball bearings. Either 22 or 24, and in two different sizes which you had to alternate. After talking to a few people and the professionals over at PSC, it was discovered that this was not necessarily the case. I only obtained 25 ball bearings out of mine (thinking i had lost one) and when i was sent fresh bearings by PSC they were all the same size and the box fit 26 and seems to function just fine. Big shout out to Daniel Smith over at PSC for helping me navigate the confusion and selling me the needed parts. I originally tried to install the bearing while the piston was inside the housing and it was achievable however i quickly discovered it was far easier to do while out side the housing and then using a rubber hose and grease to hold them in place while installing the piston. In my case a 3/8th rubber hose did the trick. Another struggle point was installing the components with fresh seals without tearing the nylon seals. A piston ring compressor was a huge help for this.
Last edited:
I decided to go with dupli color engine enamel in cast iron grey for the housing as i will be using the same color on some of the engine components and i think it matches well with the chevy orange. Overall im really happy with how it came out with some minor imperfections. Just need to make the final adjustments and set the specs.
I also added some Everbuilt 6AN to 16mm & 6AN to 18mm power steering fittings with O rings and capped them ready for hoses in the future.
I also added some Everbuilt 6AN to 16mm & 6AN to 18mm power steering fittings with O rings and capped them ready for hoses in the future.
Simply beautiful.
I failed to mention it earlier, there was an episode or 12 where the boys on power nation dropped an earlier dmax in a square body.
I watched it a few years ago...
I failed to mention it earlier, there was an episode or 12 where the boys on power nation dropped an earlier dmax in a square body.
I watched it a few years ago...
Thanks! Ya i referenced those for some guidance but i could never find the full episode or series unless you paid online. Just highlights and promotional segments. I don't have TV either so that was out. They seemed like cool episodes though.
So not a lot of reportable progress as my time has been consumed else where. However i did attach the document that help guide the steering box rebuild. I wasn't about to drop money on expensive tools that i would rarely use, but i wanted to be able to set up the end play correctly and effectively. I ended up fabricating a pair of tools to do the trick and they worked out perfectly. I started by cutting two round circles out of 3/16 plate. I then welded a cheap 3/4 inch socket and two dowels to one to make the spanner tool to set the proper torque on the preload bearing. I then cut a hole and welded a large nut to the other that would fit over the spanner socket, then welded tabs to catch and lock the locking ring in place while holing the proper preload. I then coated them in Lizard Skin Top Coat to help preserve them. Hopefully some more updates to come soon.
Finally got both door jams done. Raptor Lined the door jams using the Raptor Liner 2K aerosol cans, one can for each side. This gave a perfect texture that is easy to wipe down but hopefully very durable. At first i was worried because it was still soft after a week and i didn't think it was going to hold up. After about 2 weeks it was noticeably harder and seems pretty durable. I then used Precision Replacement Parts Door Seal Kit (Part # DWP-1110-73 linked below) to install new seals on both sides and fresh door hinges from United Pacific that i got off Amazon. I went with Auveco 23644 Hex Head SEMS Body Bolts to replace the hinge and body hardware (linked below). I also decided to spice it up with LS Fabrications billet door strikers which were pricy but i think look amazing. Those guys were also very cool to work with and i plan on doing more business with them in the future. Link to door strikers below. More to come soon.
www.summitracing.com
ls-fab.com

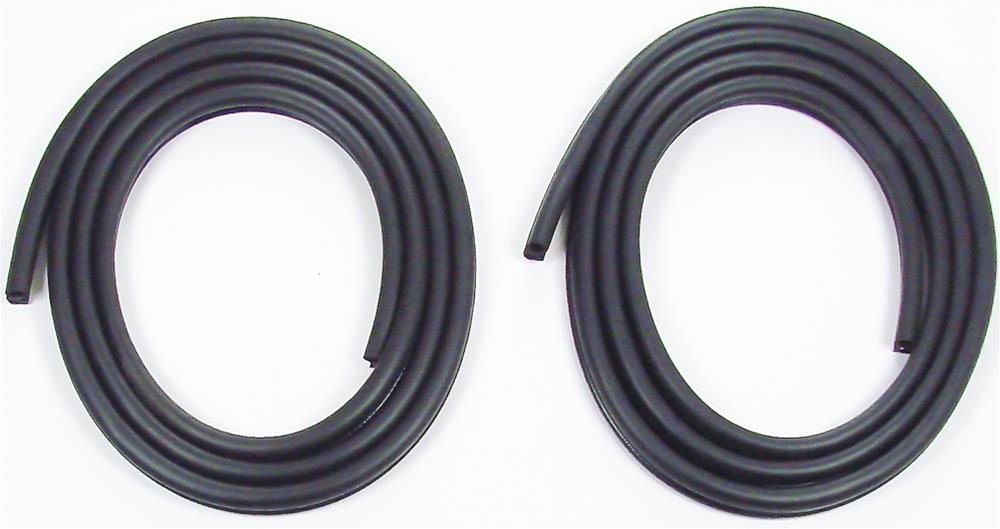

Precision Replacement Parts DWP 1110 73 Precision Replacement Parts Door Seals | Summit Racing
