Well I am Finally Posting my build up. Here is the specs on When it is done. Then I will show what I have done , and have been doing along the way.

89 S-10 Extended Cab .
350 TBI
700R4
231/300 Home Made Doubler.

D60 3 Link With PanHard
18" Sway Away Air shocks.
4.10s , Lockright Alloy USA Shafts , Longfield U Joints. Full Hydro .

D70 Rear , 4.10s 35 spline beef , Rear disks , welded.

Running H1 12 Bolt Double Beadlocks , and 47" Ltb's


I bought it with a blown motor , so got a 350 for it , and threw it in.



[Midwestern4x4Parts]



[Midwestern4x4Parts]



[Midwestern4x4Parts]

Little update. Been acquiring some tooling ,and working on misc stuff. Here is what I have been working on .

Doubler Had a friend weld a block off plate in , and cut a plate for the doubler. Need to call madrooster , and get a shaft ordered. Other than that I need to cut the center , and drill some holes. Started working on building a bender , almost done with it just need to finish boring some holes.

I finally bought a tank for my welder , and got a plasma , and it is great.

This weekend I also bought 5 Hummers , and Tires (to cheap to refuse, and seeing as I am dually F/R . )

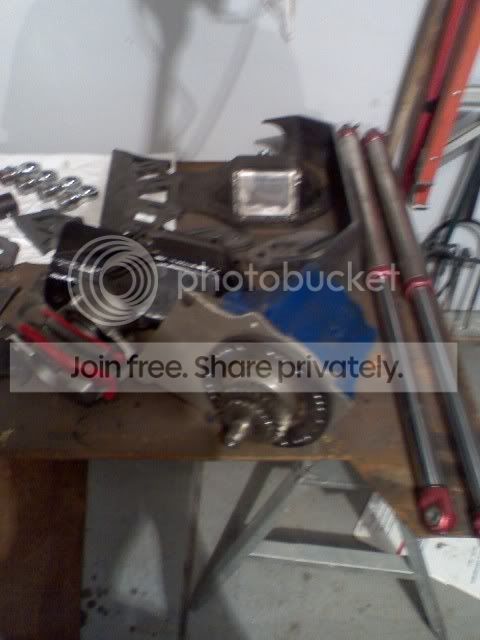

Doubler stuff....



[Midwestern4x4Parts]

More Doubler.....



[Midwestern4x4Parts]

Rear sitting on tires. It is rediculously soft....

Plasma....



[Midwestern4x4Parts]

I have my doubler just about done. I keep recieving parts to do stuff , but have been short on time. Here is a few pictures.
Sorry for crappy pics... Cell phone .

Doubler is home made. More pics later.

So far the parts list is as follows.
GLO Diff Covers
Sniper Fab rear 4 link kit (Brackets)
Shocks
Air Shocks
High Steer Arms
GLO Clocking Ring
Doubler
Bender Die
Calipers
Brake Pads
Lockright.
Heims
Poly's
Tube Inserts
H1 Beadlock Inserts

Gonna order a double ended ram this weekend , or next week once I get an answer to a tech qustion. Also ordering a Steering Valve From Midwest Directional Services.



[Midwestern4x4Parts]

Well been making slow progress , waiting for parts. This weekend the plan is to blaze through the links ,and get the full hydro all done . Then make some Cross members ,and other misc things. Anyways I will update as I progress hope she is sitting on tires tomorrow night. Today we started at 4 made some decent progress but called it a night after the cops showed... Here is pics...

Started out by chopping the front of the frame....

Temp X Member..

Frame Chop time...



[Midwestern4x4Parts]



[Midwestern4x4Parts]



[Midwestern4x4Parts]



[Midwestern4x4Parts]



[Midwestern4x4Parts]



[Midwestern4x4Parts]



[Midwestern4x4Parts]

Well, if your referring to me as well then I'm a whore in more ways than one!:laughing:

I'll let Philip slander this with pics when he gets back home.

Didn't get the hydro steering done, he's gotta rotate the c's since we needed more pinion angle for the two piece front d shaft.

Oops, forgot to notch out and plate the crossmember for link droop clearance...........

Few Pics My Buddy Took.



[Midwestern4x4Parts]

isn't the tranny going to be a pain in the ass now to get out?

It will come out forward , then down. It will suck but there is alot of force there , and I don't want any broken tube. Trans doesn't go in and out much so oh well..

Here are the pictures I took



[Midwestern4x4Parts]



[Midwestern4x4Parts]

Well Small Update. Truck Has been out at RoxRoes Place for about a Month and a half.

He Just started on it , and Is telling me a 1 Month Time Line.

Beginning to Rotating the C's

Started on my c rotating jig..........

Also the Decision was mad to go 3 Link Up front . The packaging with the 4 Link wasn't working to well with the Drive Shaft.

I've got the c's ground so I can see a crack between them and the tube with a few outward schwacks with an 8 lb sledge.

Gonna try to rotate them without heat, with a little hydraulic assistance. Gonna finish dismantling the axle tomorrow and get started on the fixture to hold the axle.

Shop is a little too crowded to put the axle on the table.



[Midwestern4x4Parts]

Well, I hope to get the stand done tomorrow, that is unless I host a beer pong party.

I'm totally digging my buddies kingpin wrench, I can pull shafts and whole outer assemblies as one easily. He ordered the hex stock, bent it, then sent it out for hardening. :grinpimp:

At least got a little start on the stand, yes its galvanized and was free. I'll gouge it where I'm going to weld and do so outside with a mask on. I'm going to put casters on it as my buddy recommended so I can scoot axles around the shop easily.

Well finished the stand today, and got the one c rotated about 4 degrees in about 20 minutes. Going to get a new bottle for my butane torch, think a little bit of heat will make it even better. Just gotta get some castors for this thing next week and weld them on.

Philip, I'm thinking a tandem axle front suspension would be awesome on the 10!
