OK here is something I didn't know tell me more.....

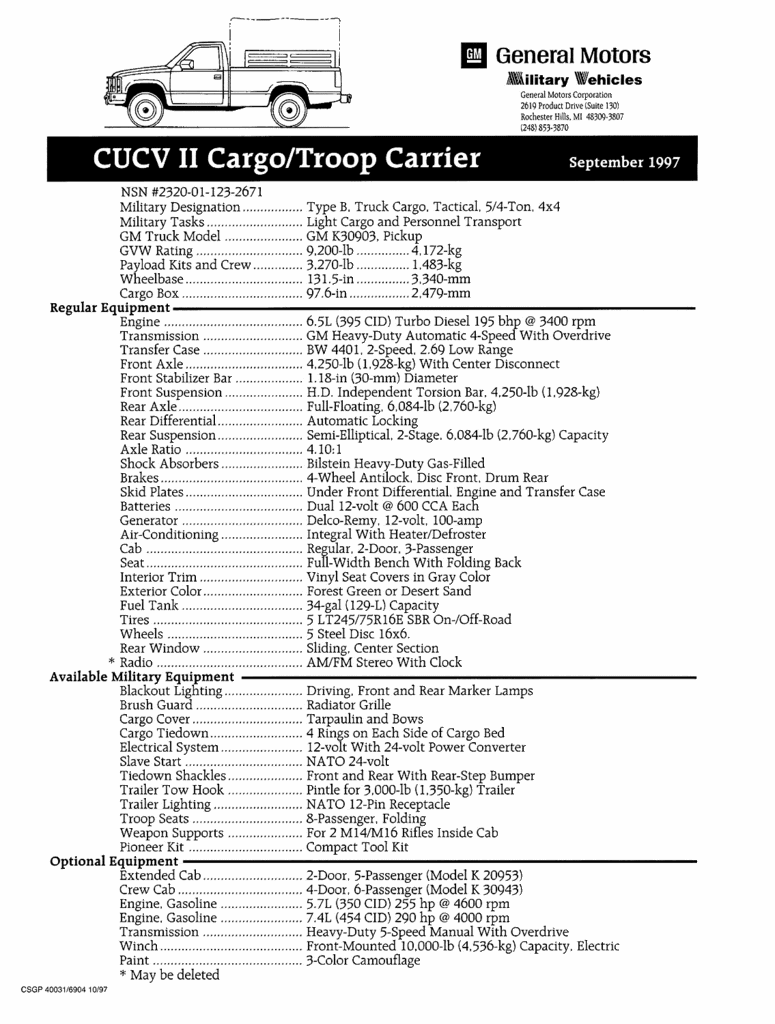

And for those saying Bull..... GM paperwork Thanks to O.A.N.G. 180th motor pool.

NSN 2320-01-123-2671
http://www.olive-drab.com/images/od_cucv_datasheet.gif

resurrected_jimmy said:
same specs as forest service and parks & wildlife trucks from what I understand. I've only ever heard of them being used by the air force

O.A.N.G = Ohio Air National Guard

They use them on Navy bases too. Most were sold off about 2 years ago. I bought one and used it for a while and sold it. Its basicly a 1 ton truck with bare bones interior. I got mine from a sale near Pensacola. Paid 2800 for it Had 33k miles on it. 6.5. 91 model It did not have the brush guard, but it did have the jump seats in the back.

I've seen a couple of rural fire depts that had these. Now I know where they got them. Didn't have the front brush guards though.

George

Everyone had em when I was in Turkey. Like you said, bare bones. Most were deisel from what I remember.

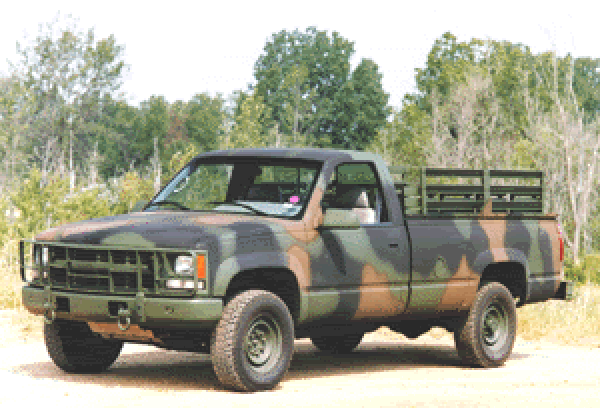

Camo was optional on them as well, lots of them just look like regular Chevy trucks, usually painted white. Just ordered/optioned for the military or federal use

I saw something on post the other day that interested me, but I can't find any info on it. It appears to be an 06 2500 or 3500 (no badges) SRW 4X4 diesel. Has a custom brush guard unlike anything I have in the military and what appeared to be double bead locks. It was an camo Air Force truck. Other than that sighting I can not find any info on it.

Thats a brush guard. I like it. No place for a winch in that config but thats changeable with a torch and welder
George

I've seen them in the newer body style also

Edit:

Here












Even found more


Wikipedia
CUCV II

Chevrolet had been building a few CUCV's since the 1986 model year, mainly in low numbers to accommodate military markets that need replacements or other units that need this style of vehicle. In 1996 Chevrolet decided to start building a new generation of a CUCV to try and regain their marketplace in this niche. Mostly the US Air Force were buying small quantities of these units and then GM dubbed them as the CUCV II generation. These were produced through 2001 and were civilian units sent to another plant for "militarization" on special order. They are basic C30's (1 ton chassis) that were originally built as white in color with gray vinyl interiors. After the usual 383 green CARC paint jobs, the bumpers and grill were the next to get customized with pintle and towing/loading shackles, extra leaf springs installed to give them a 5/4 ton rating and a host of other small changes. Only on special order would they be a 24/12 volt system. All heavy duty items are used and they are very similar to the early CUCV's.
In 2001, GM dropped the 6.5 TD engines to introduce the new generation of a Turbo Diesel dubbed the '6.6L Duramax V8 engine' which was a combined effort from Isuzu and Detroit Diesel. The 6.6 DuraMax however may see some changes in the very near future as they 'prove' themselves. They have a cast Iron block with aluminium cylinder heads. It is a totally 'electronic' engine. It is coupled with an Allison 1000 series transmission previously used in larger trucks i.e.; school buses, dumps and etc.

[edit] CUCV III

In 2002, GM introduced the CUCV III with the new body shell. Both the II and III come with AM-FM stereo and Air Conditioning. They also come with available options such as: Brushguard, Air Compressor, On Board Navigation System, 120 VAC Inverter, front or rear winch and runflat tires.

The one I saw was like the one in your third picture (with the big brush gaurd). It had the bead lock rims on it though, not the factory style like that one.

Once upon a time there was a pic that circulated of a CUCV prototype that looked like an Avalanche before it was a civilian production truck.
