need pics please of 91' blazer engine compartment

[big d]

need pics please of what a stock engine is suppost to look like (or close), and pic of where the horns and vapor canister are properly located at. i recently picked up a 91' blazer and the p.o.'s havin done some re-arrenging thanks in advance. also if any one has and old 91' blazer owners manual they dont want, pm me, ill take it off yur hands.



[blazerguy 90]

I don`t have any pictures, but on my 90 blazer (same as your 91) the vapor canister is located on the driver side just behind the head lights. im not sure were the horn is located.



[thfonz98]

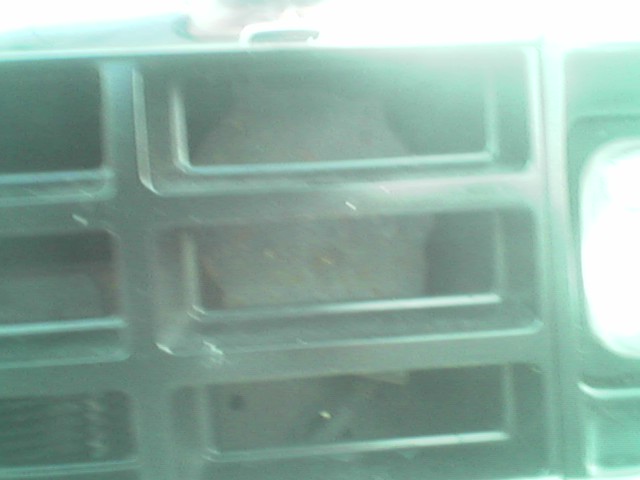

from my "91(horns are behind the grill on both sides)

horn1: http://www.bowlingballexchange.com//upload_files/horn1.jpg

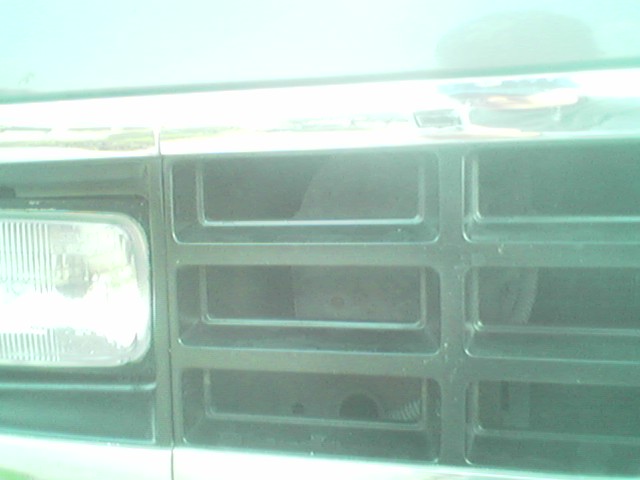

horn2: http://www.bowlingballexchange.com//upload_files/horn2.jpg

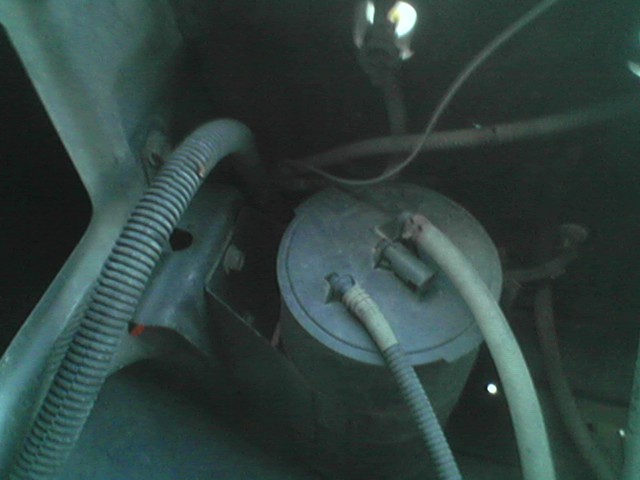

canister: http://www.bowlingballexchange.com//upload_files/canister.jpg



[big d]

thanks, that quite a bit of help, but still need pics of complete engine. thanks again.



[thfonz98]

just took a bunch of pics:

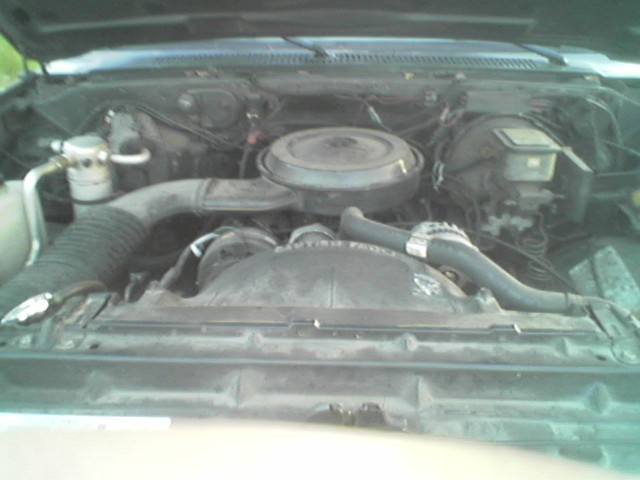

1: http://www.bowlingballexchange.com//upload_files/engine1.jpg

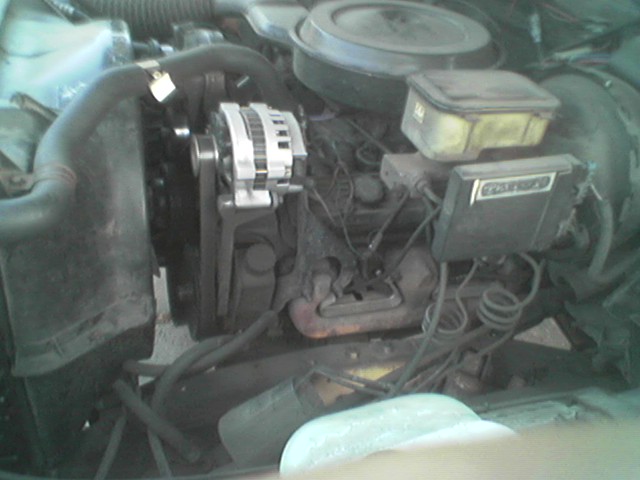

2: http://www.bowlingballexchange.com//upload_files/engine2.jpg (on the bottom of pic above washer fluid is the horn for the alarm.)

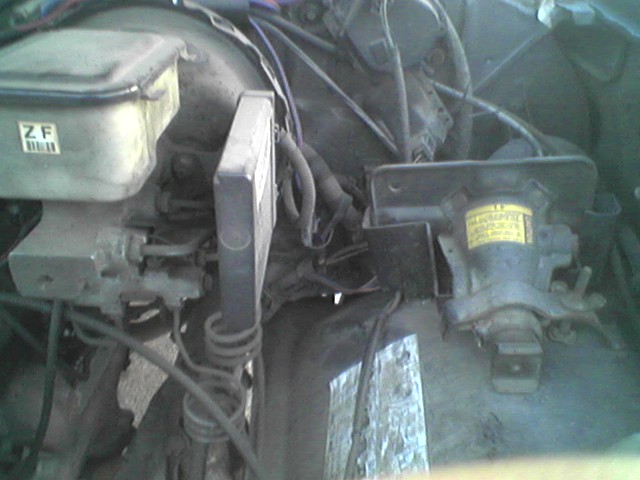

3: http://www.bowlingballexchange.com//upload_files/engine3.jpg

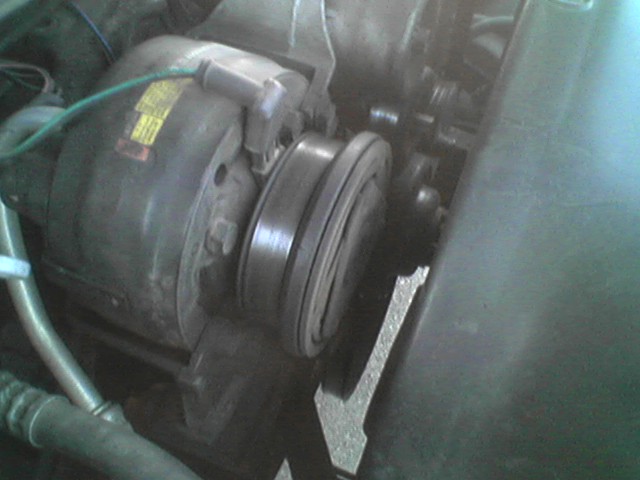

4: http://www.bowlingballexchange.com//upload_files/engine4.jpg (thought i took a better pic than that!)

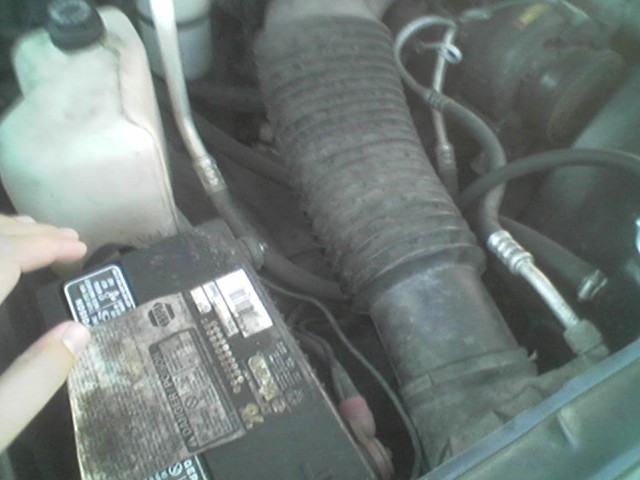

5: http://www.bowlingballexchange.com//upload_files/engine5.jpg

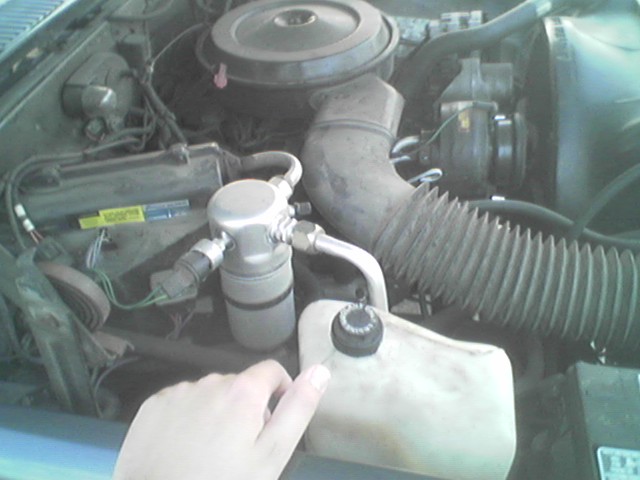

6: http://www.bowlingballexchange.com//upload_files/engine6.jpg



[big jimmy 91]

I have one pic of my 91 jimmy,350 in my web shots #16
It's not much but it may help

http://community.webshots.com/user/bigjimmy91



[big d]

kick ass guys, thanks.
