How are your gauges mounted?

NEK5

NEK5

3/4 ton status
Joined
Oct 25, 2005
Posts
9,843
Reaction score
39
Location
Ipswich MA
I'm stuck with how to mount my gauges for my rig. I have a stock bezel, but the gauges I`m using are 2 1/16th, and 3 1/8th inches, so not quite as big as factory. Until I can get a custom dash ;);), I need to rig something up so I can have them in the truck. Any ideas? I tried one idea of putting sheet metal over the "face" of the bezel, but that failed miserably, and I still couldn`t figure out how I would cut the holes....

TIA!

Mine are mounted just like the factory did them:D


Dik

idk how well this would work, but i wanna strip my dash pad down and when i do im gonna look more into it, but i thought about trying to get a piece of diamond plate bent just like the stock dash and cutting out my holes to fit. idk how it would work, but in my head it looks sweet:D

If you want to cover the front of the dash with something that looks good buy a brushed stainless kick panel that they put on bottoms of doors, like in buisnesses or hospitals or offices. They should sell them at lowes or home depot, can't cost that much.
Tarey

thats not quite what i was thinkin but i like it! looks sweet! what kind of diamond plate did you use in order to bend it like that?

it wasnt very thick i think its 1/16th thick had a piece laying around the shop so i decided to do something with it

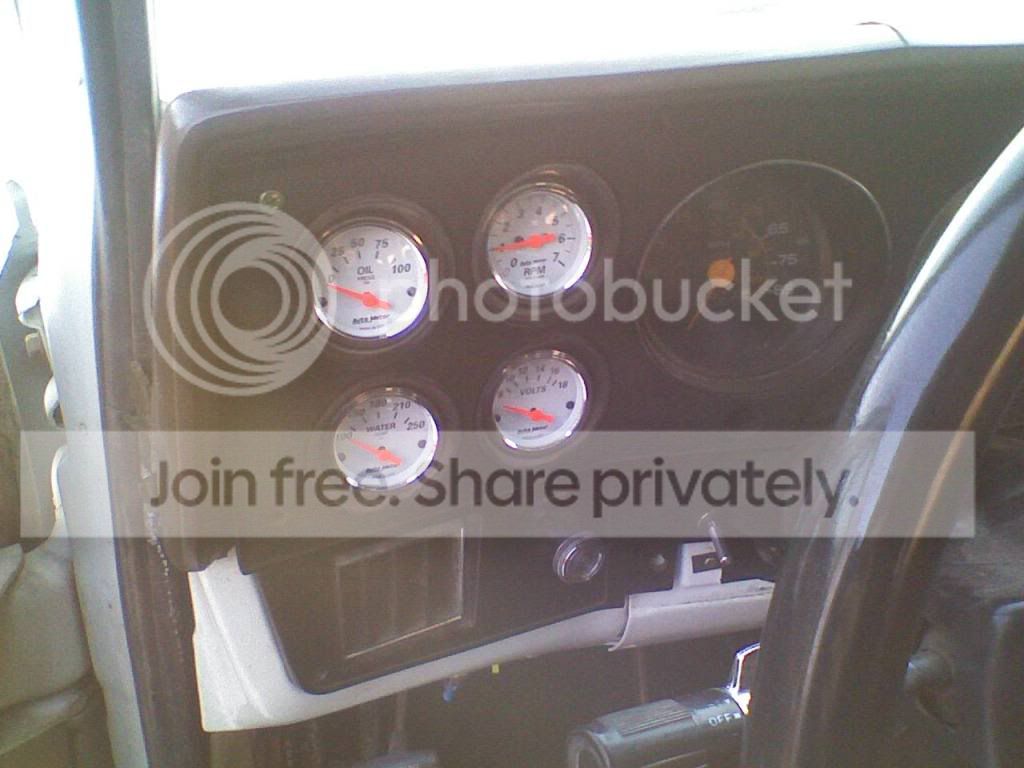

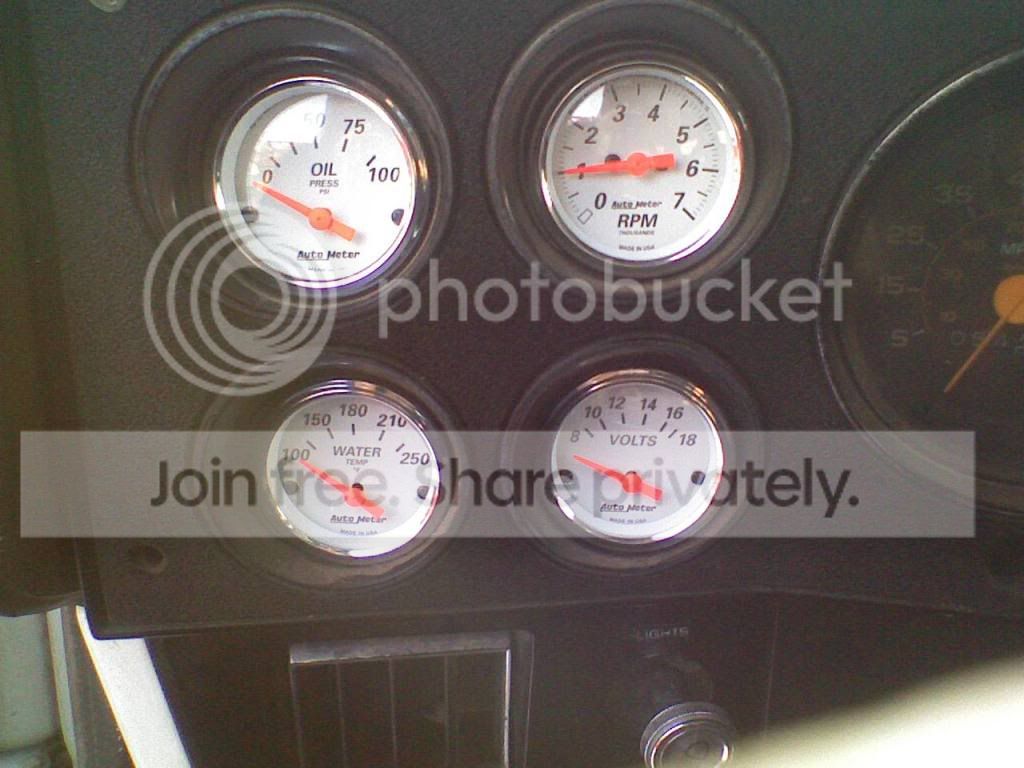

I cut the holes bigger in the gauge plate and mounted 2 1/16 in the openings.
I haven’t mounted the gauge bezel yet, but a test fit made it looks like the alinement is going to be little bit off.




Ben, when I mounted the one 2 1/16 water temp gauge into my factory bezel, I used a 2 1/16 hole saw and centered the bit over the opening. When the gauge is in place, it basically lines up with the original chrome that went around the edge. Sorry, I don't have a camera to take a pic. The only problem I have run into is that the angle makes it a bit hard to see through the center of the range (short sweep gauge), but not unbearable.

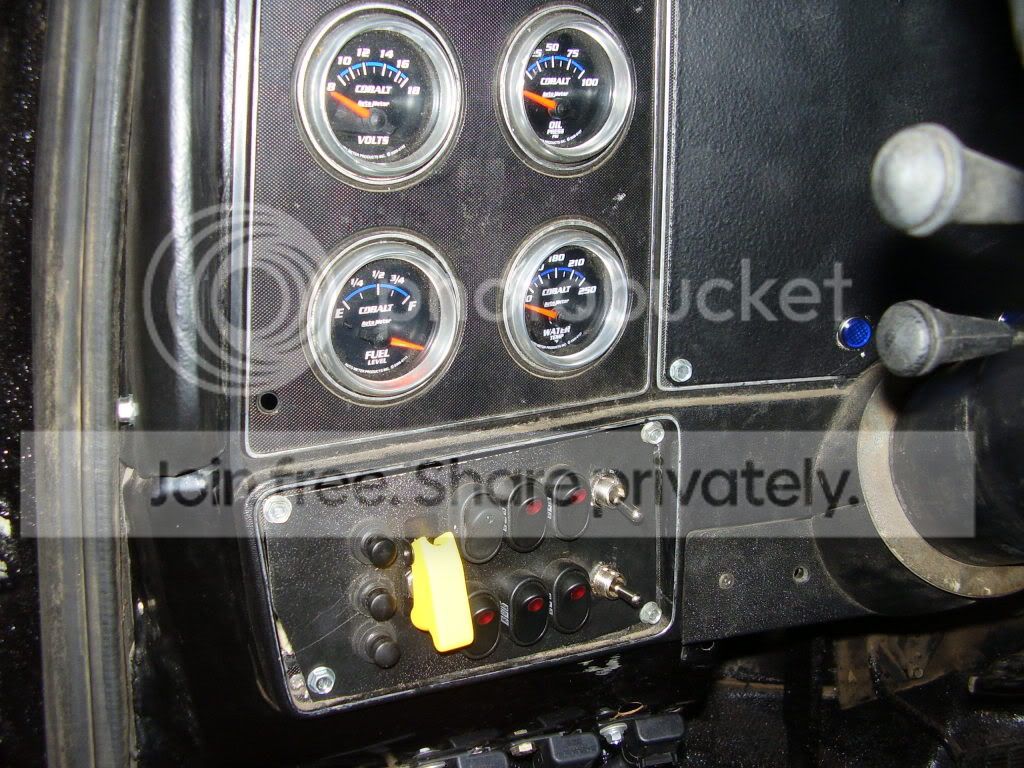

When I did mine, I sanded/ground the backside of the dash smooth then I applied some jb weld and mounted a plate to the back, I measured and drilled my holes with a holesaw and this is the result!


K10 KRAWLER said:
When I did mine, I sanded/ground the backside of the dash smooth then I applied some jb weld and mounted a plate to the back, I measured and drilled my holes with a holesaw and this is the result!

Click to expand...
I think u need some more switchs!:haha:
No really what are they for do u use them all? is this a DD?

Nopeits a trail Rig, ill tell u whats going on here. Push buttons: top is wash fluid, middle is the start button and the bottom is the horn. the big yellow one is main power, and the toggles are: Winch, Elec fans, running lights, fog lights, 360 degree lighting, and in cab lights. and the chrome switches are for Headlight high/low/off and wiper high/low/off

sparkey83 dash looks just like i want mine.what size gauges and are they manual or electric?

i will have to double check the size because i bought the same guages for my v8 ranger just bigger, and they are electric
