Pecmoney's 5.3 Swap Thread.

Discussion in 'The Engine Bay' started by Pecmoney, Feb 10, 2016.

  1. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois
    Brought the 5.3 home yesterday. Figured it was time to start the swap thread that way questions can be asked and answered from all angles. The 5.3 is out of a 2000 Silverado 4x4. I got it complete with harness and computer minus the starter for 500 bux. It has 130,000 miles on it. The guy I bought it from was financially strapped and I pounced on the situation.

    I will be doing my own wiring with help from lt1swap.com and will do my best to detail as much as possible. Wish me luck.

    [​IMG]

    bmxbryant9, NorCalAnthony and skunked like this.
  2. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois
    Decided that I am going to go the way of building my own fuse block described on lt1swap.com. Just ordered everything that was listed for the fuse block build. One step closer. Up next, Dirty Dingo Mounts. Wish I could have sourced these electronics locally, the shipping cost more than the parts.

  3. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois

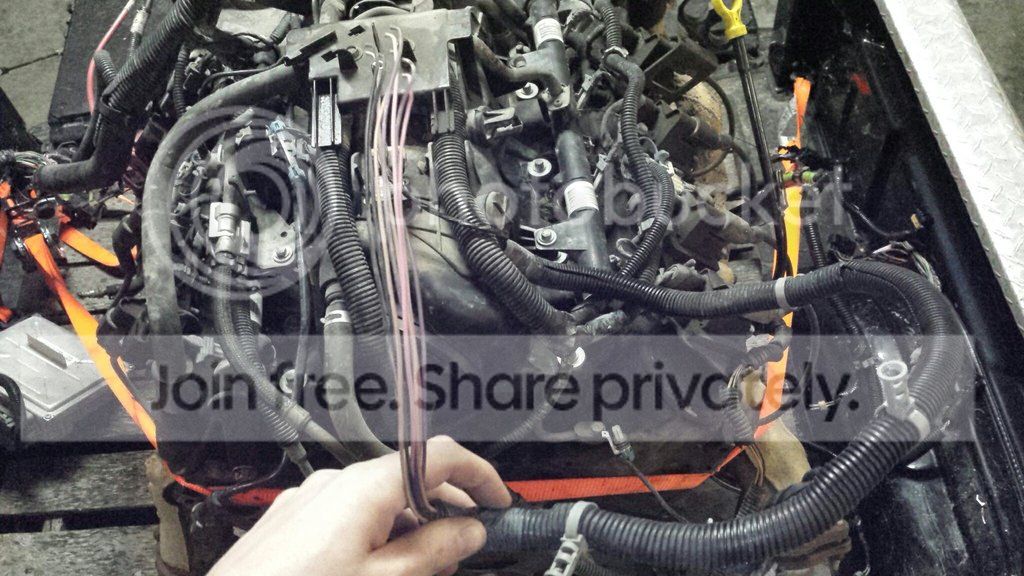

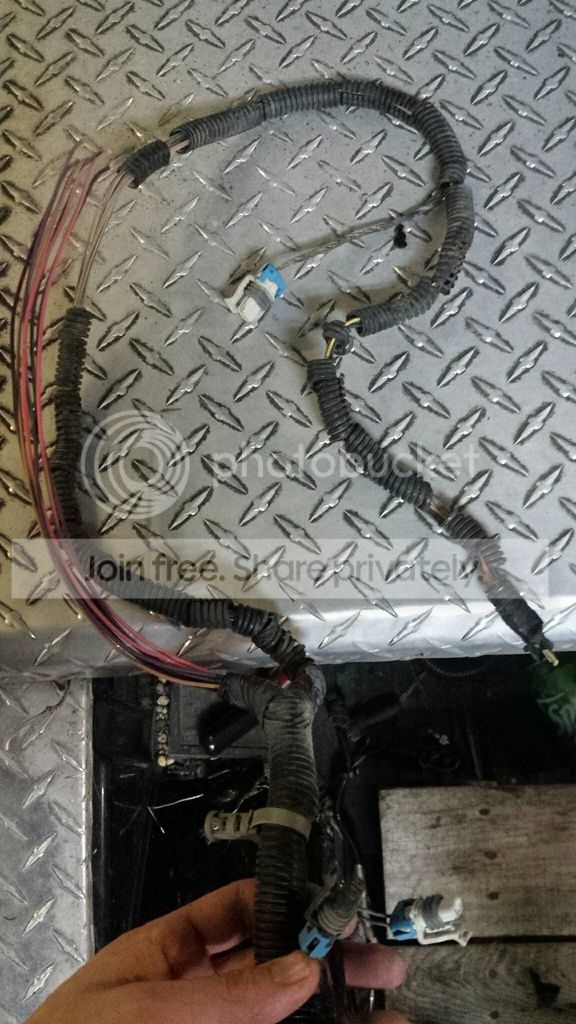

    Well, started to take the wiring harness off the 5.3 and found this.
    [​IMG]
    I hope its part of the harness that gets deleted. Can't believe I missed this in the inspection before I bought it.
    Also on the same run of wires farther down the loom another connector cut.
    [​IMG]
    Anyone with information on what these were for would be greatly appreciated.

  4. POORBOYK5

    POORBOYK5 Poor and homeless Premium Member GMOTM Winner

    Joined:
    Dec 28, 2008
    Posts:
    1,322
    Likes Received:
    28
    Location:
    Colorado Springs
    Are there any other connectors on that leg of the harness? It appears to be the pass side o2's and MAF leg of the Harness.

  5. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois
    Yes... getting a picture now... will add photo in a second.
    edit: photo added.
    [​IMG]

    Last edited: Feb 11, 2016
  6. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois
    Whatever it is, I hope it can be fixed. Or is not needed.

  7. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois

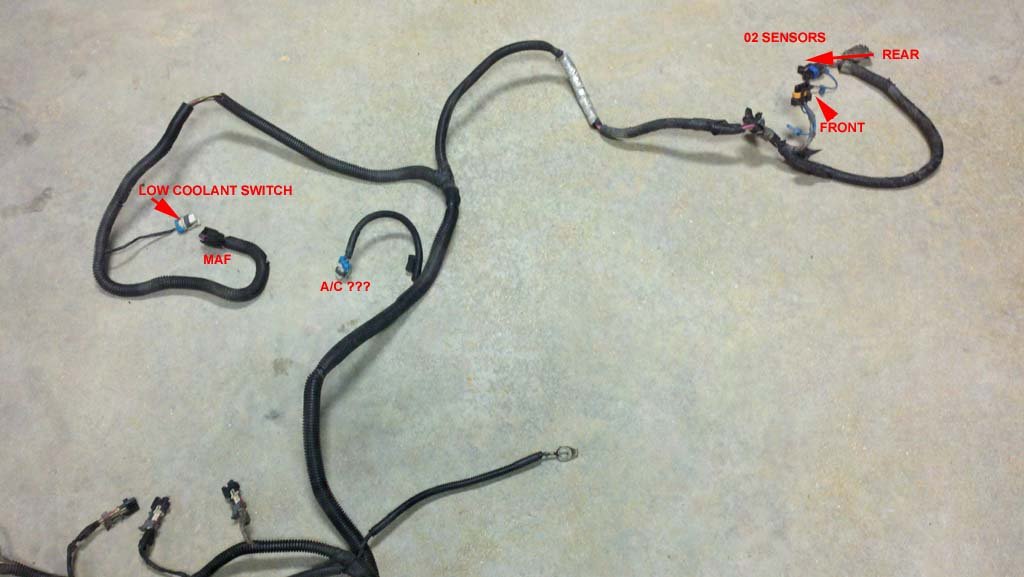

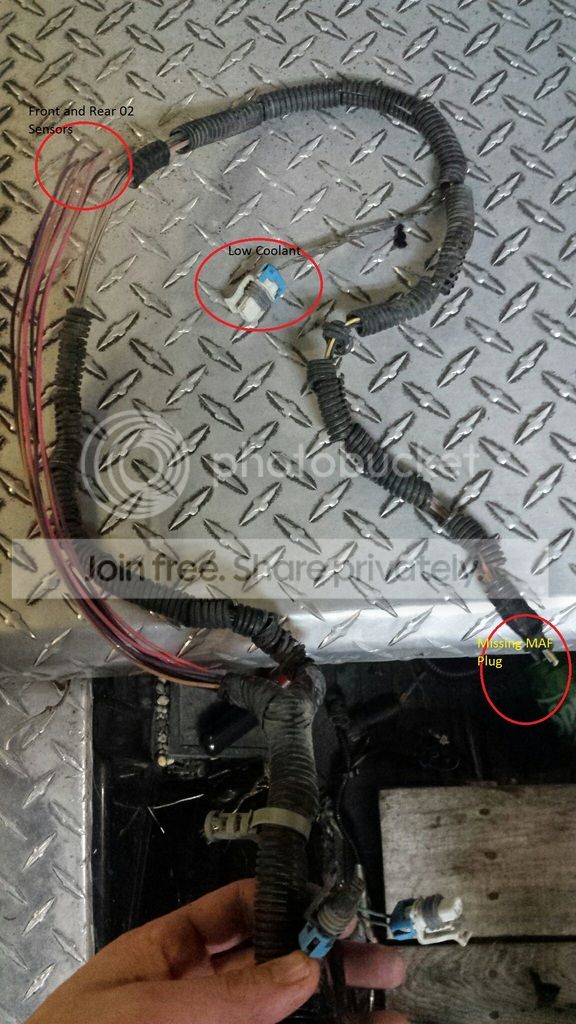

    Alright figured it out. This is from lt1swap.com
    [​IMG]
    This is my harness
    [​IMG]
    I can replace the MAF plug easily. Do I need any of the front and rear 02 sensors that are cut off. Or will this be deleted?

  8. POORBOYK5

    POORBOYK5 Poor and homeless Premium Member GMOTM Winner

    Joined:
    Dec 28, 2008
    Posts:
    1,322
    Likes Received:
    28
    Location:
    Colorado Springs
    You will need the front o2. Rear typically gets removed.

    Last edited: Feb 11, 2016
  9. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois
    Thanks

  10. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois
    Fuse block components came in today. Waiting on a few more pieces from mouser.com and I will build the fuse block.
    [​IMG]

  11. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois

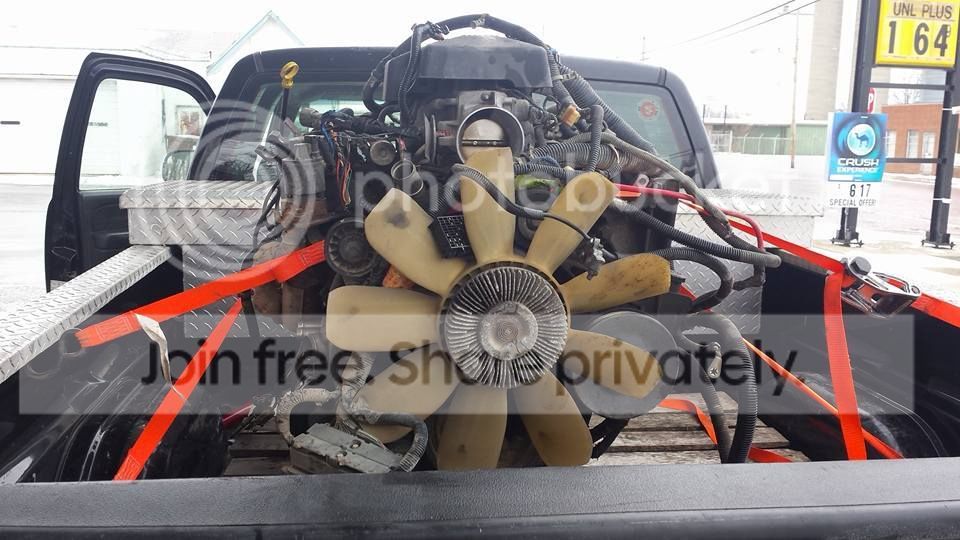

    Coming out of the truck

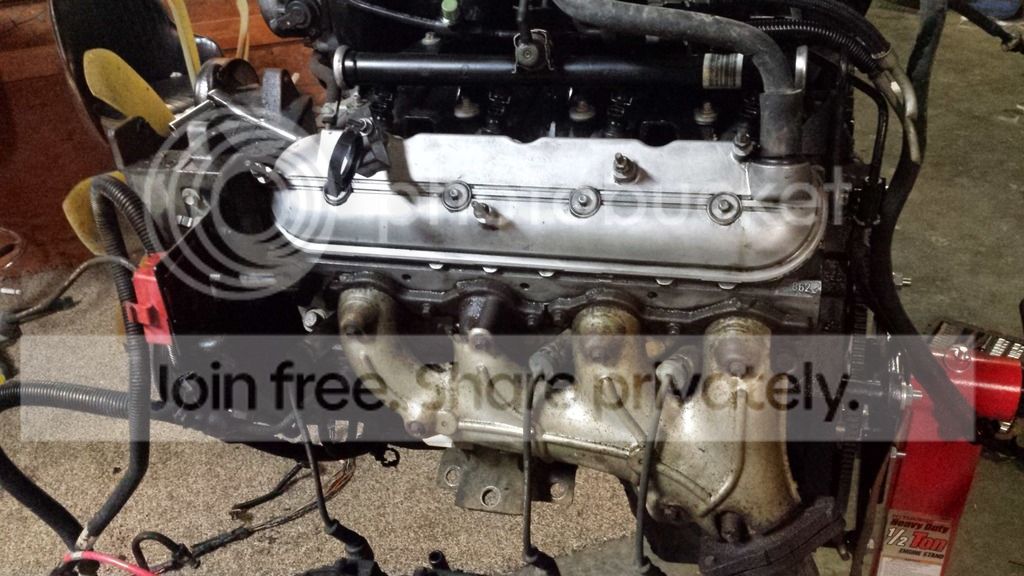

    On the stand. Now the harness off and cleaning begins.

  12. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois
    Alright folks I have a few questions. First, getting ready to start reworking the harness. I'm using the lt1swap.com guide to do this. However, he says to get rid of the Delivered Torque Signal wire, won't I need this since I'm going to be using a 4l60E transmission? Also he says to get rid of the Cruise Control Engage Signal. I would like to keep cruise control so should I keep this wire? He also says to get rid of the 4 wheel drive Front axle switch. Not sure what this does or if I need it. Any help would be appreciated.

  13. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois
    Okay, the Delivered Torque Signal has to do with the traction control. I wont have this on my 91 k5, so it DOES get deleted. I'm guessing that the 4 wheel drive front axle switch is also not needed since the transfer case that I have is manually put into 4wd. Still trying to figure out the cruise control engage. I have made some progress though.

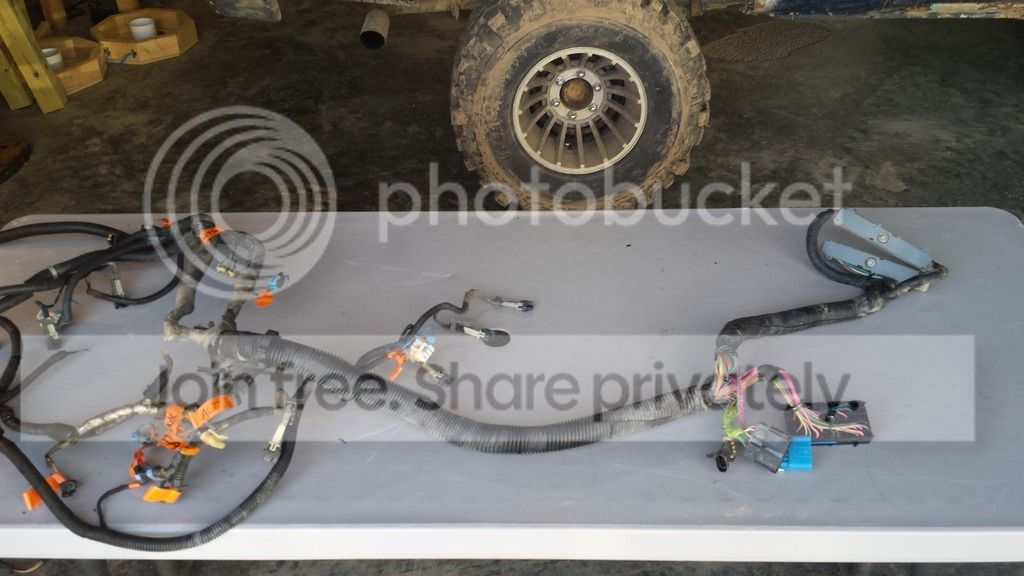

    Engine harness labeled and off.
    [​IMG]

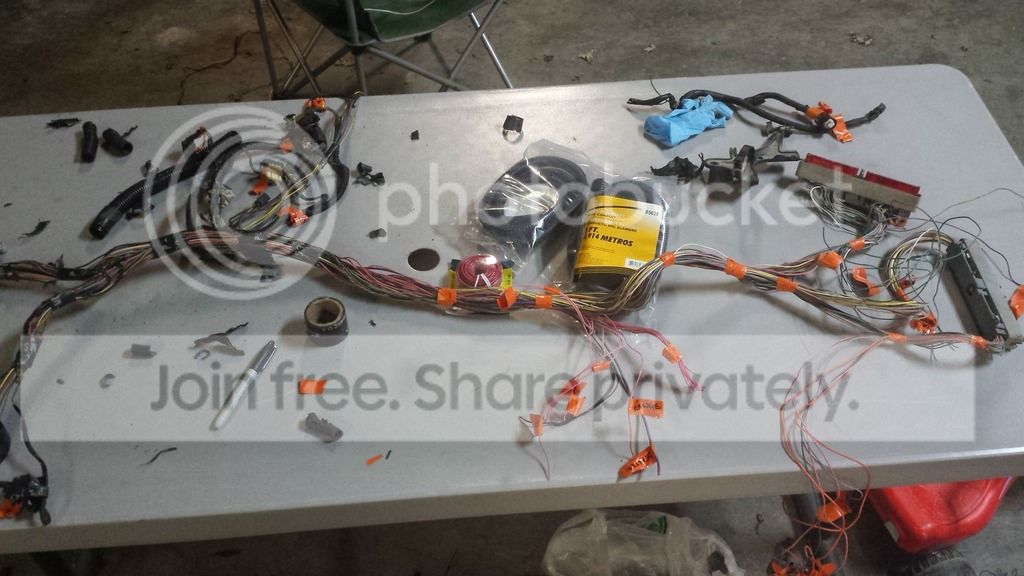

    Clean up started.
    [​IMG]

  14. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois

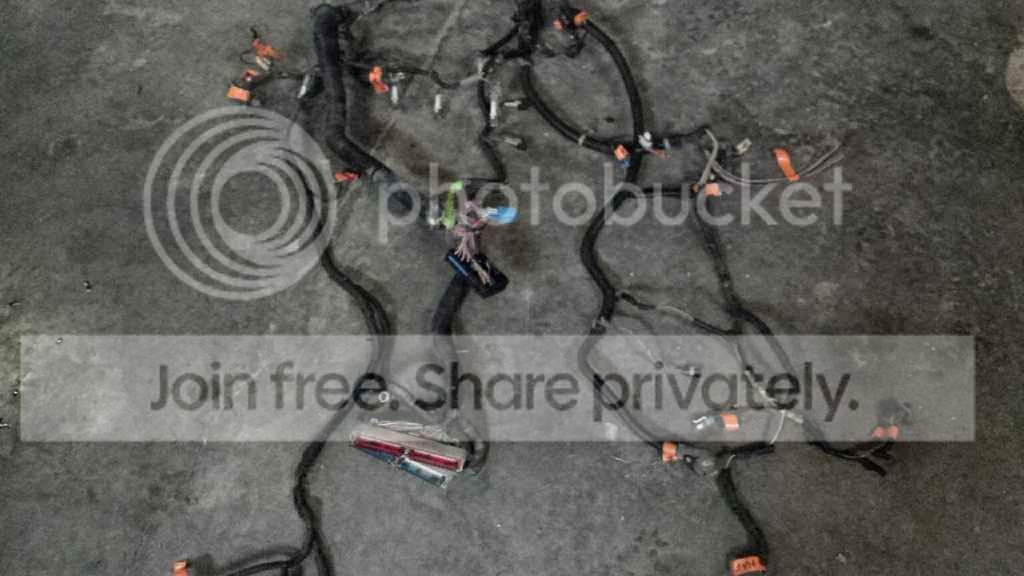

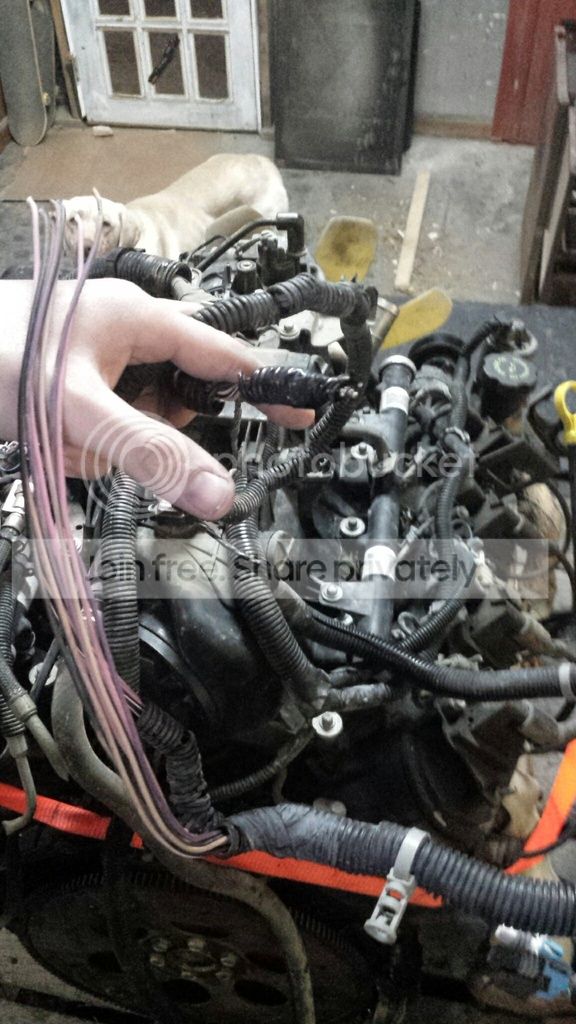

    Half way through the wiring harness.
    [​IMG]
    [​IMG]
    Not bad really.

  15. Jumppr

    Jumppr 1/2 ton status Premium Member

    Joined:
    Dec 9, 2014
    Posts:
    111
    Likes Received:
    55
    Location:
    Clovis, Ca
    I'll be following along on this.....I'm getting mine ready to do the same thing in a few months.

  16. Team208Motorsports

    Team208Motorsports Its Magic Bitch Vendor

    Joined:
    Jun 30, 2015
    Posts:
    438
    Likes Received:
    251
    Location:
    Idaho
    The LT1Swap site is a great site. If you have any questions on what wiring where.... Just tag me in a post.

  17. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois
    I hope that I can document this swap thoroughly enough to help others. Also, y5mgisi's thread (https://ck5.com/forums/threads/my-5-3-swap-thread.291277/) on his swap is helping me out as well. Haven't got the wiring finished yet because my wife's cousin passed away Friday. Hope to get back on it tonight or tomorrow.

  18. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois
    WARNING!!!!!!!!

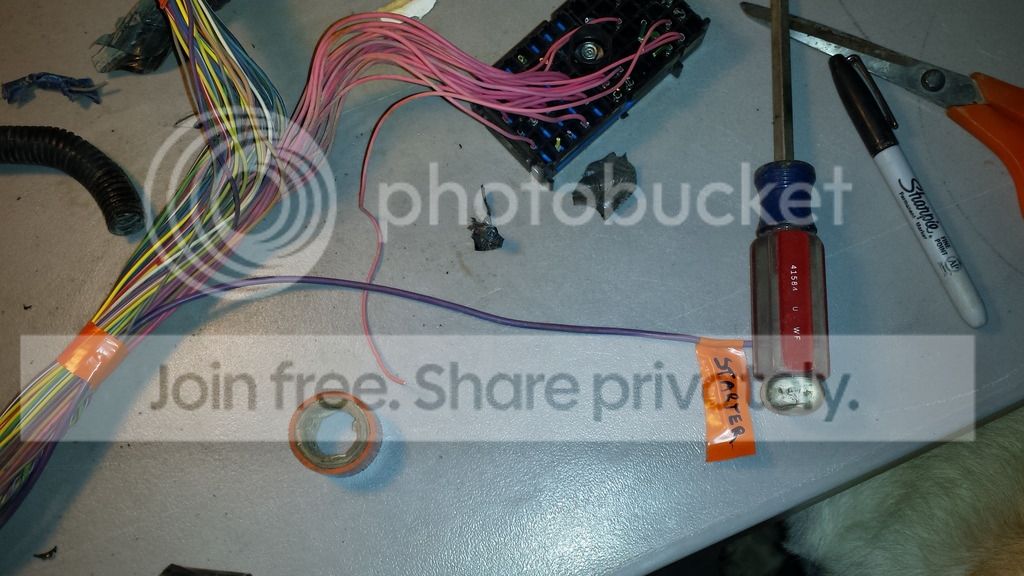

    Alright folks, something that is not pointed out on the lt1swap.com site is that this THICK 14 GAUGE PURPLE WIRE is the wire that runs to the starter. Once you cut it from the fuse block, LABEL IT. Started taking this out of the harness and got to the end and realized that this is the starter wire. MUST HAVE. don't pull this out just snip it from the fuse block.
    [​IMG]

  19. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois
    Rewire done. Now to tape and loom and connect wires to the new fuse block. Getting there.
    [​IMG]

  20. Pecmoney

    Pecmoney Morale Is Up. Premium Member

    Joined:
    Sep 27, 2015
    Posts:
    76
    Likes Received:
    4
    Location:
    Pinckneyville Illinois

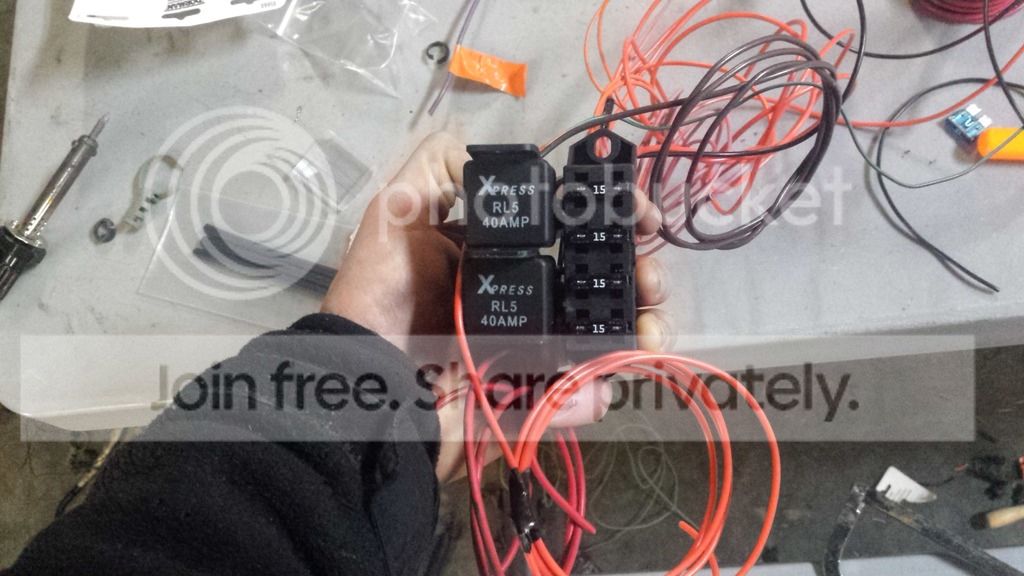

    Alright got the fuse block wired up
    [​IMG]

    NorCalAnthony likes this.
