ok all done!
First off let me say that anyone intimidated by the 2wd sector shaft swap needs to not worry. It was such a peice of cake i dont even know why it is an issue... Old one comes out with the 4 bolts loose with the top cap, new one goes in. Then adjust the allen and its all good.
So initially i got a 2wd box from the j yard from a 74. got ready to do the swap and found out my box had been changed to a newer one.... Doh. So i tackled the sector shaft swap blindly and it went perfect.
so here is the parts list.
Stock 80s blazer tie rod with both ends on it.
eg. ES2233LM and EX2234R

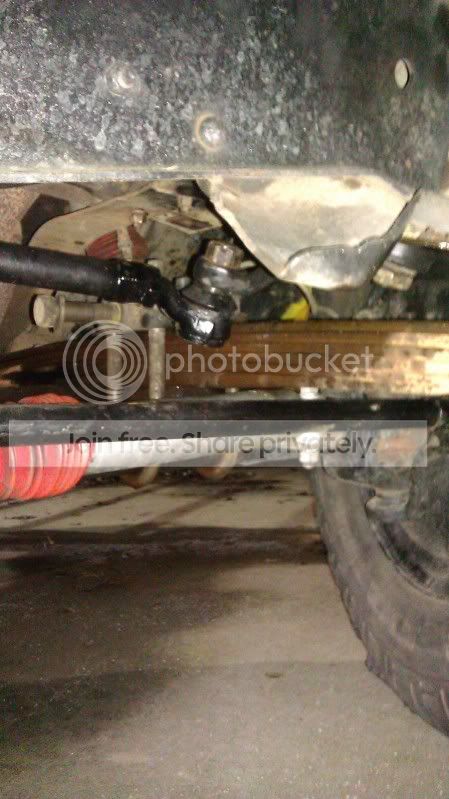

you take the ES2233LM and have the hole that used to be for the steering stabilizer reamed for a TRE.
then you need a lh thread tie rod end to replace it since this will be your new draglink.
EX2234L works for this or you could use a drag link end.

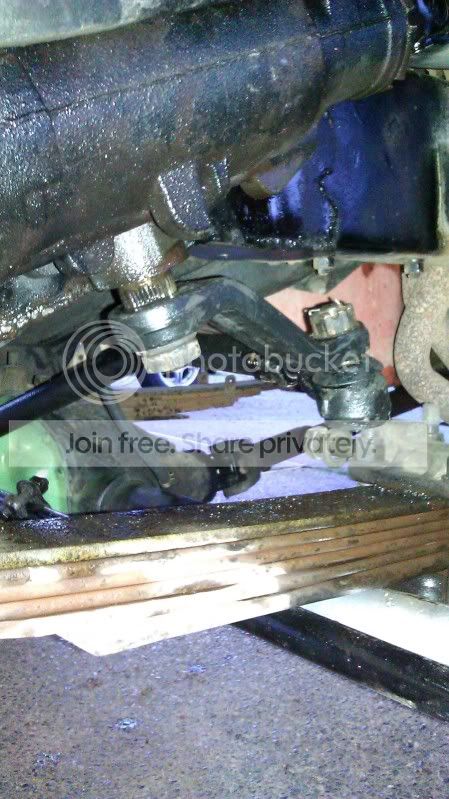

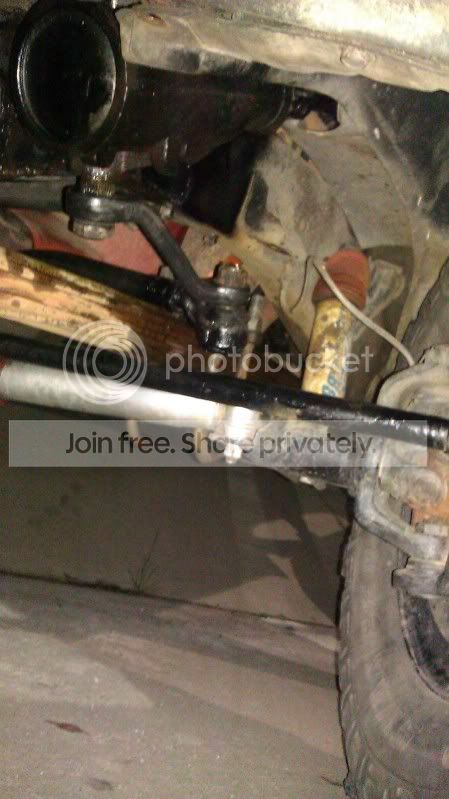

Now for a pittman arm i got one off of a xj and had it reamed for a TRE since the stock hole is too small. The xj arm is simular to superlift 1104. and has 4 flats so it can be indexed for push pull or x over setups.

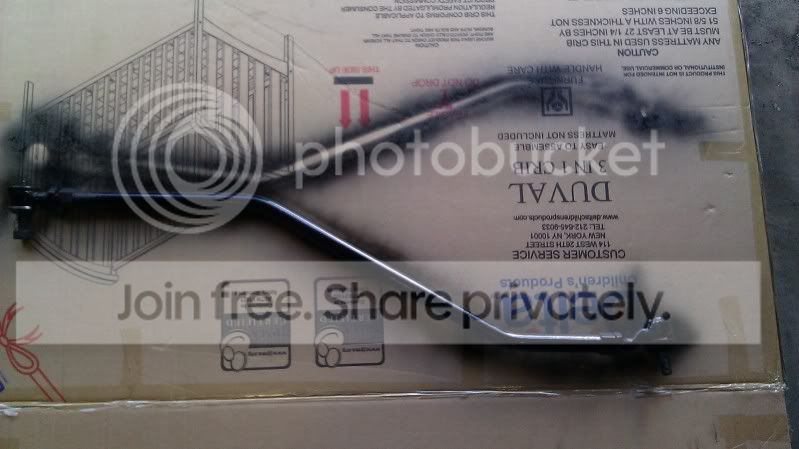

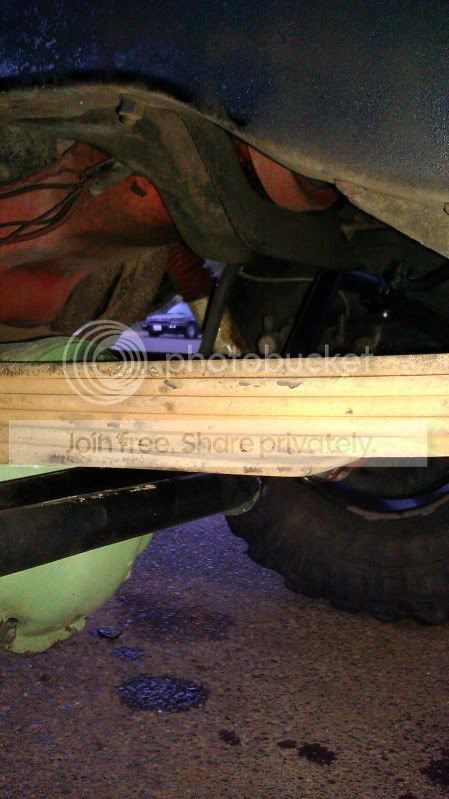

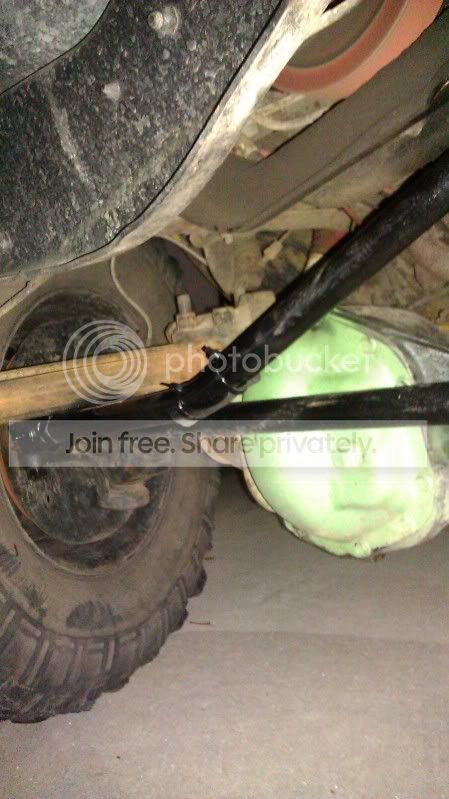

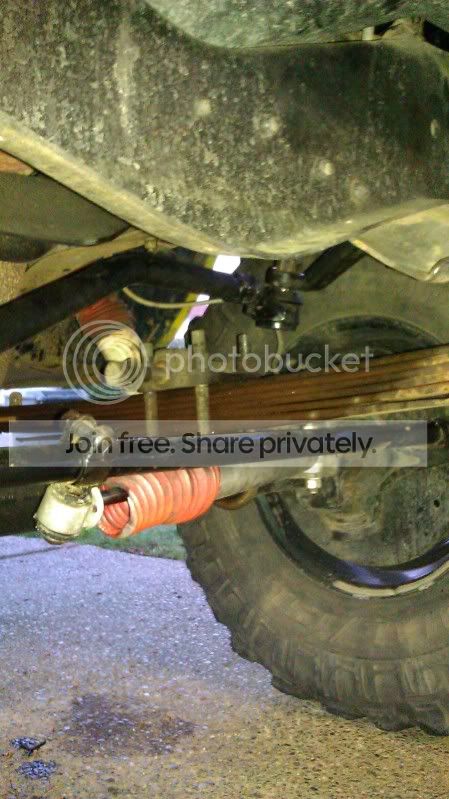

I took my stock 80s tierod to the shop and bent it up. One right after the threads on the pittman arm side, then 18inches down back to parallell.
Overall cost.
all junkyard finds
Pittman arm $5
2wd box $10
stock 80s tierod with both Tie rod ends $10
cost for WFO to ream pittman and EX2234L TRE $30
Total= $55 bucks

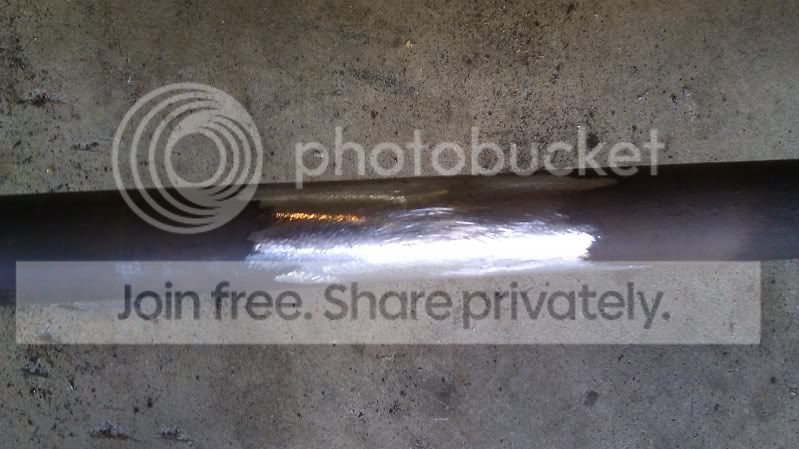

The stock 80s tierod had to be shortened i think around 6 inches. Beveled both sides on the cut and used a peice of 4inch long 3/4 solid in the center of it then burned it in.
First off let me say that anyone intimidated by the 2wd sector shaft swap needs to not worry. It was such a peice of cake i dont even know why it is an issue... Old one comes out with the 4 bolts loose with the top cap, new one goes in. Then adjust the allen and its all good.
So initially i got a 2wd box from the j yard from a 74. got ready to do the swap and found out my box had been changed to a newer one.... Doh. So i tackled the sector shaft swap blindly and it went perfect.
so here is the parts list.
Stock 80s blazer tie rod with both ends on it.
eg. ES2233LM and EX2234R
you take the ES2233LM and have the hole that used to be for the steering stabilizer reamed for a TRE.
then you need a lh thread tie rod end to replace it since this will be your new draglink.
EX2234L works for this or you could use a drag link end.
Now for a pittman arm i got one off of a xj and had it reamed for a TRE since the stock hole is too small. The xj arm is simular to superlift 1104. and has 4 flats so it can be indexed for push pull or x over setups.
I took my stock 80s tierod to the shop and bent it up. One right after the threads on the pittman arm side, then 18inches down back to parallell.
Overall cost.
all junkyard finds
Pittman arm $5
2wd box $10
stock 80s tierod with both Tie rod ends $10
cost for WFO to ream pittman and EX2234L TRE $30
Total= $55 bucks
The stock 80s tierod had to be shortened i think around 6 inches. Beveled both sides on the cut and used a peice of 4inch long 3/4 solid in the center of it then burned it in.
