Trans temp addition
Since I was putting a stall converter in. I wanted to be able to monitor trans temp now. But I did not want to hack my dash all up to add a 7th gauge, as wasn’t really happy with a good place to put it. So after some research I determined the Autometer temp gauges use the same sending units for engine and trans temps. So I decided what I would do is add a second seconding unit to the trans pan, and a SPDT switch in the dash so I can flip which sending unit the gauge is reading, so my engine temp gauge can now be used to check trans temp.
Also, I haven’t been too happy with the short sweep temp gauge. Many times it will shoot way up in temp until the thermostat opens, sometimes up to 230. But the cooling fans won’t even be on yet (thermal switch in the other head at 185, and the temp gauge says the thermostat opens at 210, and I used two different thermostats, both 160 units!) I tried adding extra ground wires, and I always solder and shrink tube my connections, so it wasn’t my connections. It could be that the sending unit it is the head next to the header, but so is the thermal switch for the fans (in the other head). So I decided to upgrade that one gauge to a full sweep. Also because although all of the other short sweep gauges are pretty linear, oil pressure is in 25 psi increments(with a line halfway between each increment), volts are in 2 volt increments, fuel is in 1/4 tank increments, etc. But the water temperature ranges from 30 - 50 degree increments depending on where in the gauge you are at. The full sweep version is in 10 deg increments, with hash marks every 2 degrees, very easy to tell by a quick glance. Also, the full sweep has a built in warning light that you can program to come on at any temp you want. I like gauges AND warning lights for the critical things, because you can’t always pay attention to the gauges when you are on the throttle trying to steer.
The full sweep guage does have a 2 wire sender instead of a one wire, which is better because it it's own seperate 5V circuit independent of threaded ground, but what about switching? I called autometer and it’s still just a series resistance circuit, so you only have to switch one of the wires. Just make SURE you have solid connections because any added resistance will change the temp reading. I chose to switch the output wire to prevent 5 V from possibly shorting out if a wire ever got frayed.

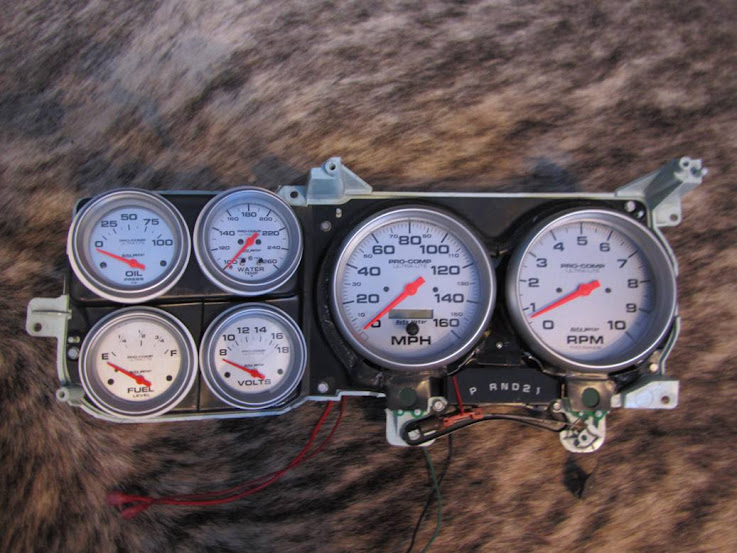

So I tore the dash apart to make the changes after running all the new wiring outside the cab for the sending units. Now you can also see how I fabbed and wired my gauge cluster back in ‘06.

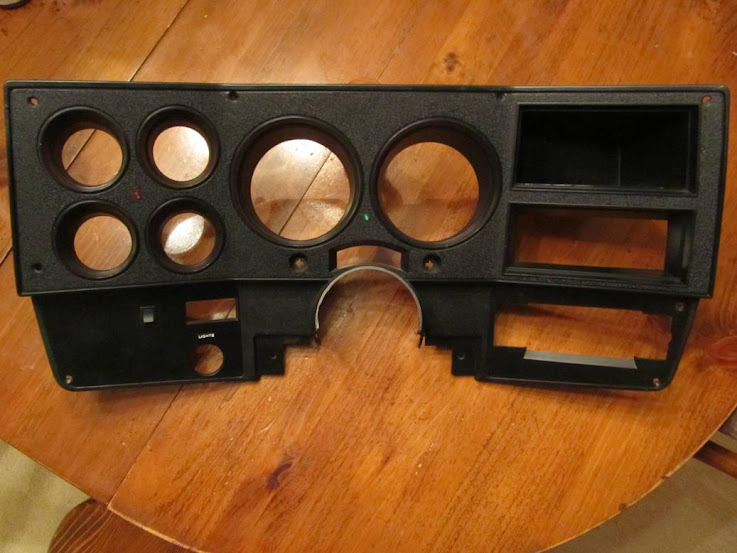

The cluster uses a METAL black trim ring around all the gauges that I drilled out to fit the gauges into. These only came in older trucks, sometime they switched to plastic, I don’t know when. I bought a parts cluster for $20 at a swap meet that had a metal ring. The smaller gauges use PVC to space them out. Because the bezel needed to have more removed from it to fit the smaller gauges, they needed to be spaced out to fit right behind the bezel. Also, I riveted the metal trim panel together between the large gauges, and bent the back down toward the bulb to reflect the light toward the gear indicator. The extra wires (red and green) are plugged into the two LEDs in the bezel, I’ll explain shortly.
The wiring I left a little extra on each wire in for easier connections because I hate trying to disconnect/connect tight wires, tried to keep it all neat and organized but it looks kind of messy really. You can see where I soldered the wires to the factory bulb sockets for the shift indicator bulb, and the turn signal indicators. I used a newer weatherproof multiconnector for the main harness, I just cut it out of a junk harness from a newer vehicle. Then I could solder all the wires in the truck to that, and when I need to remove the cluster, I just unscrew it, unplug it, and out it comes.
In addition to the metal ring, I used a little piece of angle aluminum from the hardware store to brace the larger two gauges. Excuse the blue zip ties, came in the large zip tie bundle kit and I try to use the stupid colored ones where no one can see them.

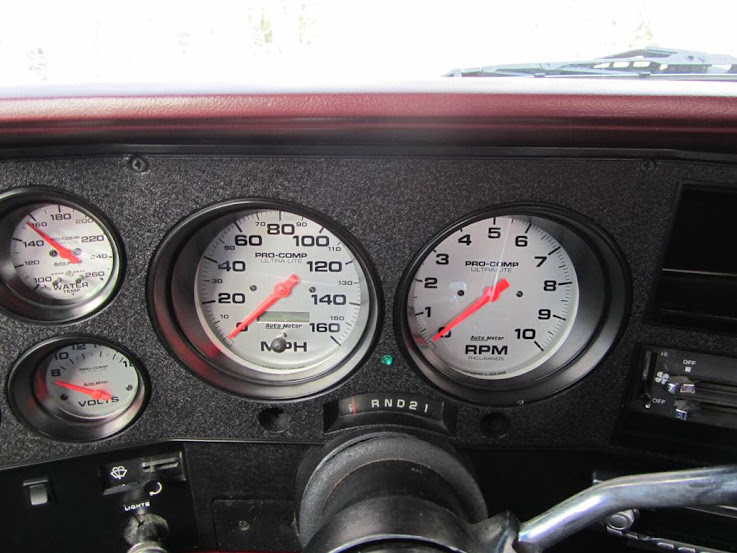

The bezel looks near factory from the front. It has two LEDs, and a switch added. The green LED is for the high beams, right between the tach and speedo. The red LED over between the small gauges has two functions. It is the brake light indicator, and also a low oil pressure warning light, it is a switched ground, so it was easy to make it work for both. The black switch is the new switch that flips the temp gauge between reading engine and trans temp.
On the back you can see where the modifications took place. For the large gauges to fit the bezel just had to have some webbing trimmed, and the gauge cups ground thinner on the outside edges. The clear plastic also has to be cut and glued to the shift indicator opening. The wires for the LEDs plug into the cluster wires before the bezel is screwed into place.
The small guage cups had to have some webbing removed, as well as both trim the depth more shallow, and thin the edges so the gauges would sit against the bezel. You can also see the SPDT switch for the temp gauge sending units.
And here it is all assembled. I realized when taking the pictures, the closer you get to the gauges in the dash, the more the bezel blocks the edges, you can see them better from the driver’s seat, but I still wanted some close up shots, so here you go. Sorry about the lighting issue, didn’t want to move the truck out of the sun just to take the pics.
