So, 4 years later
Life came in between sort of speak. Gargage sold, all other cars sold, Suburban remain!
Not much has happen but some things. I have repainted it with the same stuff they use on oil platforms
Since the photos seem to have gone missing i put Another one up.
I have a bit of a coolant leakage problem. first it leaked from the radiator so i changed that one. It hold up for about 2 weeks than the plugs in the engine block started to leak. I changed them and 2 weeks later the heat exchanger started to leak... i changed that one together with the vacuum pump, the injection pump, the servo pump and the AC pump because i was going on a 4000 mile trip with my girlfriend and kids this summer. The water pump did seem ok (no bad sounds or leakage)
but it decided to give up approx 2000 miles from home in the Tatra Mountains in Slovakia. Happy happy joy joy.
We were stuck at at remote camping for a week when i wait for spareparts
but the wife and kids seemd to be ok, they are used to this...
Life came in between sort of speak. Gargage sold, all other cars sold, Suburban remain!Not much has happen but some things. I have repainted it with the same stuff they use on oil platforms
Since the photos seem to have gone missing i put Another one up.
I have a bit of a coolant leakage problem. first it leaked from the radiator so i changed that one. It hold up for about 2 weeks than the plugs in the engine block started to leak. I changed them and 2 weeks later the heat exchanger started to leak... i changed that one together with the vacuum pump, the injection pump, the servo pump and the AC pump because i was going on a 4000 mile trip with my girlfriend and kids this summer. The water pump did seem ok (no bad sounds or leakage)
but it decided to give up approx 2000 miles from home in the Tatra Mountains in Slovakia. Happy happy joy joy.
We were stuck at at remote camping for a week when i wait for spareparts
but the wife and kids seemd to be ok, they are used to this...
brt666
Registered Member
Now i have a new Project! i'm fed up with the rough ride of this truck it has a GVW rating of 3900 kg (8598 lb) from the factory (yes, it is delivered from GM as a 1 ton capacity Suburban, believe it or not.) so i have looked at all different kind of improvments like airbags, Alcan springs, etc. and what i came up with is this
I have owened a couple of those creatures and the ride is fantastic but everything else sucks so why not distract the good parts and improve my Suburban?
Step one, how much flex do i need? i have decided that i need to be able to overcome and obstacle of 500 mm height and that ends up in 40 mm stroke of the damper since the frame flexes

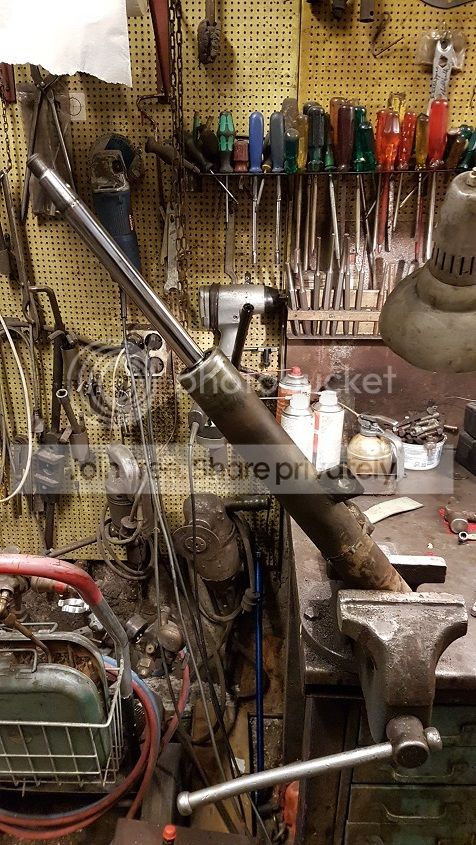

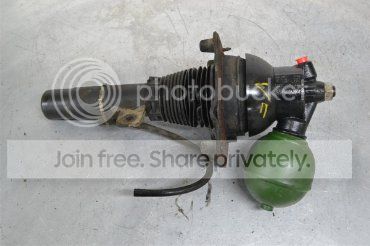

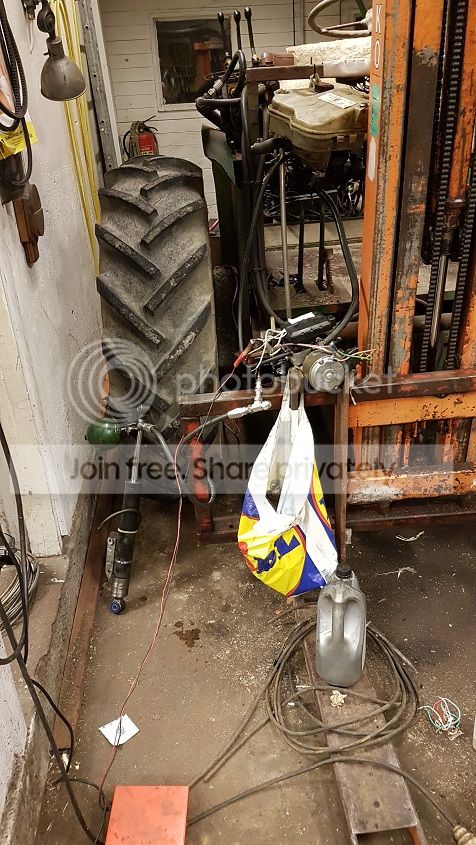

I took a front suspension unit from a Citroen Xantia
and did "some" work on it to be able to fit it in the standard brackets and connect it to a 3/8 hydraulic hose.

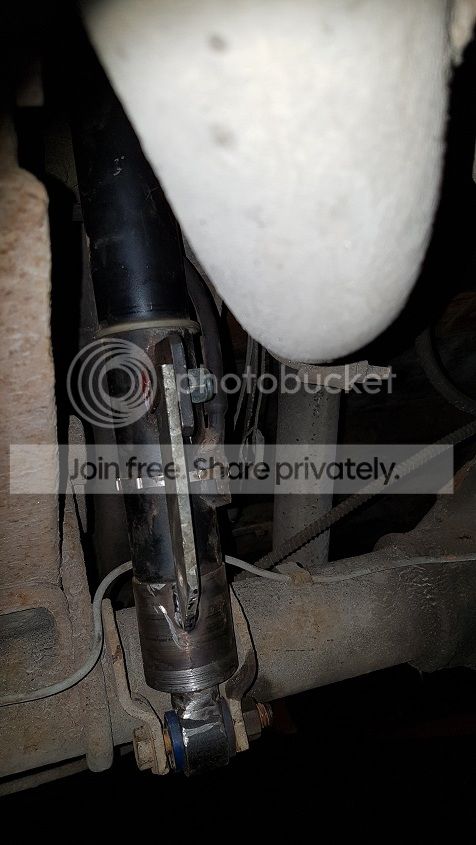

I tried to lift it with a manual hydraulic pump but it was too weak so i lifted it with a jack and pumped it up and it seem to work with the lower bracket.

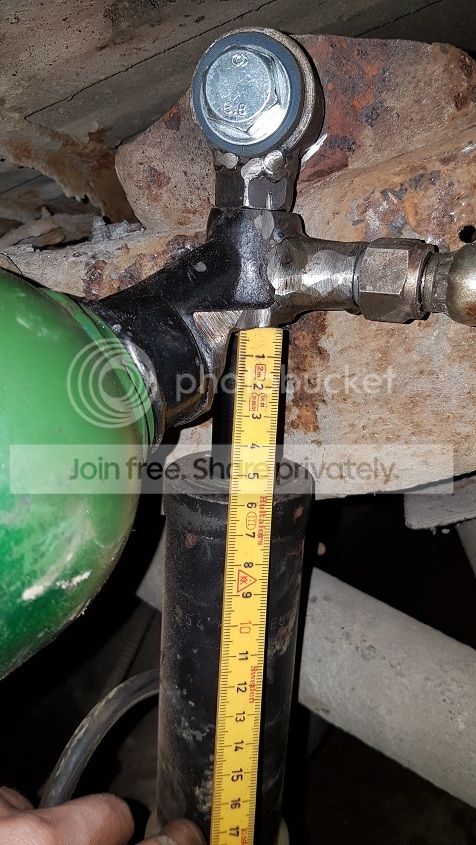

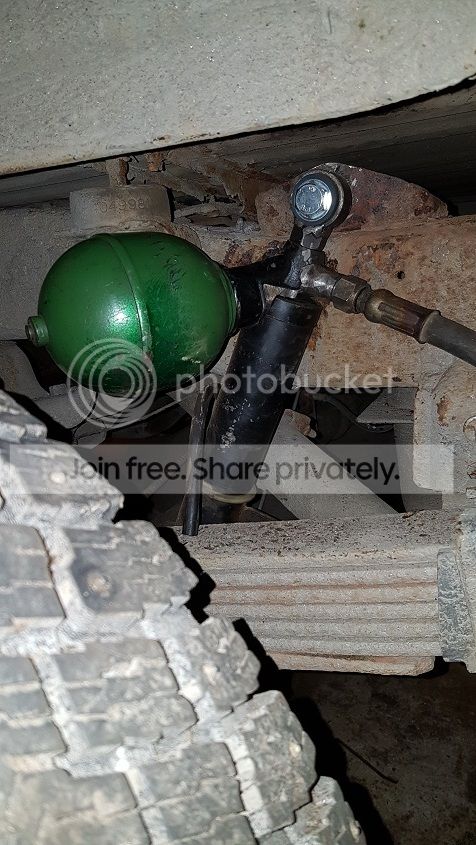

The citroen spring is nearly at the bottom when the weight rests on the leaf springs

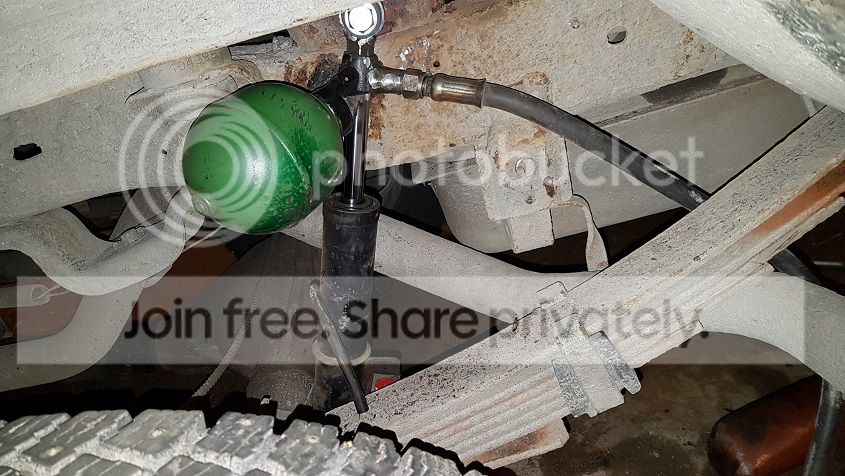

It has 140mm stroke and that is what i got when it rested on the jack
when i took the jack away the jack it sat at 60 mm
this will give me roughly 2" lift but i can let it down on the leafs when i need it low for ferries, garages and similar. I can as well lift it 5,5" when needed.
Now i just need to make another one and fit the belt driven pump, accumulator and height correction system.
I have owened a couple of those creatures and the ride is fantastic but everything else sucks so why not distract the good parts and improve my Suburban?
Step one, how much flex do i need? i have decided that i need to be able to overcome and obstacle of 500 mm height and that ends up in 40 mm stroke of the damper since the frame flexes

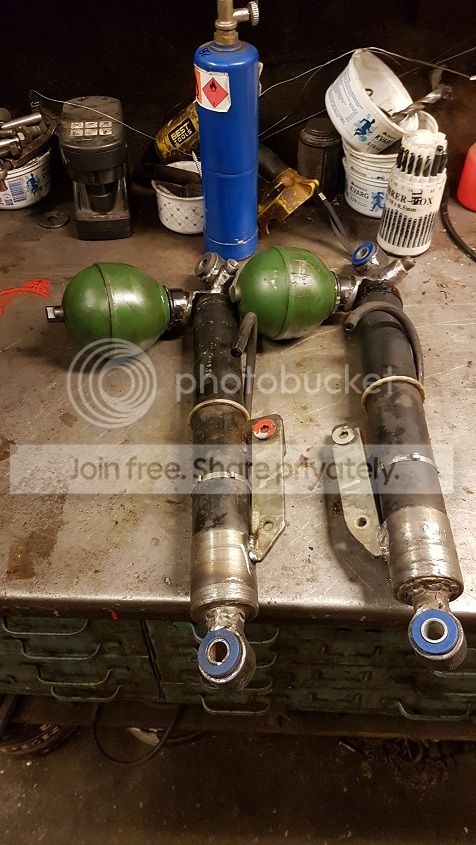

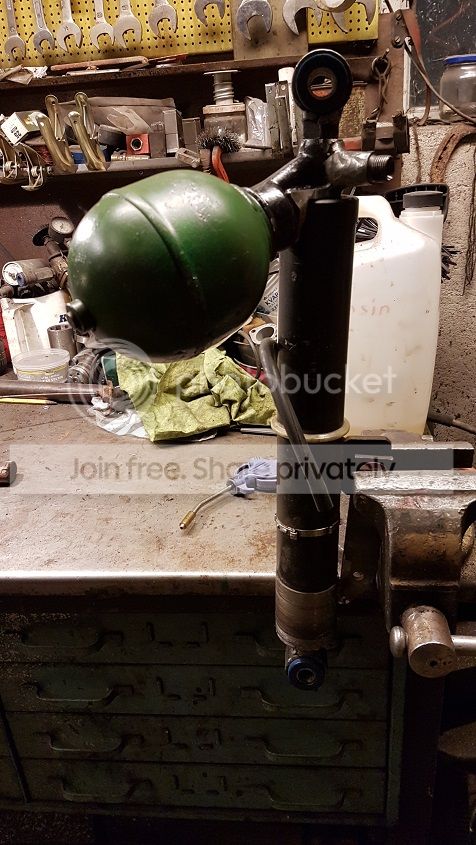

I took a front suspension unit from a Citroen Xantia
and did "some" work on it to be able to fit it in the standard brackets and connect it to a 3/8 hydraulic hose.
I tried to lift it with a manual hydraulic pump but it was too weak so i lifted it with a jack and pumped it up and it seem to work with the lower bracket.
The citroen spring is nearly at the bottom when the weight rests on the leaf springs
It has 140mm stroke and that is what i got when it rested on the jack
when i took the jack away the jack it sat at 60 mm
this will give me roughly 2" lift but i can let it down on the leafs when i need it low for ferries, garages and similar. I can as well lift it 5,5" when needed.
Now i just need to make another one and fit the belt driven pump, accumulator and height correction system.
Interesting mod. I'm curious how the ride quality will be affected.
Bad ass!! The system on those Citroen's always interested me. I am super curious of your implementation!
brt666
Registered Member
Done!
Its easy to be creative when the man who owns the shop i'm using builds the most amazing things....

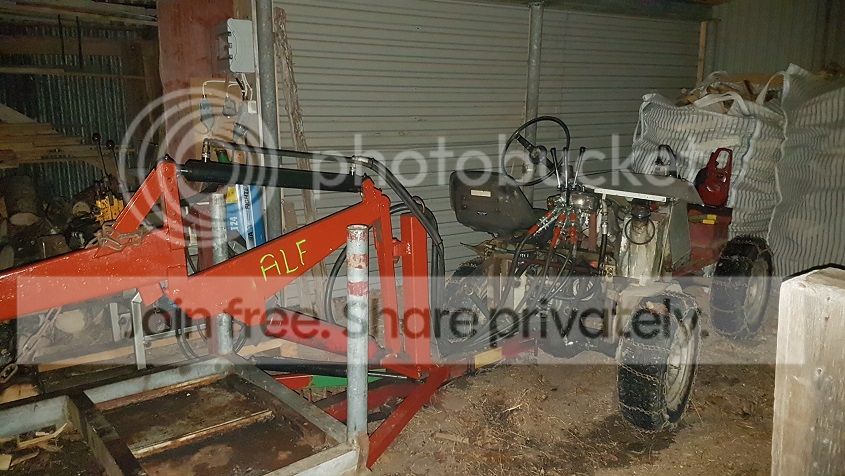

For example an rought terrain forklift made by an old electric forklift and a harvester:
Or why not a forwarder made by an old Fiat?
by the way, he's 73 years old... tough breed!
I will now manufacture some hoses and probably use an hydraulic unit from a Citroen C5
Its easy to be creative when the man who owns the shop i'm using builds the most amazing things....
For example an rought terrain forklift made by an old electric forklift and a harvester:
Or why not a forwarder made by an old Fiat?
by the way, he's 73 years old... tough breed!
I will now manufacture some hoses and probably use an hydraulic unit from a Citroen C5
brt666
Registered Member
By the way, i forgot to thank you for the nice comments!
I like to say, procrastination drives innovation! Right on!
brt666
Registered Member

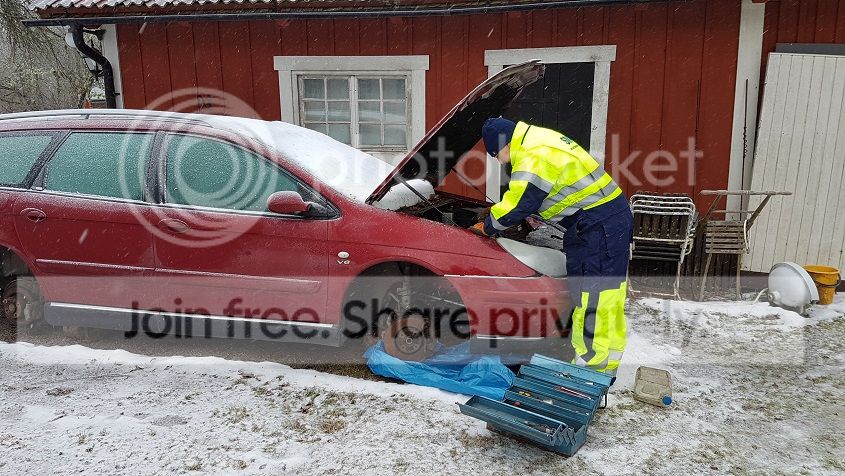

Wrestle with a Citroen is not fun to begin with and doing it in -7° Celsius does not help.
But the owner of the Citroen was very helpful and provided me with tools and hot tea so it was manageable and he also gave me a good "take what you want for a fixed price" so i scavanged a lot of good things.

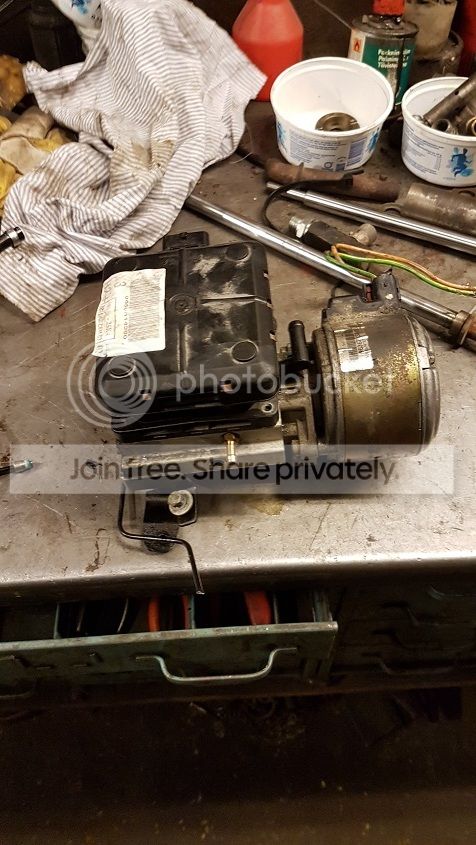

The hydraulic unit with computer

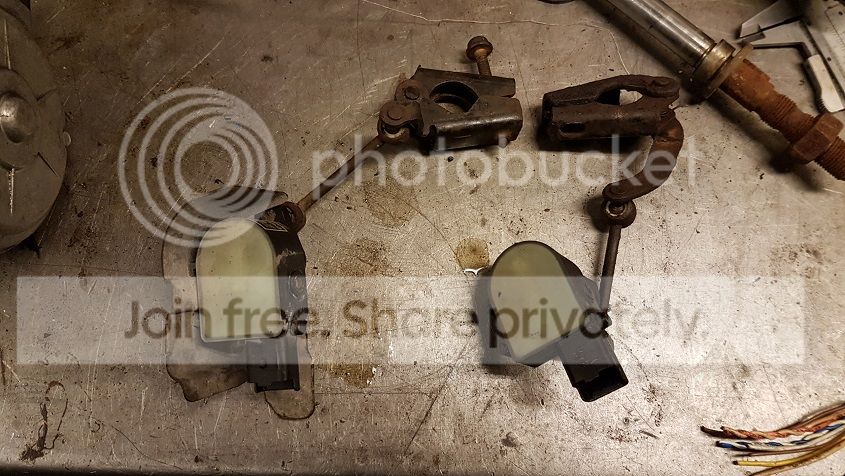

The height correction sensors (front and rear)

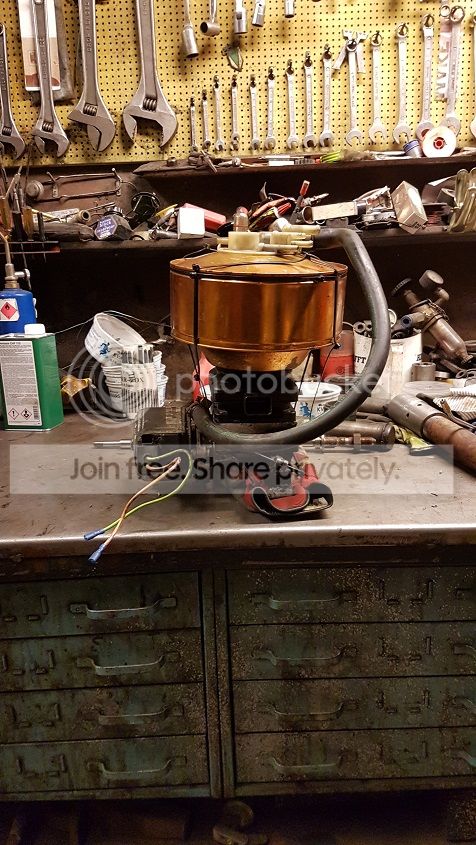

The hydraulic tank
The dampers

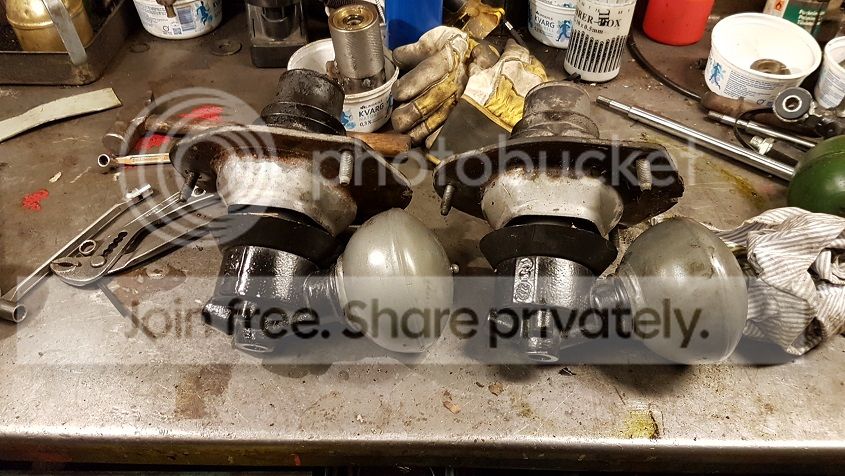

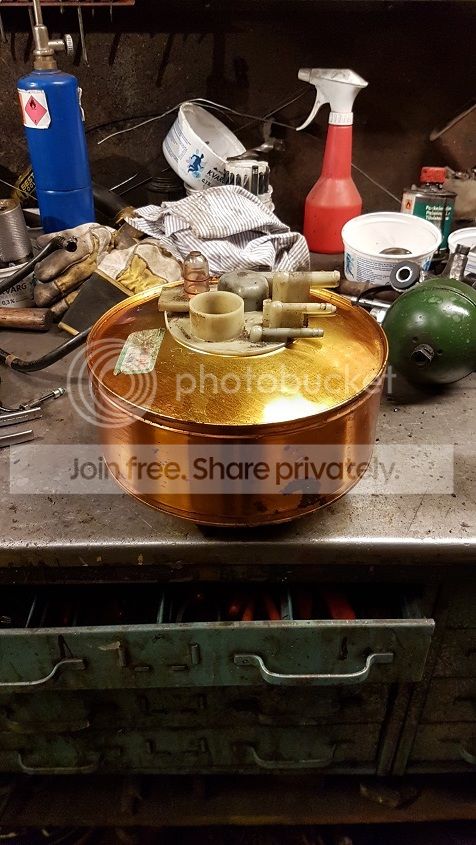

The ackumulators

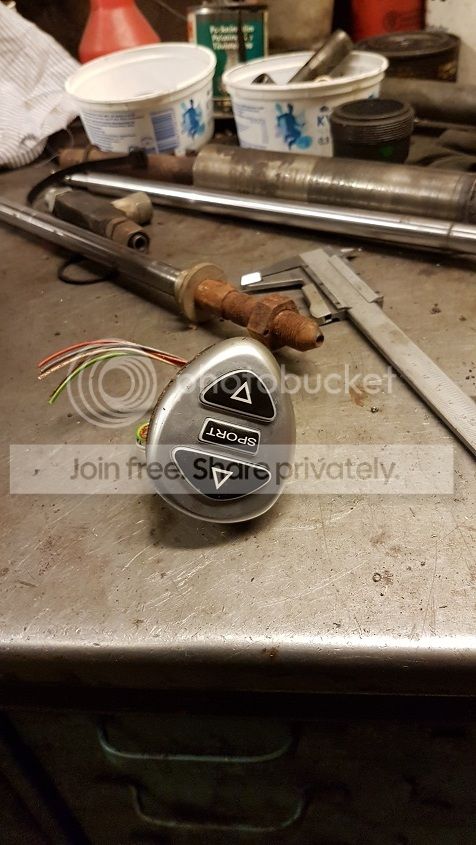

The button

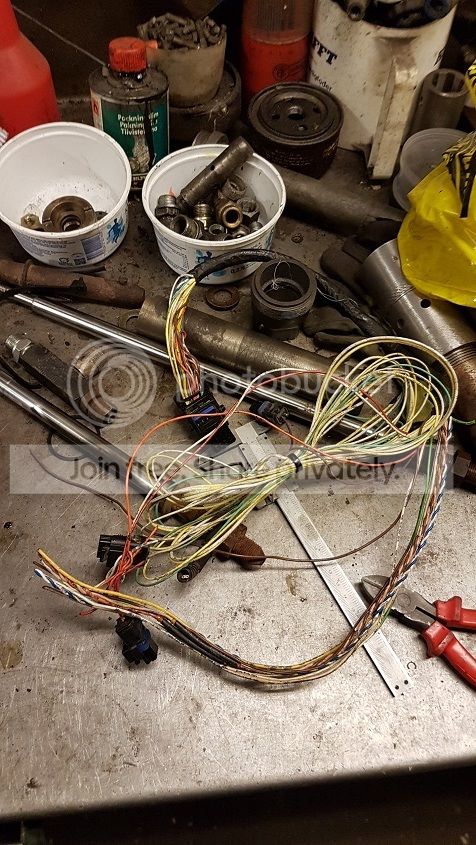

And some wiring...
But the owner of the Citroen was very helpful and provided me with tools and hot tea so it was manageable and he also gave me a good "take what you want for a fixed price" so i scavanged a lot of good things.

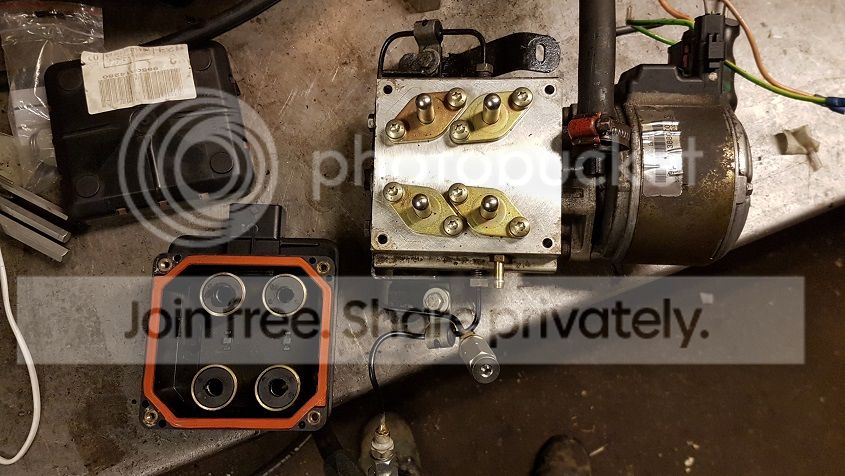

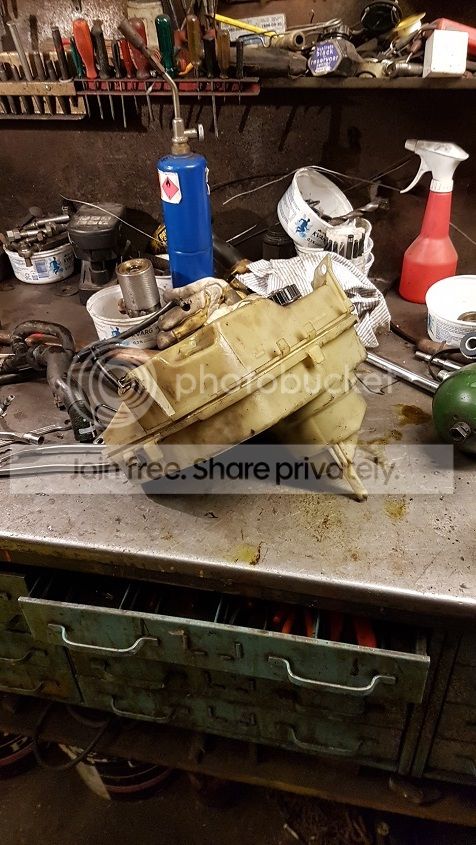

The hydraulic unit with computer
The height correction sensors (front and rear)
The hydraulic tank
The dampers
The ackumulators
The button
And some wiring...
brt666
Registered Member
My current problem is to transform the pipes from the hydraulic units from the special (what else?) citroen connection to a regular 3/8 hydraulic connection, any ideas?
And fix the piping between the hydraulic reservoir and the hydraulic unit, i will probably use an old citroen DS tank instead, it's more pimp
And fix the piping between the hydraulic reservoir and the hydraulic unit, i will probably use an old citroen DS tank instead, it's more pimp
This sounds interesting...
Any thoughts on beefing up the shock mounts? They aren't meant to carry weight.
brt666
Registered Member
Yep, i have plans for the mounts but i want to see that the system works at all before i start to modify things on the truck.
Last night i tried to figure out the electrics and i think i got it but i did not manage to see any actual life from it when i powered up the computer/valve assembly and fiddeled with the height sensor but maybe it do not activate the valves if there is no hydraulic pressure.I did not fire up the pump motor since there was som hoses missing so i could not fill up the system.

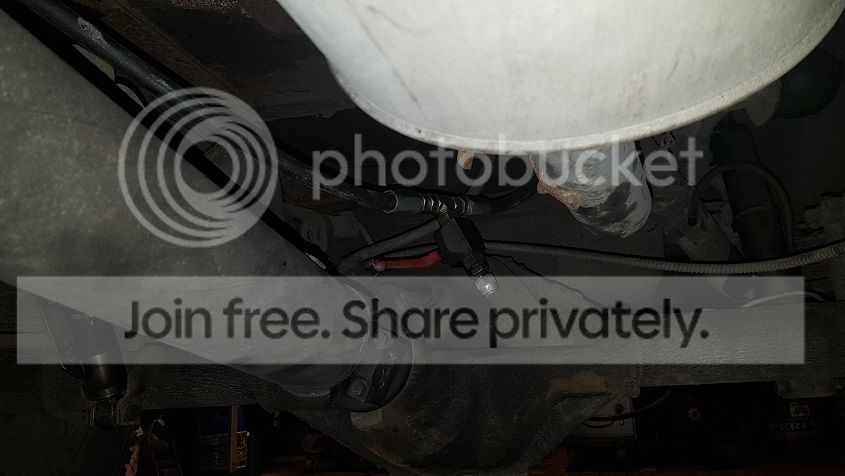

Current state (i admit it looks kind of crazy
)

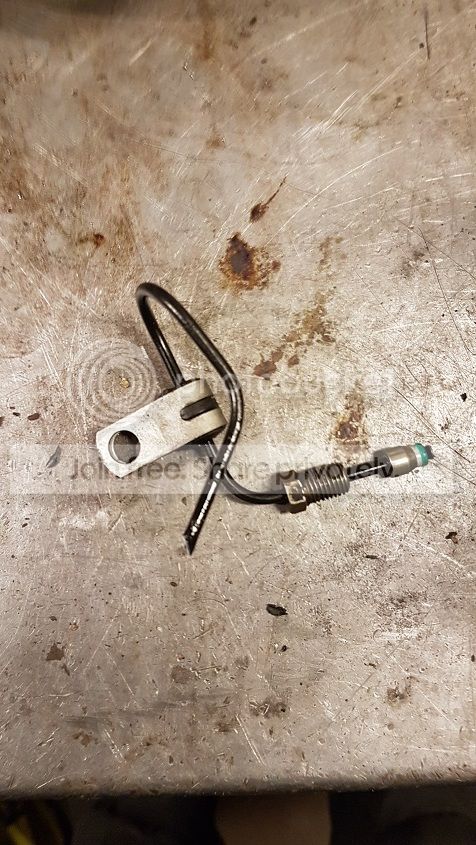

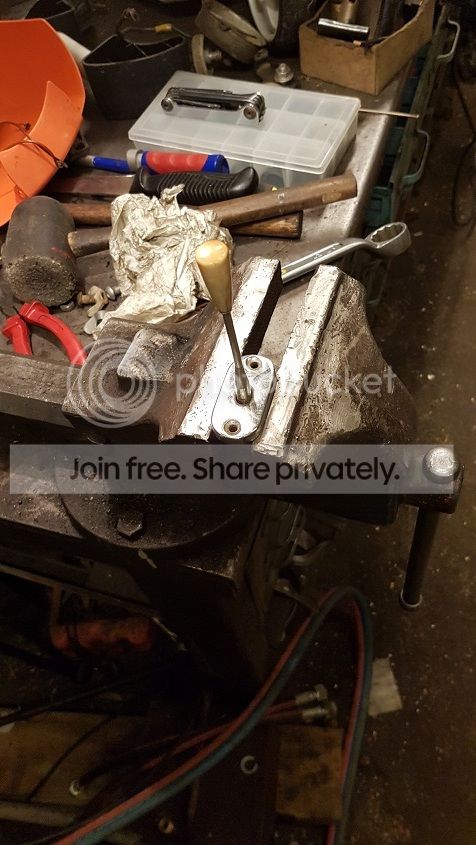

I will solve the problem with the high pressure connection by hard soldering a 1/4 standard connection to the stump
Last night i tried to figure out the electrics and i think i got it but i did not manage to see any actual life from it when i powered up the computer/valve assembly and fiddeled with the height sensor but maybe it do not activate the valves if there is no hydraulic pressure.I did not fire up the pump motor since there was som hoses missing so i could not fill up the system.
Current state (i admit it looks kind of crazy
)
I will solve the problem with the high pressure connection by hard soldering a 1/4 standard connection to the stump
brt666
Registered Member

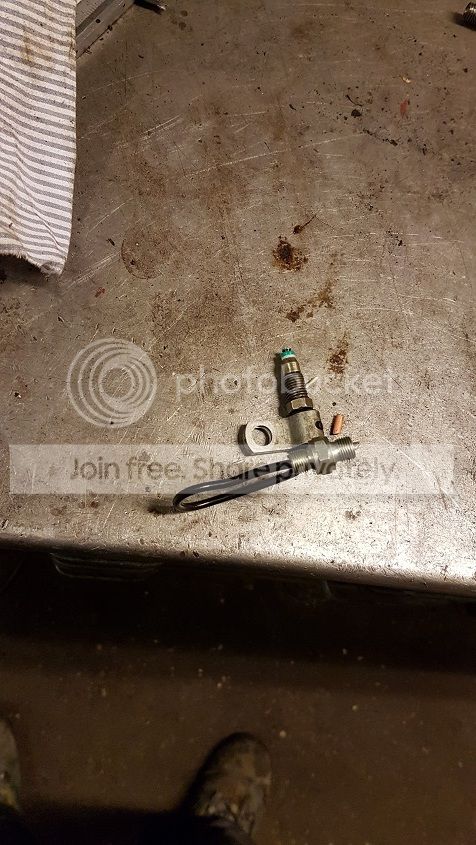

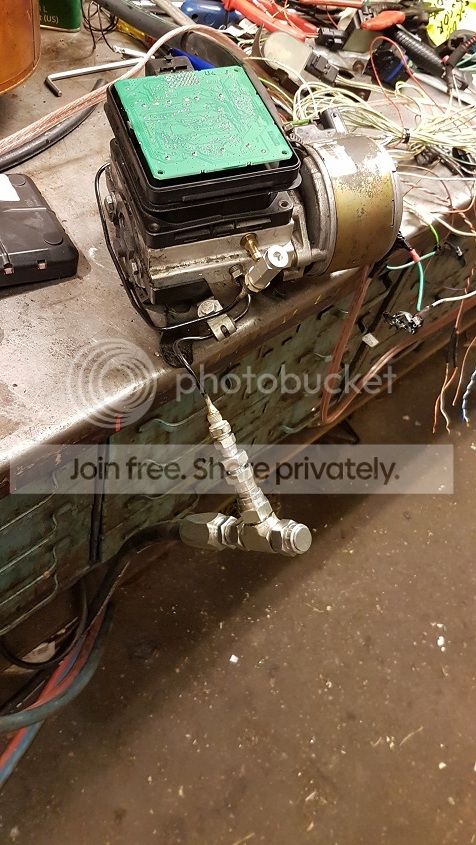

I soldered the hydraulic connections (1/8", not 1/4 as i wrote before) and hooked up the electrics and....... the tension is rising...
Absolutely nothing at all happened! dead, quiet, zero.... no matter how i flipped the sensors.
I did some research and it seems like the suspension computer needs a CAN-BUS signal from the vechicle computer and i cannot bypass this.....
Ok, f*ck the computer then, let's go analog (like my brain)
The only thing the computer do is activating 4 valves thru coils
There are no sensors that tells the computer when the pressure is right or something like that. I suppose it is handeled by a hydraulic regulator in the hydraulic block itself.

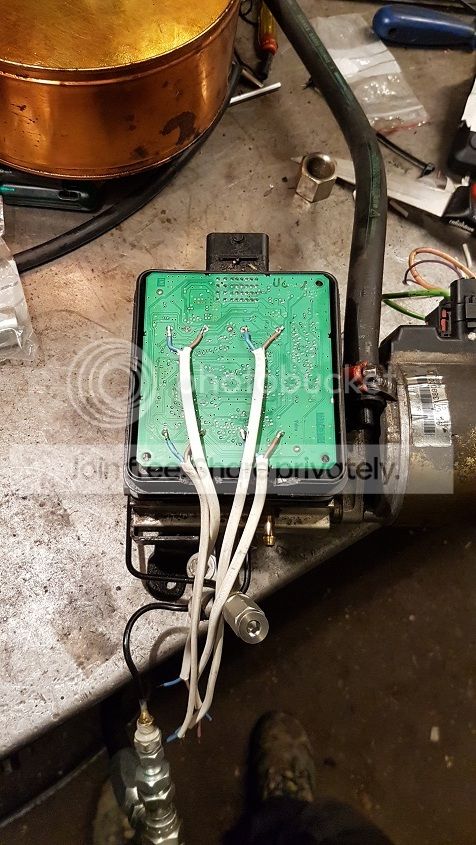

So i piggy backed the coils
