Yes, The system is based on a sort of air shocks but you have the benefit that you can add or drain oil depending on the load condition so you always have max comfort for each load case and the truck is level .


brt666

Registered Member
Joined
Oct 23, 2005
Posts
61
Reaction score
52
Location
Uppsala/Sweden
Update!

Installation of system done.

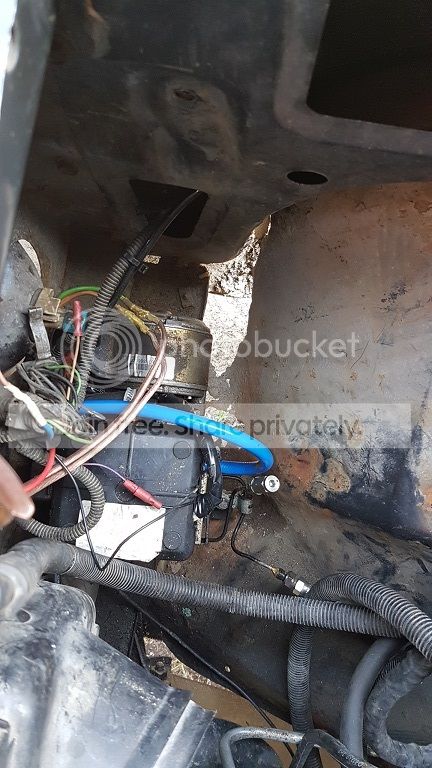

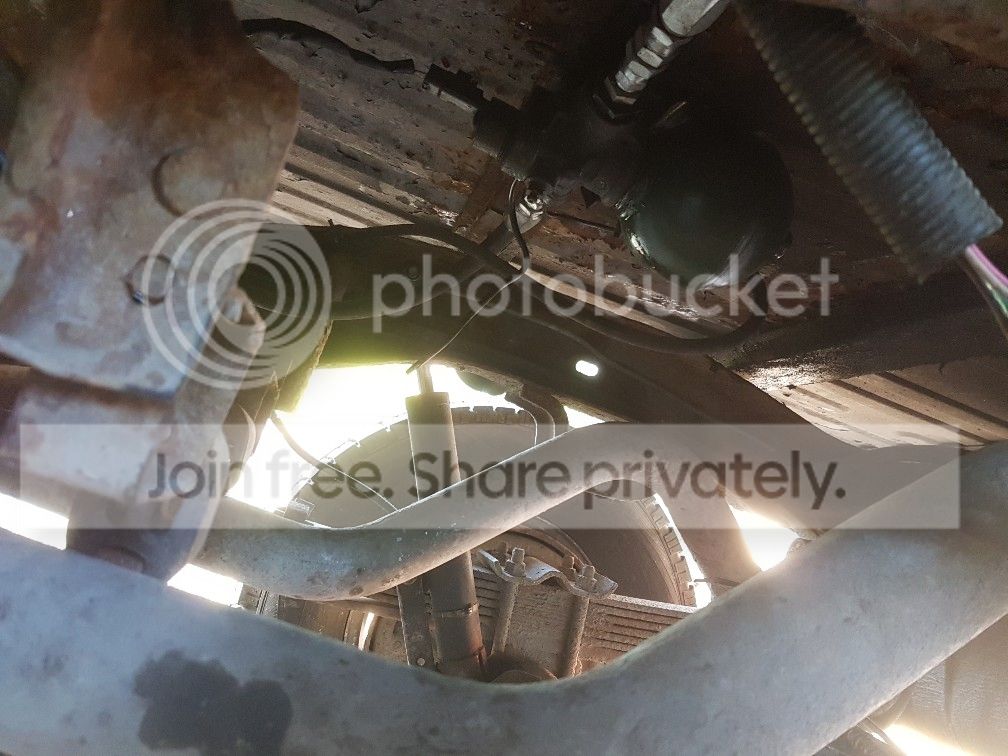

First i put the hydraulic pump blow the rear battery tray (do not mind the rust gap)



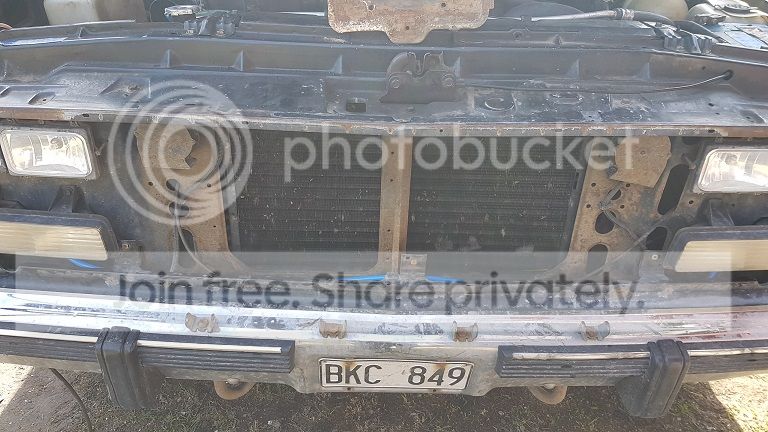

Then i routed the hoses thru the front



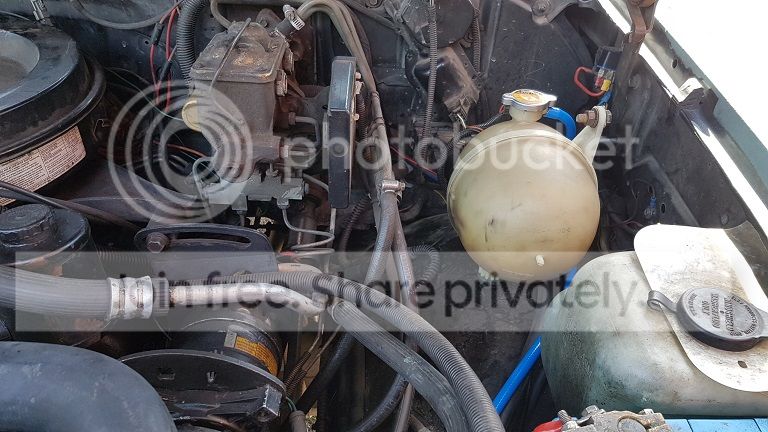

Used a old expansion chamber from a Mitsubishi van as a reservoir (the citroen one did not fit



and put in some levers for Control



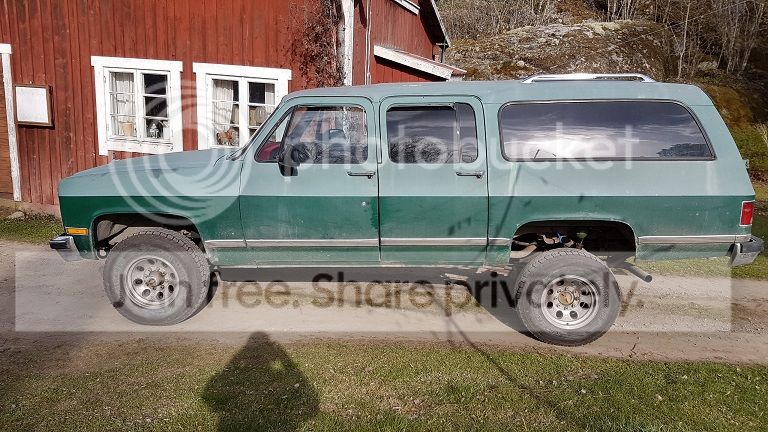

I have tested the system in its highest mode for 2 weeks and it do not leak anything





brt666

Registered Member
Joined
Oct 23, 2005
Posts
61
Reaction score
52
Location
Uppsala/Sweden
Its far between my updates but the project rolls on. Now i have this system on both axles and i have filled the spheres with the correct amount of nitrogen and the right sized damper holes considering the weight of the car. It works fine but i have set the dampening holes size for good handeling and that makes the ride almost as stiff as before. I am now in the process of implementing the "hydractive" system from citroen. It means that i can choose on the fly "sport" or "comfort" mode. In comfort mode 3 spheres will be connected for each axle, give a softer "spring" and the oil will be allowed to run thru bigger sized dampening holes to give softer dampening. The oil will also be able to flow between right and left hydraulic cylinder on the same axle. In sport mode there will be 2 spheres for each axle and the flow between cylinders is blocked to prevent swaying.


brt666

Registered Member
Joined
Oct 23, 2005
Posts
61
Reaction score
52
Location
Uppsala/Sweden
Thanks for the comments and here are some more pictures

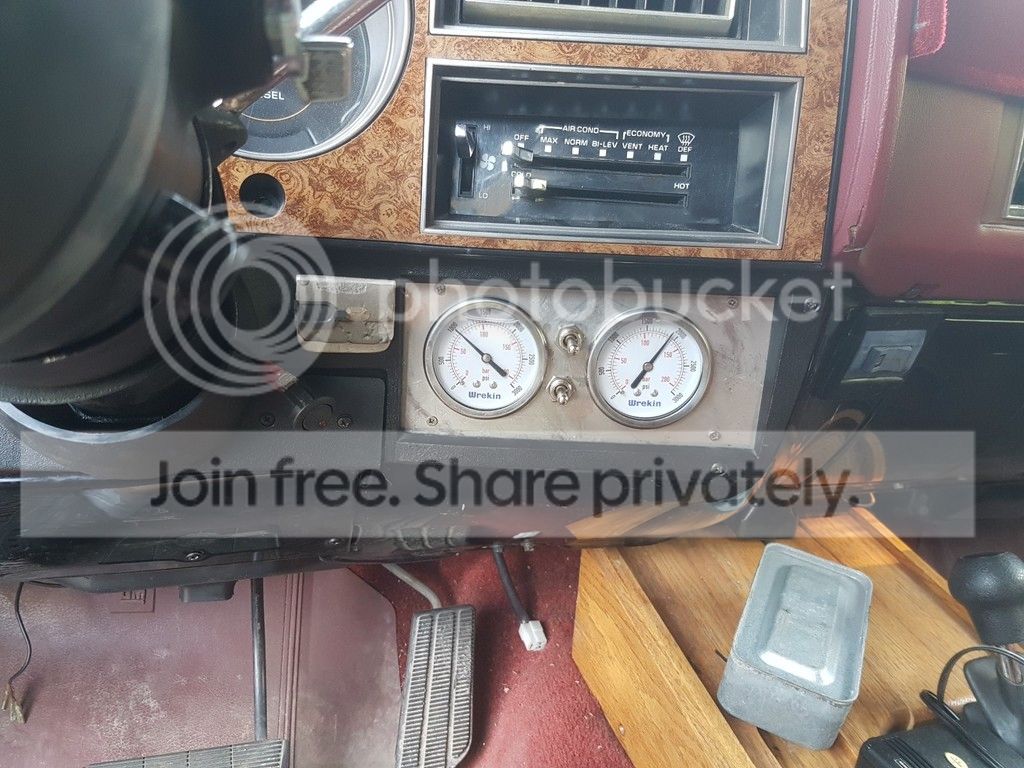

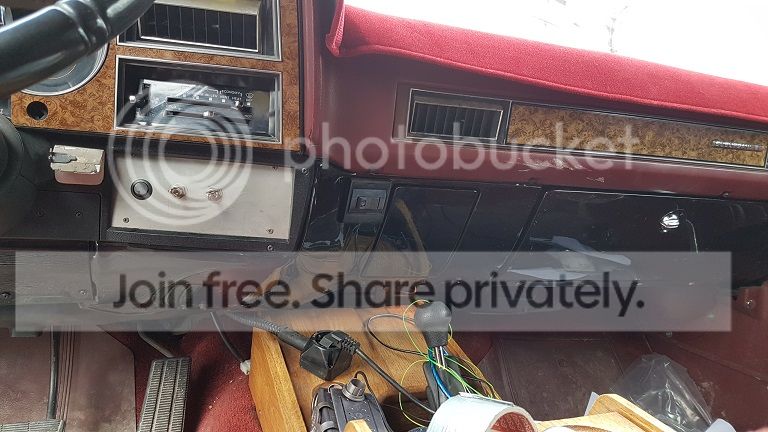

I have ordered two pressure gauges for the front and rear circuit, i intend to install them where the radio was originally mounted



At the same time i ordered inline test points so i can tap into the circuits



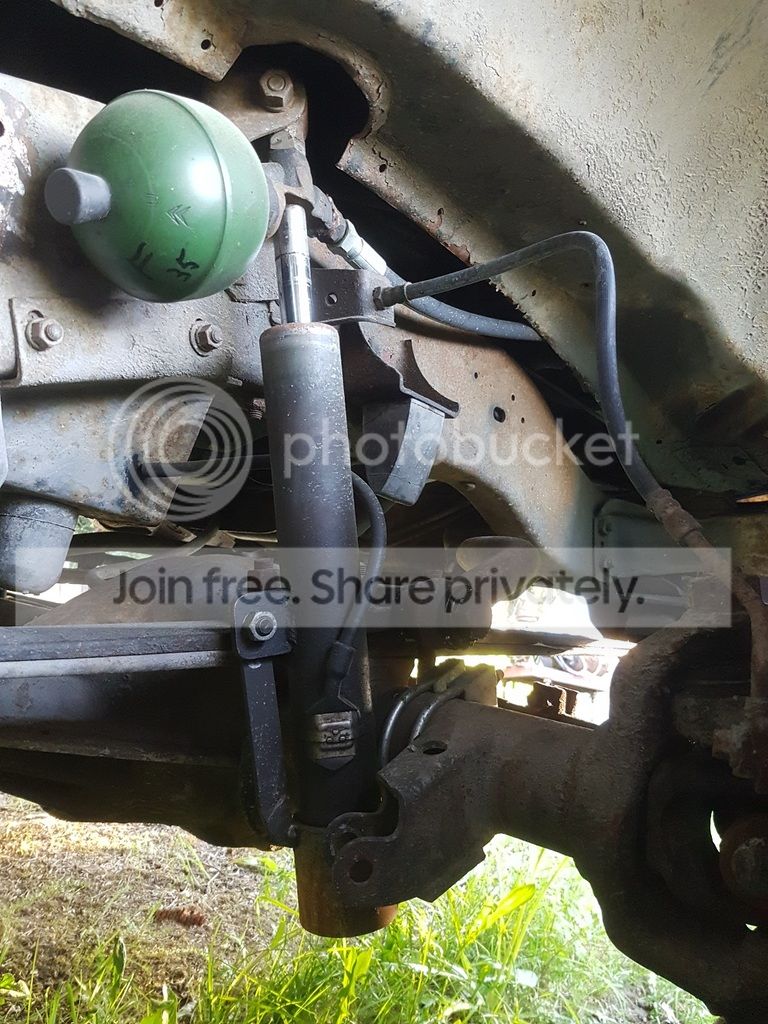

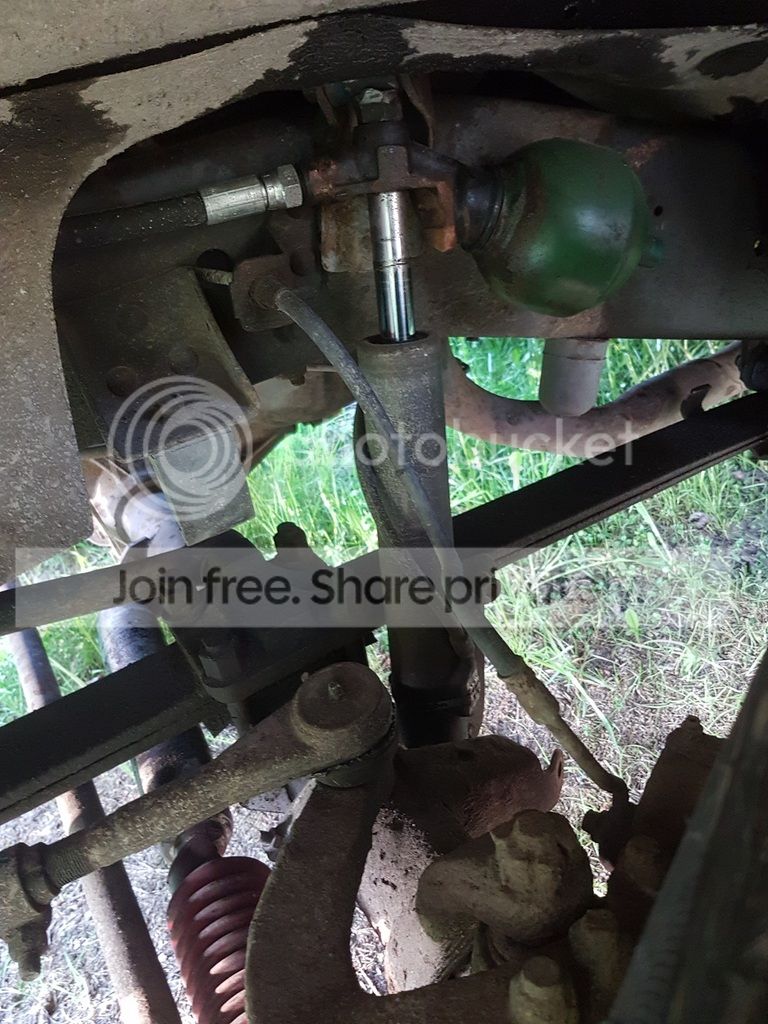

I managed to squeeze in the front cylinders but it was tight!



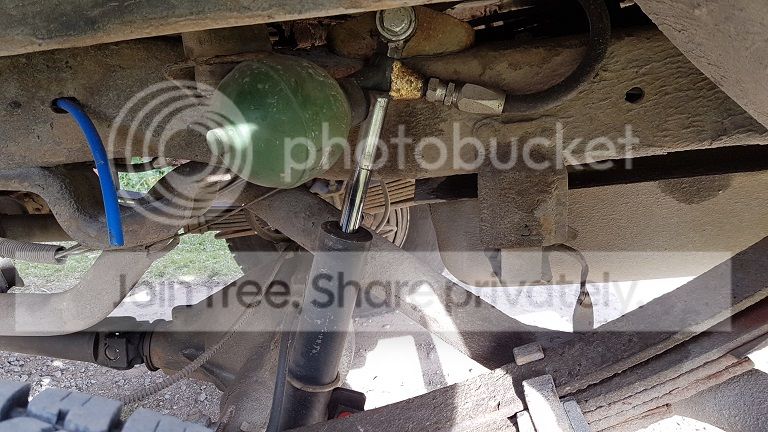

I could use the "extra" upper mounts but had to manufacture new lower mounts. I will shave of some material later.



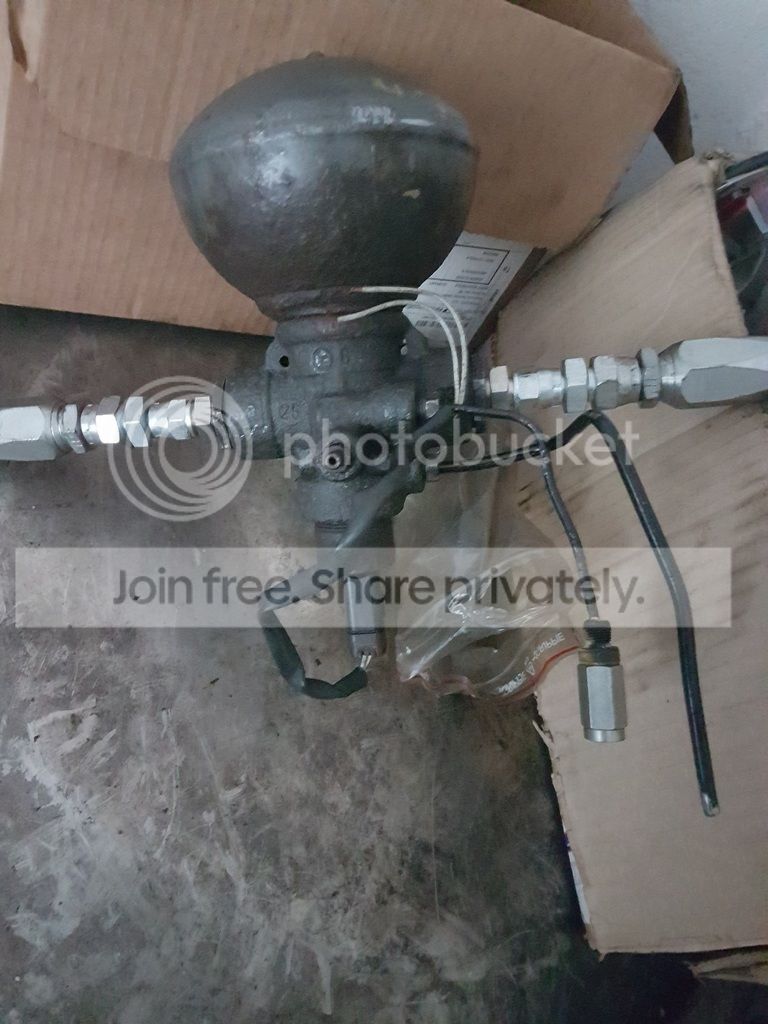

Here is the Hydractive valve i collected from another scraped C5. It need 2.8V (of course, its French...) so i have bought an adapter from 12V to 3V. I have hard soldered a 1/8 adapter to the pressure line, the cut one is to tank. I bought adapters from M16x1,5 to standard 1/4 and from there to 3/8 (the size to the cylinders)



imiceman44

Hoarder extraordinaire
 Premium
Joined
Aug 5, 2002
Posts
26,120
Reaction score
10,145
Location
Lincoln, CA
I have always wanted to do that.
I had a few Citroen cars growing up in the middle East I even kept a gs that had a bad engine to get the parts, but then I came to the states and my dad scrapped everything.
Glad to see someone doing this


brt666

Registered Member
Joined
Oct 23, 2005
Posts
61
Reaction score
52
Location
Uppsala/Sweden
Today i installed the valve and it works perfect!


Since i'm going to a big "raggar" party this midsummer i also installed a awning.



There is no better way to spend a Swedish midsummer then in the company of a bunch of hillbillys drinking insane amounts of beer, reving up old american cars and incinerate pig meat. The fact that the party take place in absolute nowhere is a big bonus i supose :D


6.2/1983

Registered Member
Joined
Nov 18, 2010
Posts
40
Reaction score
2
Location
Oregon
Very nice build. I love the 6.2ls. Killer custom work there man keep it up. Looking forward to watching more of the build.


brt666

Registered Member
Joined
Oct 23, 2005
Posts
61
Reaction score
52
Location
Uppsala/Sweden
Very nice build. I love the 6.2ls. Killer custom work there man keep it up. Looking forward to watching more of the build.
I will update soon, Winter season has just arrived in Sweden so i will loot another Citroen C5 this week for a valve to the front.
