My full conversion

No progress this weekend other than getting rid of the donor blazer at the scrap yard. It’s a shame that no one wanted what was left of it.

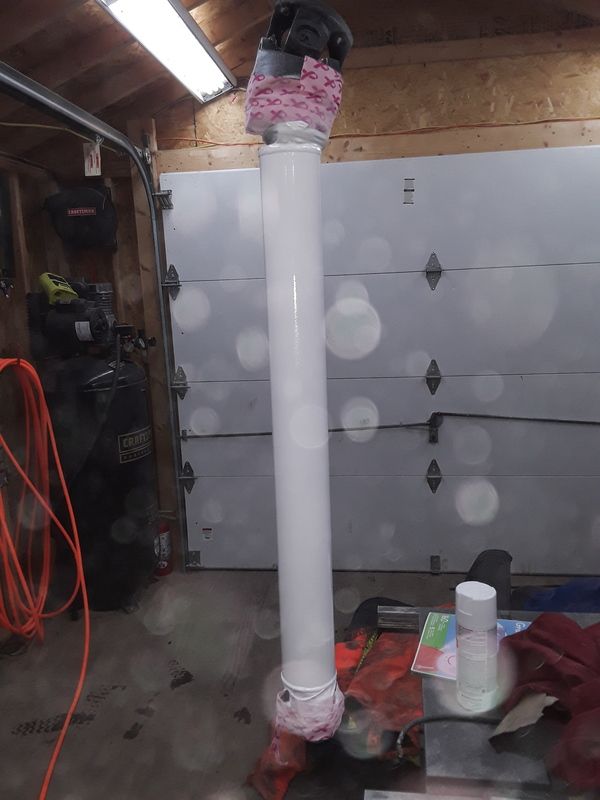

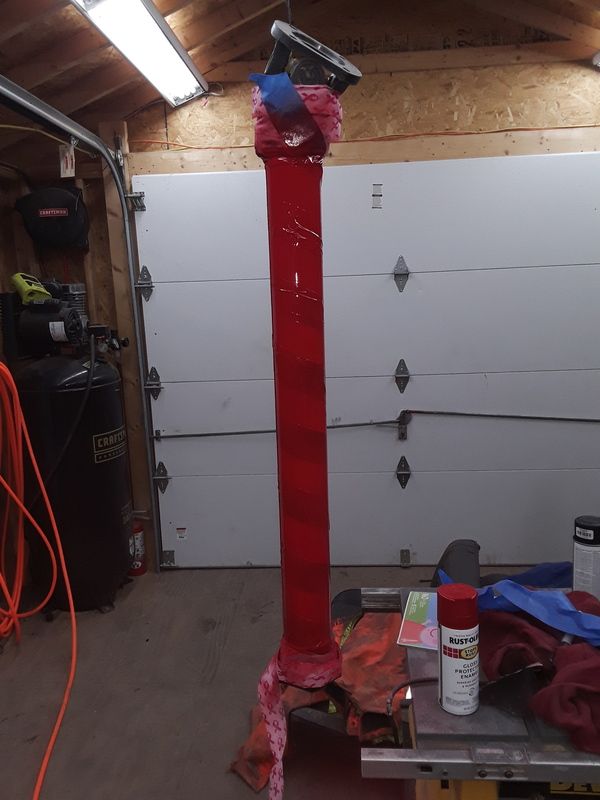

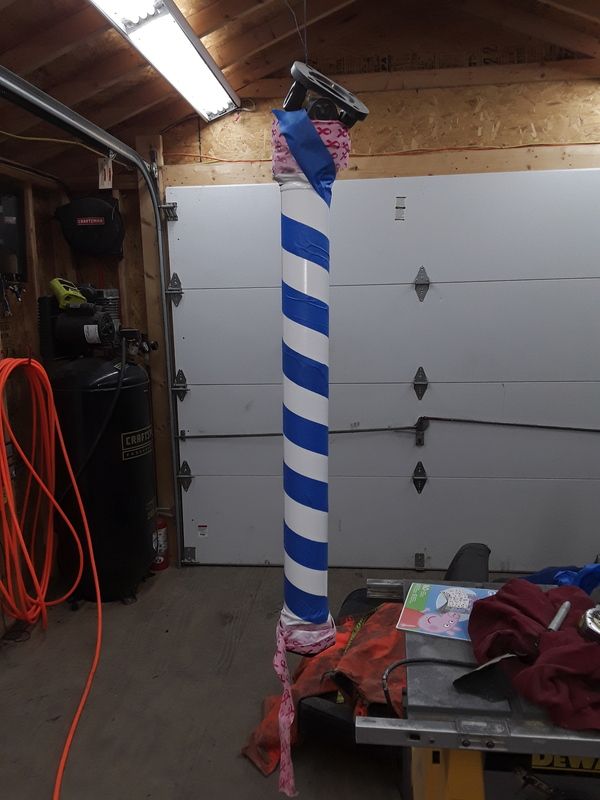

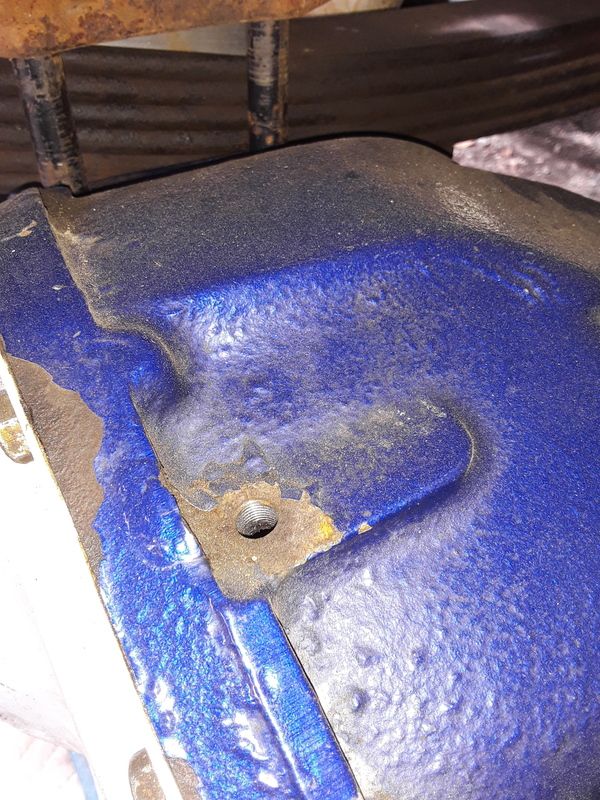

Front shaft showed up today and it’s getting the same paint job as the rear. No need for pictures since it’s the same. Hopefully the weather lets me work on the Jimmy this weekend but the weatherman says there’s a chance of snow so I’ll probably get called into work.

Didnt get called in today so I got a bunch done today. First thing the boy and I did today was put the shims on the front axle.

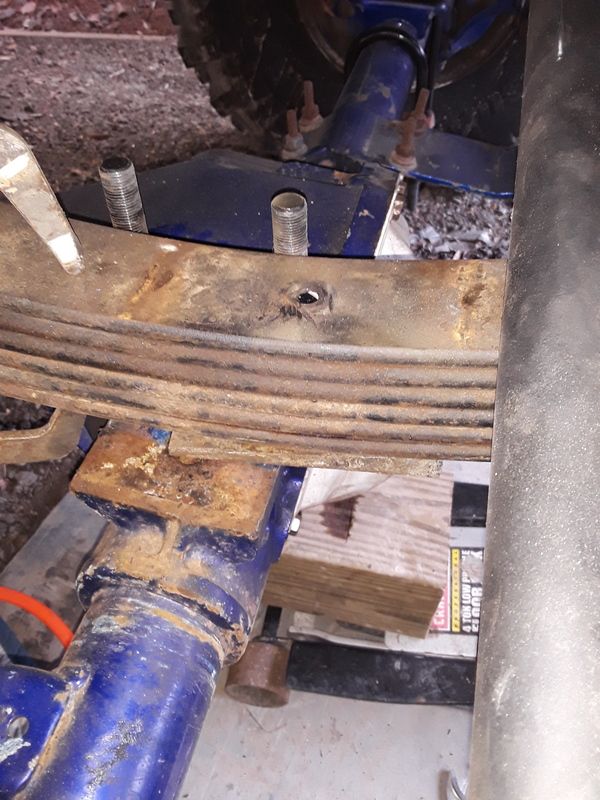

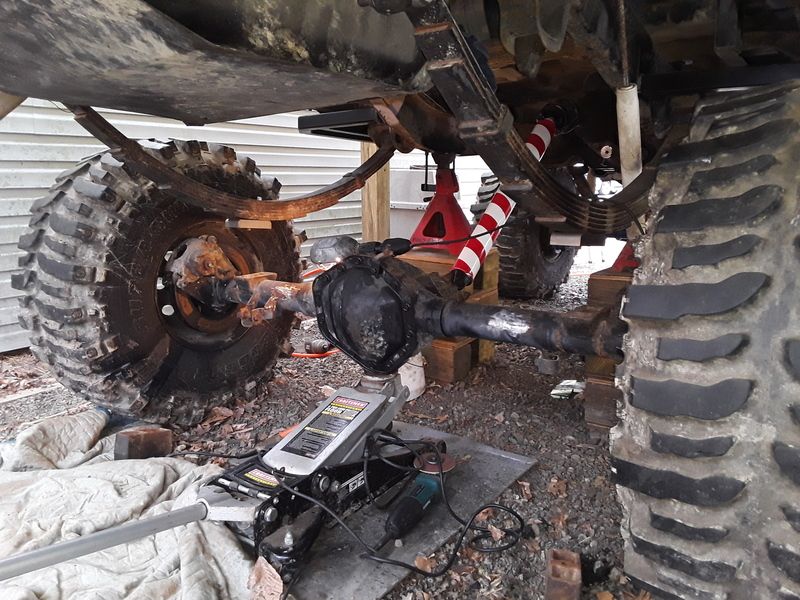

Cut off bolt holding spring pack together

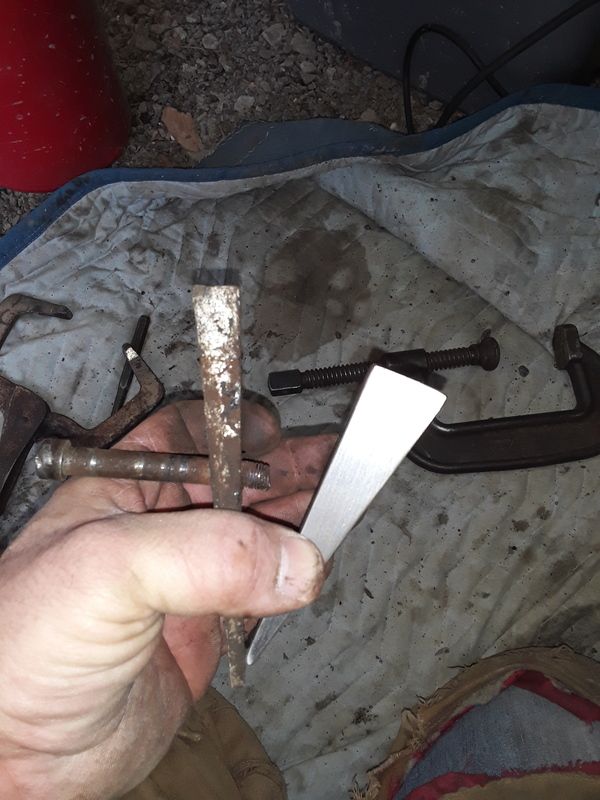

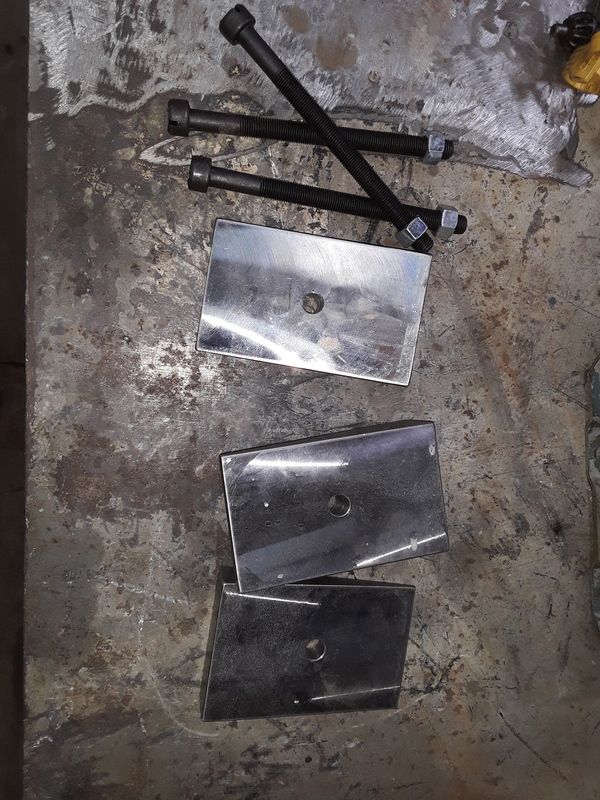

Old shim vs. new shim

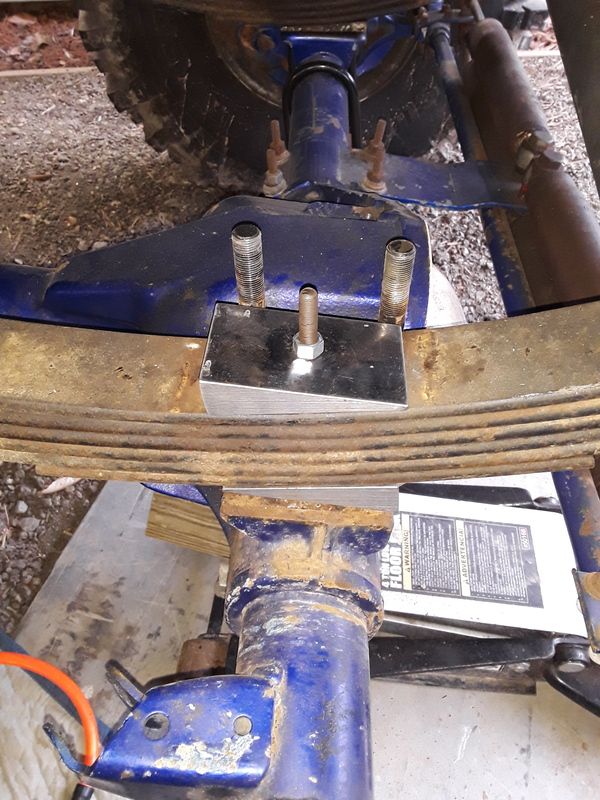

You have to put 2 shims opposing each other on the drivers side so you dont side load the studs

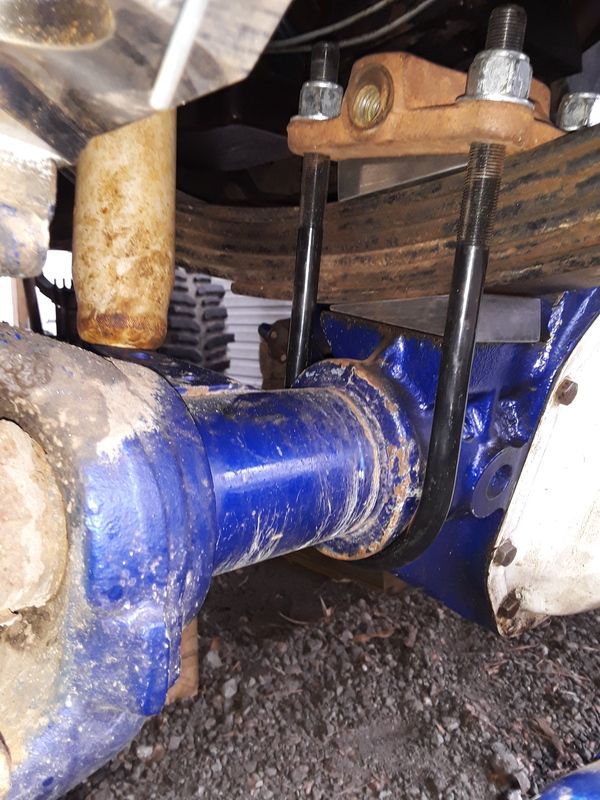

Drivers side done

Passenger side done

Last edited:

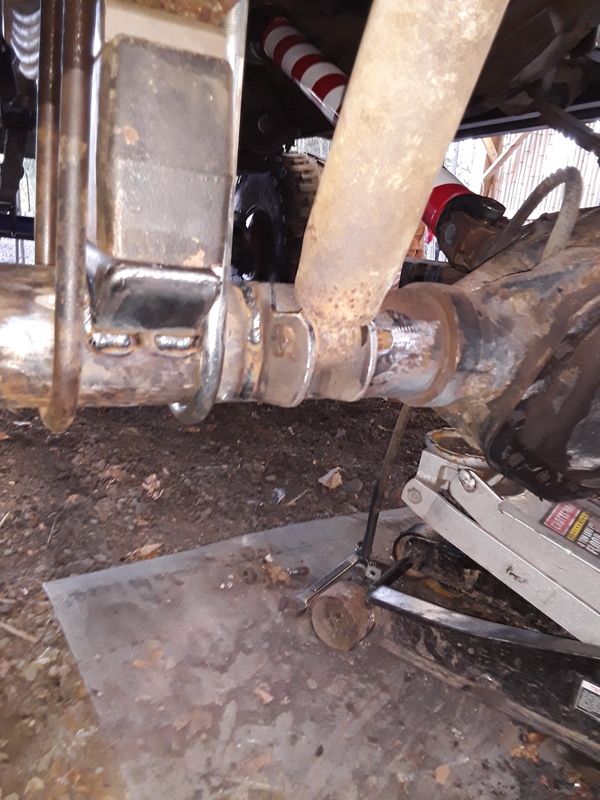

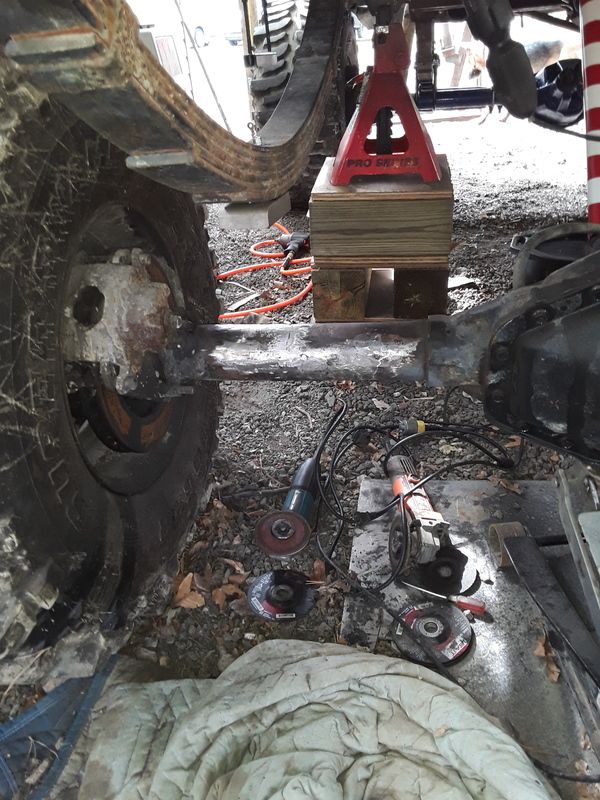

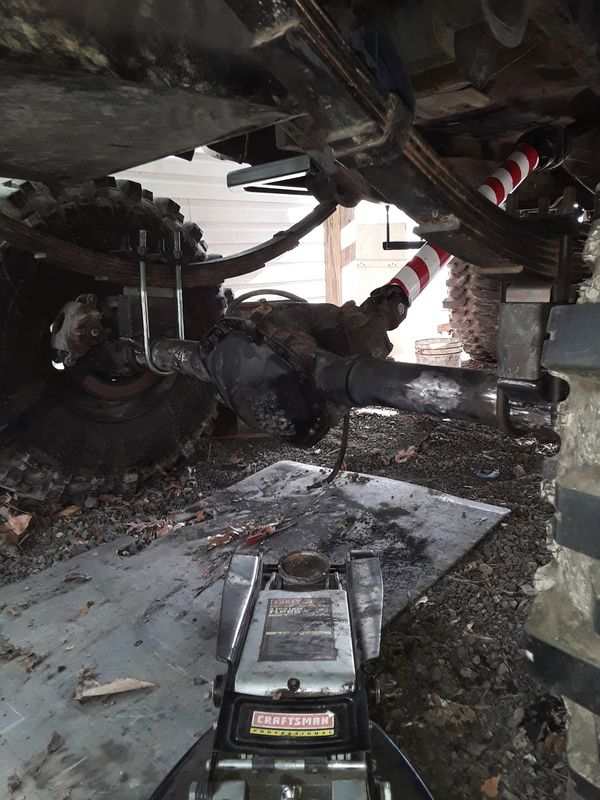

Next I cut off the axle perches to rotate the axle to get the driveshaft joint angles right

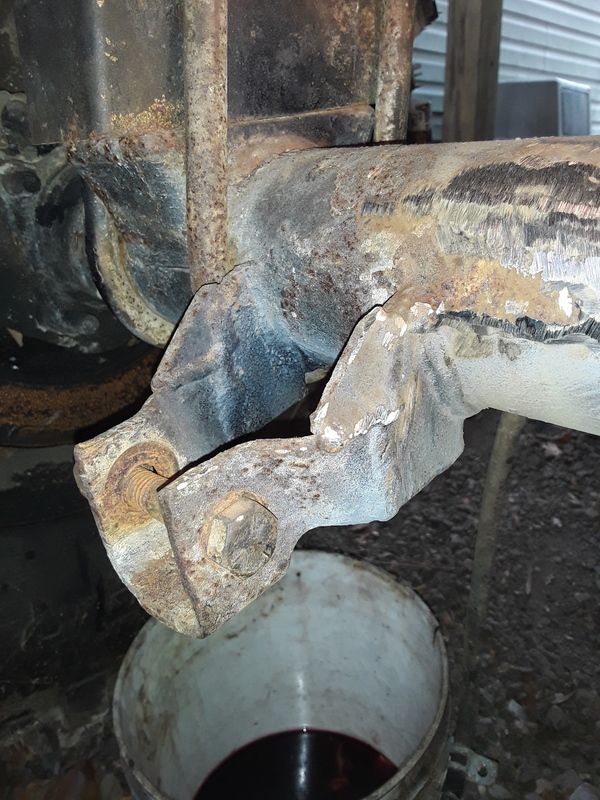

Found this crap for a shock mount so I decided to make my own and cut this off







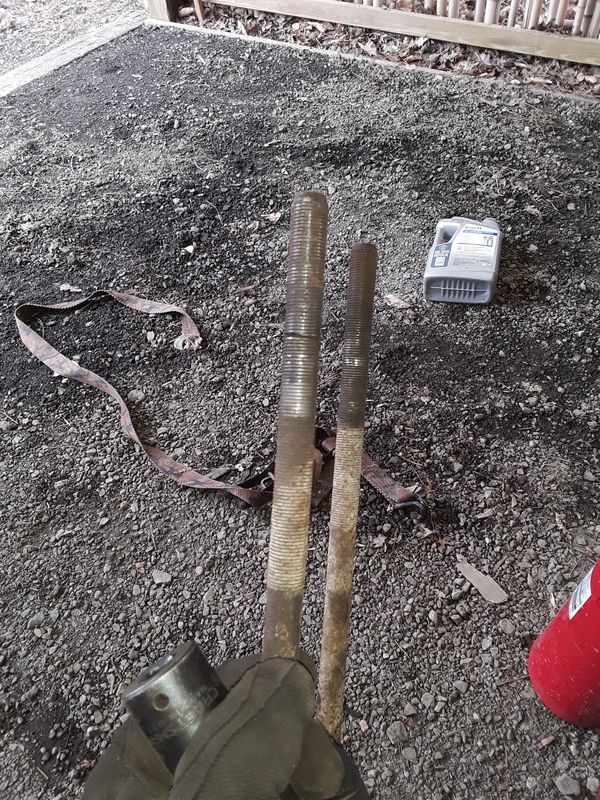

One of the old ubolts was cut for some reason,so i replaced it

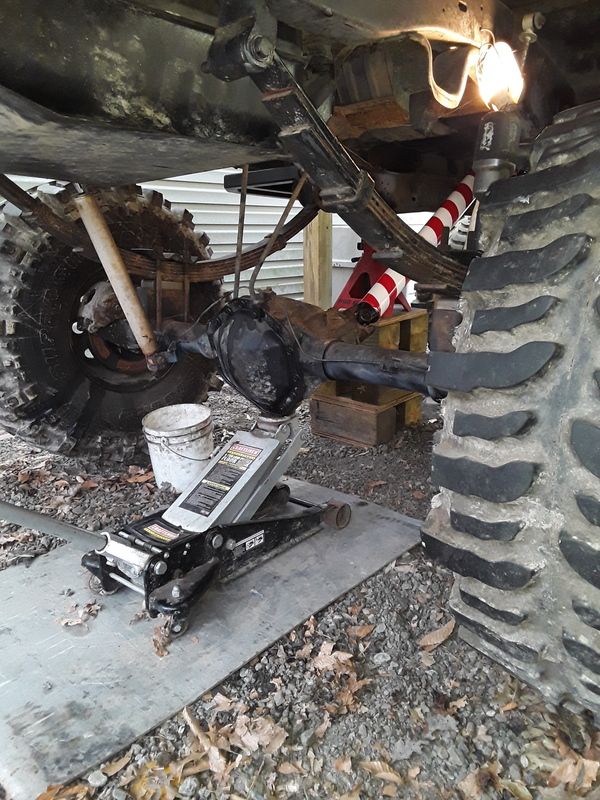

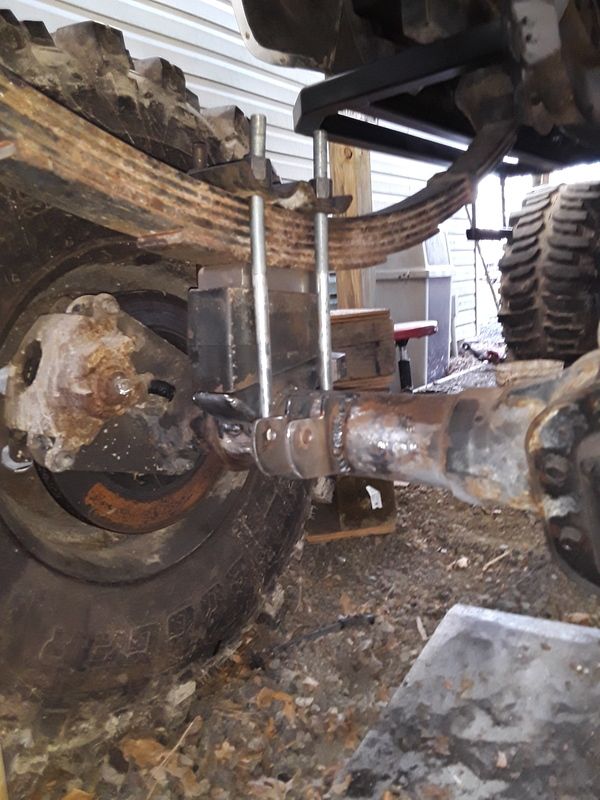

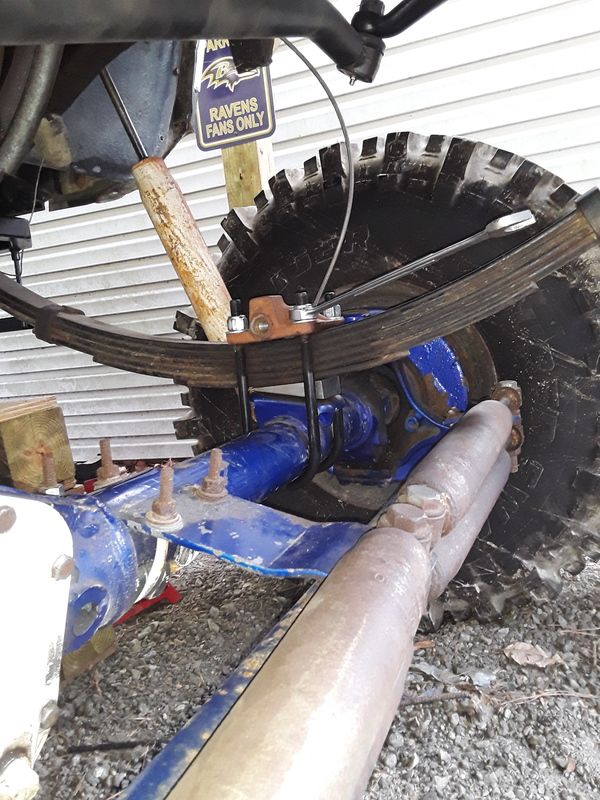

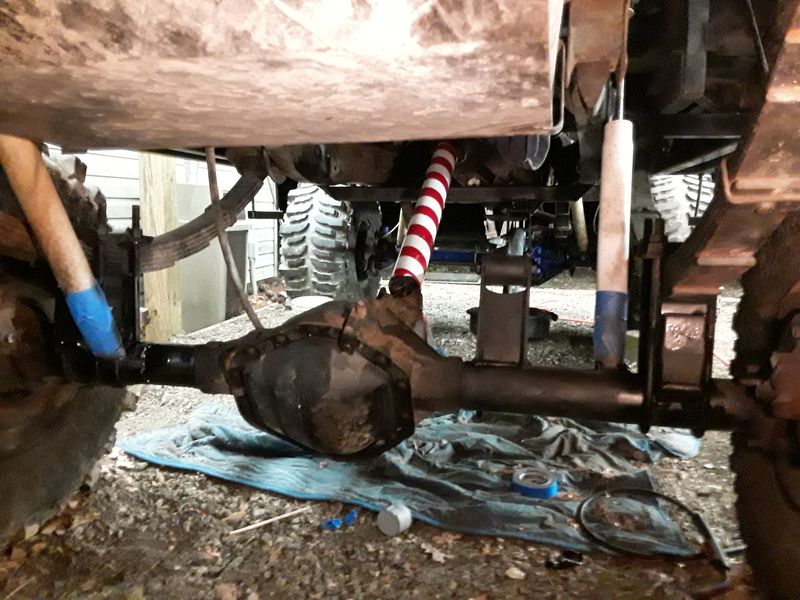

Perches all welded up and leaf springs torqued down

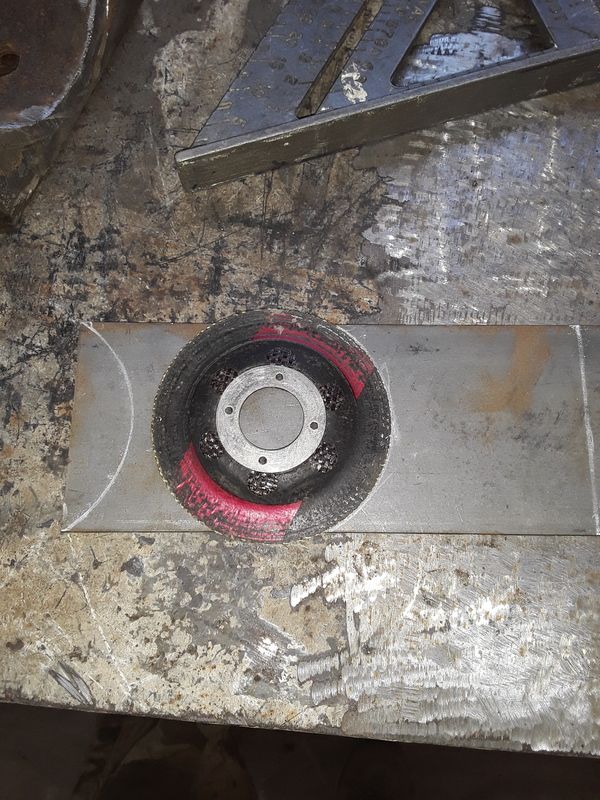

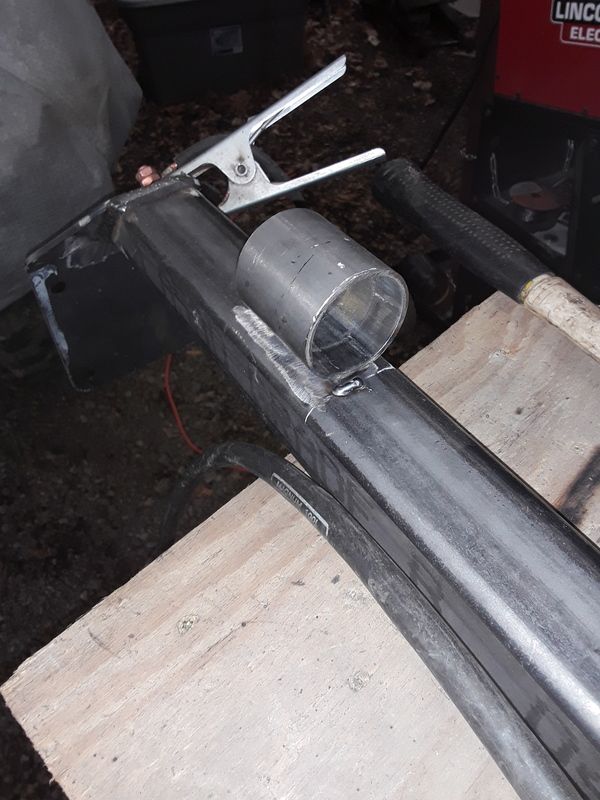

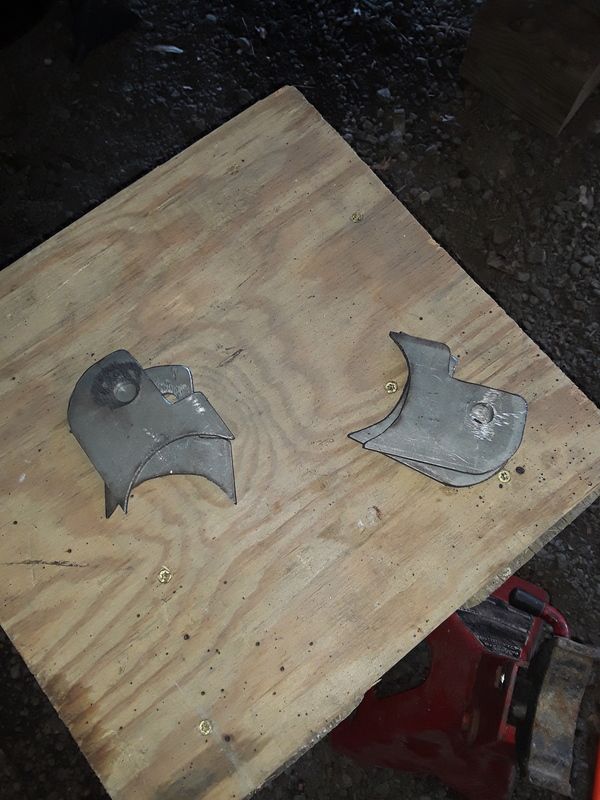

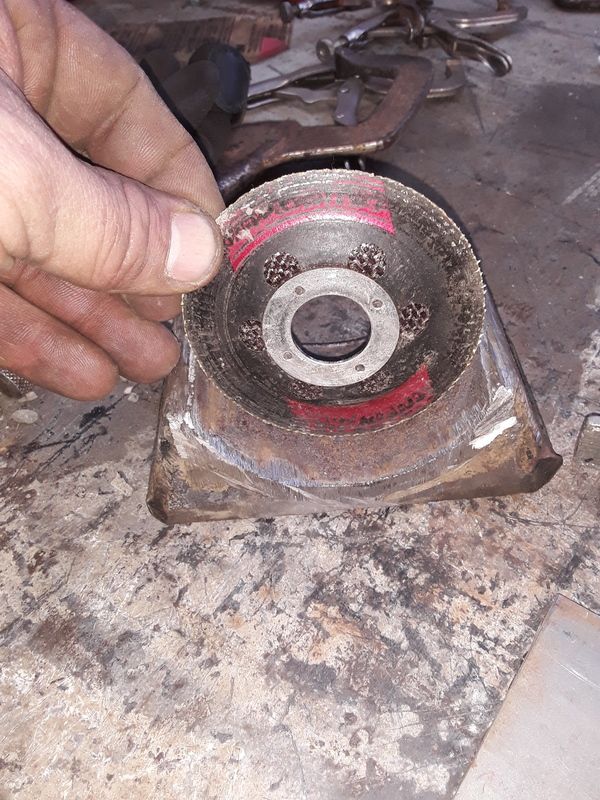

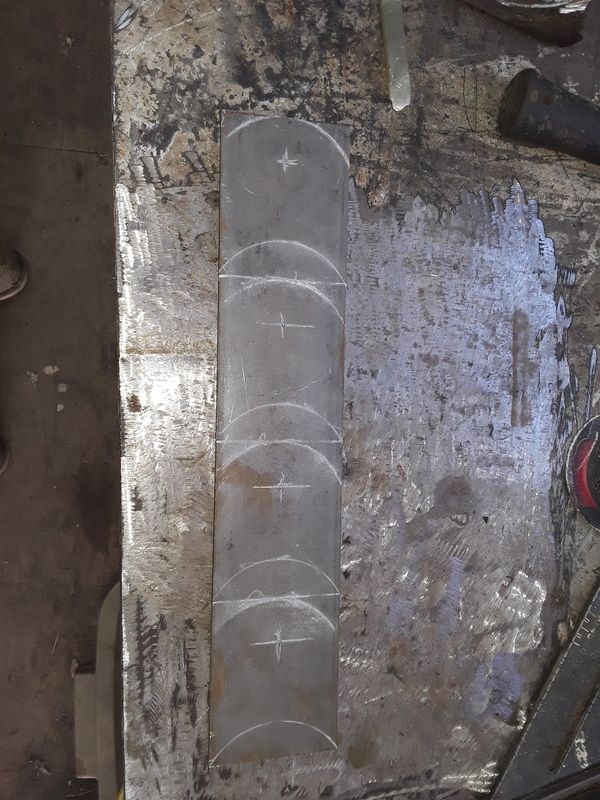

Made my own shock mounts. Used an worn out cutting wheel that was the same diameter as the perch I cut off for a template

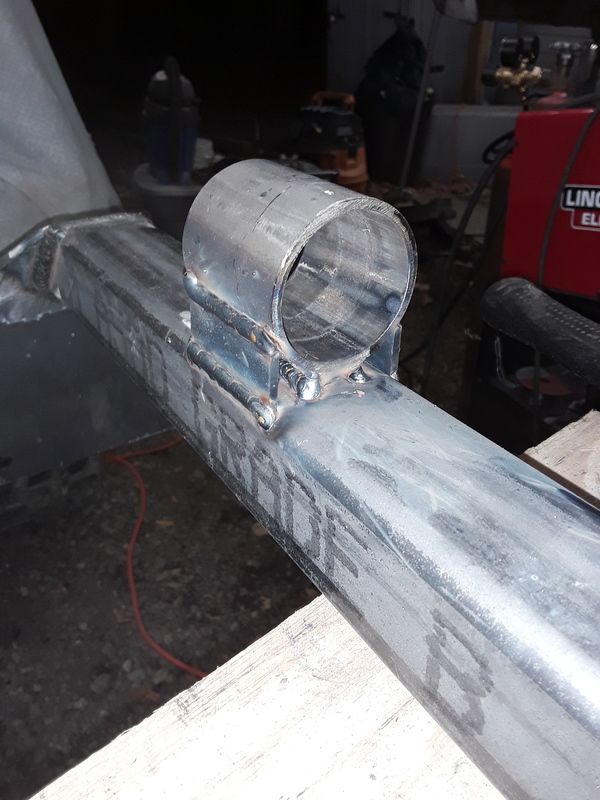

My new shock mounts




Installed

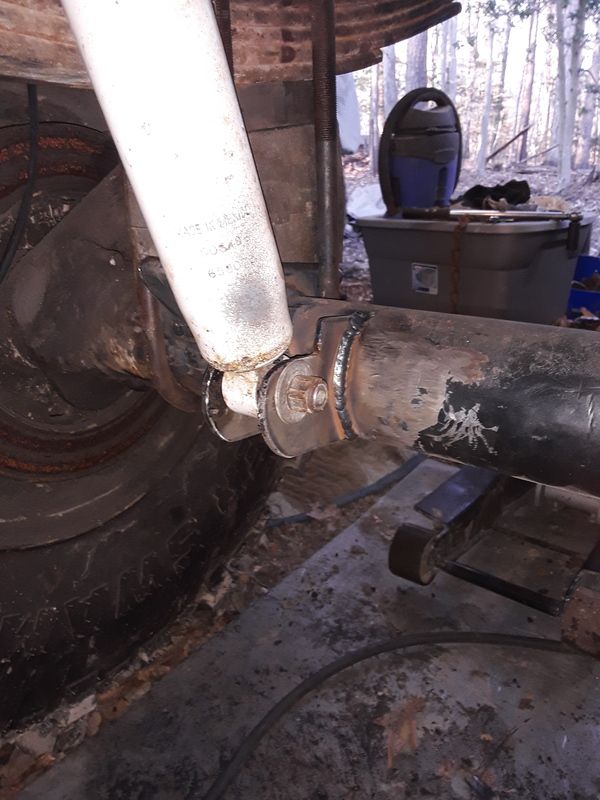

All welded up. Both sides done but no pictures of the other side since it's the same.

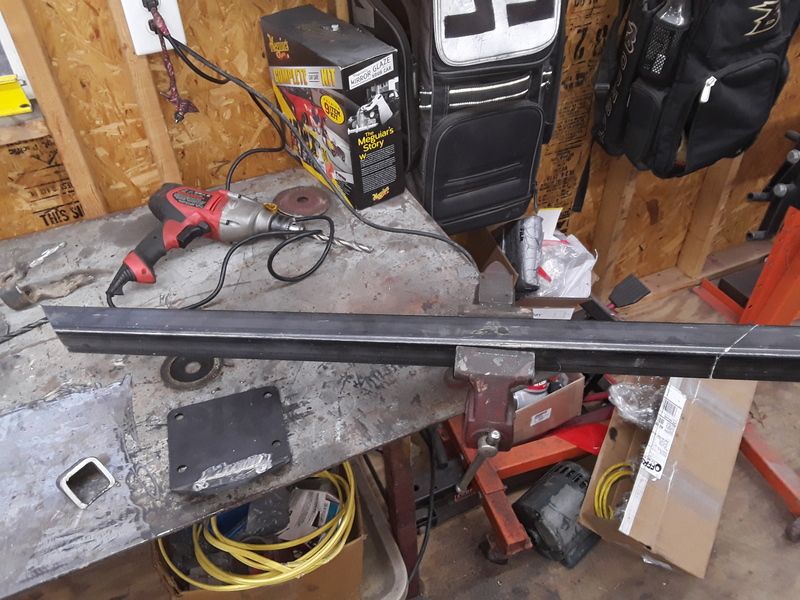

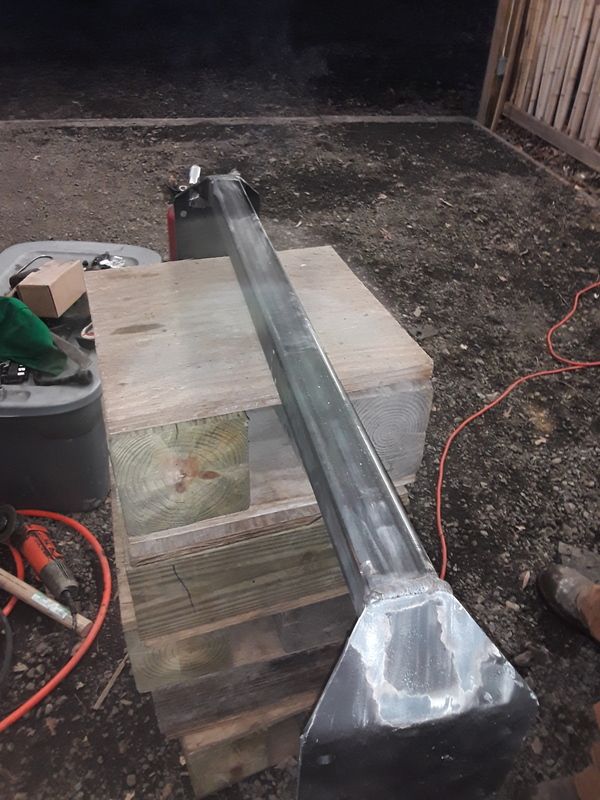

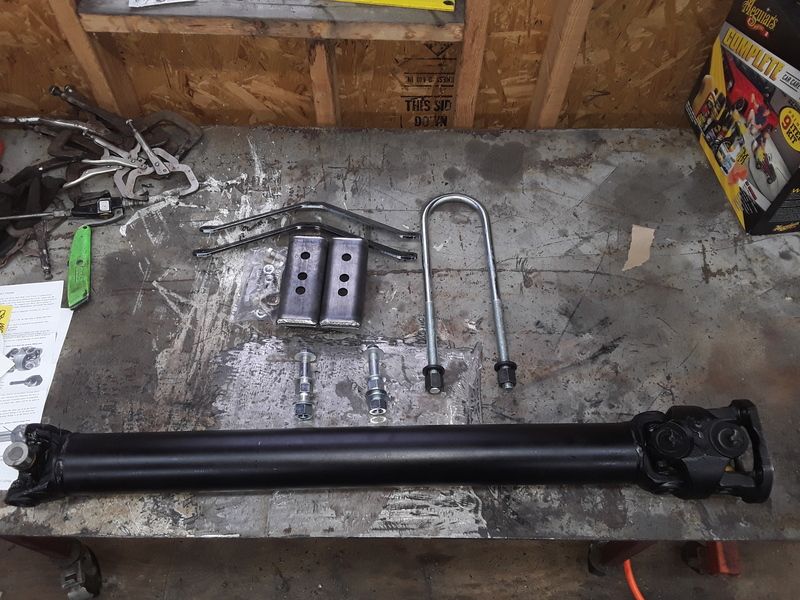

Last thing for today. Traction bar cross bar.

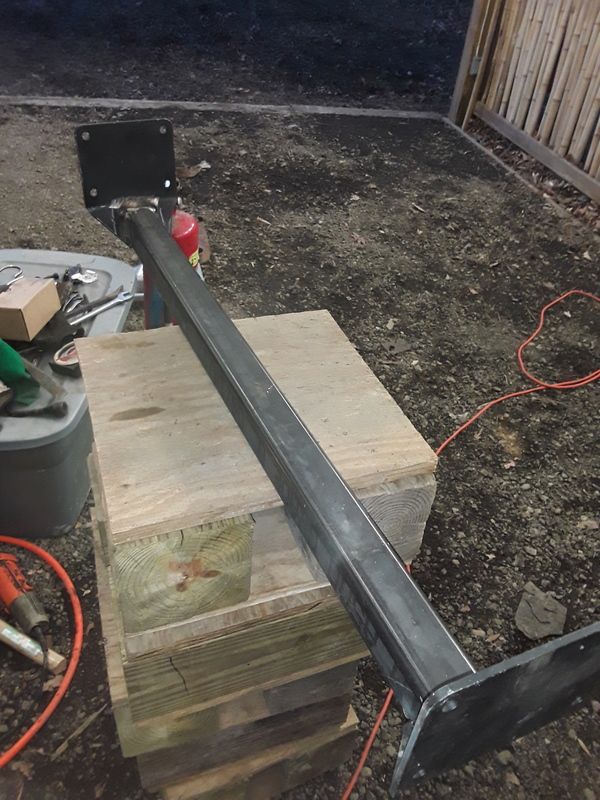

Cross mocked up



Ready for welding



Welded



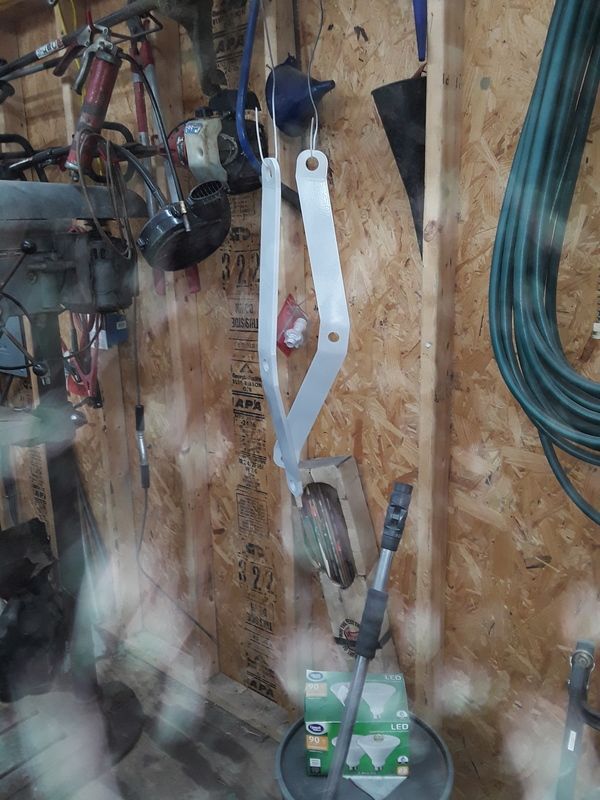

Shackle mount



Shackle mounts and tabs welded up



Cross bar holes drilled and bolted then traction bar installed

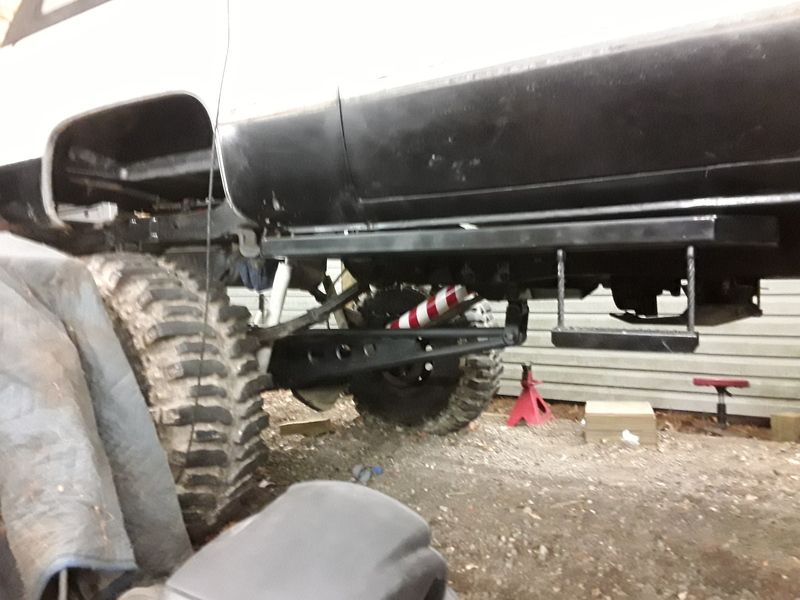

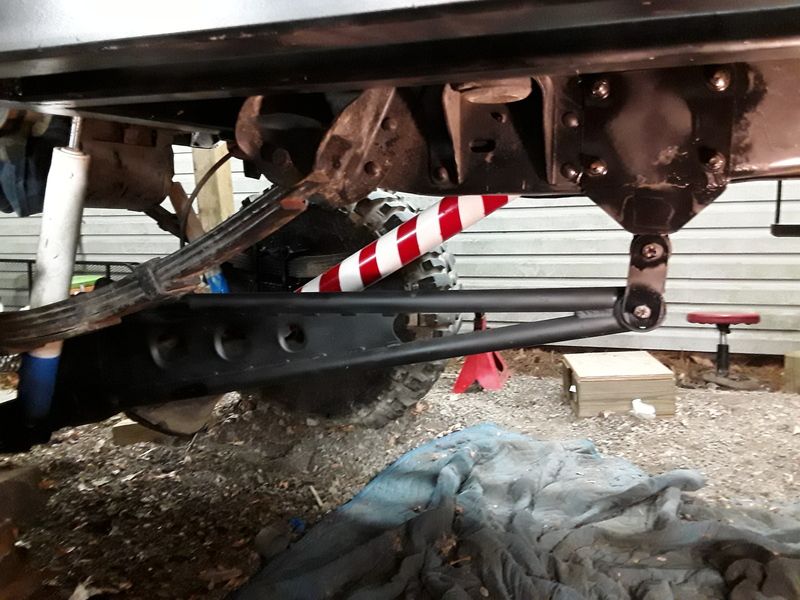

Finished.



Touched up the bare metal with some flat black paint (looks glossy now cause I took the photo before it dried lol)

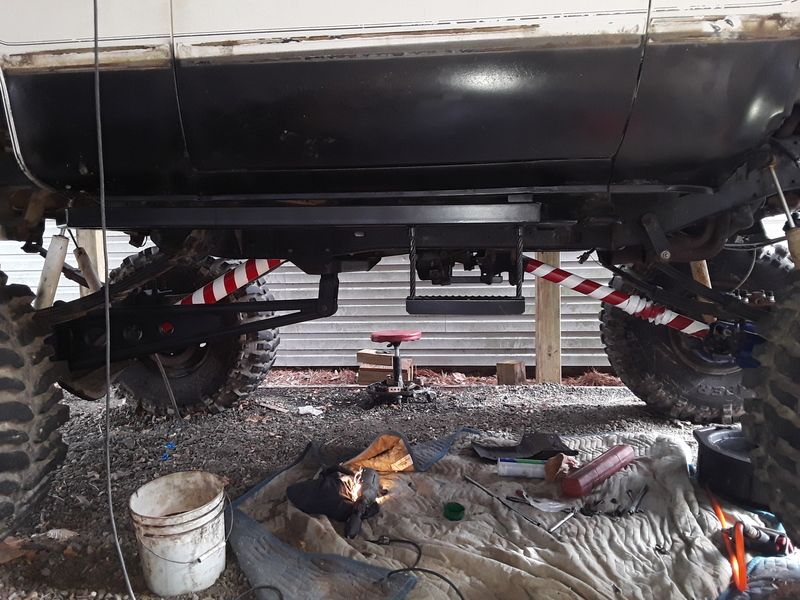

All done



Last edited:

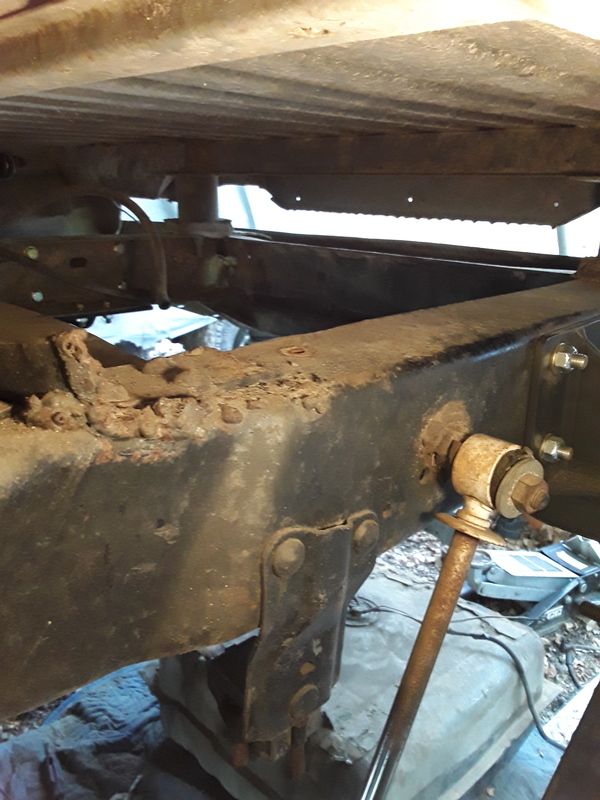

Time to fix this mess. Dropped the skid plate and gas tank. To access the inside of the frame

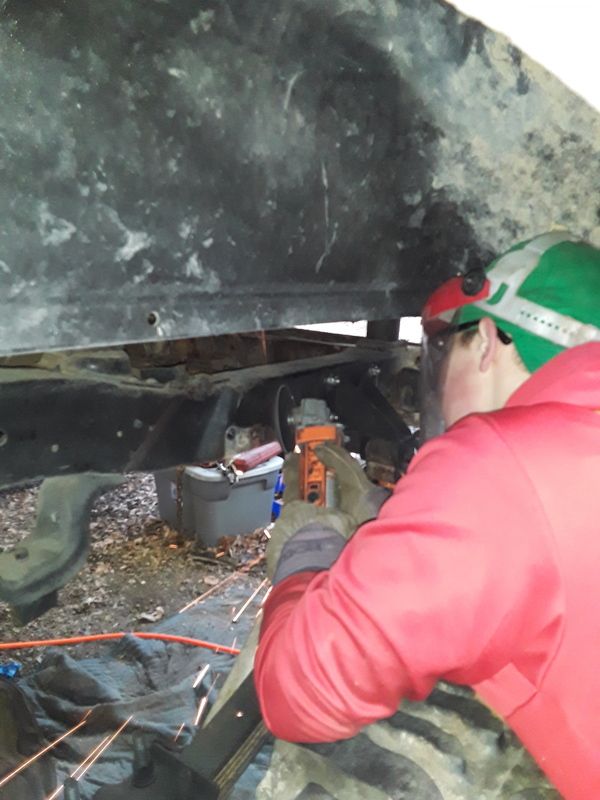

Got my son working the grinder. Gotta teach him about the importance of doing the job right the first time to avoid alot of grinding lol

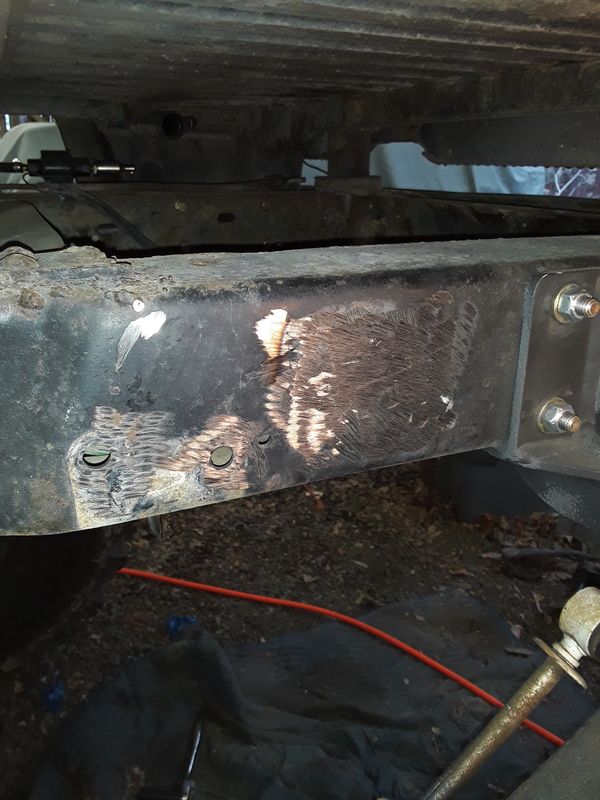

Cleaned up the shock mount area

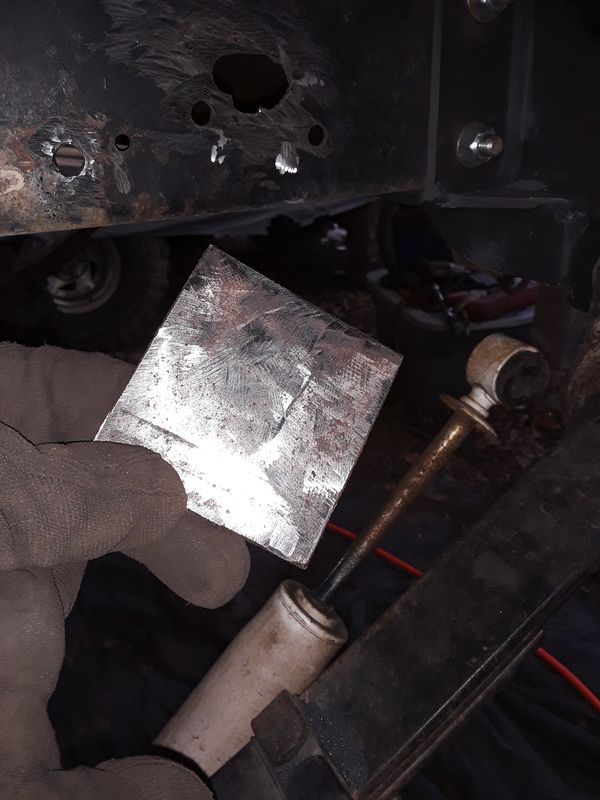

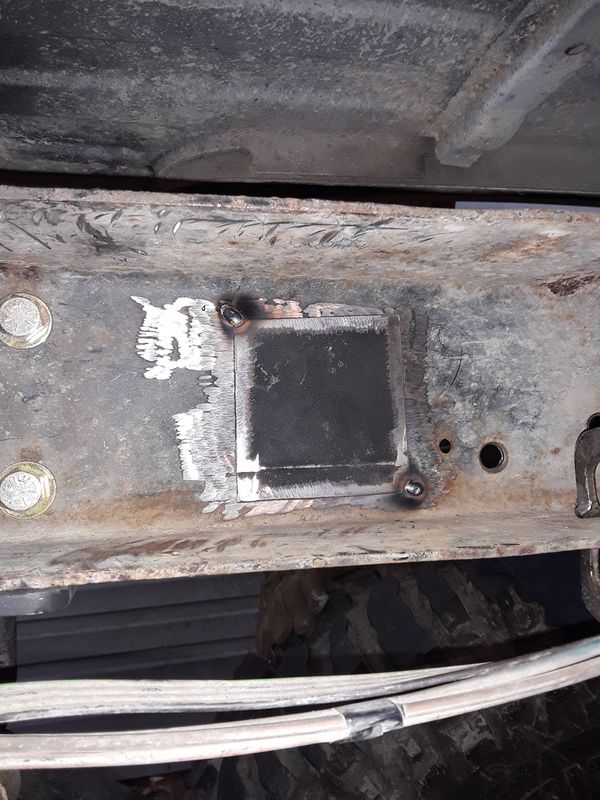

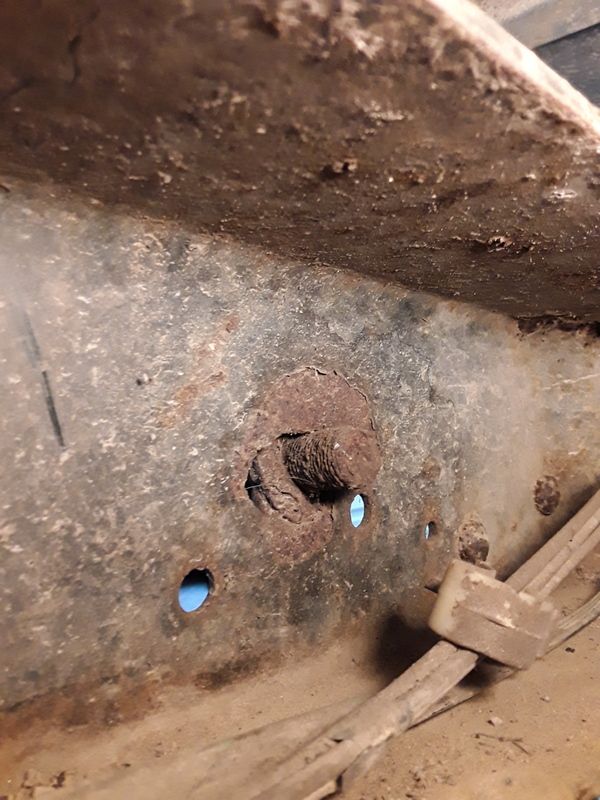

Decided to put a piece of plate inside the frame behind the shock mount

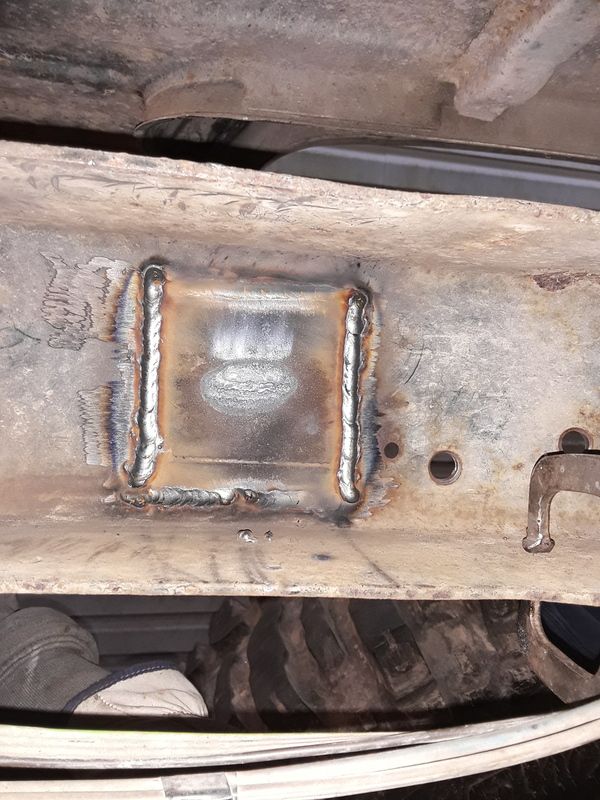

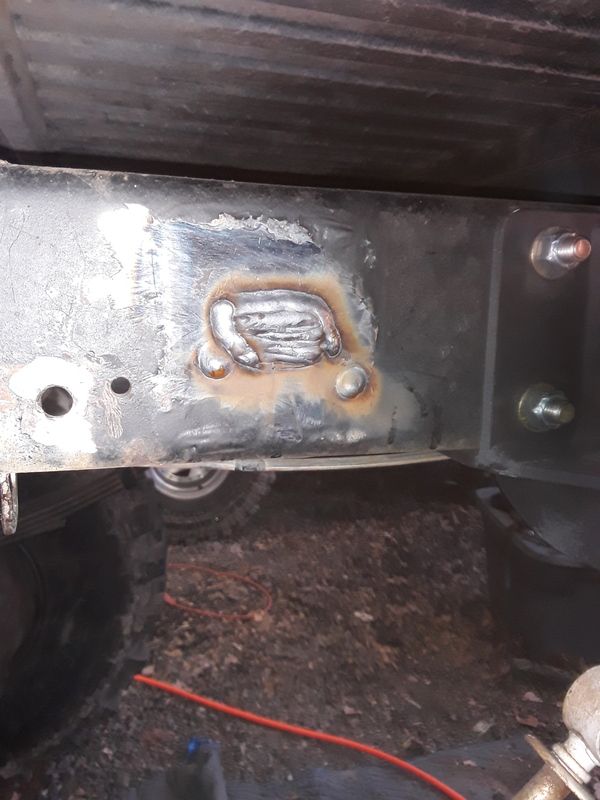

Plug welded the plate from the outside

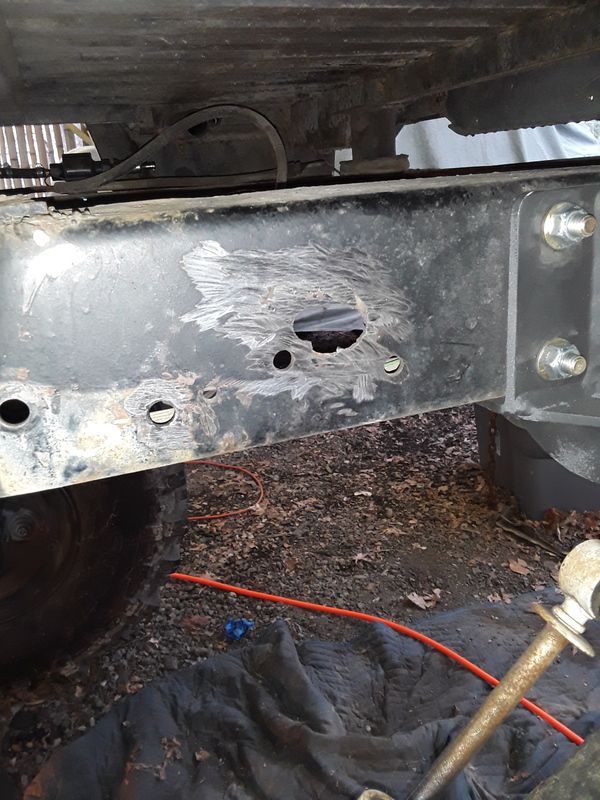

Shock area cleaned up

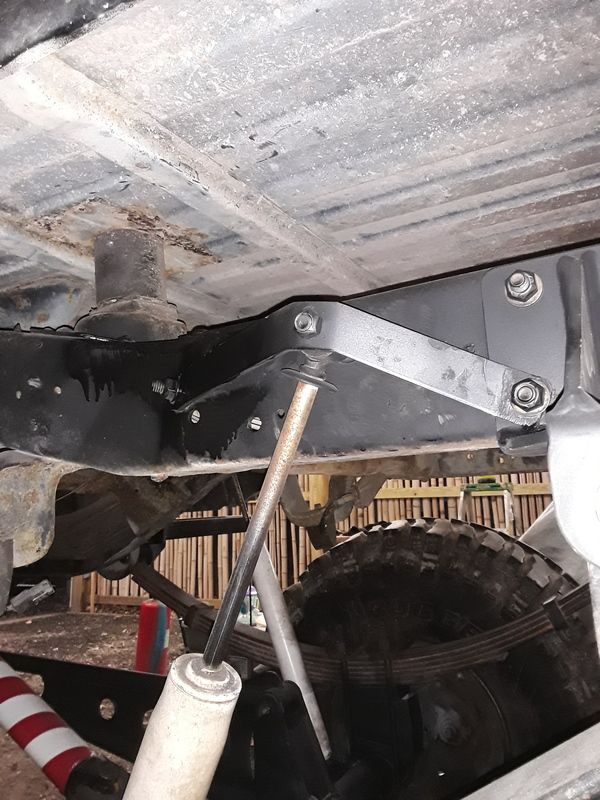

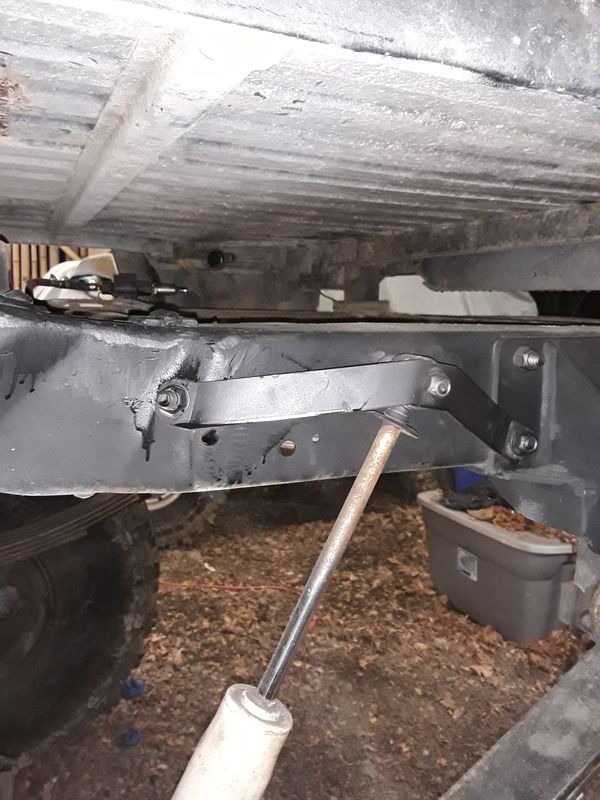

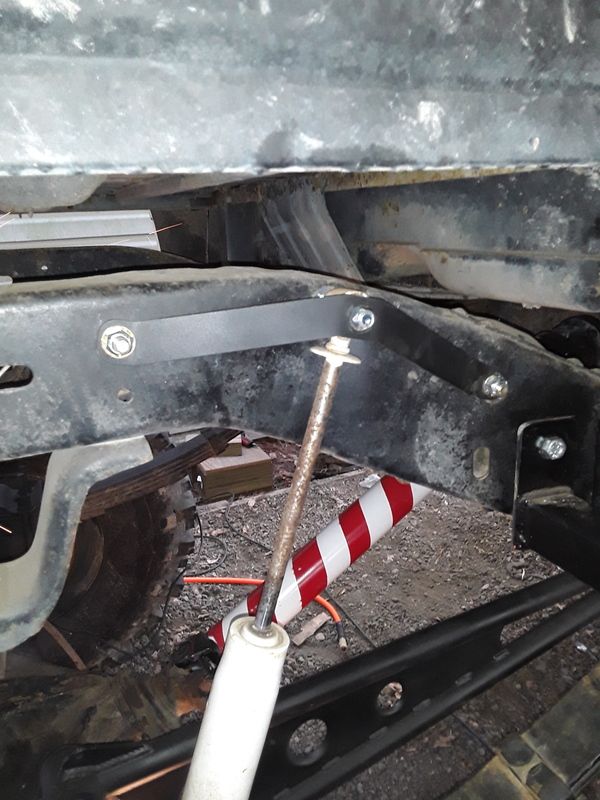

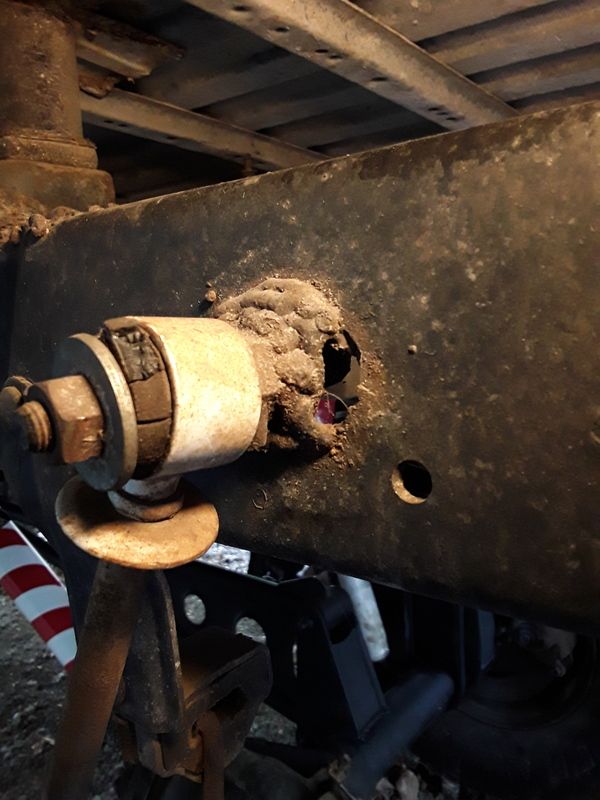

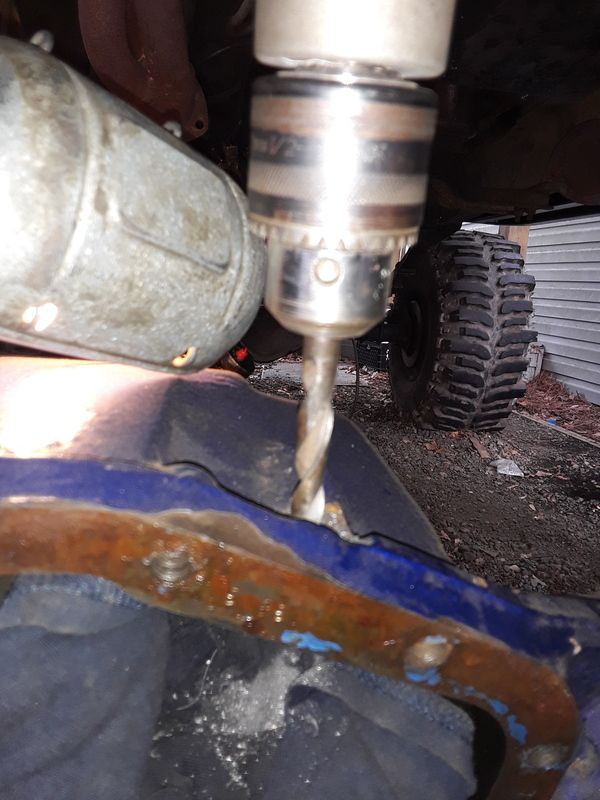

Drilled the hole for the shock mount and installed the rear shock brace too. I had to modify the brace to fit since it hits the shackle flip bracket.



Also grinded off all the welds that's was piled up on the frame.

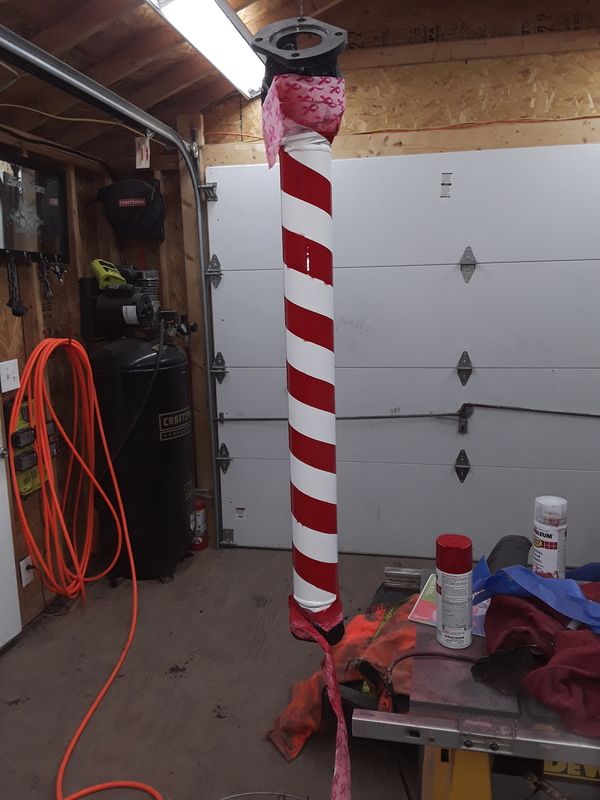

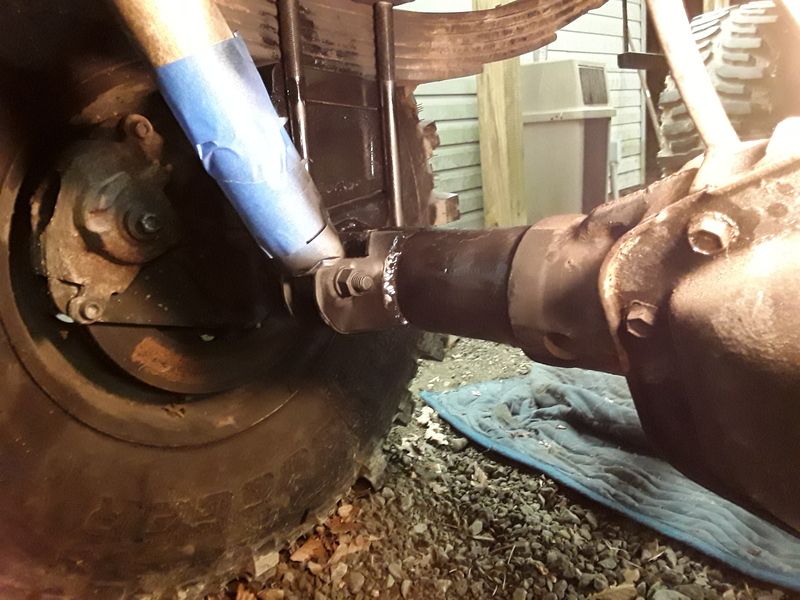

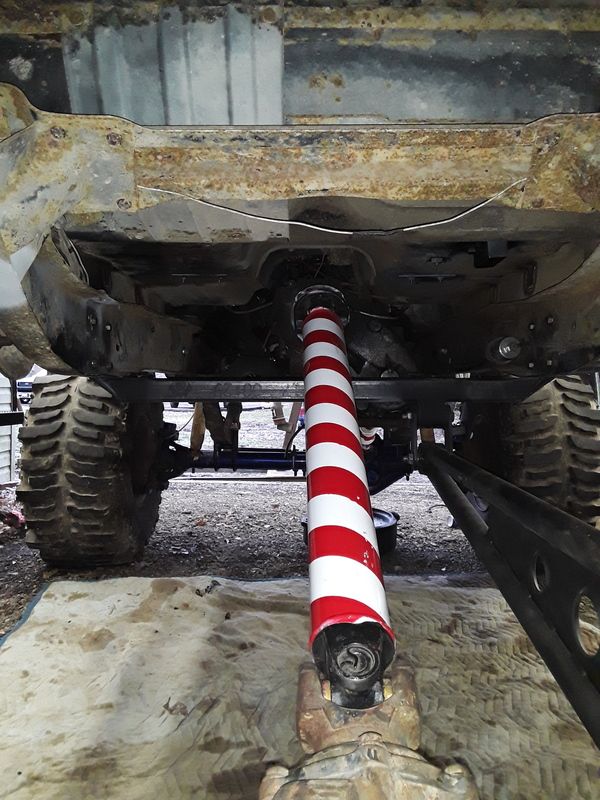

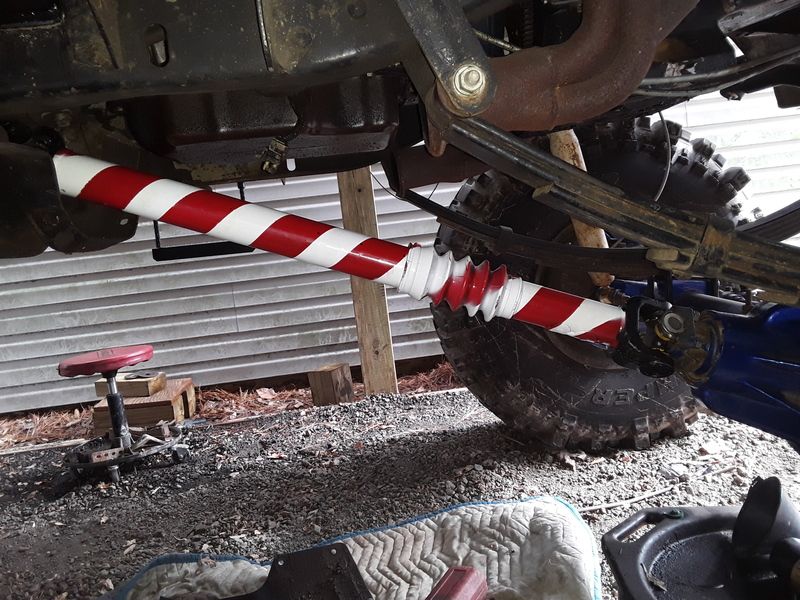

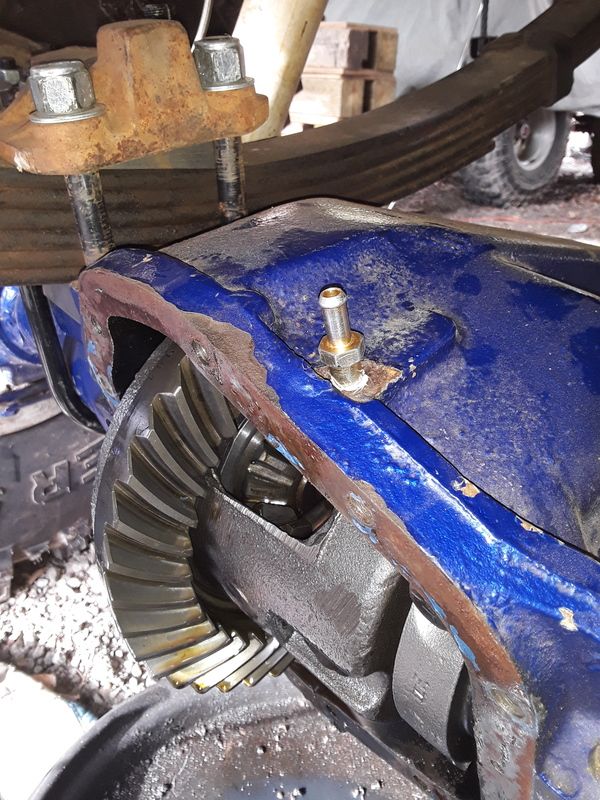

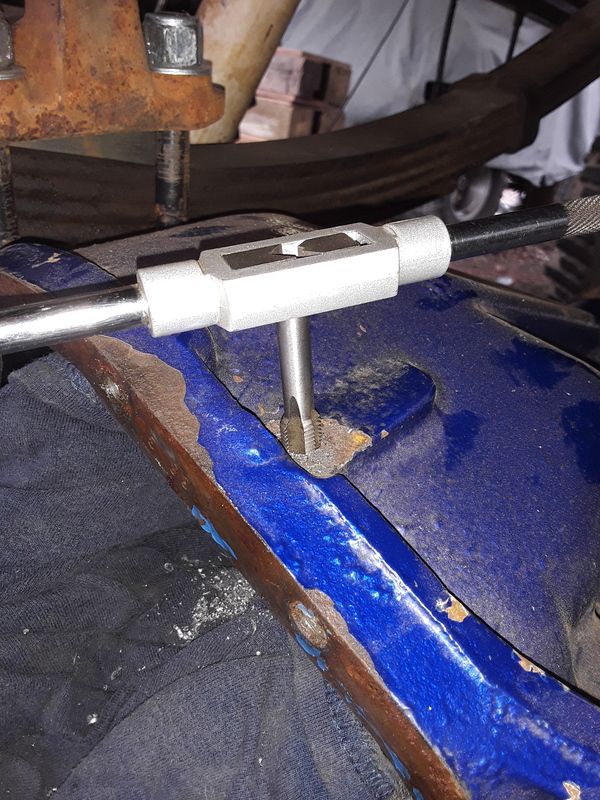

Put the front driveshaft in just to see what it looks like. I gotta swap the ring and pinion soon since I have two different gears sets.

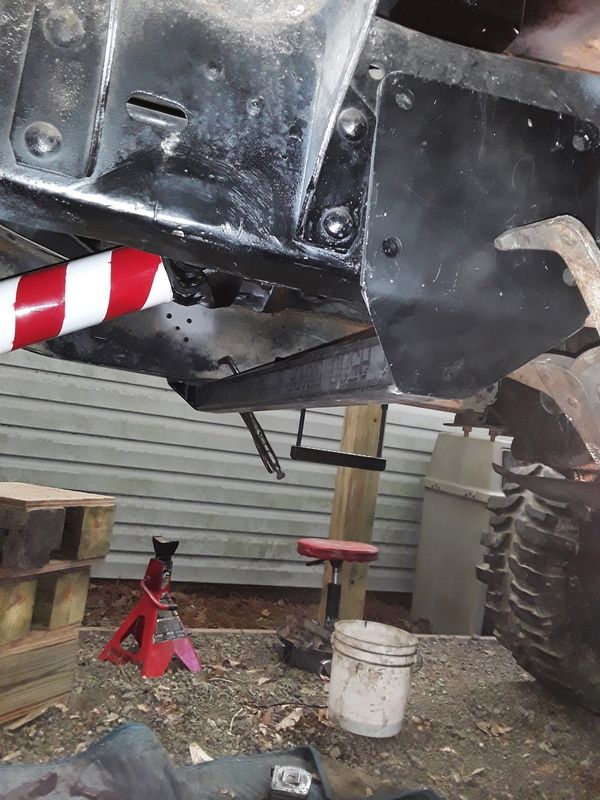

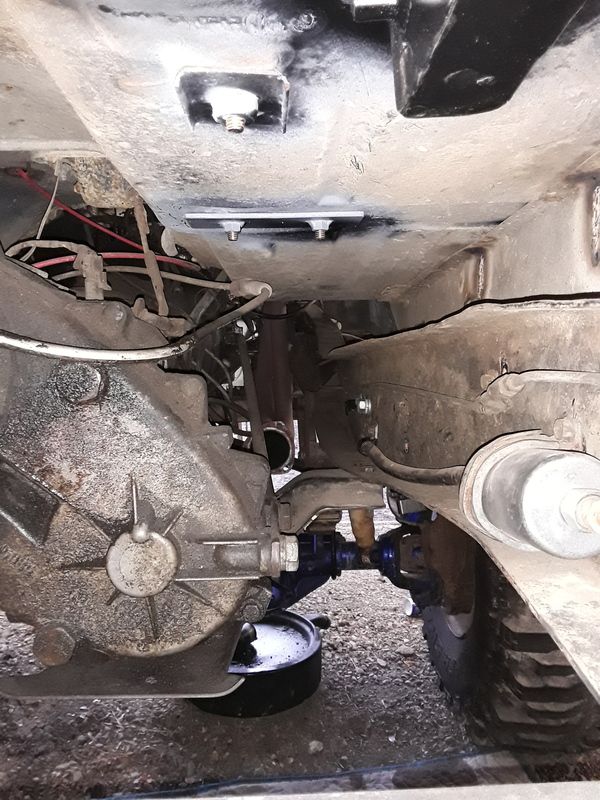

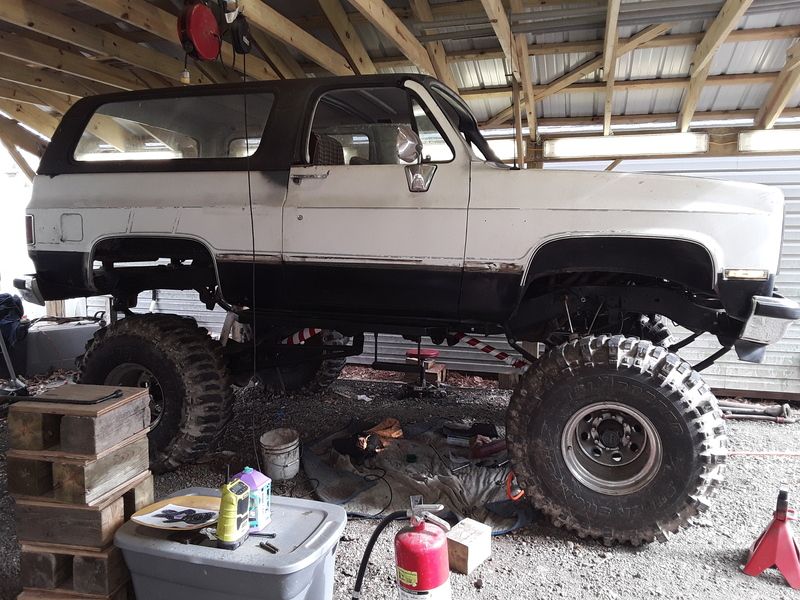

Starting to look like something now.

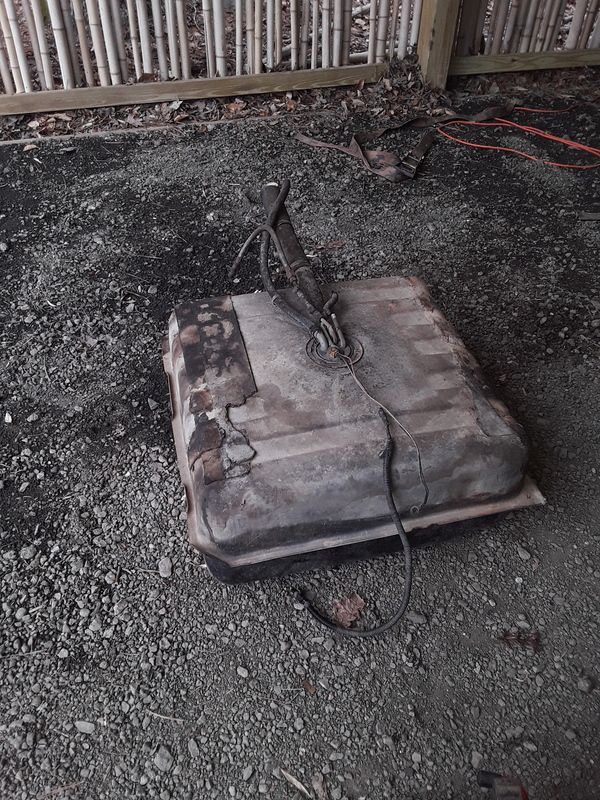

Since the gas tank was out figured I'd look into it to see why I was having fuel issues

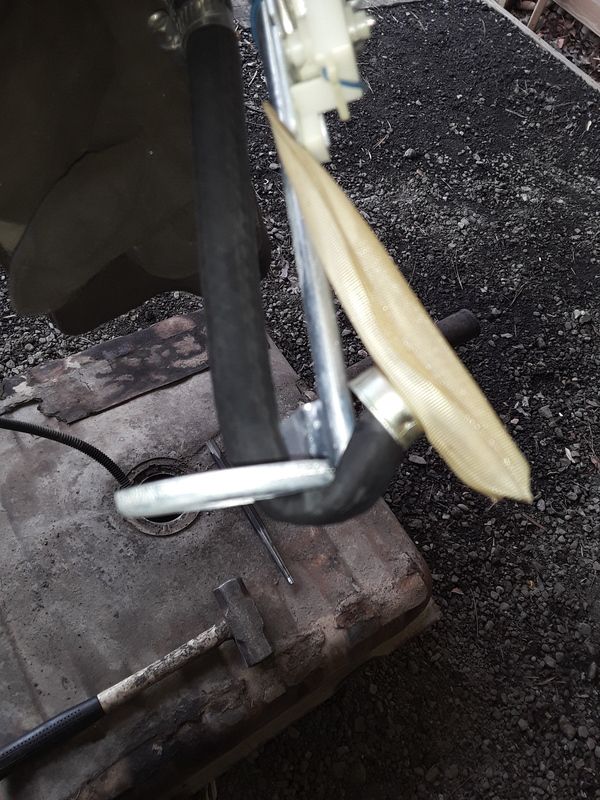

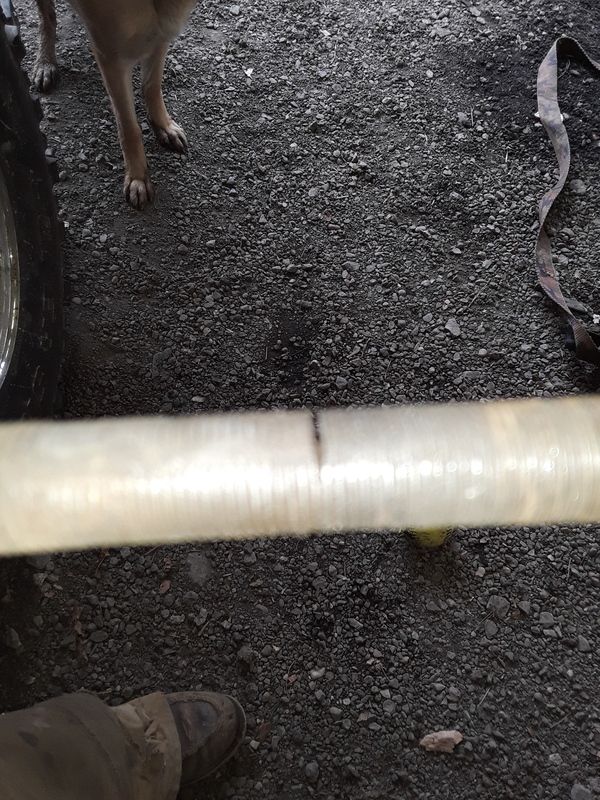

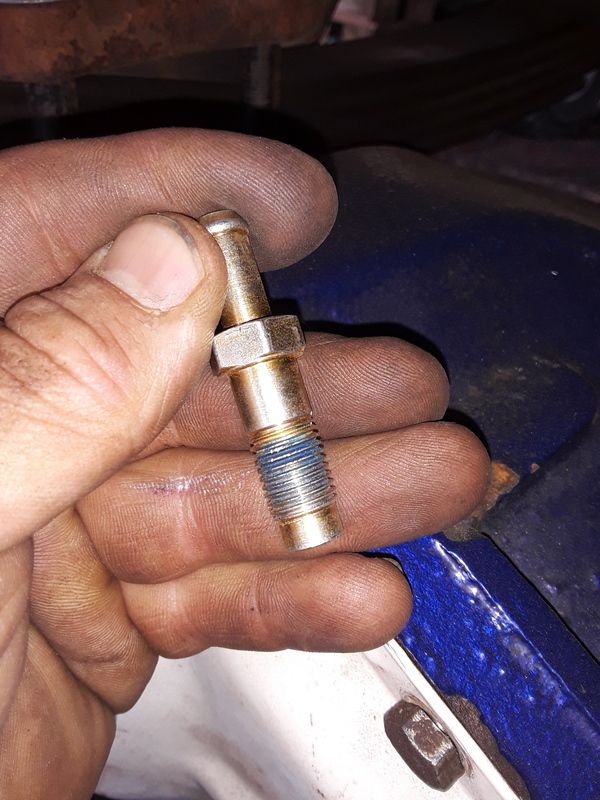

And I'd guess this is the issue. The line is pinched and the picked sock is up for some reason. Easy fix, a new fuel line and were good to go


Thought I was done for the night but decided to mess with the fuel sending unit to see if it was bad or not. So got out my ohm meter.

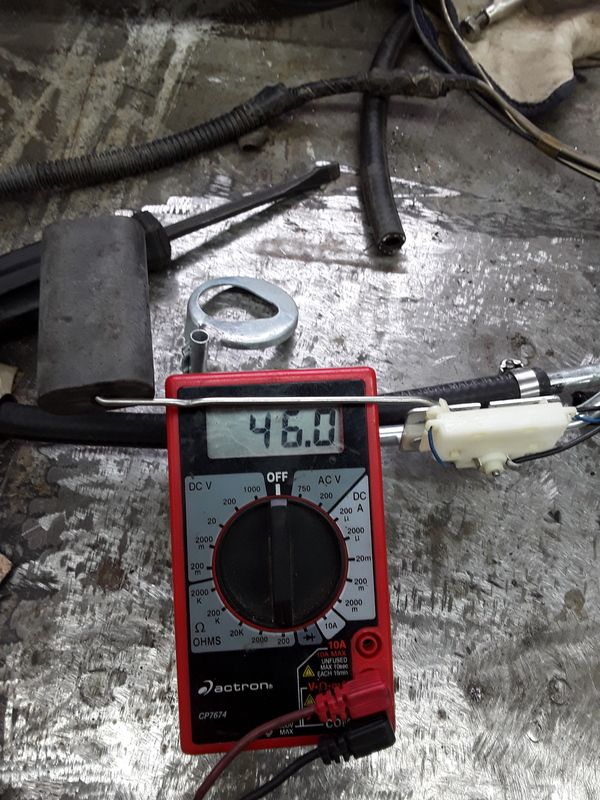

Empty

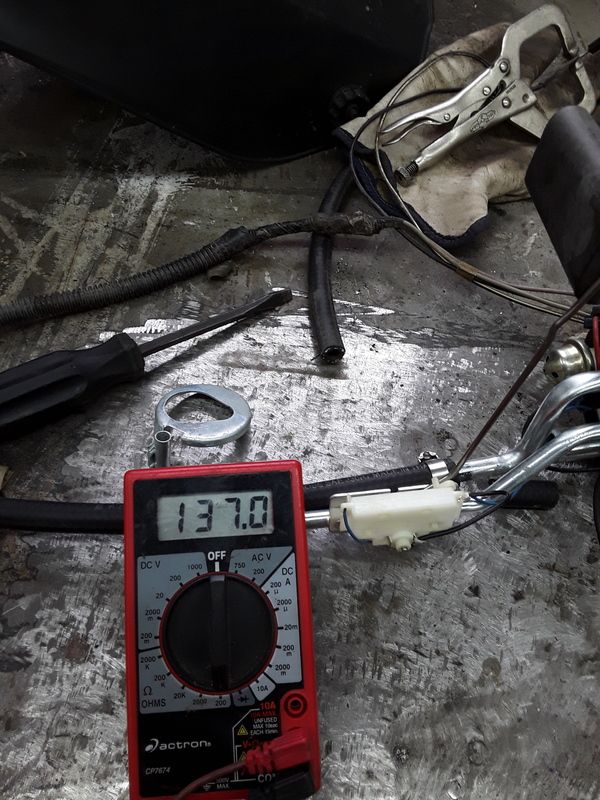

Full



I believe the sending unit is fine. So I cleaned up the ground before installing

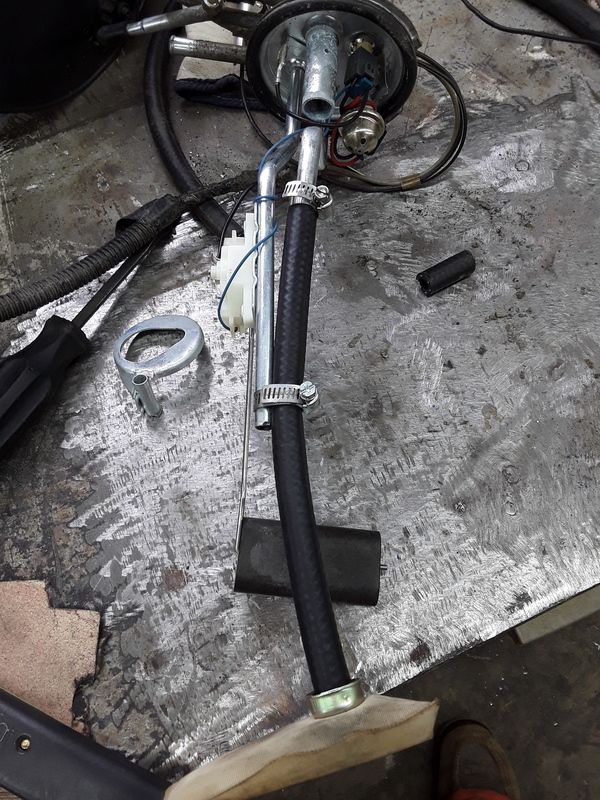

Heres my fix to the pickup sock. Replaced the hose, cut off the old mounting bracket for the intank pump and clamped it together.



For some reason I just couldn't let the tank sit on the ground so the boy and I put it in with the skid plate.

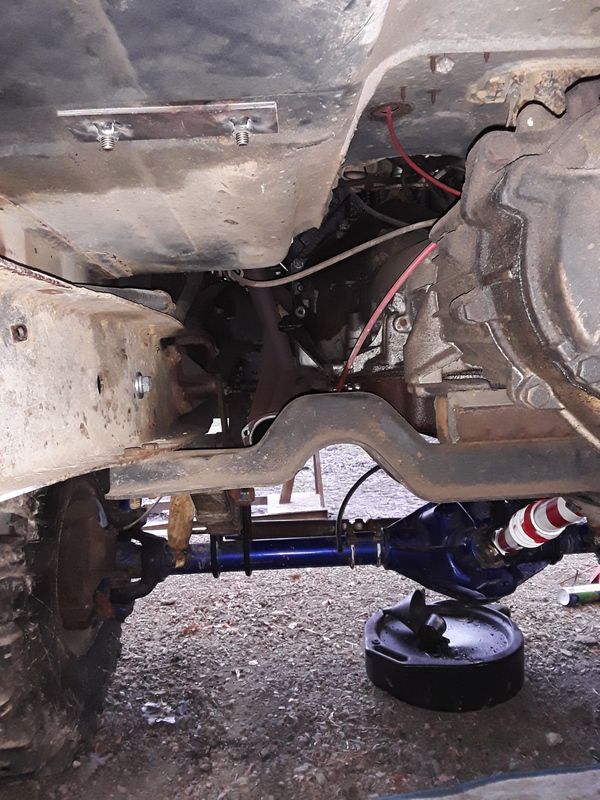

After installing the tank checked the gauge and wouldn't you know it, it works. Put 5 gallons in her and let her run for 5 minutes or so. So the ground was bad. We were getting ready to call it a night but the boy said "dad what's those lines for?". There were abandoned fuel return line and emissions stuff. So we yanked them outta there since were running a carburetor now and have no need for that stuff. Now the underside is starting to look clean. That's all for now. Gonna try to put exhaust on it next weekend.

Here we go. Started the exhaust tonight.

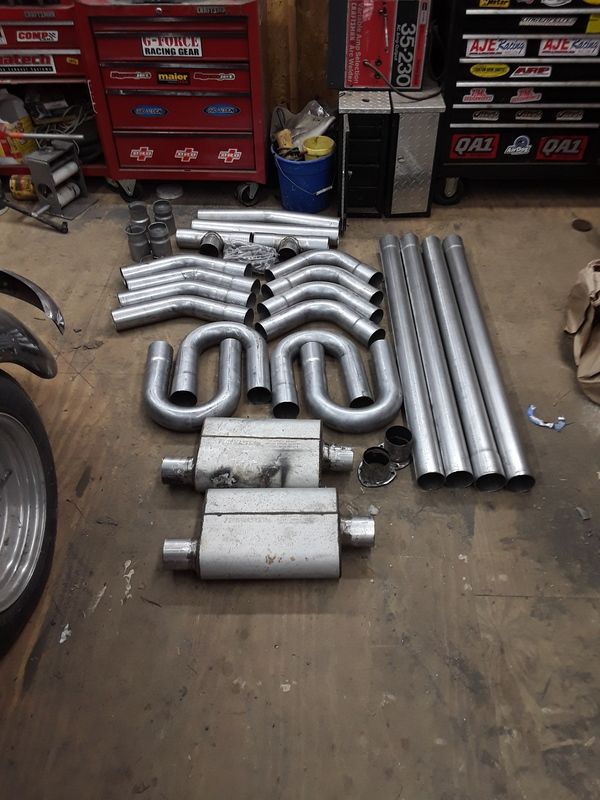

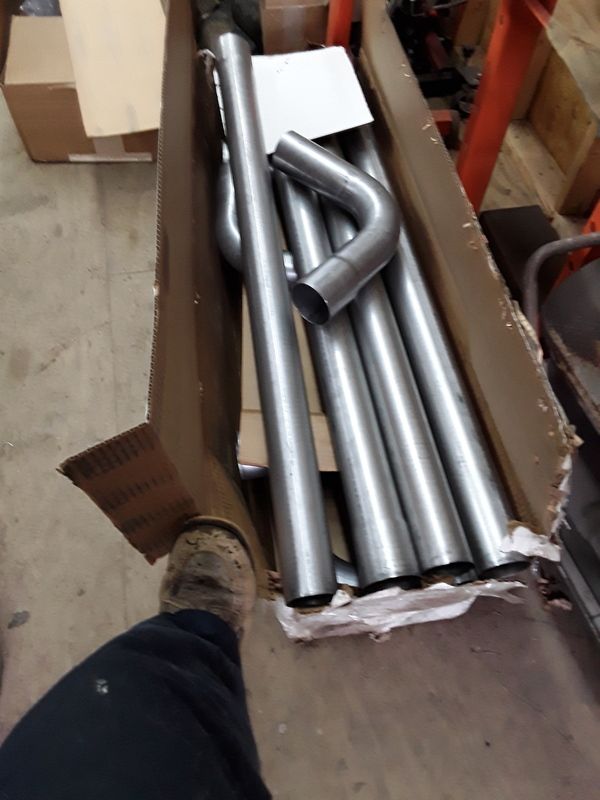

All laid out. 2 40 series flowmaster, h-pipe kit and summits 3" hot rod exhaust kit.



Before pics
