2013.09.10- UPDATE! - MORE PHB ISSUES...
Win some, lose some.
I have been systematically going through all of my cobbled-together link mounts and replacing them with "real" beefy usable mounts that will be part of the final front 3-link solution...
Some were wins: The frame-side PHB mount, and the lower DS link mount have been transformed into their final iterations (hopefully) with very little drama... however, as I started to move to the PS to rework the axle-side PHB mount and build it into a single large mount that integrated the lower link mount, things started to get dicey.
The following images will illustrate the struggles, and what I hope will be a solid solution....

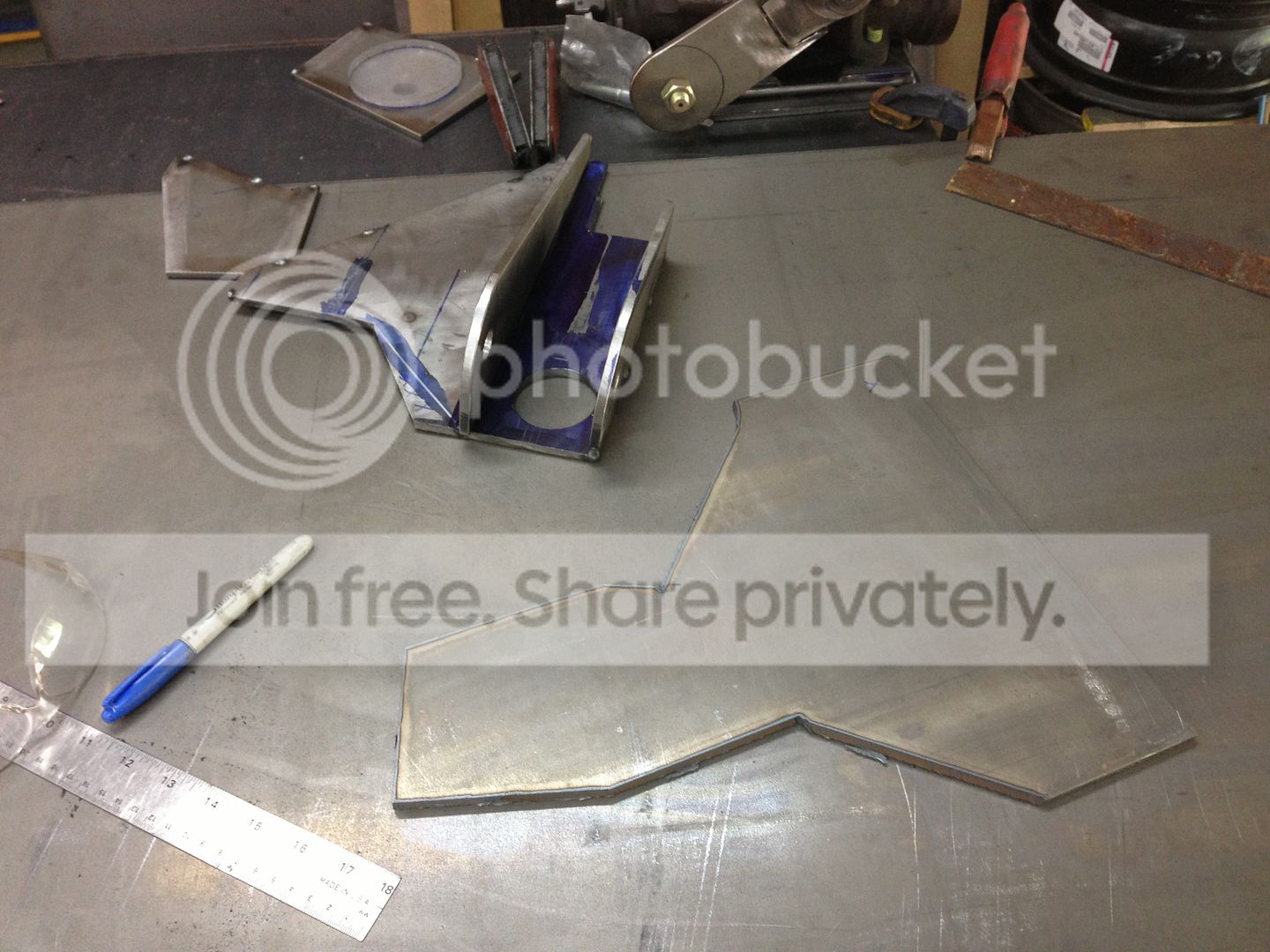

Opening shot: Here is the lower plate being re-cut to integrate the lower link mount.
Here's a shot of the new plate as it was put into position on the passenger side.... yes, I managed to get a speed hole on this side as well!

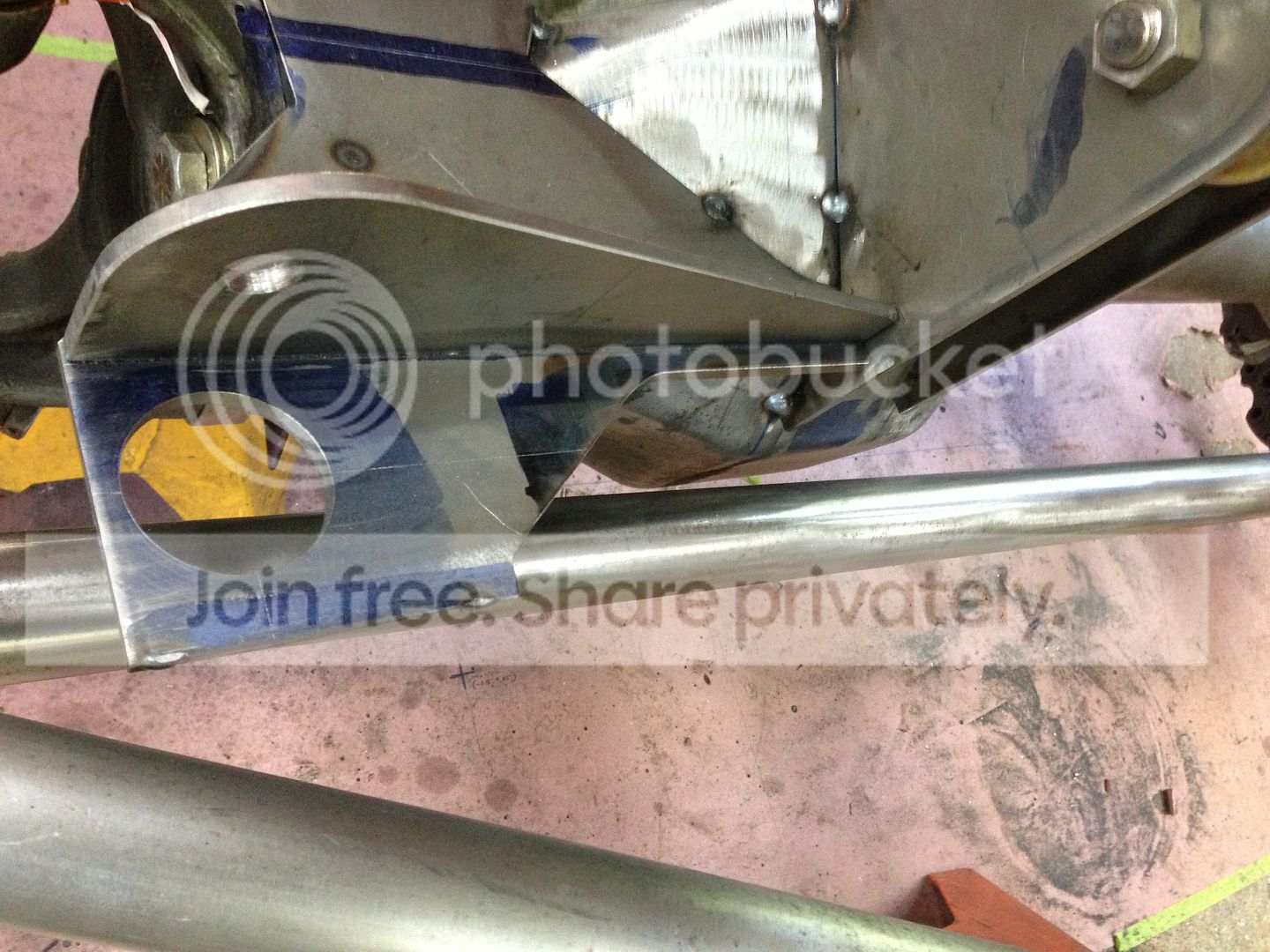

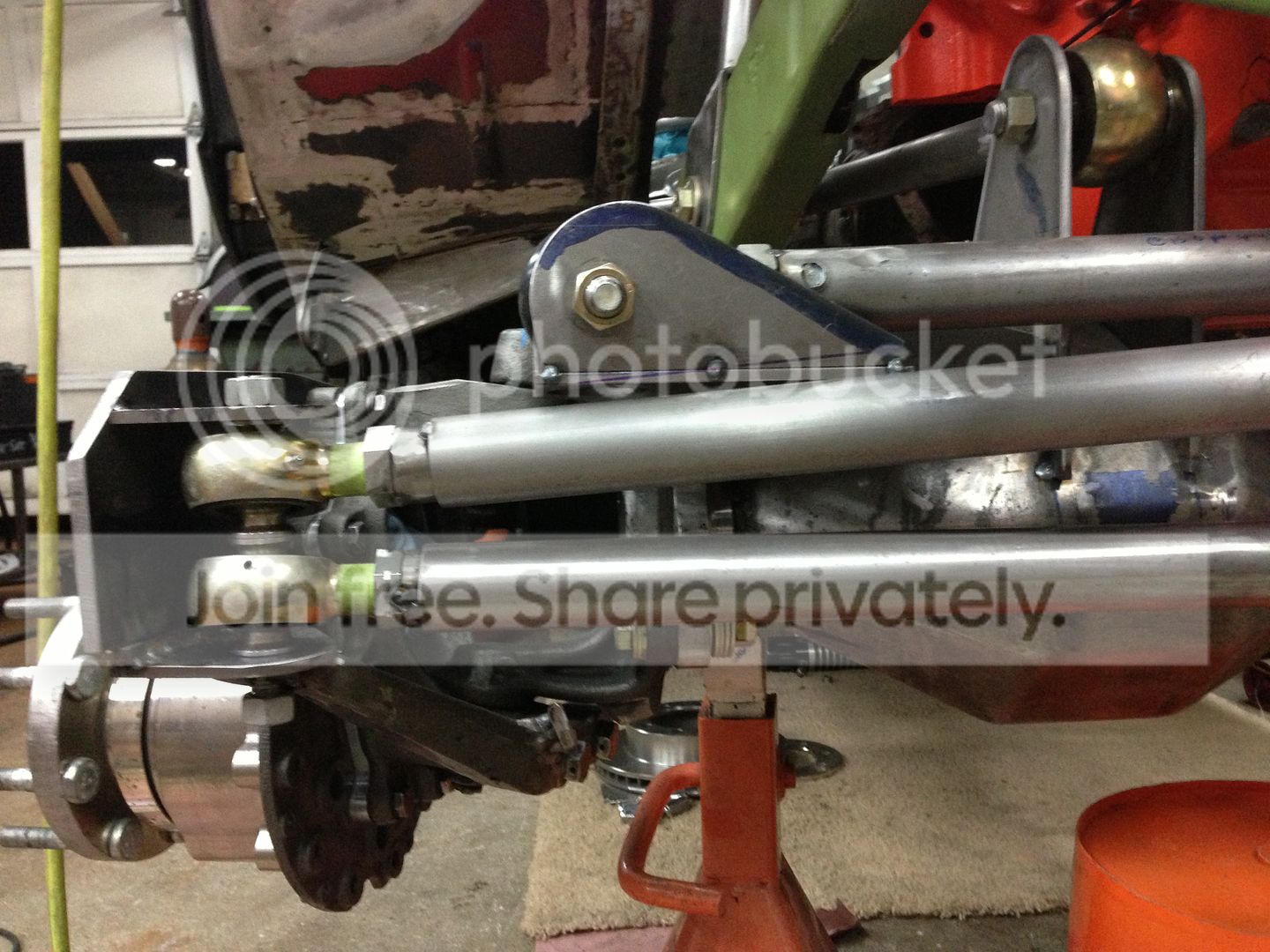

This mount seemed like it was going to be slam-dunk. Unfortunately, what I didn't notice was that the PHB mount (when finally placed into double-shear mount) does not have the clearance it needs to allow the PS to droop down more than a few inches (while simultaneously turning hard right on the draglink) before a collision occurs.... take a look. You can see how the draglink is poised to collide with the mounting brackets unless something is changed:
The long plate that supported the PHB (and the two relatively long mounting tabs) were cut-down in an effort to gain clearance during droop...
Unfortunately, this only gains a few additional inches of droop but does not allow the draglink to move under that PHB mount the way I need it to. It was becoming clear that the axle-side PHB mount simply cannot be supported from underneath..... instead, I needed to think more creatively about a way to effectively "hang" that heim from a mount from above.

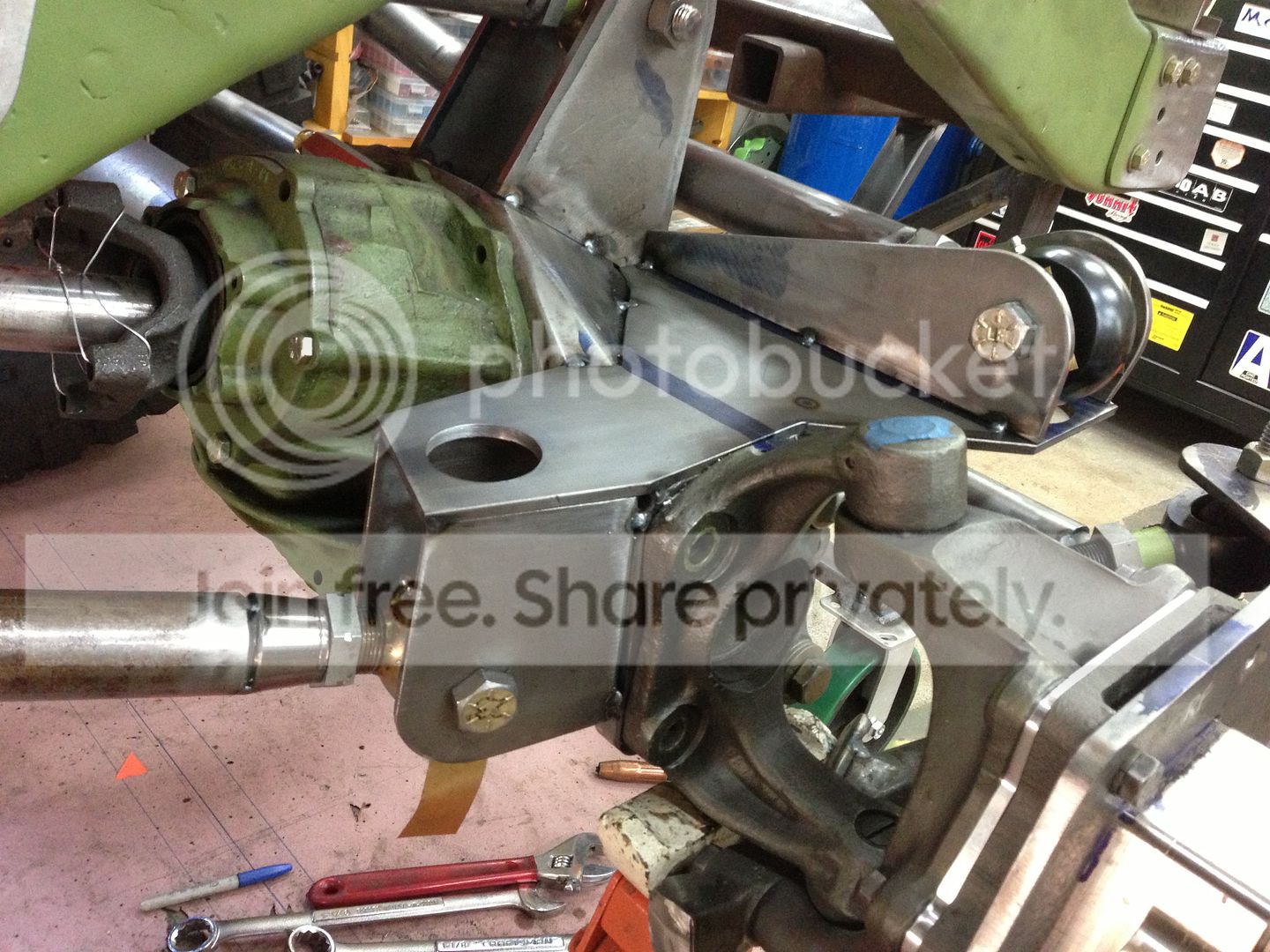

So... it was time to cut a substantial amount of the plate away to create the necessary clearance. From this point I would need to envision a new way to build an overhead double-shear mount:

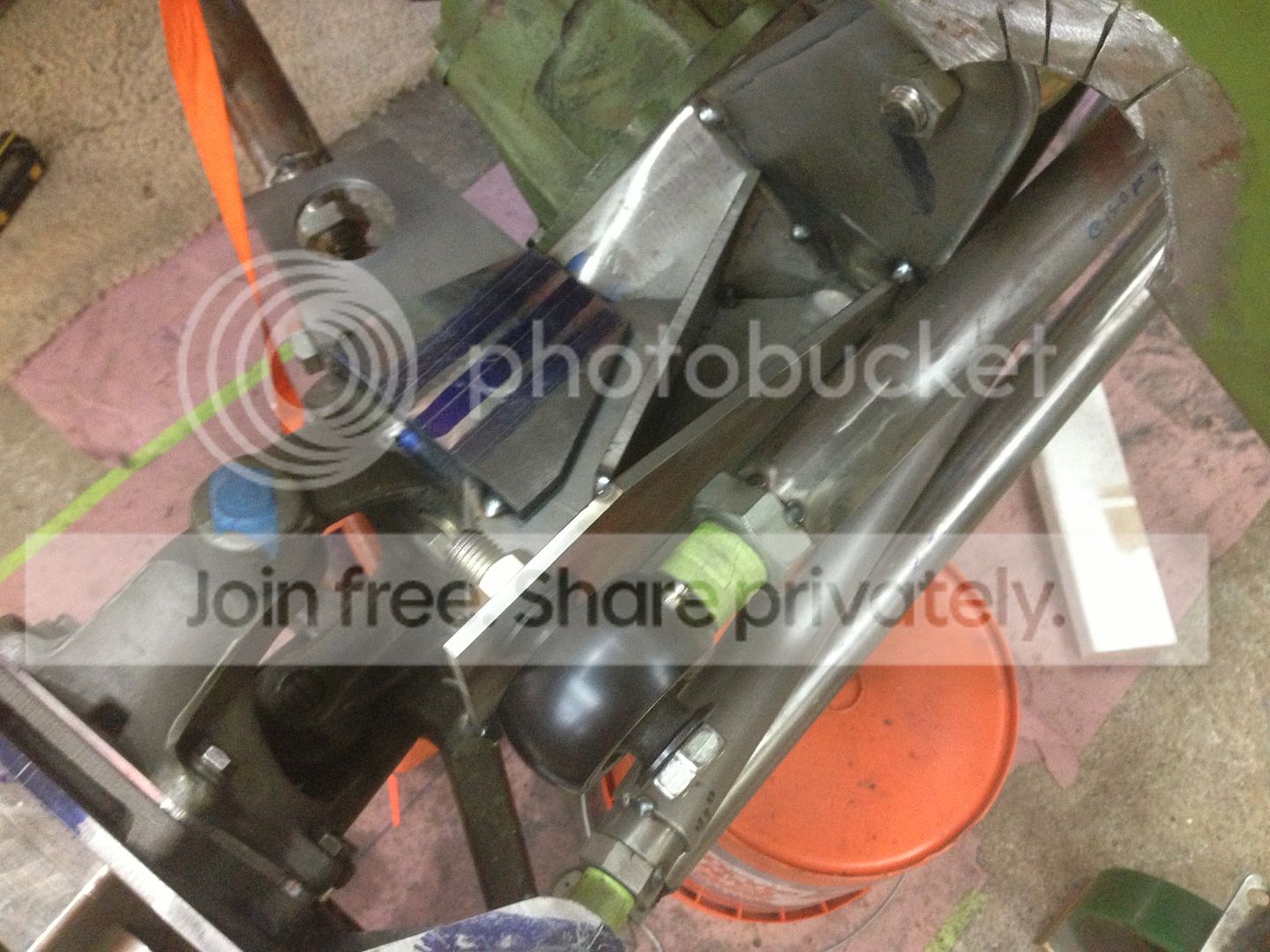

To drive these loads back into the pumpkin area and support the PHB adequately, I built a single large vertical tab, and then triangulated a second plate to join with it..... as seen here:

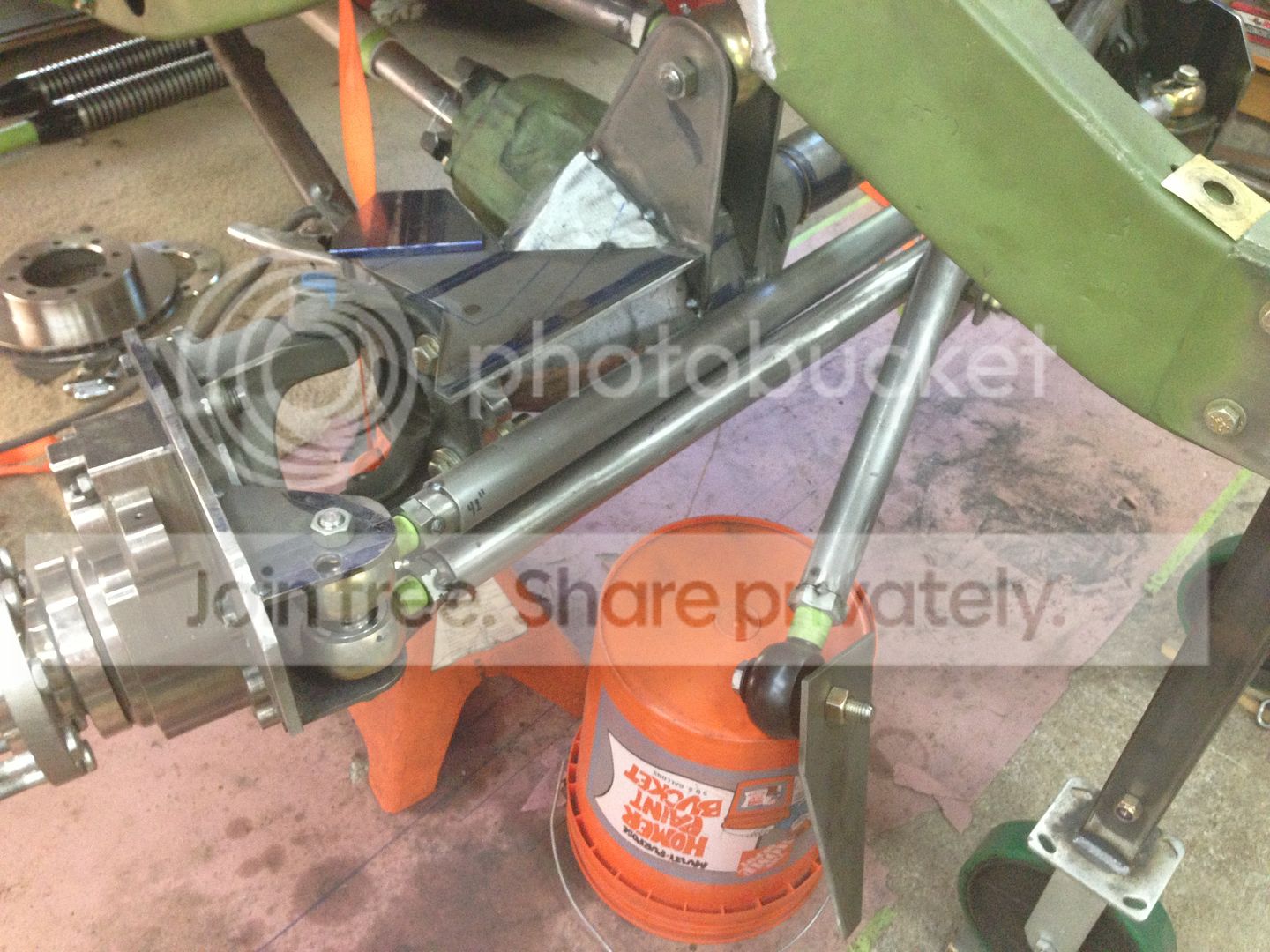

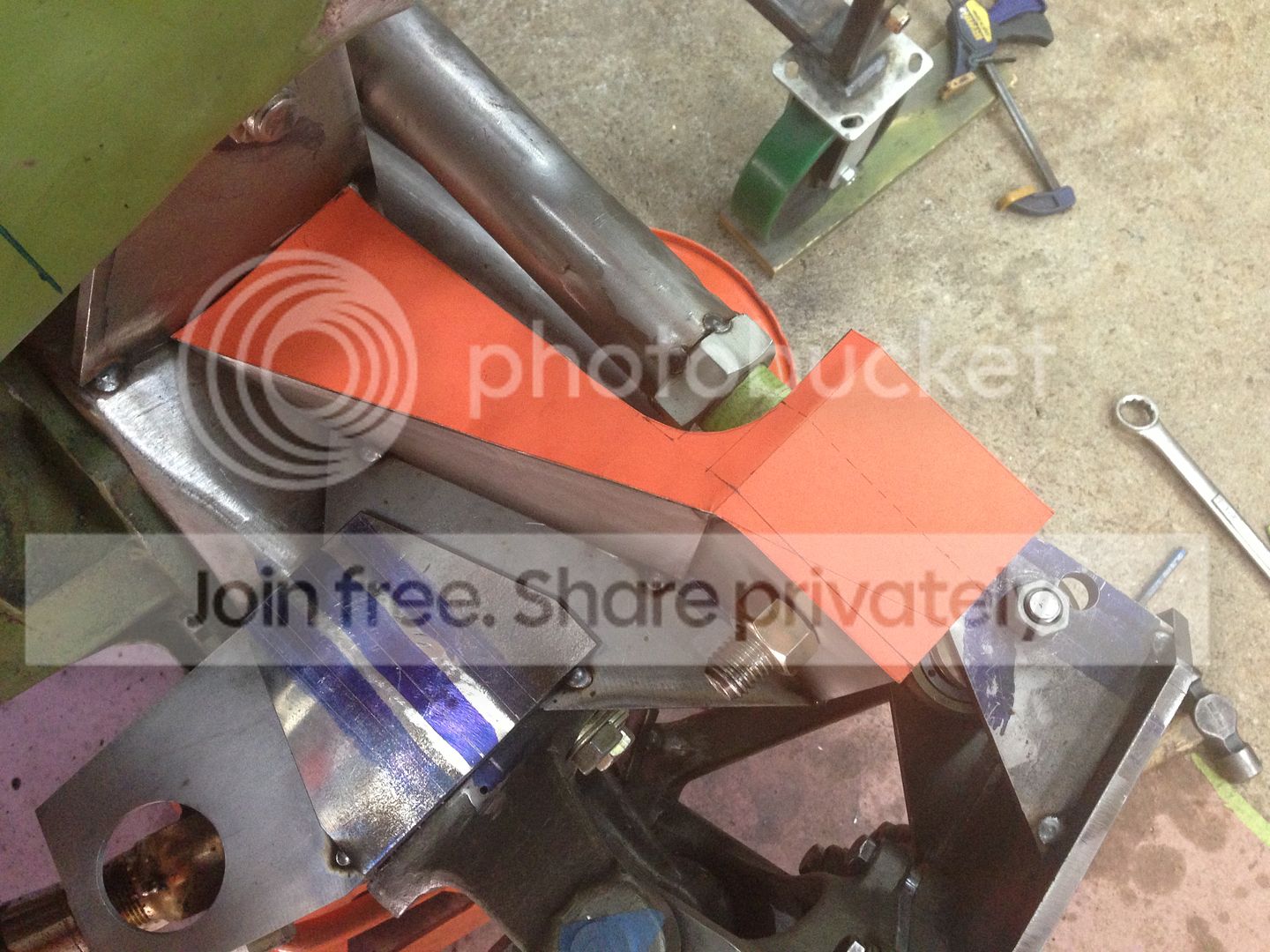

Now, imagine an upper plate that locks those two triangulated plates together. This paper template represents that idea...
This plate will create an edge where the other heim mounting tab can be hung-down on the opposite side. Still unresolved is my desire to add some additional triangulation from the underside of the bracket to the pumpkin in a way that doesn't create the original interference issues during PS droop...

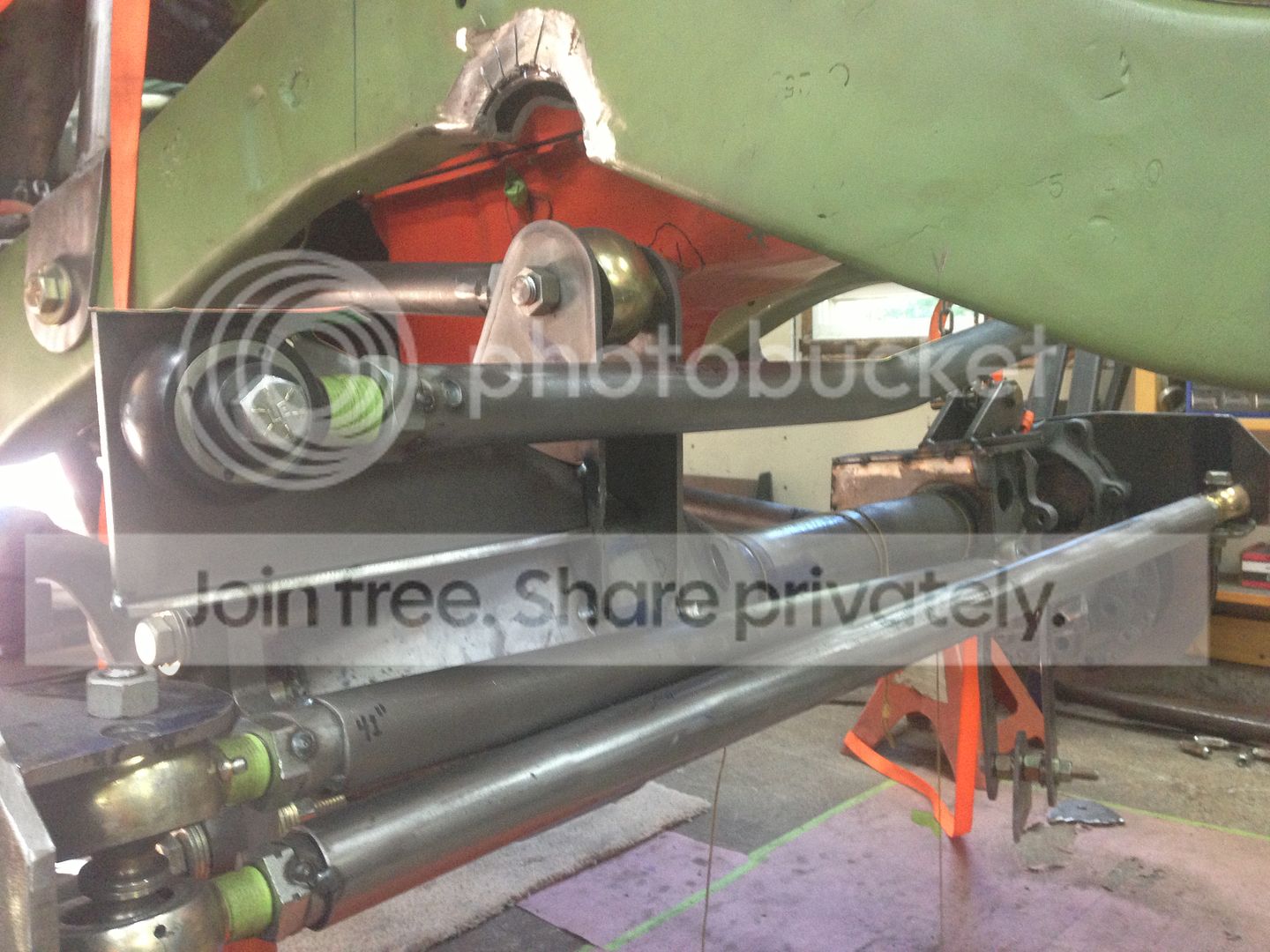

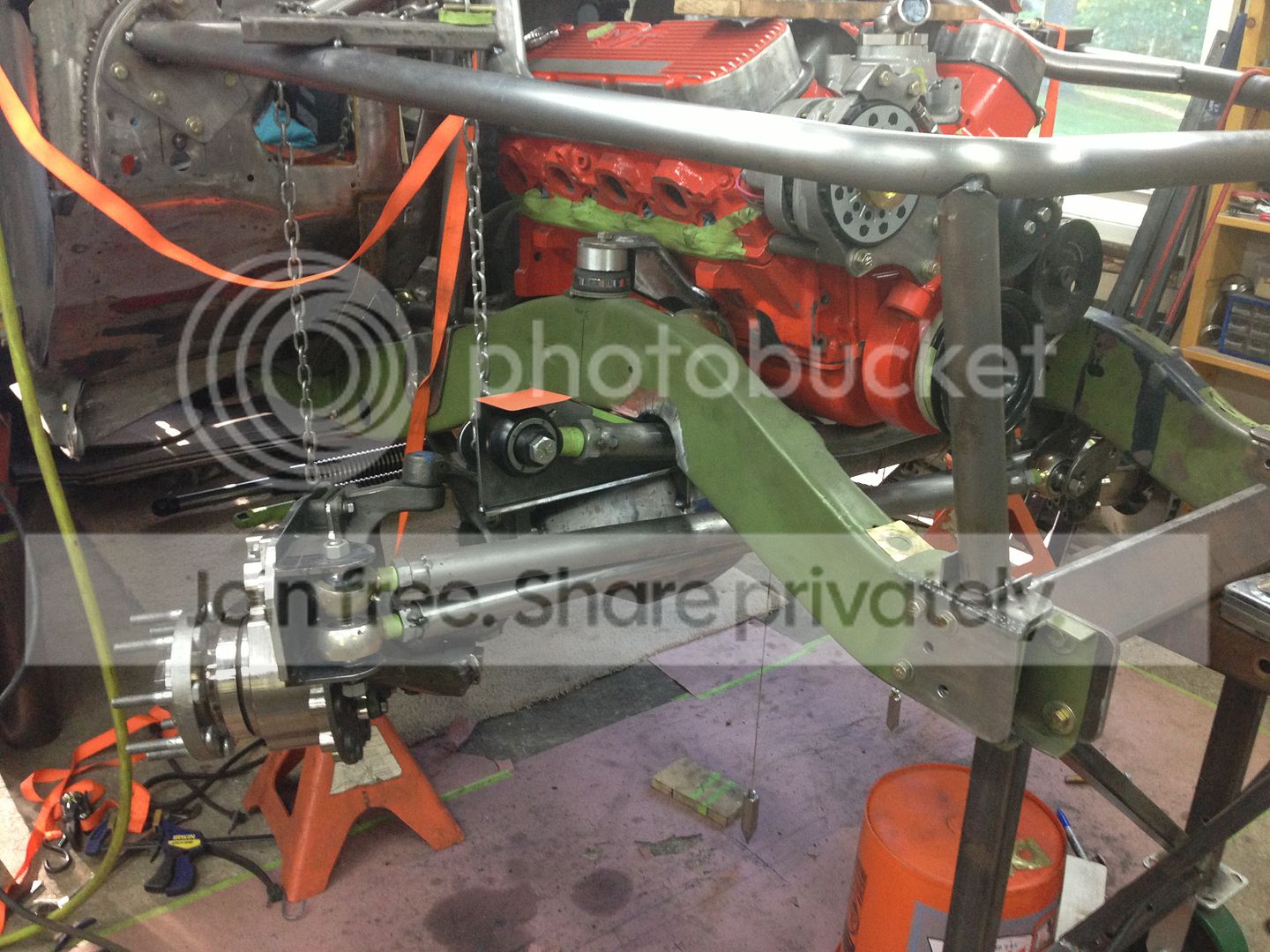

Here's a shot of the axle at it's "full stuff" position (that's 27.5" from the floor to lower link mount bolt)....while also cranked hard-right against the steering stops. I finally made it to a full 6" of bump travel, with maybe 1/8" to spare!!!
Next Up: How about a steering linkage and steering box?
-G
Win some, lose some.
I have been systematically going through all of my cobbled-together link mounts and replacing them with "real" beefy usable mounts that will be part of the final front 3-link solution...
Some were wins: The frame-side PHB mount, and the lower DS link mount have been transformed into their final iterations (hopefully) with very little drama... however, as I started to move to the PS to rework the axle-side PHB mount and build it into a single large mount that integrated the lower link mount, things started to get dicey.
The following images will illustrate the struggles, and what I hope will be a solid solution....
Opening shot: Here is the lower plate being re-cut to integrate the lower link mount.
Here's a shot of the new plate as it was put into position on the passenger side.... yes, I managed to get a speed hole on this side as well!
This mount seemed like it was going to be slam-dunk. Unfortunately, what I didn't notice was that the PHB mount (when finally placed into double-shear mount) does not have the clearance it needs to allow the PS to droop down more than a few inches (while simultaneously turning hard right on the draglink) before a collision occurs.... take a look. You can see how the draglink is poised to collide with the mounting brackets unless something is changed:
The long plate that supported the PHB (and the two relatively long mounting tabs) were cut-down in an effort to gain clearance during droop...
Unfortunately, this only gains a few additional inches of droop but does not allow the draglink to move under that PHB mount the way I need it to. It was becoming clear that the axle-side PHB mount simply cannot be supported from underneath..... instead, I needed to think more creatively about a way to effectively "hang" that heim from a mount from above.
So... it was time to cut a substantial amount of the plate away to create the necessary clearance. From this point I would need to envision a new way to build an overhead double-shear mount:
To drive these loads back into the pumpkin area and support the PHB adequately, I built a single large vertical tab, and then triangulated a second plate to join with it..... as seen here:
Now, imagine an upper plate that locks those two triangulated plates together. This paper template represents that idea...
This plate will create an edge where the other heim mounting tab can be hung-down on the opposite side. Still unresolved is my desire to add some additional triangulation from the underside of the bracket to the pumpkin in a way that doesn't create the original interference issues during PS droop...
Here's a shot of the axle at it's "full stuff" position (that's 27.5" from the floor to lower link mount bolt)....while also cranked hard-right against the steering stops. I finally made it to a full 6" of bump travel, with maybe 1/8" to spare!!!
Next Up: How about a steering linkage and steering box?
-G
