Ryoken's 89 Crew Cab Tubebed build... aka Mutt....

Average User Rating:
5/5,
  1. mrk5

    mrk5 The Sticker Guy Moderator GMOTM Winner Author

    Joined:
    Apr 20, 2004
    Posts:
    18,234
    Likes Received:
    8,832
    Location:
    Northern Colorado
    Build(s):
    2
    Oh okay, that's simple. I thought maybe it was some fancy exotic battery mat. :D

    ryoken likes this.
  2. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3

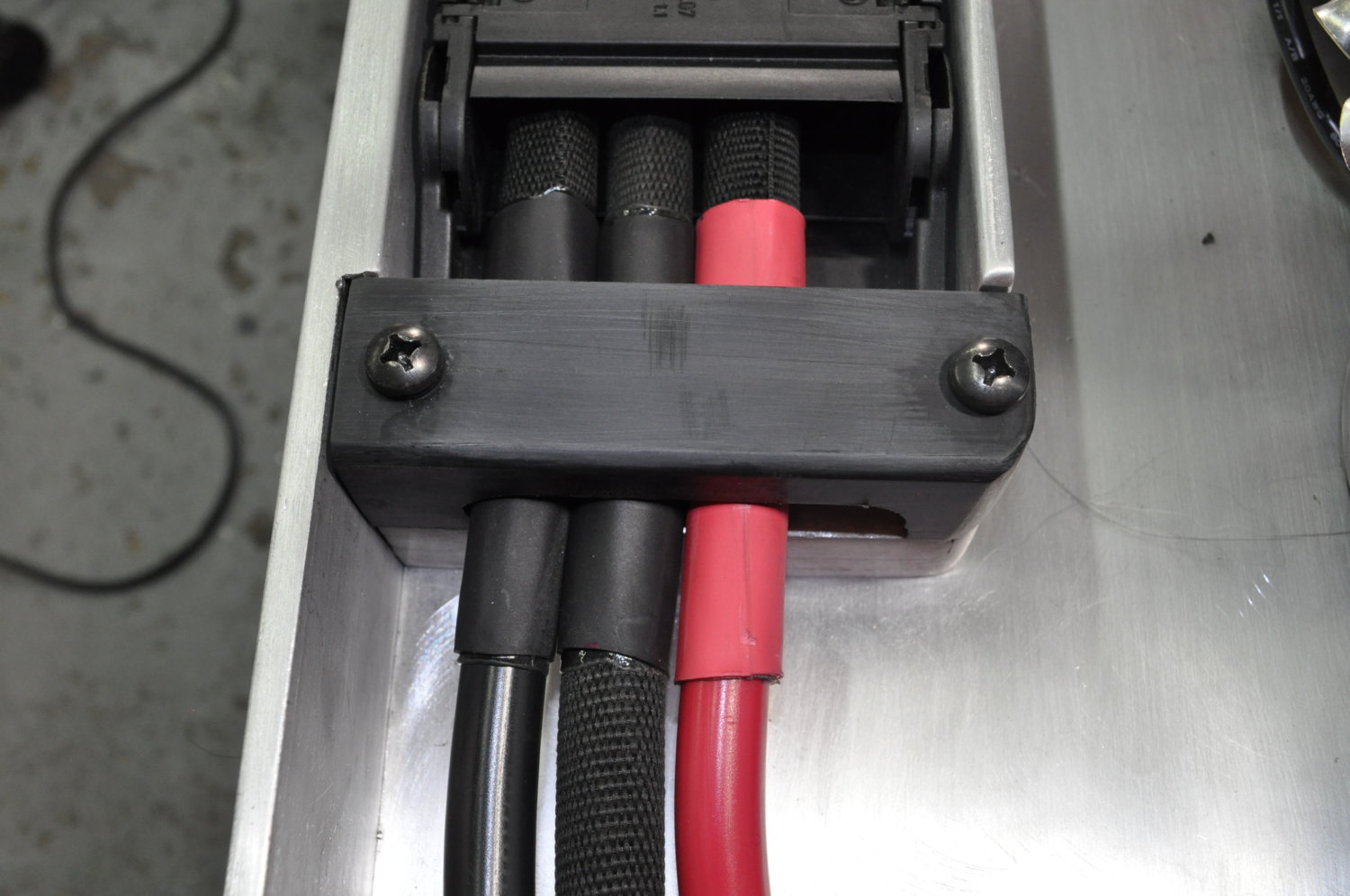

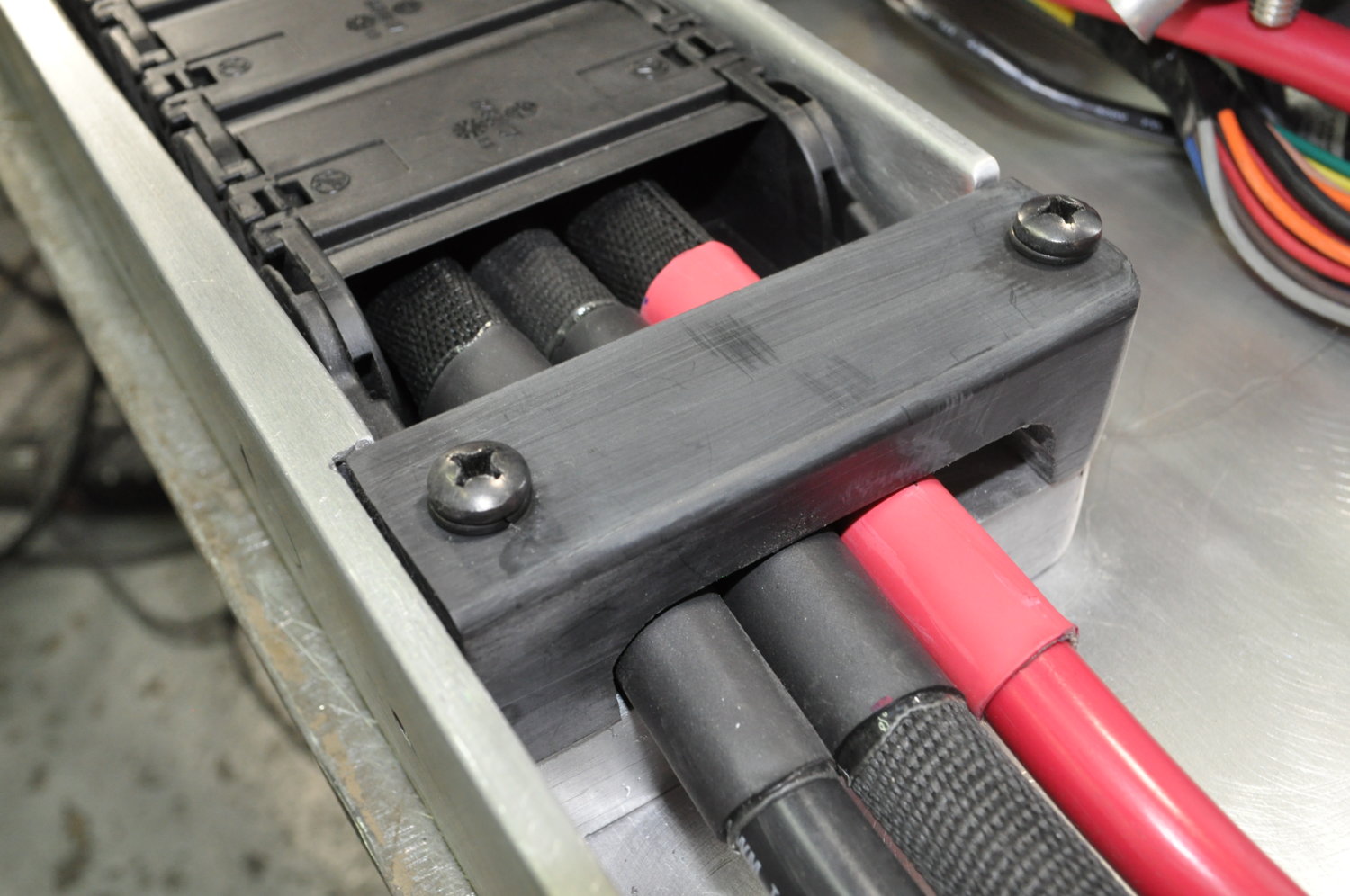

    need shrink to finish the last pos one, tomorrow.... but it's coming out stout.... the fabric ends under the block...



    you could hang Epstein from these f*ckers.....





    [​IMG]






    [​IMG]







    [​IMG]



    .

    JDNobodi, KirsL, ekajkrats and 3 others like this.
  3. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3

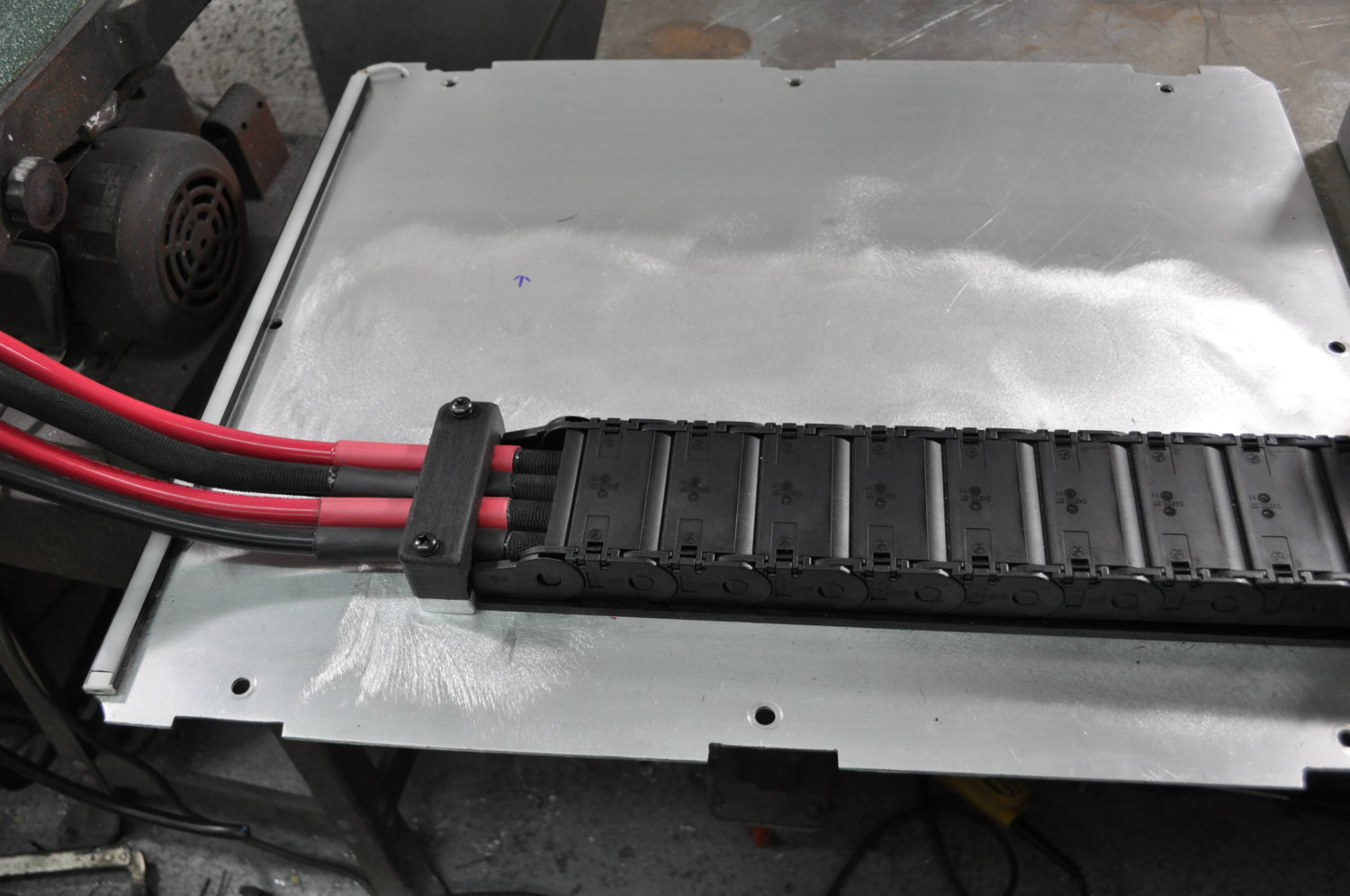

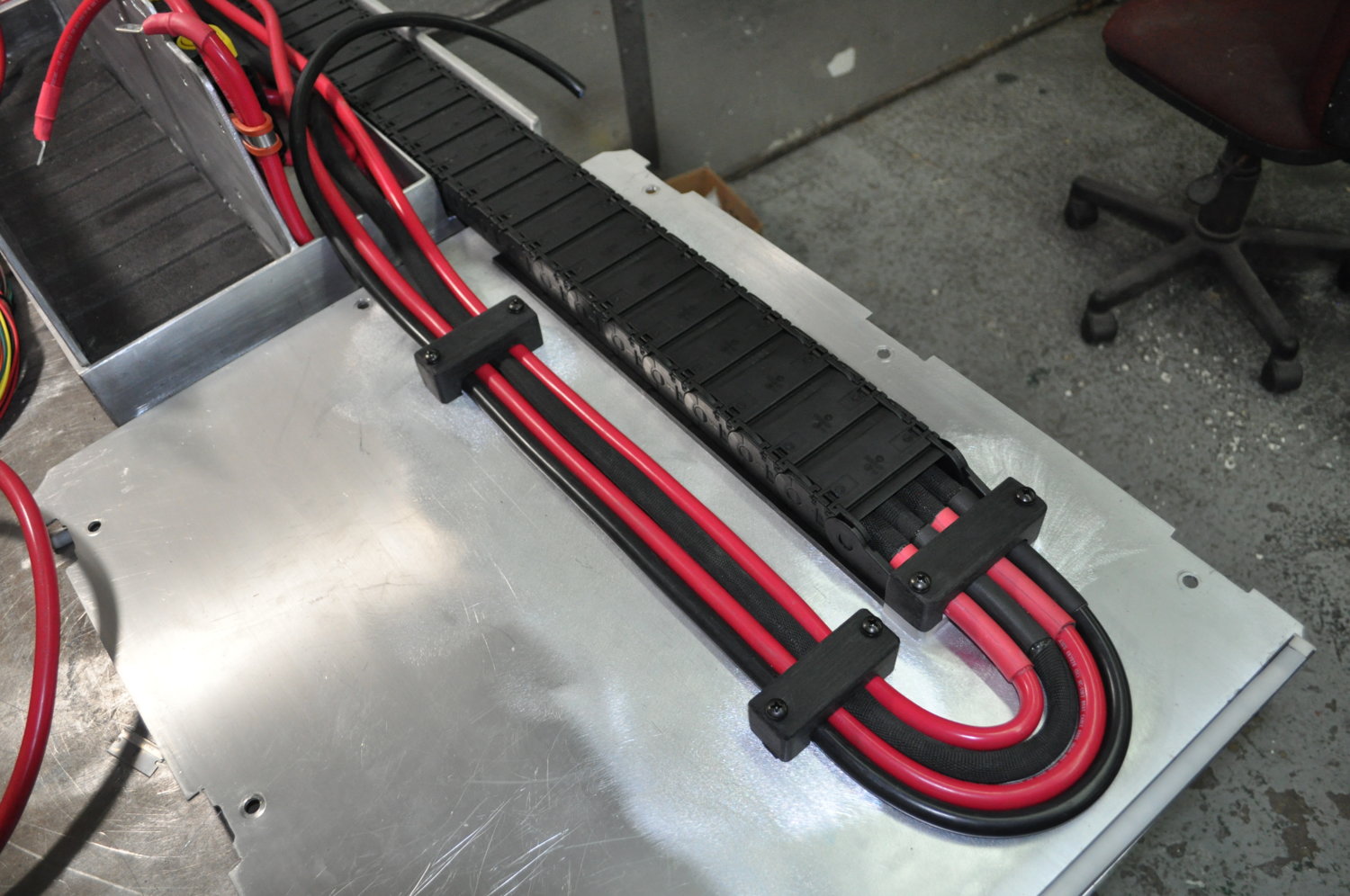

    here's kind of how the cables will work.. the other pos will lay on top, next to the other pos.... 2 over 2...


    i'm thinking i'll run a single cushioned bandclamp around all 4, at that front wall, 1/2 way across, bolted to the bottom..... than as you can see, I'm gonna have a small single on the grd going up...




    [​IMG]






    [​IMG]

    KirsL, ekajkrats and NorCal69 like this.
  4. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3
    I'm such a kook... :woot: :saweet:

    I'm not gonna run a band clamp on the bottom around the 4, only the single switch wall grd one.. instead, I'm gonna make another delrin piece... :cool:



    I really need to be institutionalized.... :thinking: :doah: :screwy::dunno: :whistle: :1zhelp: :haha:

    shady, KirsL and mrk5 like this.
  5. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3
    holddowns done.. just waiting on the studs tomorrow....

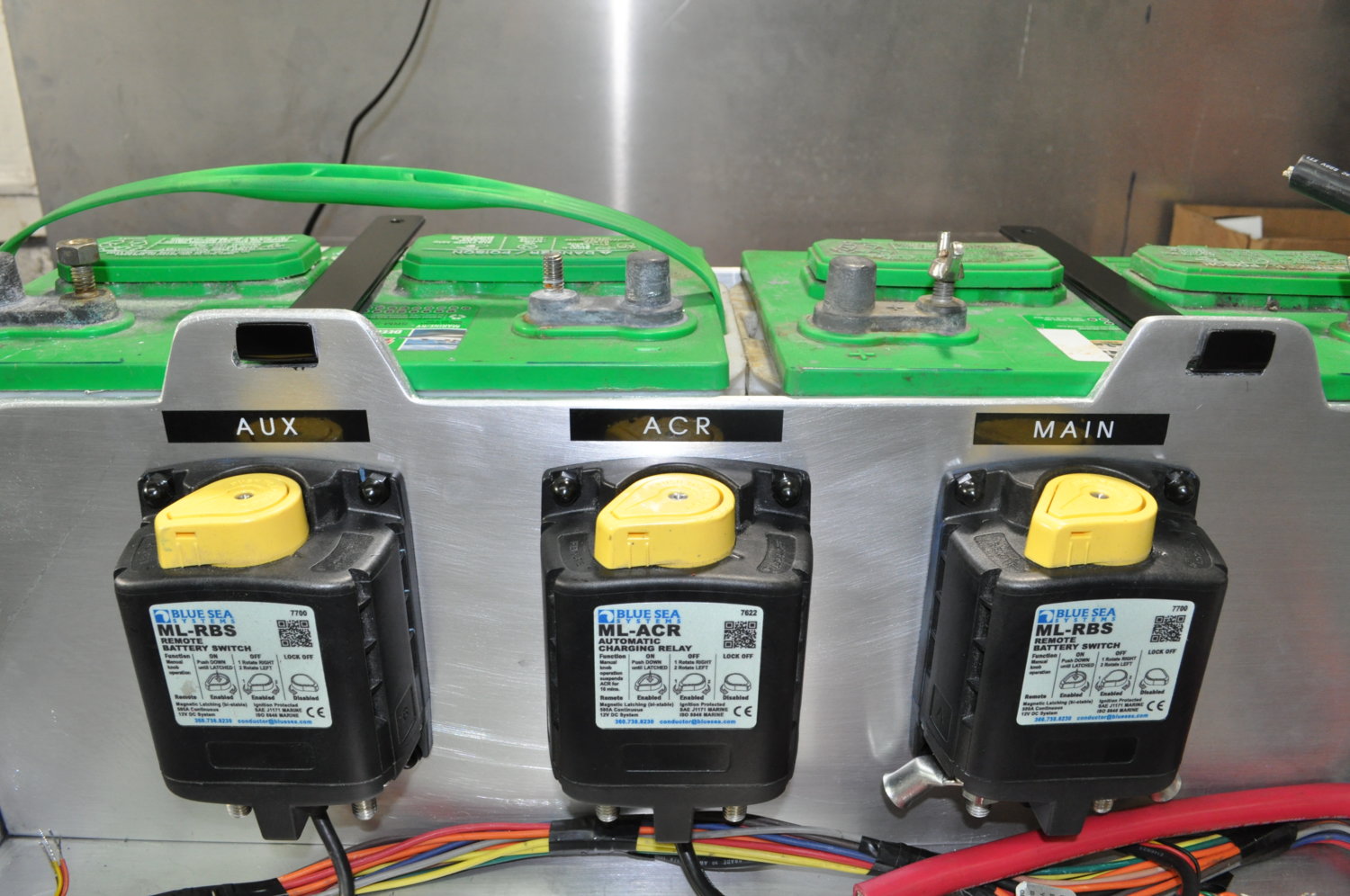

    playing around with the label maker....





    [​IMG]




    depending on weather, i may be blowing it all apart and starting on the box fitting tomorrow.....

    one of the other things i decided to do is add some sort of backing plate, or multiples, to the top of the ceiling... so i can tap all the ceiling hardware too.. it's only 1/8"..... that will save me from taking the drawer out for maintenance down the road..... I'm VERY pleased that I decided to tap the tray hardware....





    [​IMG]
    .
    .

    Last edited: Jan 7, 2020
    JoshHefnerX, dhcomp, KirsL and 2 others like this.
  6. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3

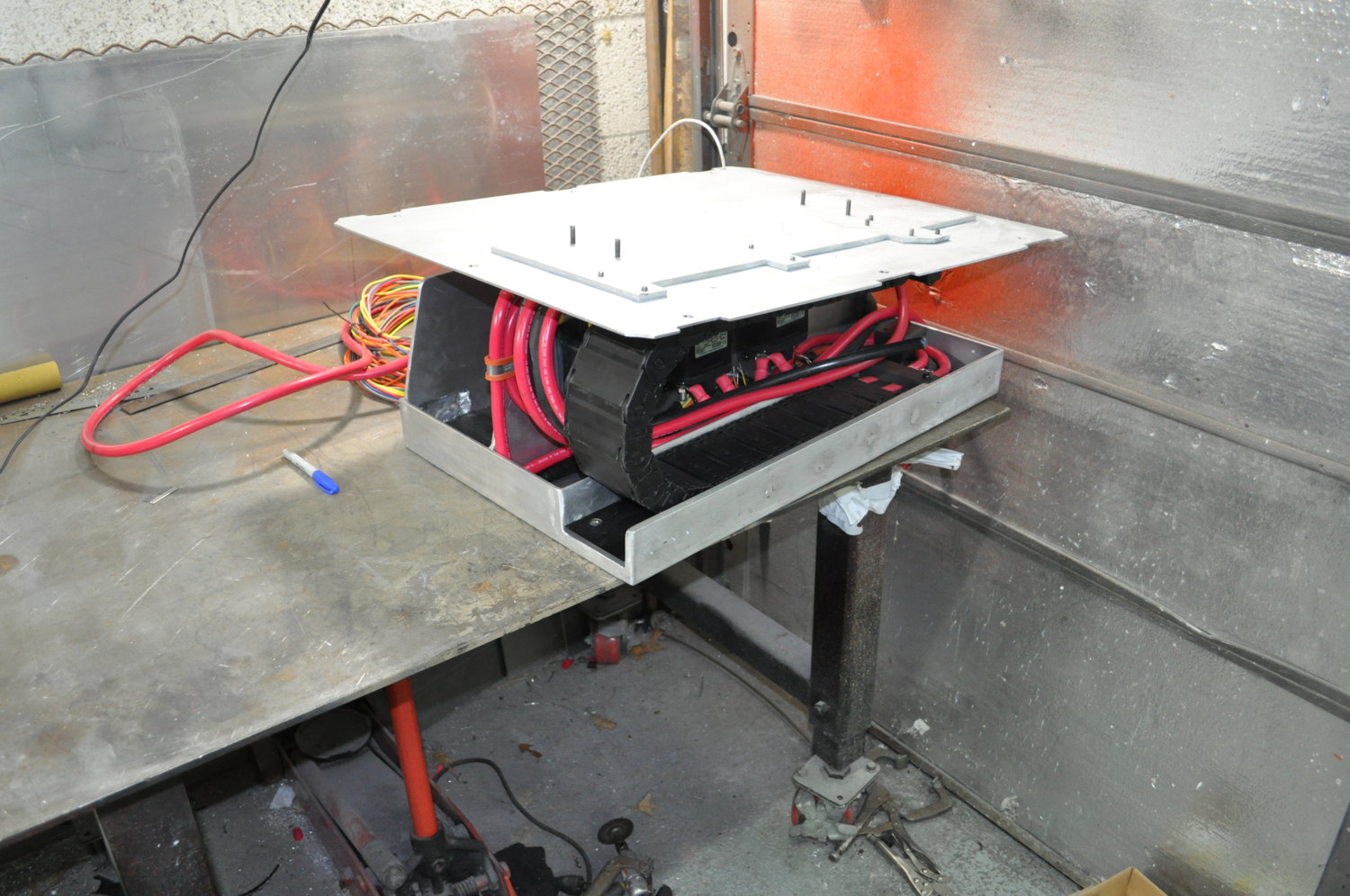

    proof of concept clip.... and that's a bit sloppy, as the 1/4" UHMV isn't in up top...

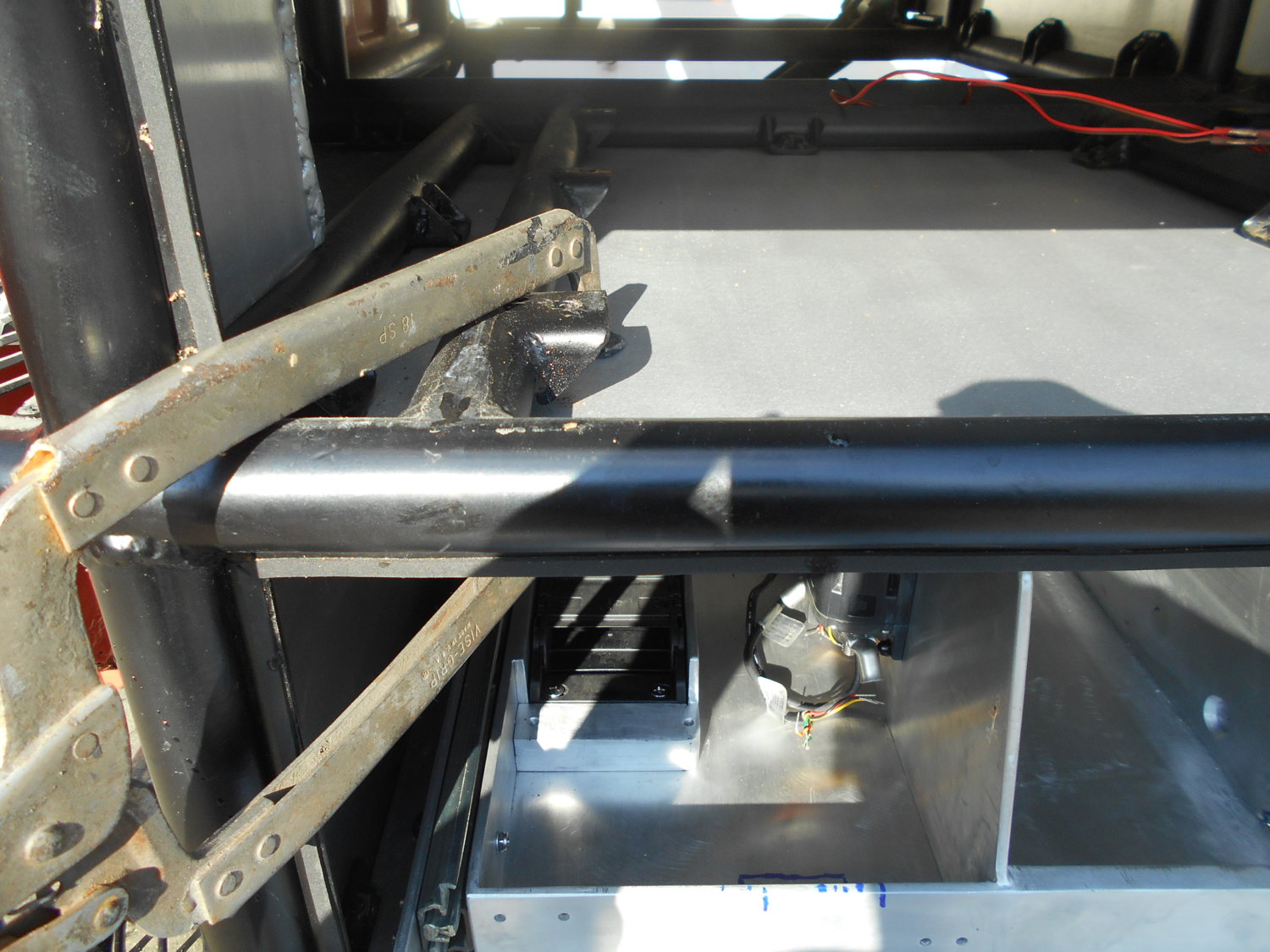

    one issue I've run into you can see in this pic is the tube above the ceiling, that mounts the upper drawer, is pretty much completely in the way of all the 3 screws that would mount down the left side.... i'm not particularly worried about the back 2 UHMV ones, i could shift those over or something... but the front track one is critical, want that stout... I may need to cut out the whole bottom of the tube and plate it, so I can put a 1/4" alum backer... I'll see...





    [​IMG]

  7. NotLaw

    NotLaw Registered Member Premium Member

    Joined:
    Oct 15, 2007
    Posts:
    56
    Likes Received:
    48
    Location:
    Cedar City, Ut
    Why not mount through the top plate of aluminum, and tap threads into steel that can be directly welded to the tube?

    ryoken likes this.
  8. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3

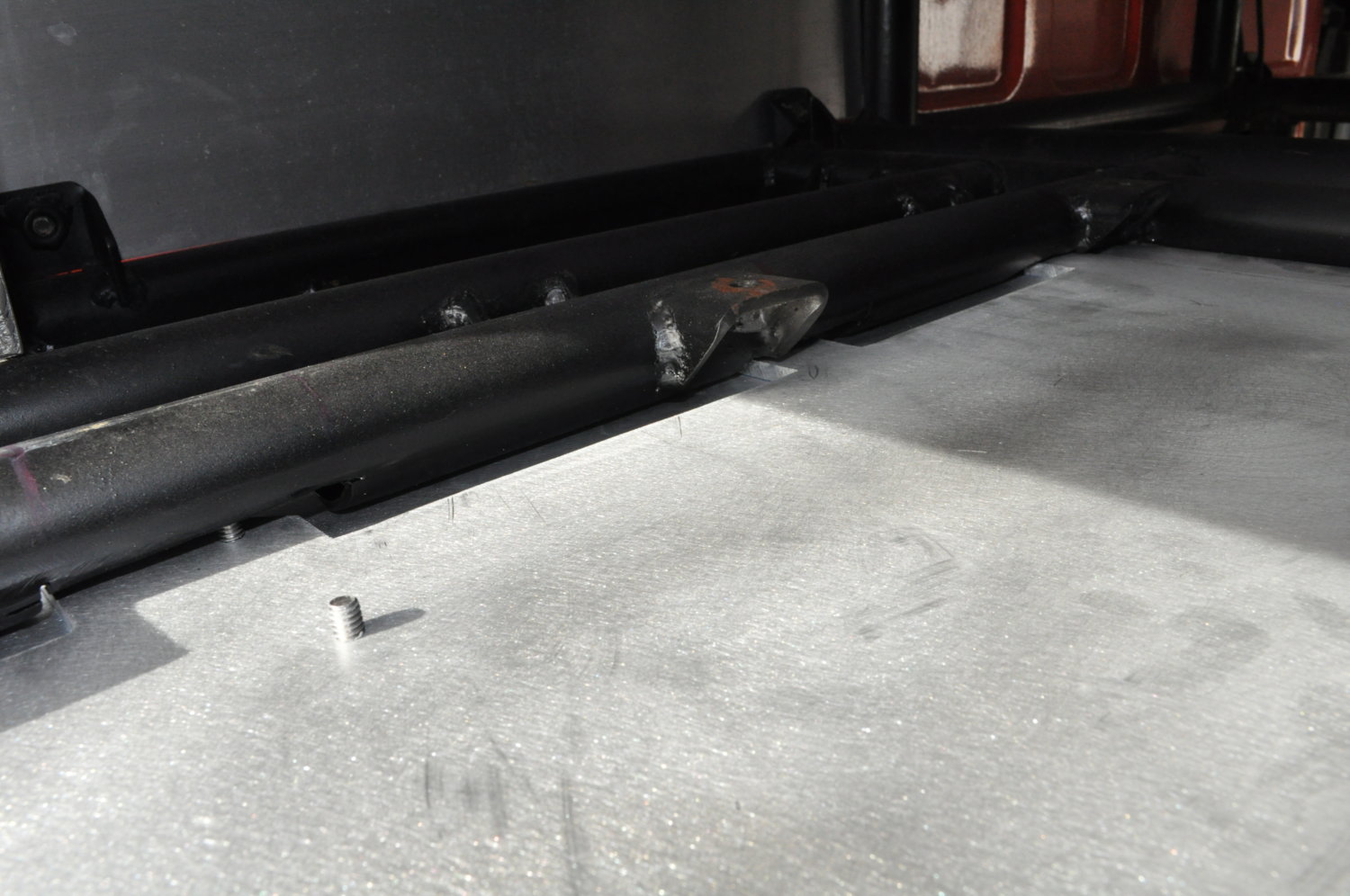

    well, the ceiling is flush against that, so no matter what, i'd have to remove steel to put a plate in to tap into... if the screws were directly under the middle of the tube, i would just tap the tube.. but i'm pretty sure they are about 1/2 way out to the edge, on an angle to the alum... not good... i'd also like to make it just mounted to the alum alone..


    but i wont know anything till i pop a couple pilot holes were the holes need to go.... i may get away with just sliding a 1/4" alum plate over in there snug, and might make it..

    KirsL likes this.
  9. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3
    * interesting build note...... machining delrin smells just like potent antifreeze... *

  10. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3
    working on the ceiling backer plate now... it did end up on the angle, worse kinda spot deal.. but i'm only gonna have to do minimal hacking/grinding i think.....

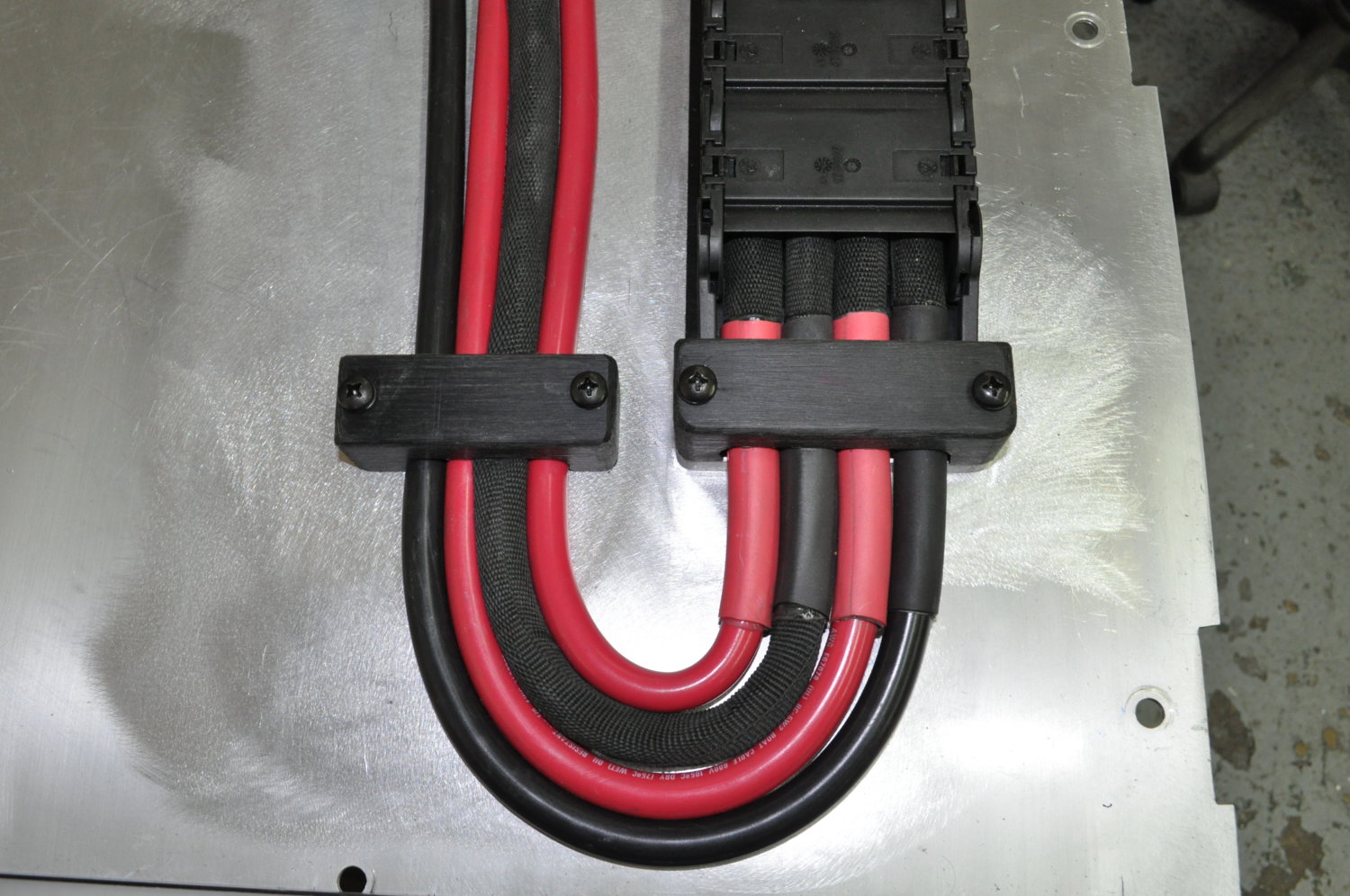

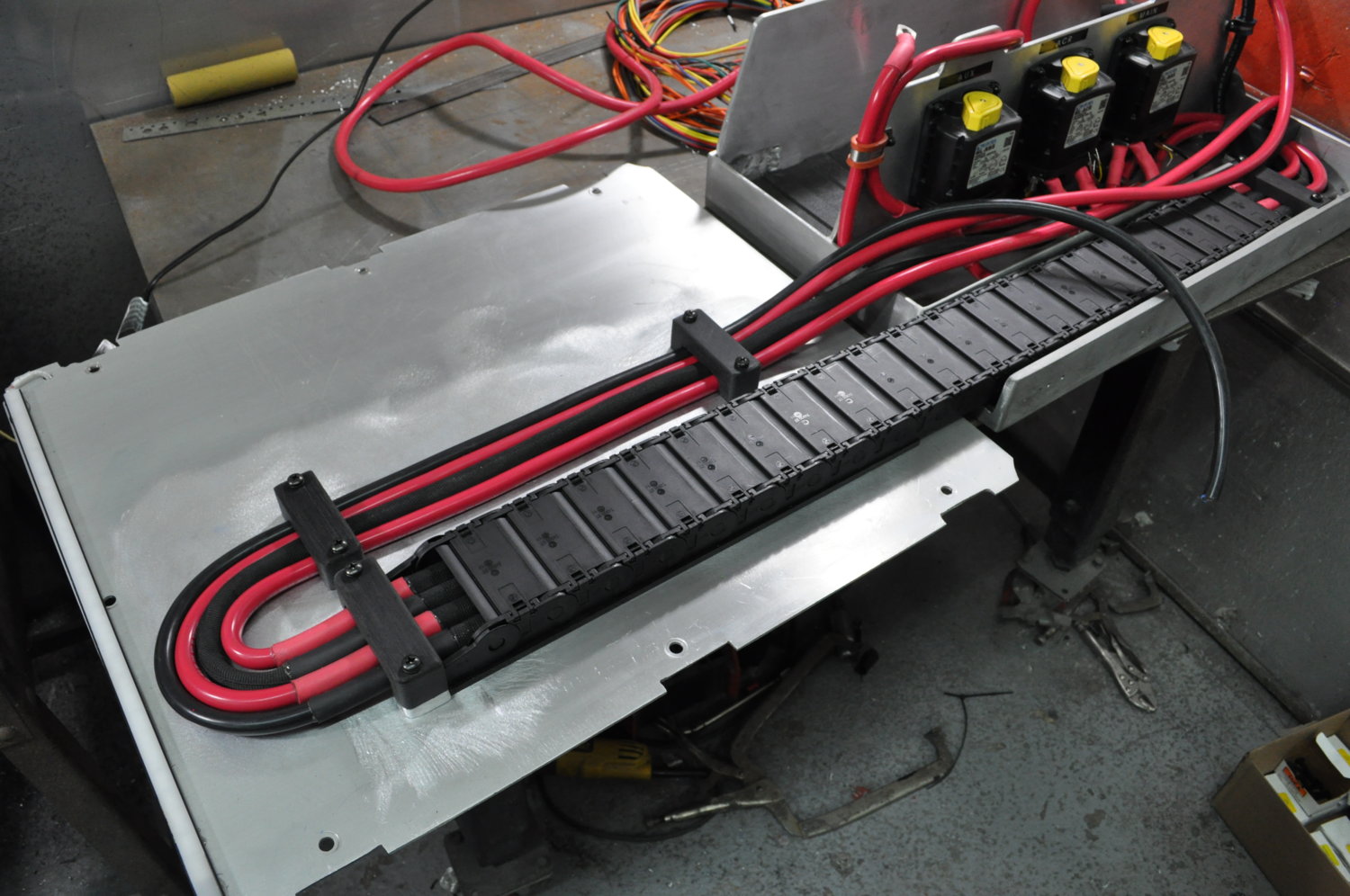

    but i thought i'd drop a couple of how that front wiring is coming along... decided i wanted to alternate the red/black.. looks cooler, , and feeds better over to that wall.....








    [​IMG]

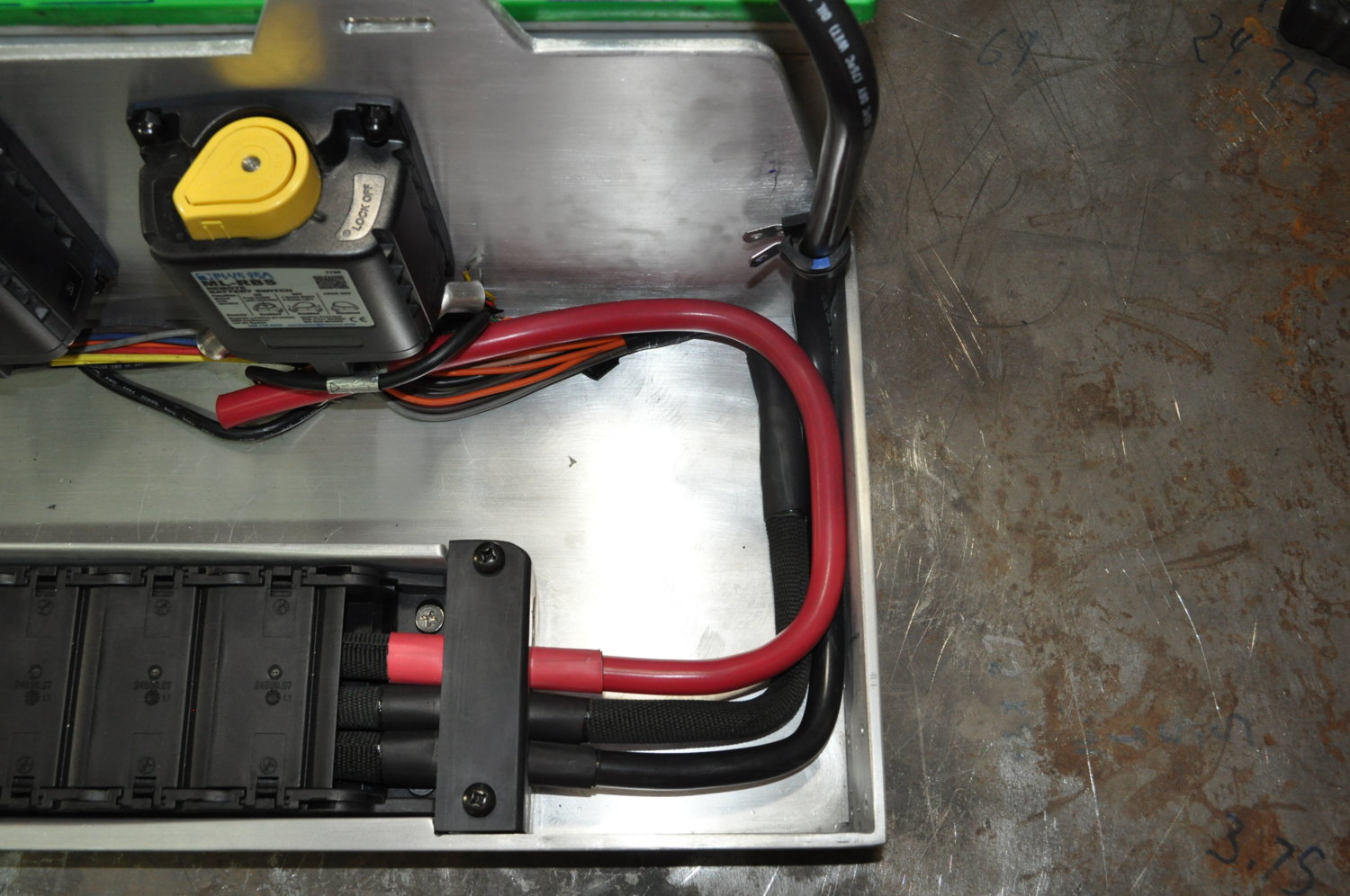

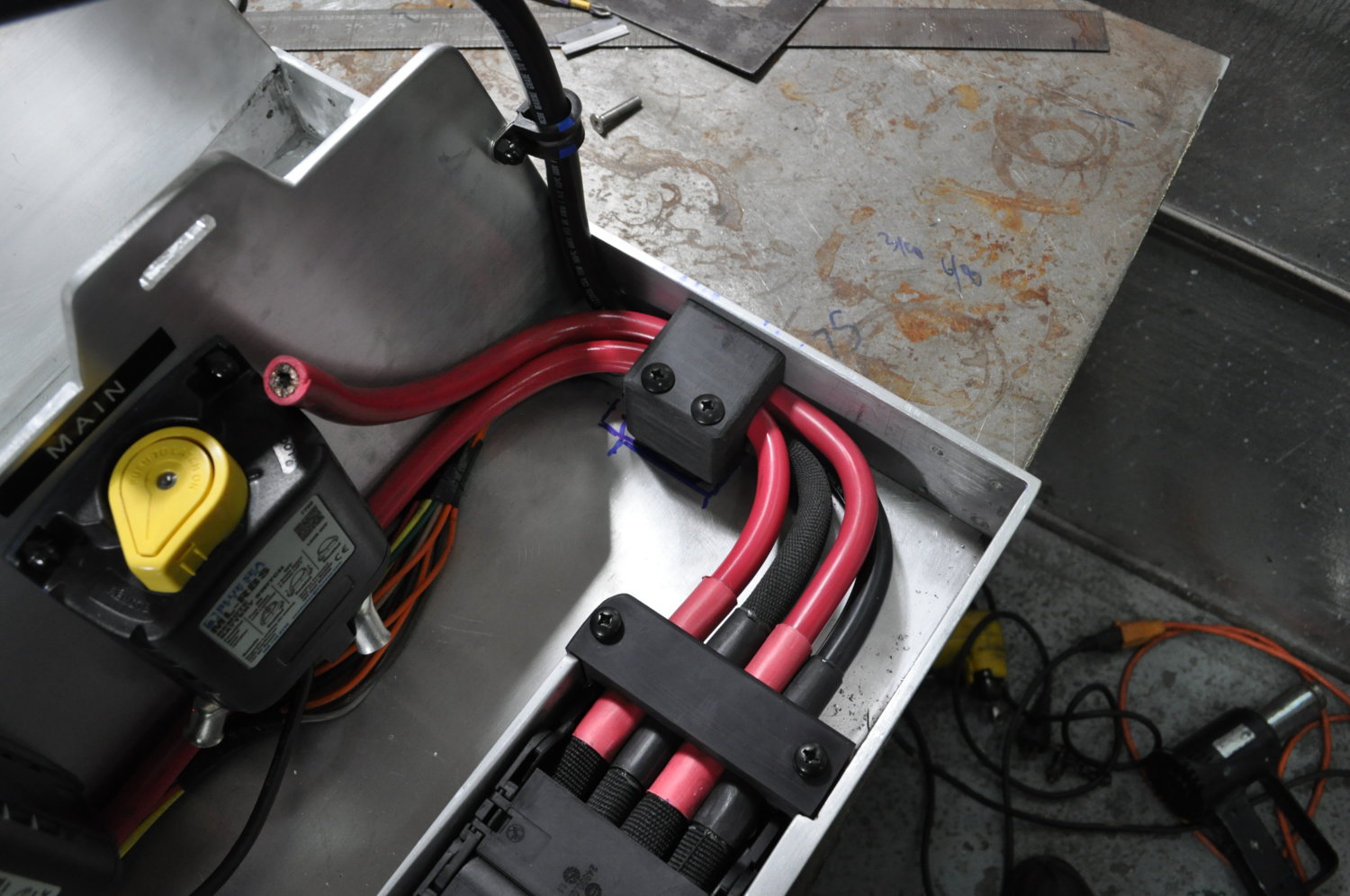

    i need to add a 1/4" alum "thickening" block down at the bottom of the delrin to tap... trying to avoid anything hanging out the bottom up front to be a finger catcher, etc...




    [​IMG]

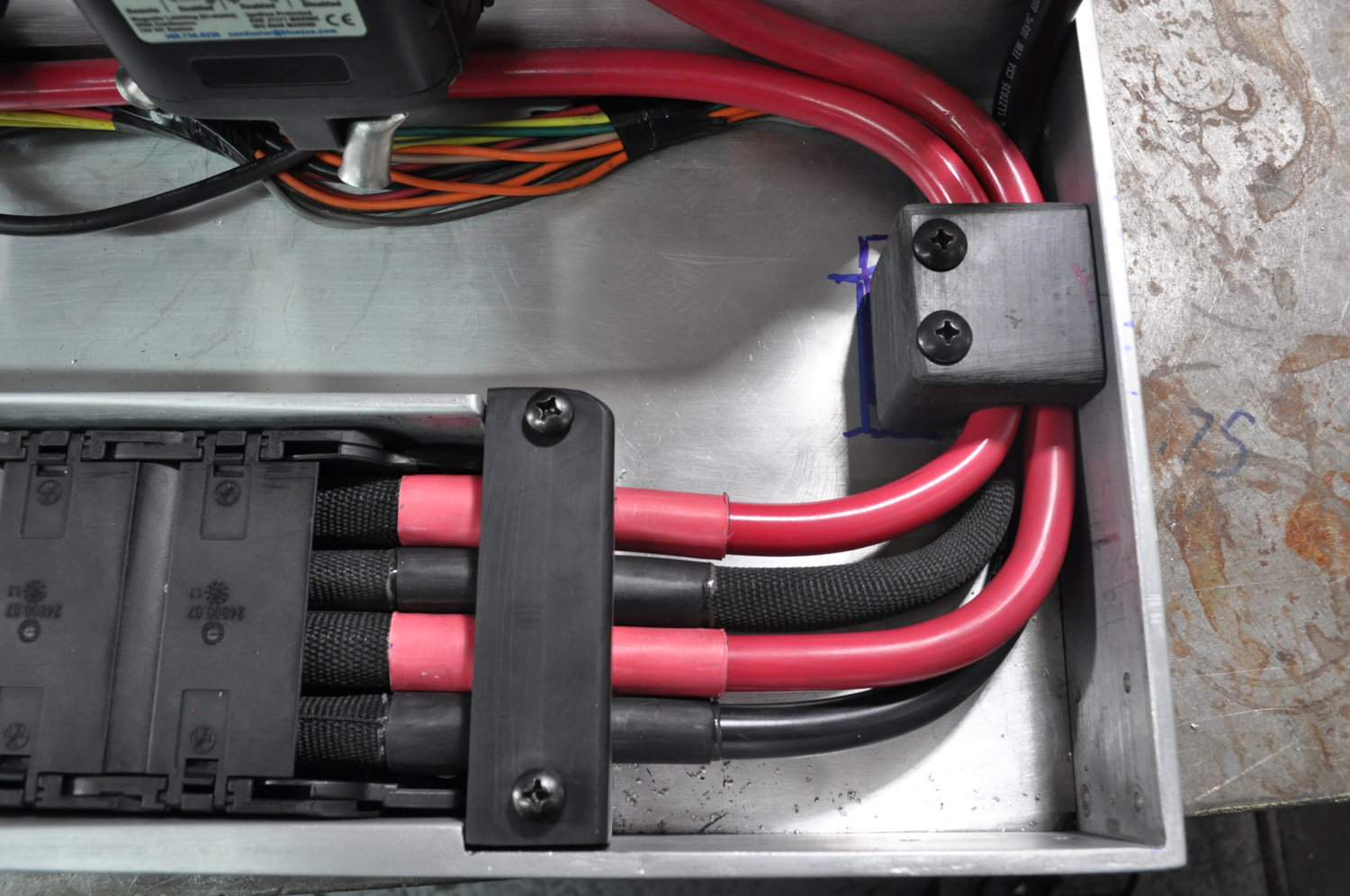

    tonight I'll prolly start doing the 1/0 lugs... i won't do the trigger harness until final install....





    [​IMG]

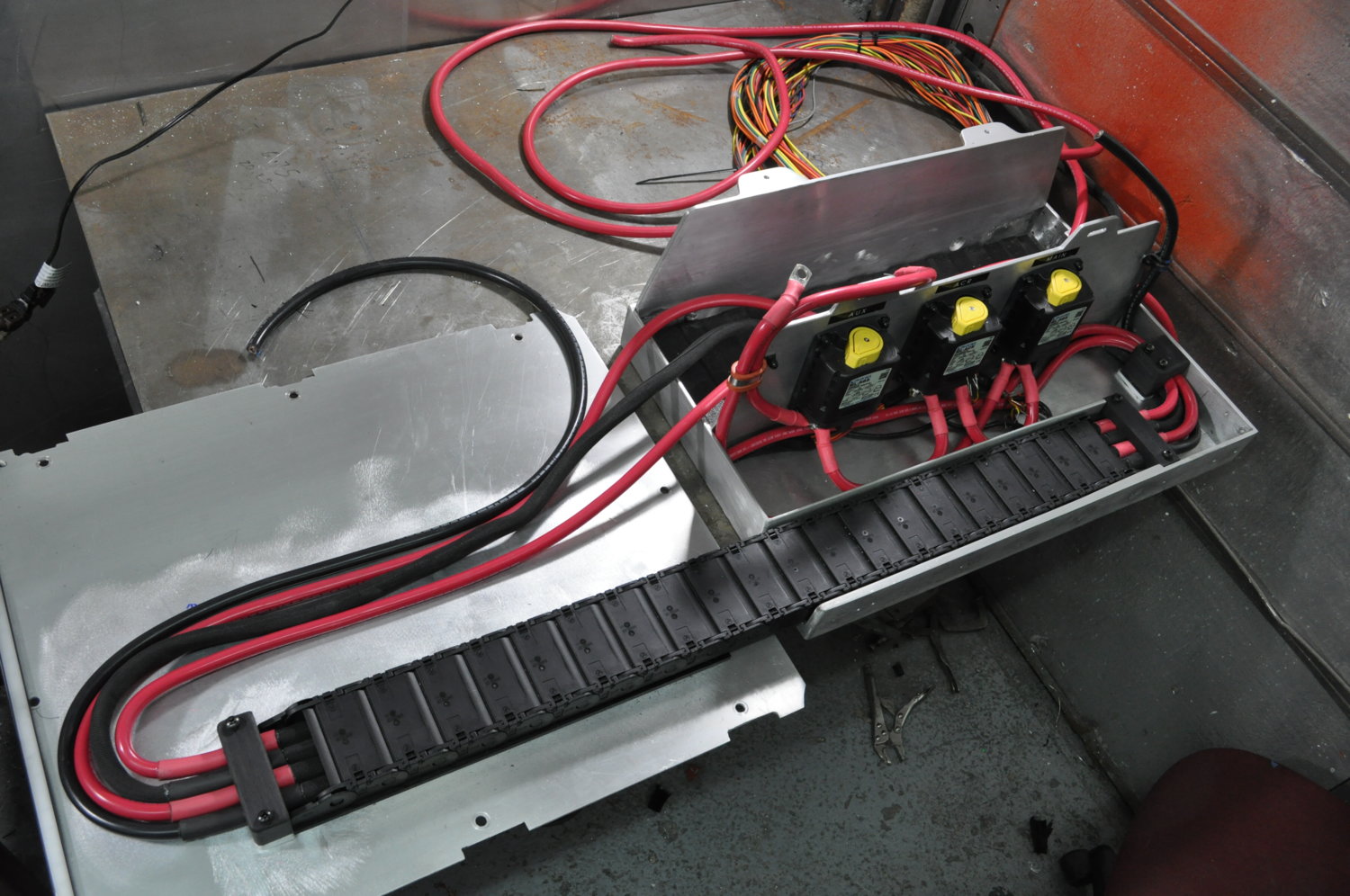

    I must say, I don't think I could be any more pleased at how the track/cables/delrin worked out there.... serious beef.....


    it's one thing I'm glad I've done thruout this build... big fasteners, and minimal 2 tool fasteners... makes taking chit apart/putting together easy peezy....



    .

    JoshHefnerX, shady, KirsL and 3 others like this.
  11. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3

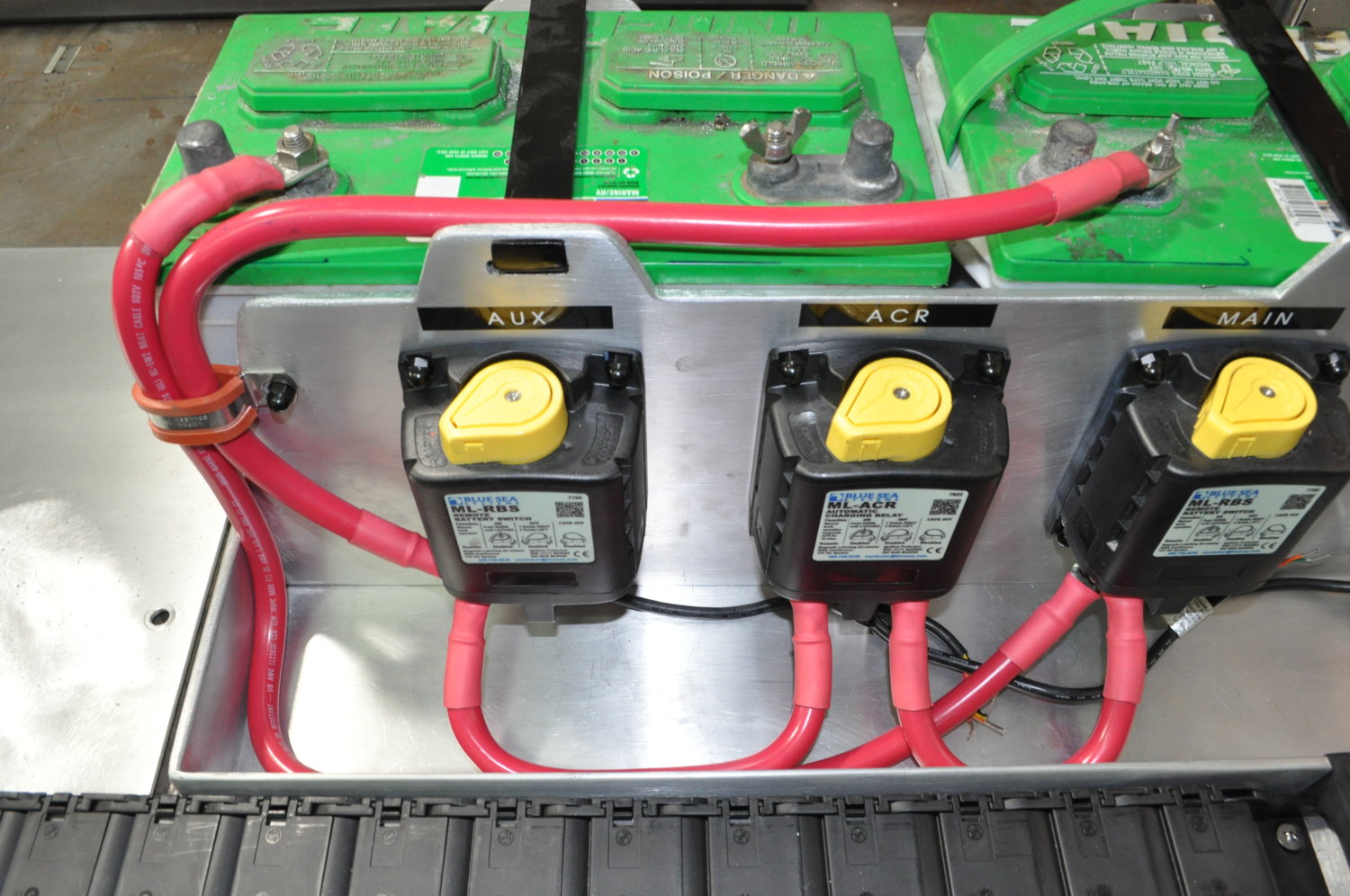

    ok, hopefully this is the last welding on the tray...

    the only things left other than final sand/sharkhide are gonna be the 2 pos's coming down in the back.. I'm hoping to just bandclamp those.. so just a couple holes....

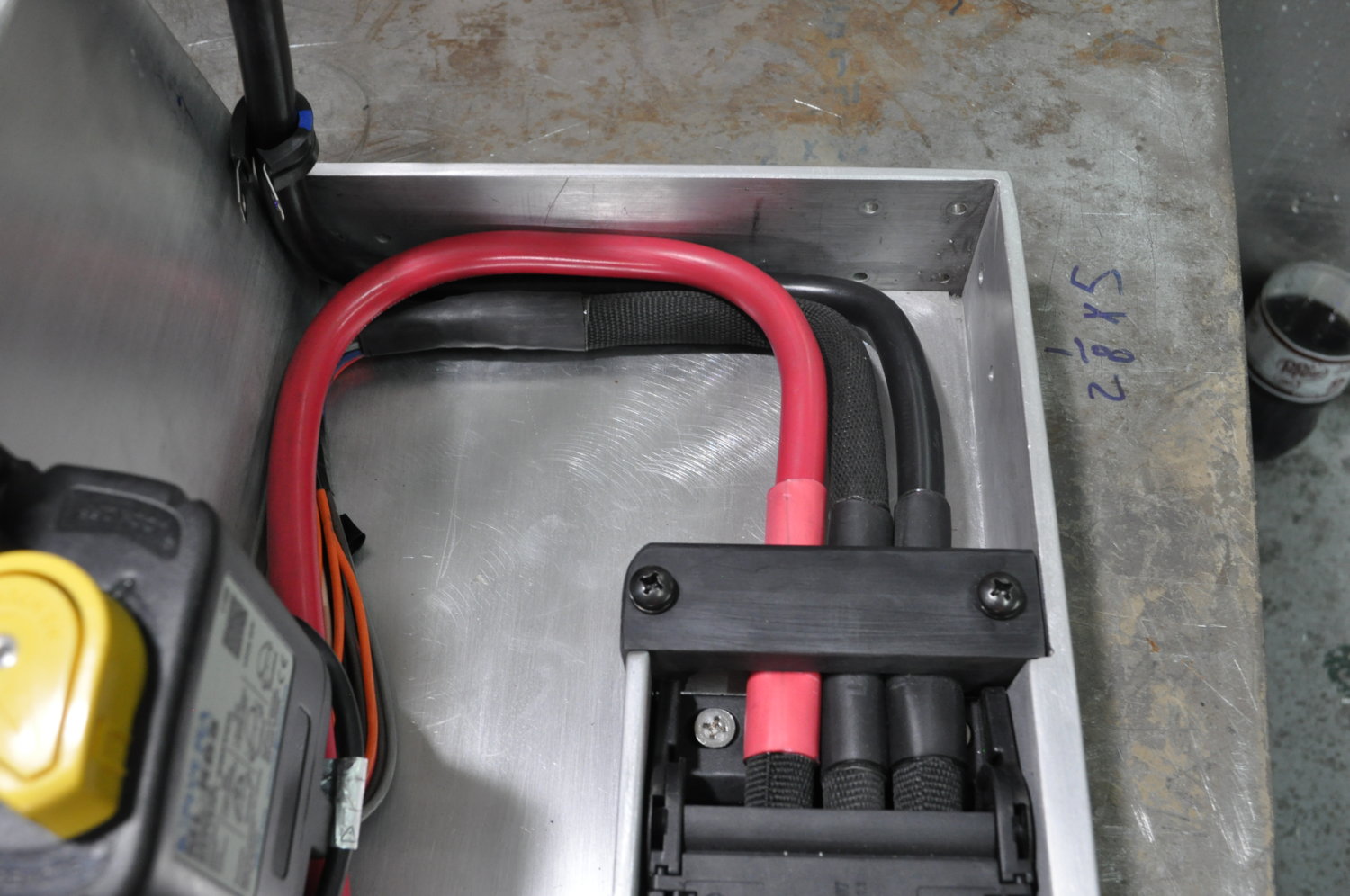

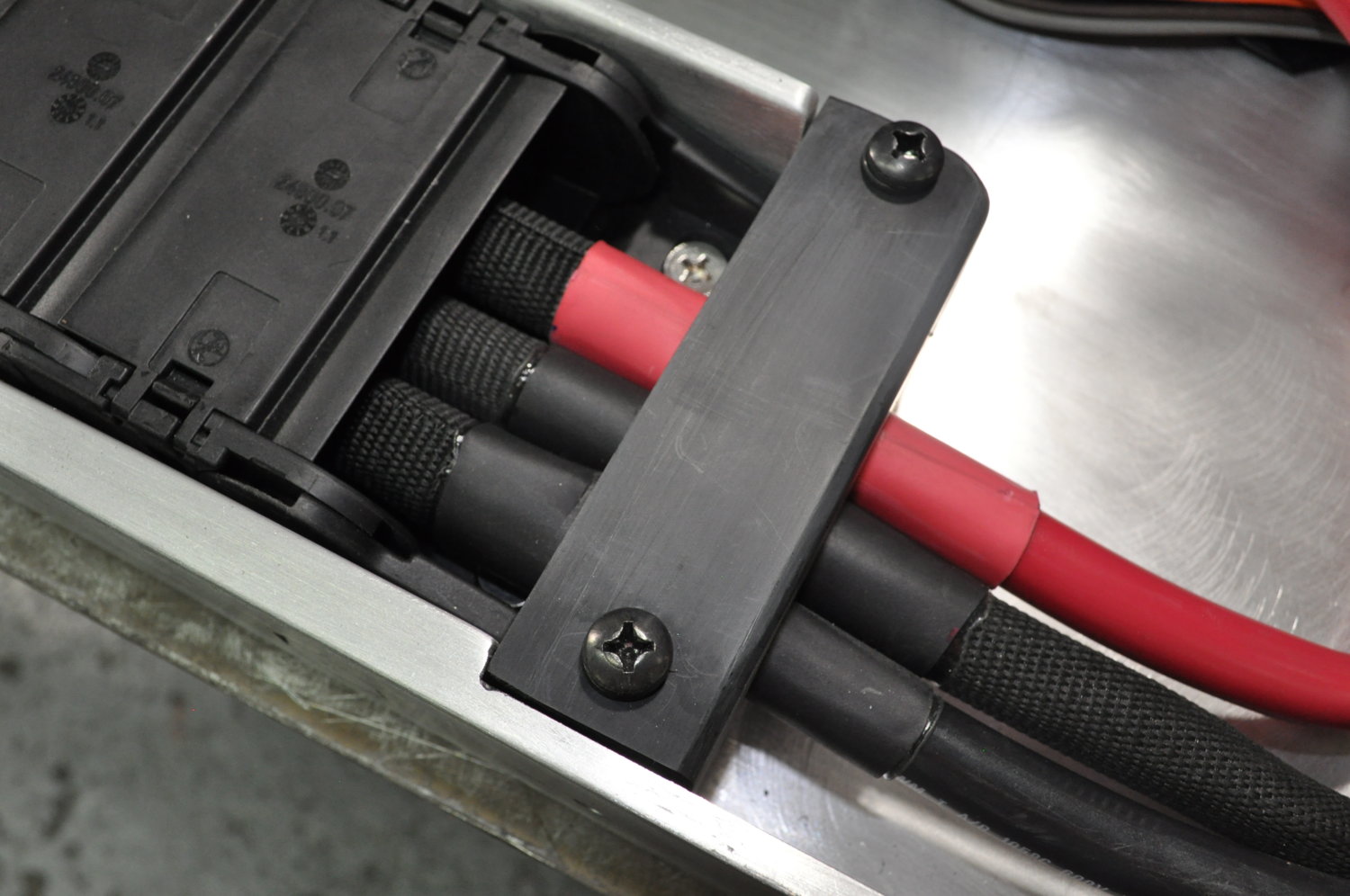

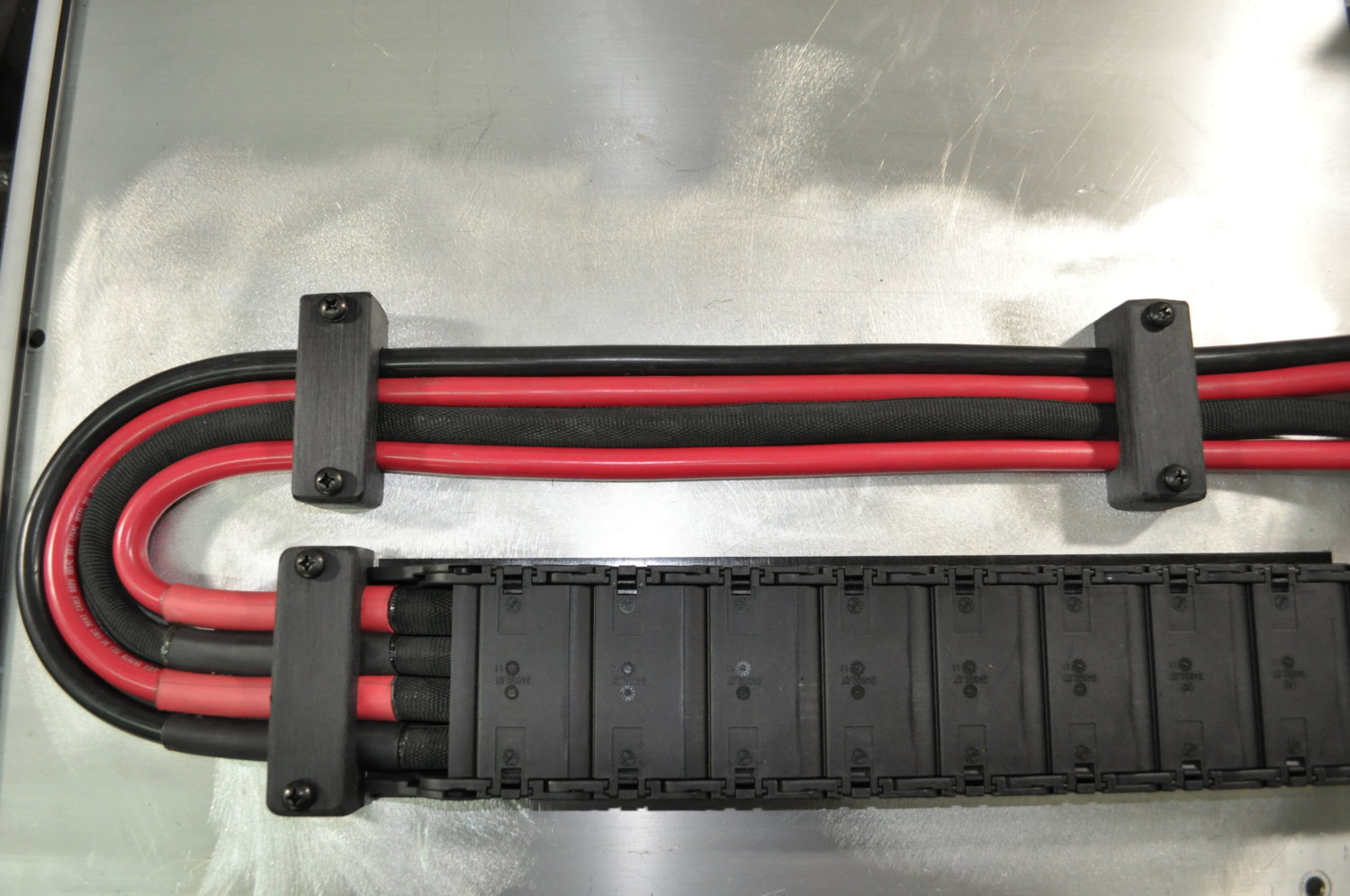

    here's the front tab/delrin setup......






    [​IMG]





    [​IMG]

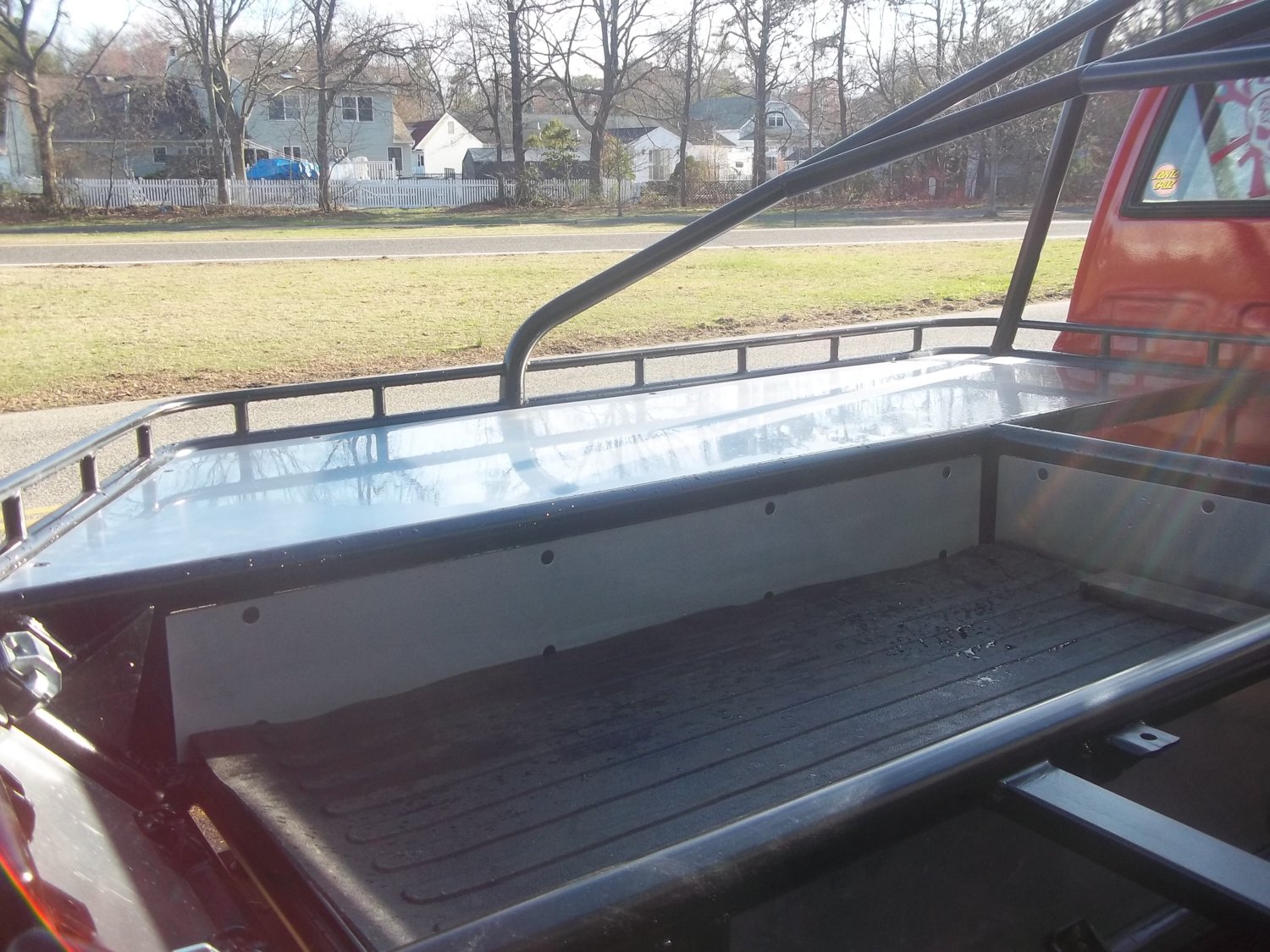

    now i need to fit the ceiling tomorrow... it's supposed to be stooopid warm here the next few days.. high 50's/low 60's..

    it's plated, and the 2 track holes are done/tapped... the plate covers a large area so any other bandclamps/blocks i need, I'll have tapping material....but i need to mount it, to locate the other end of the UHMV properly.. mark... pull back apart.. tap those holes.. and start making another exit delrin mount like the tray has.... but first i need to clearance that tube... the 2 back spots are minor... the front one is a bit more involved....


    .





    .

    KirsL, ekajkrats and livid4dirt like this.
  12. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3
    another gear change..... ;)

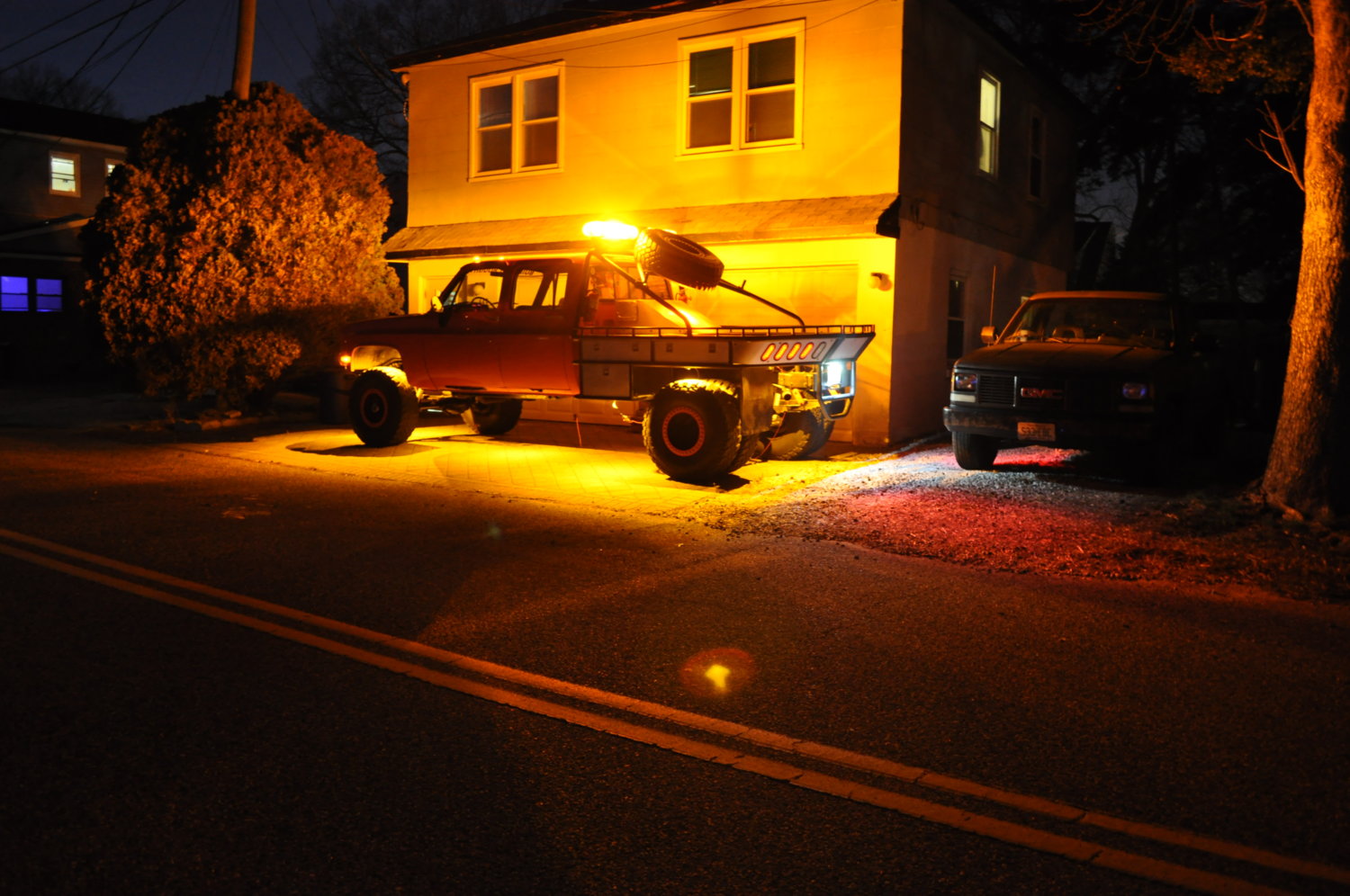

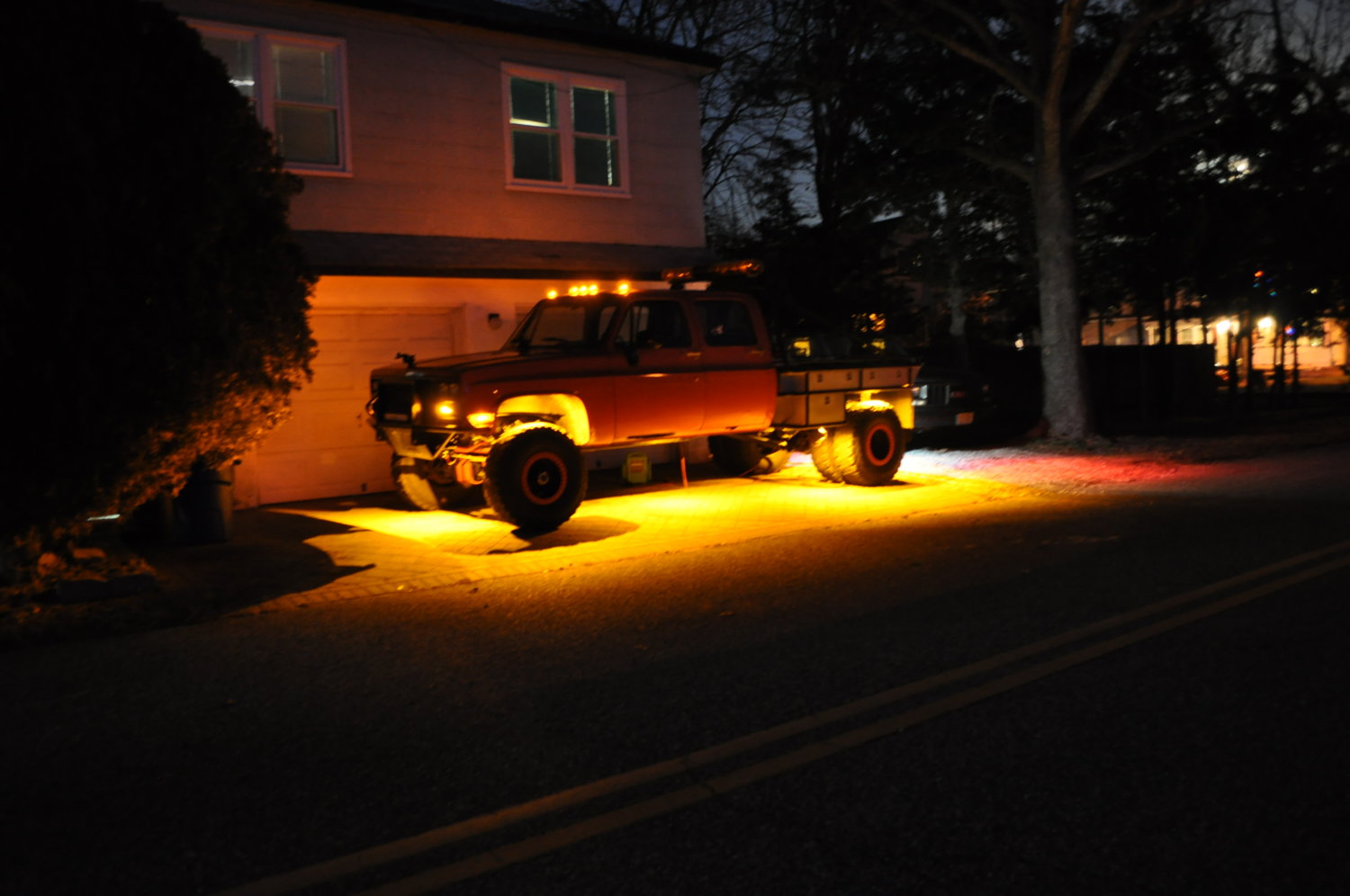

    messed around for an hr or so before trying to find spots for the underbody light kit i got at x-mas... this is 7 of the 12... middle front/back, and 5 down the ds...





    [​IMG]





    and with the rotators on.....






    [​IMG]





    I was looking for "ground light", (ya know dopey mechanics dropping screws and such...) think these will fit the bill... i was trying to hold off, but i really wanna mount/route/wire them while i got chit apart to do the box electric...

    JoshHefnerX, shady, JDNobodi and 3 others like this.
  13. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3

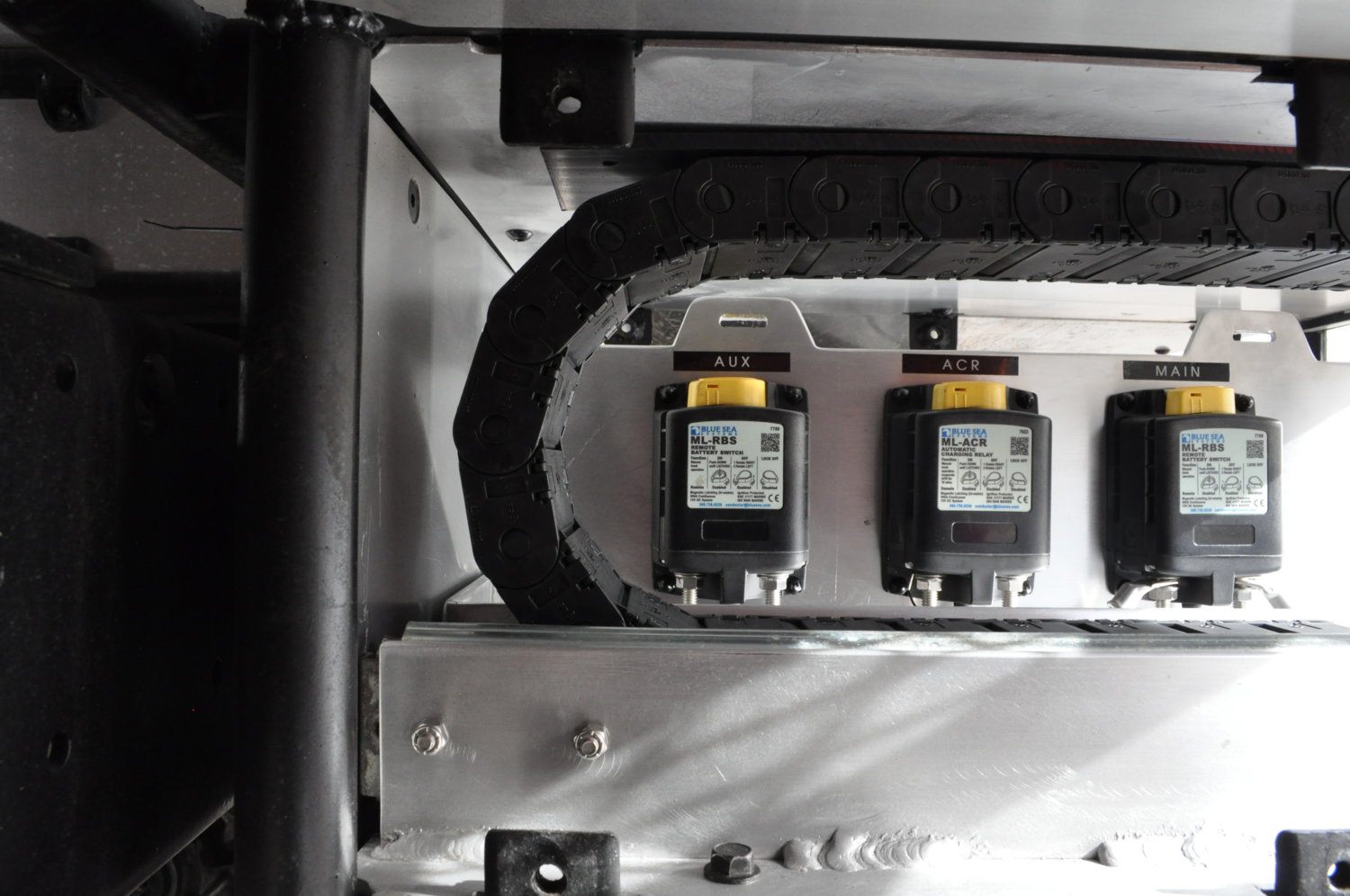

    holy sh*tballs, it works.... ignore the flappy back UHMV...

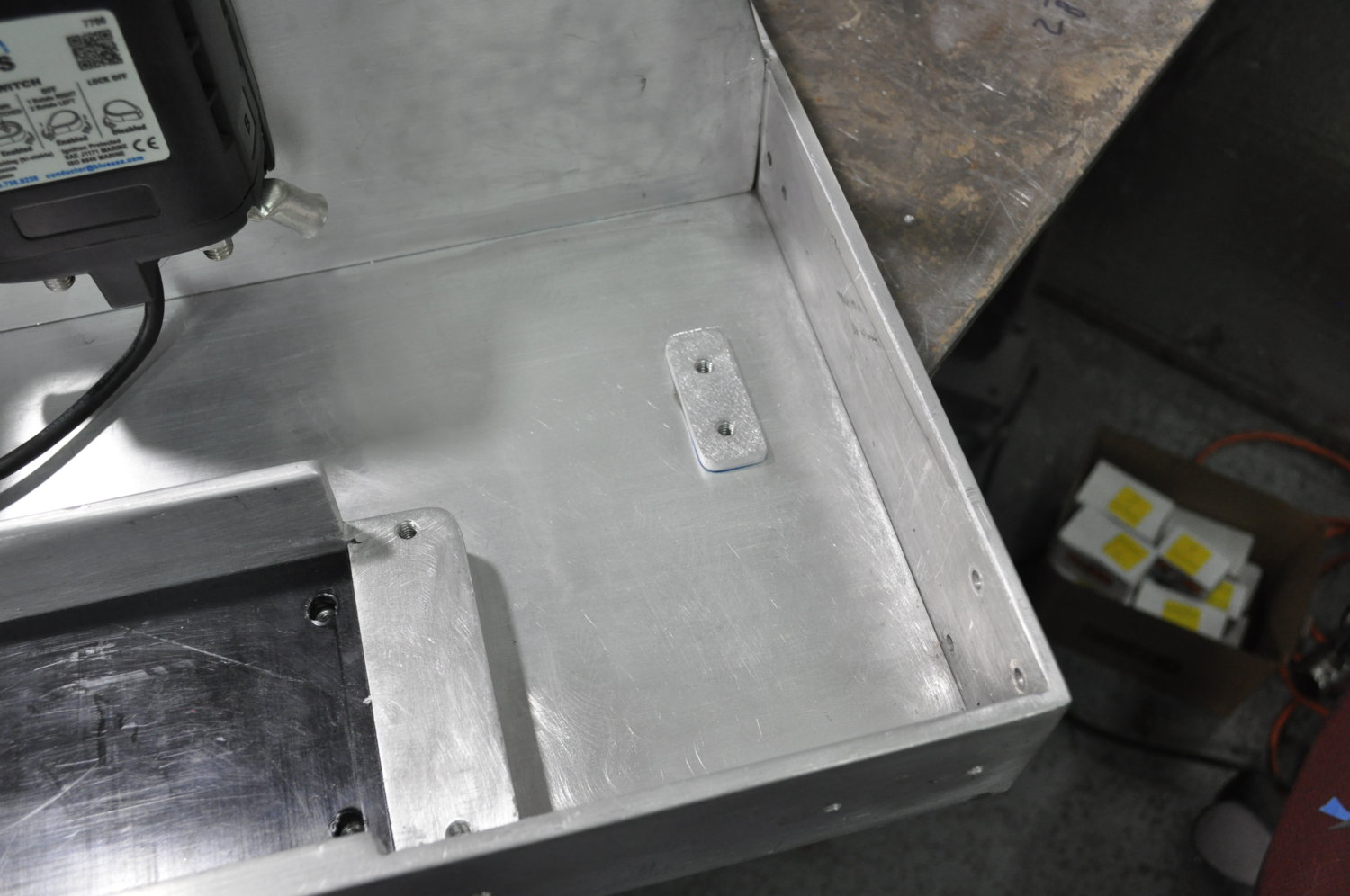

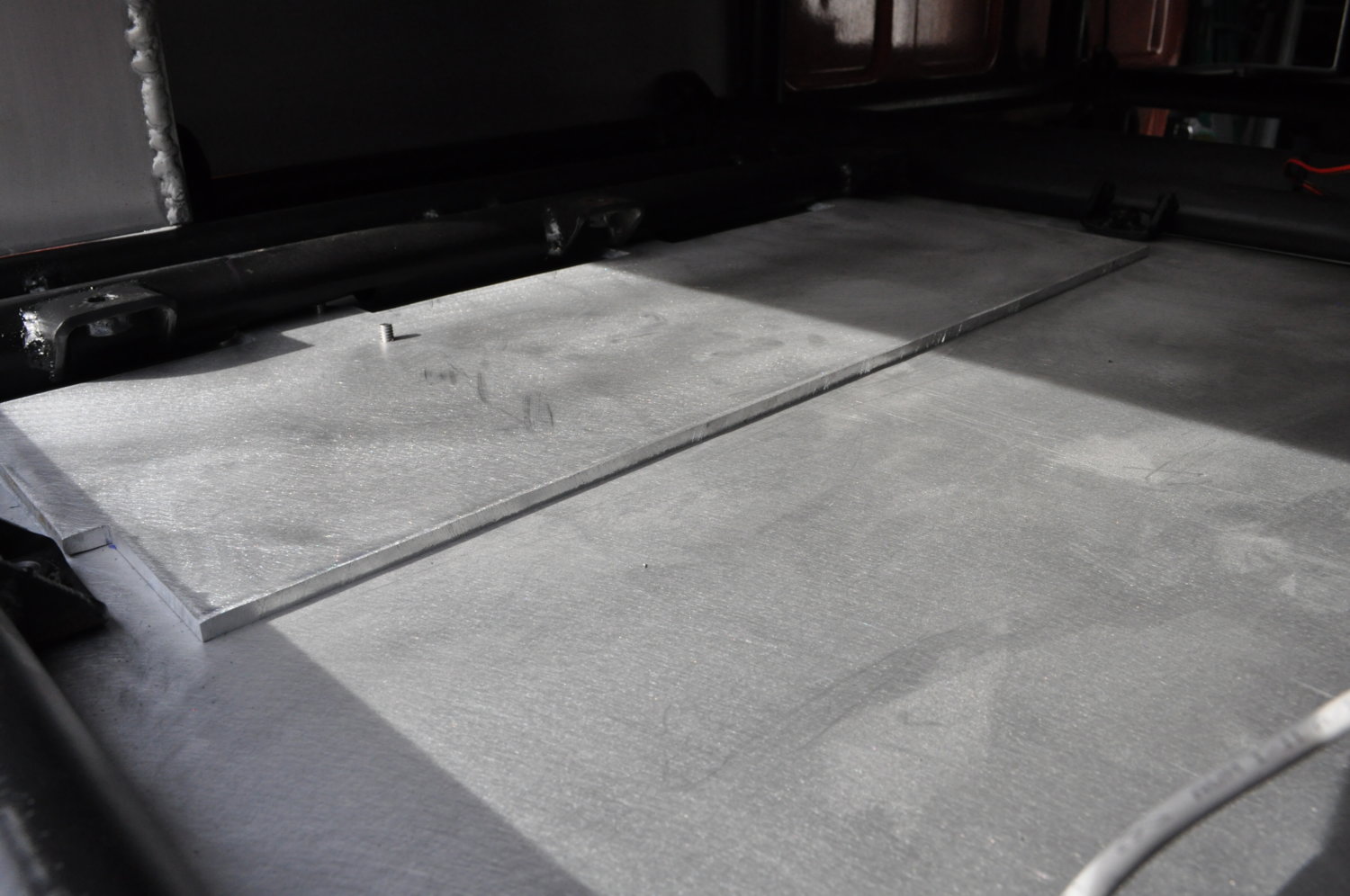

    here's how the plate worked out... i just windowed em and douched em... stays dry in there these days...




    [​IMG]






    and the plate overall....


    [​IMG]

    Last edited: Jan 11, 2020
    ekajkrats and ashman like this.
  14. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3

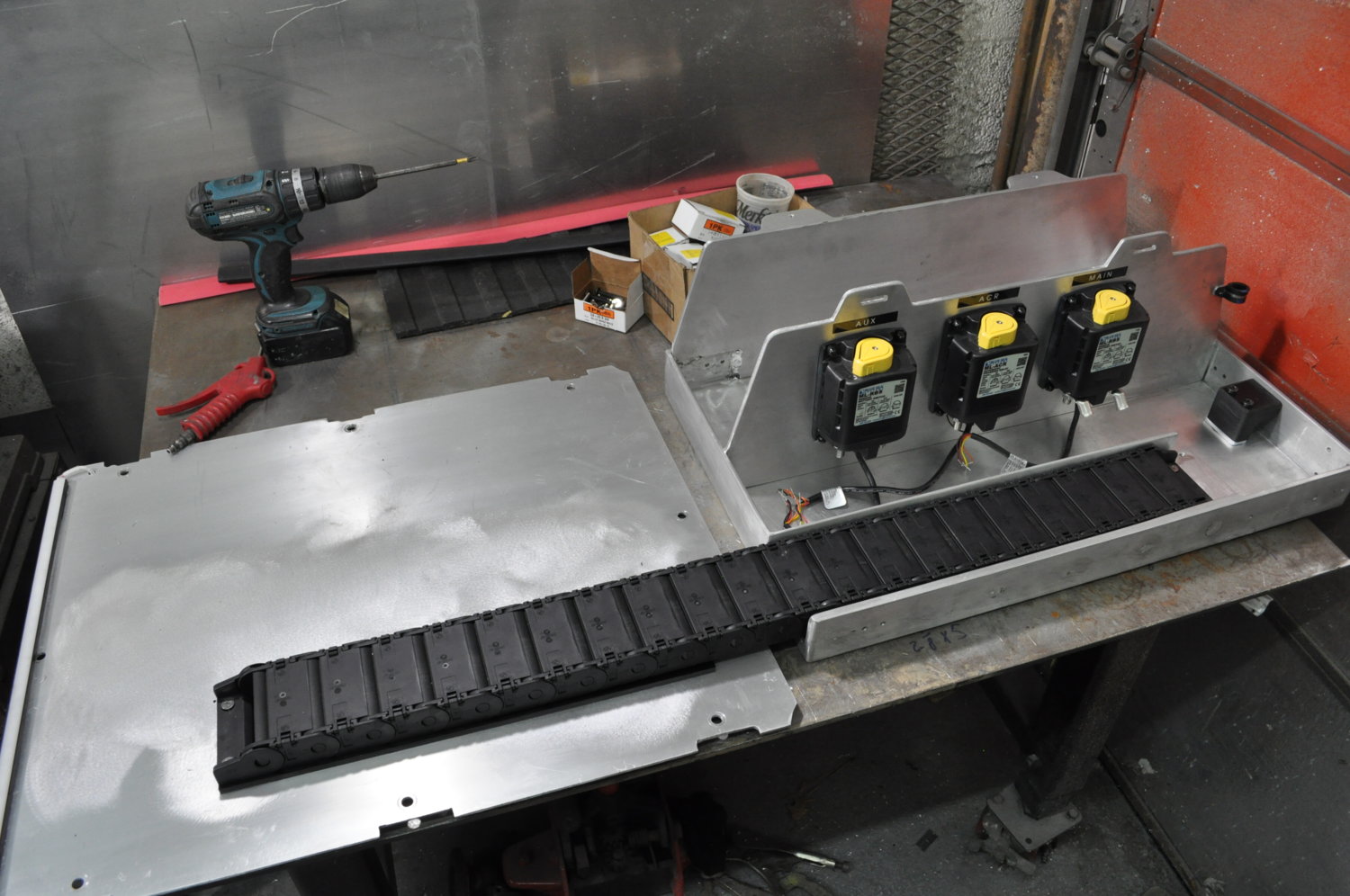

    so everything is blown back apart again.. UHMV and track mounting are done.....




    [​IMG]

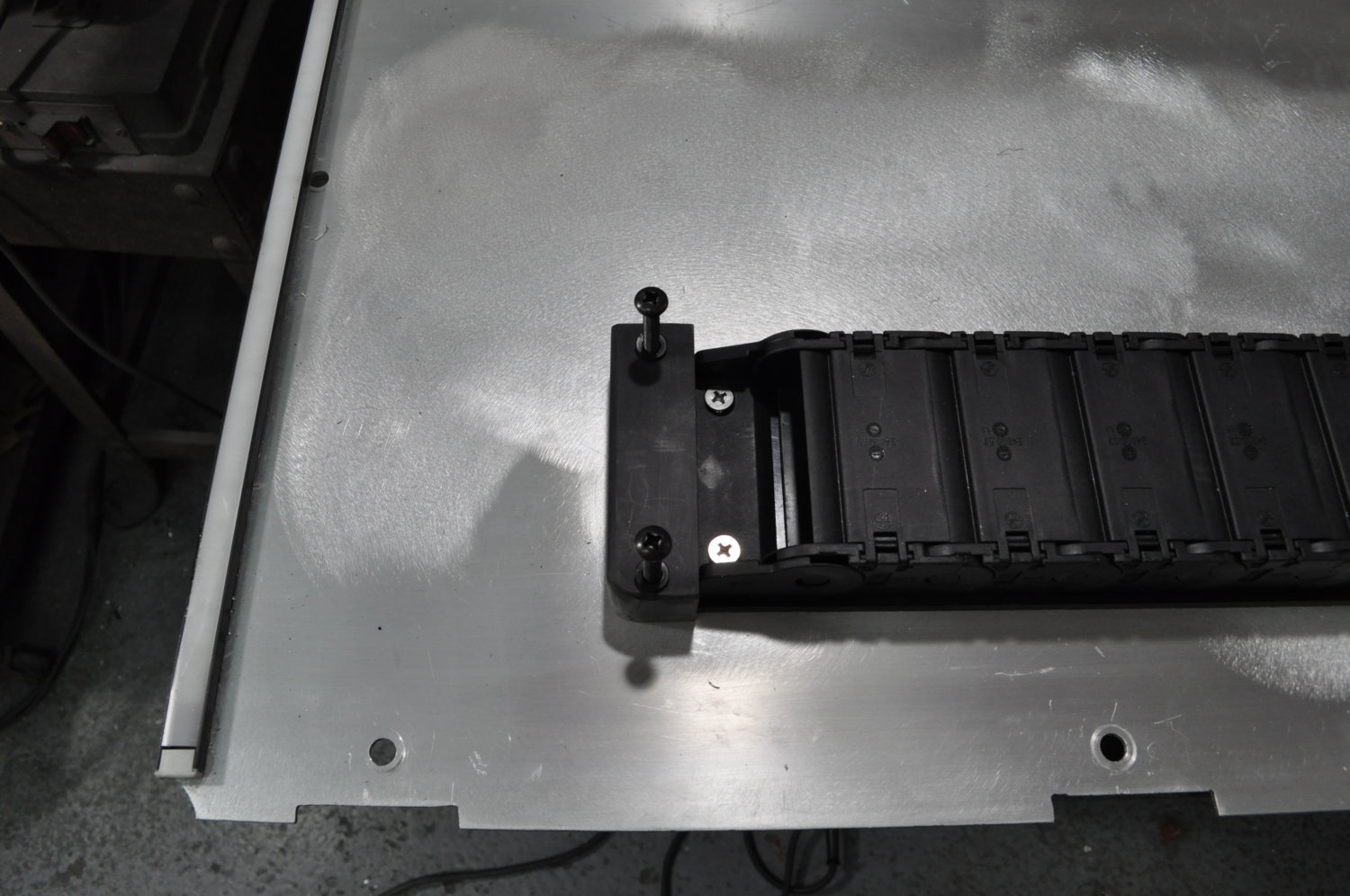

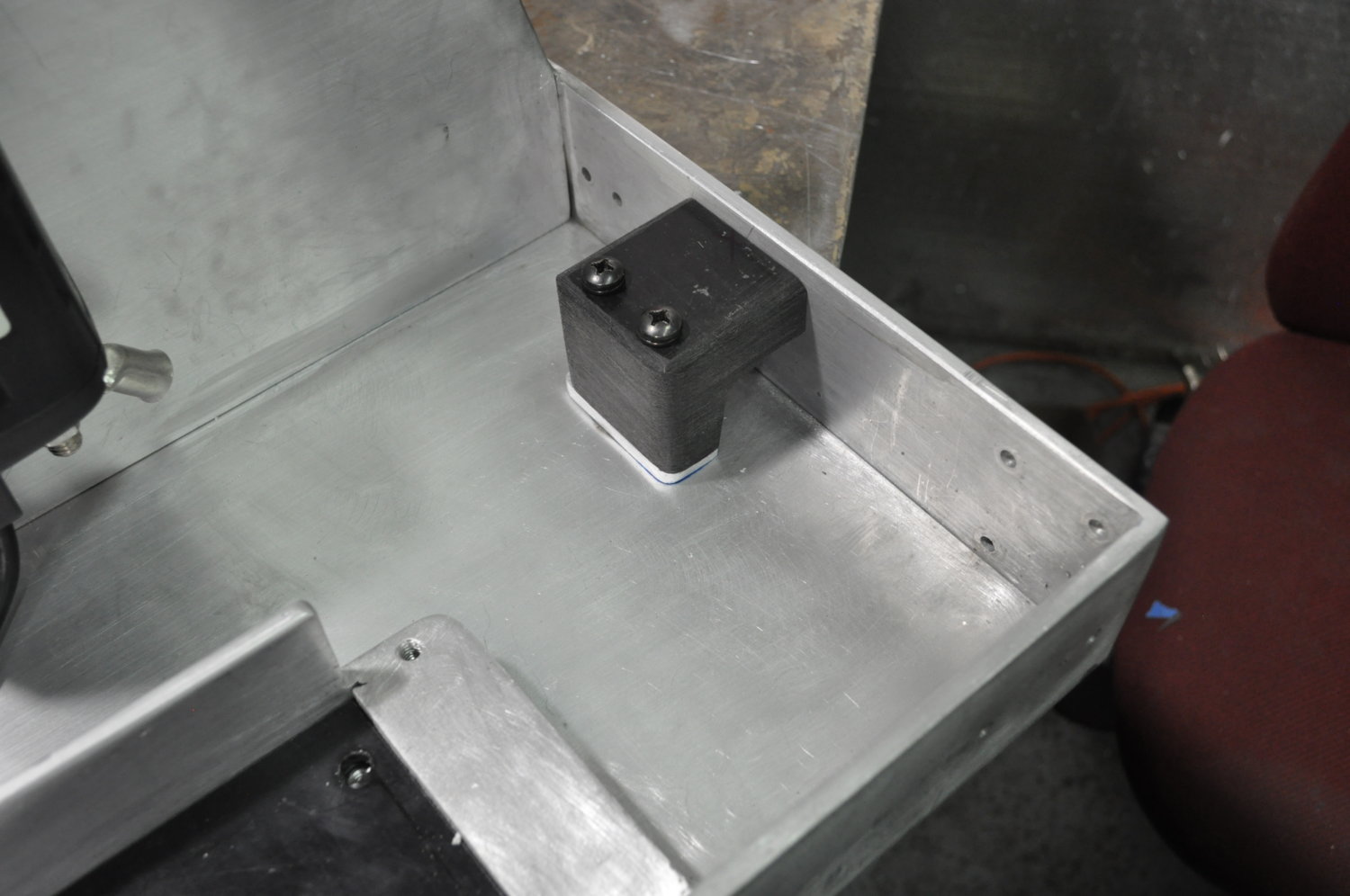

    now i need to add a 1/2" high spacer in front of the track, to mount another delrin holddown to... here's the lower one for an example... I'll work on that stuff tomorrow...


    [​IMG]

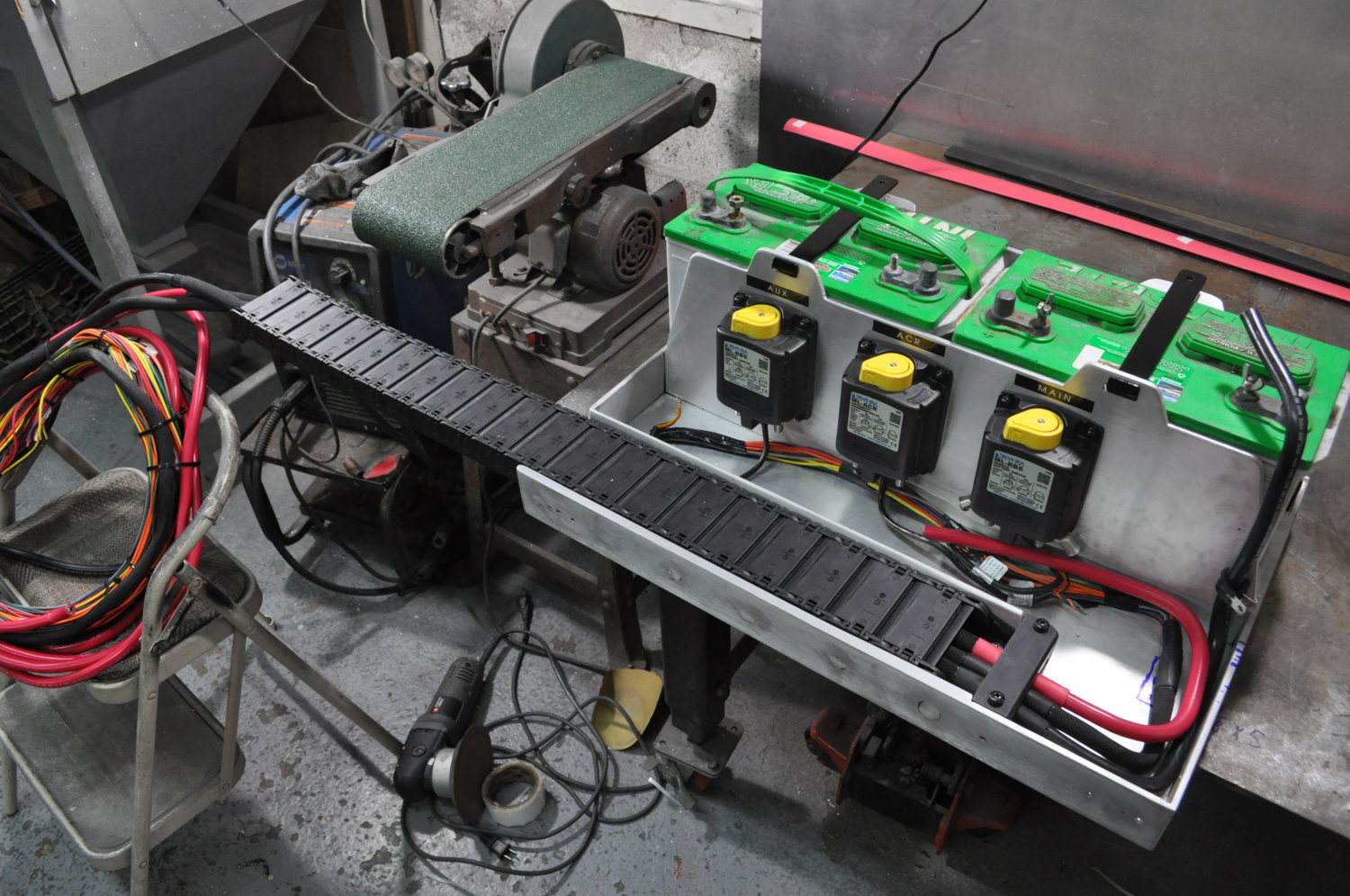

    I'm still finalizing wire routing and post/component locations in the box, but here is how much space i left at the back.... plenty up top for cables to pass....





    [​IMG]

    Last edited: Jan 11, 2020
    ashman and shady like this.
  15. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3

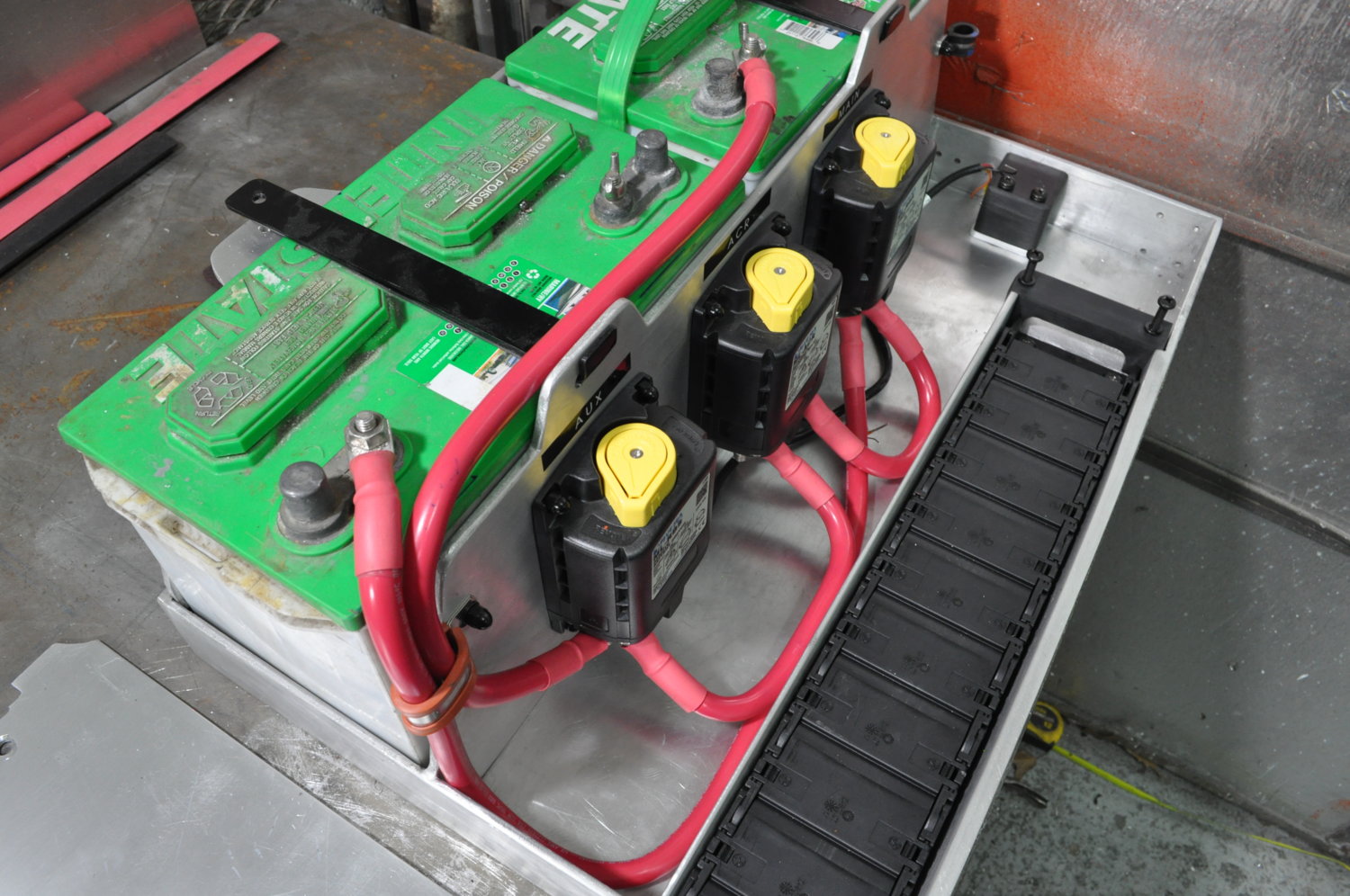

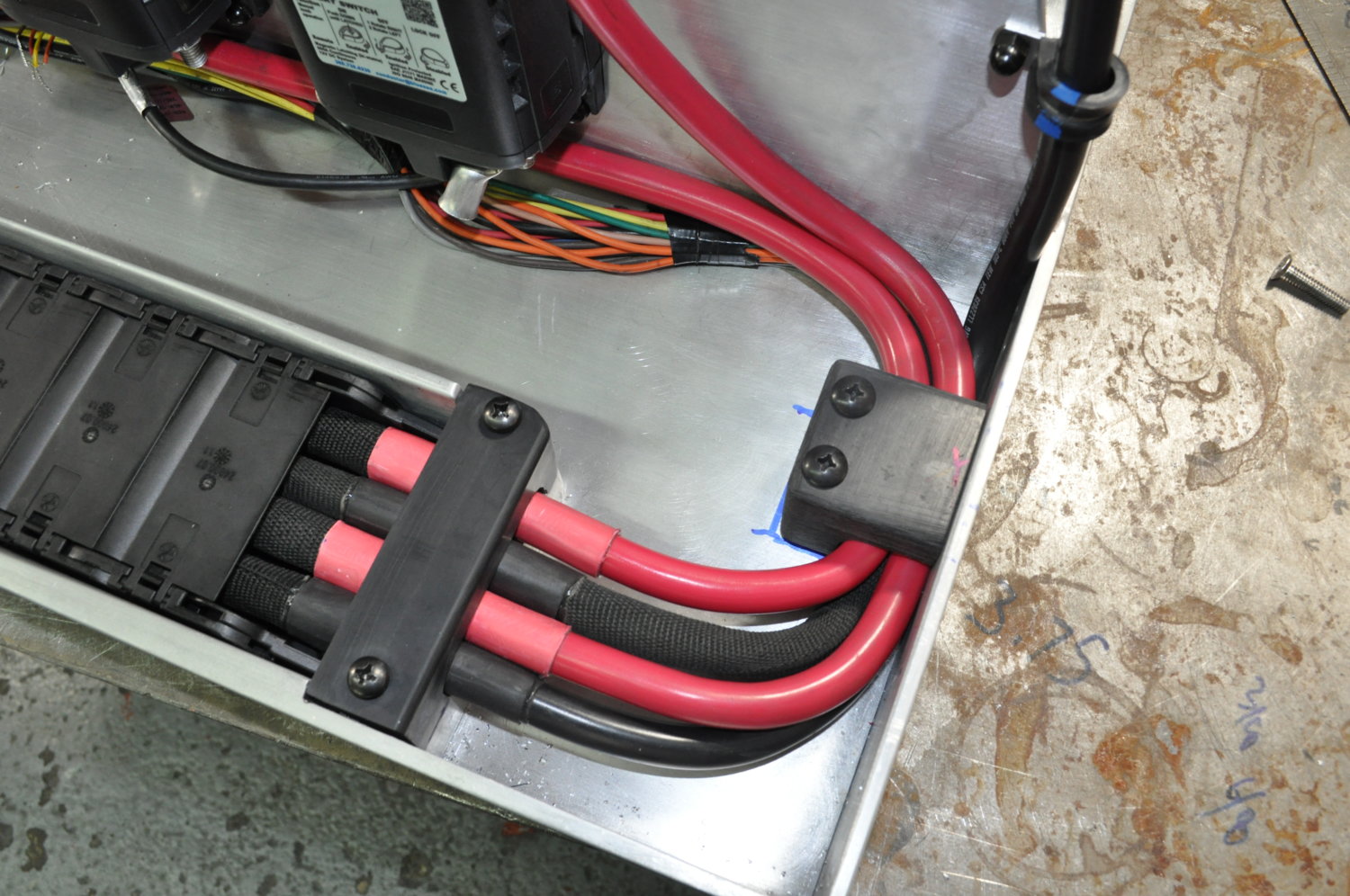

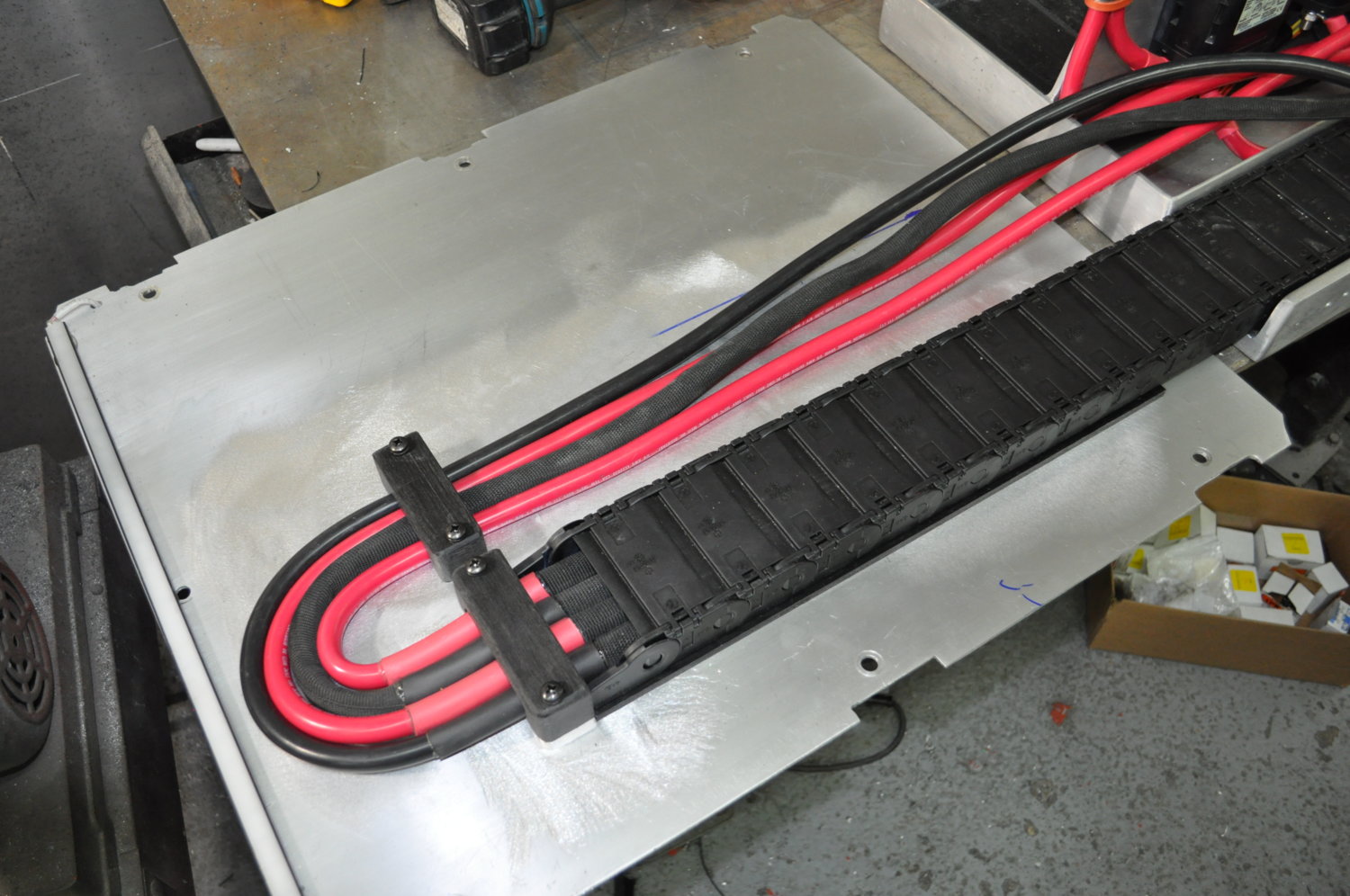

    quiet day today... worked on the rest of the tray cabling........







    [​IMG]







    [​IMG]

    Last edited: Jan 12, 2020
  16. JoshHefnerX

    JoshHefnerX 1/2 ton status Premium Member

    Joined:
    Jan 7, 2015
    Posts:
    3,957
    Likes Received:
    2,532
    Location:
    Glendale, AZ
    Build(s):
    1
    You'll definitely be seen w/ those lights..:cool:

    ryoken likes this.
  17. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3


    eh, not like I'm a tow truck driver on the side of the road or something... more so i can see what i'm doing picking up/dropping off a boat at night....



    the harness is now attached to the ceiling...

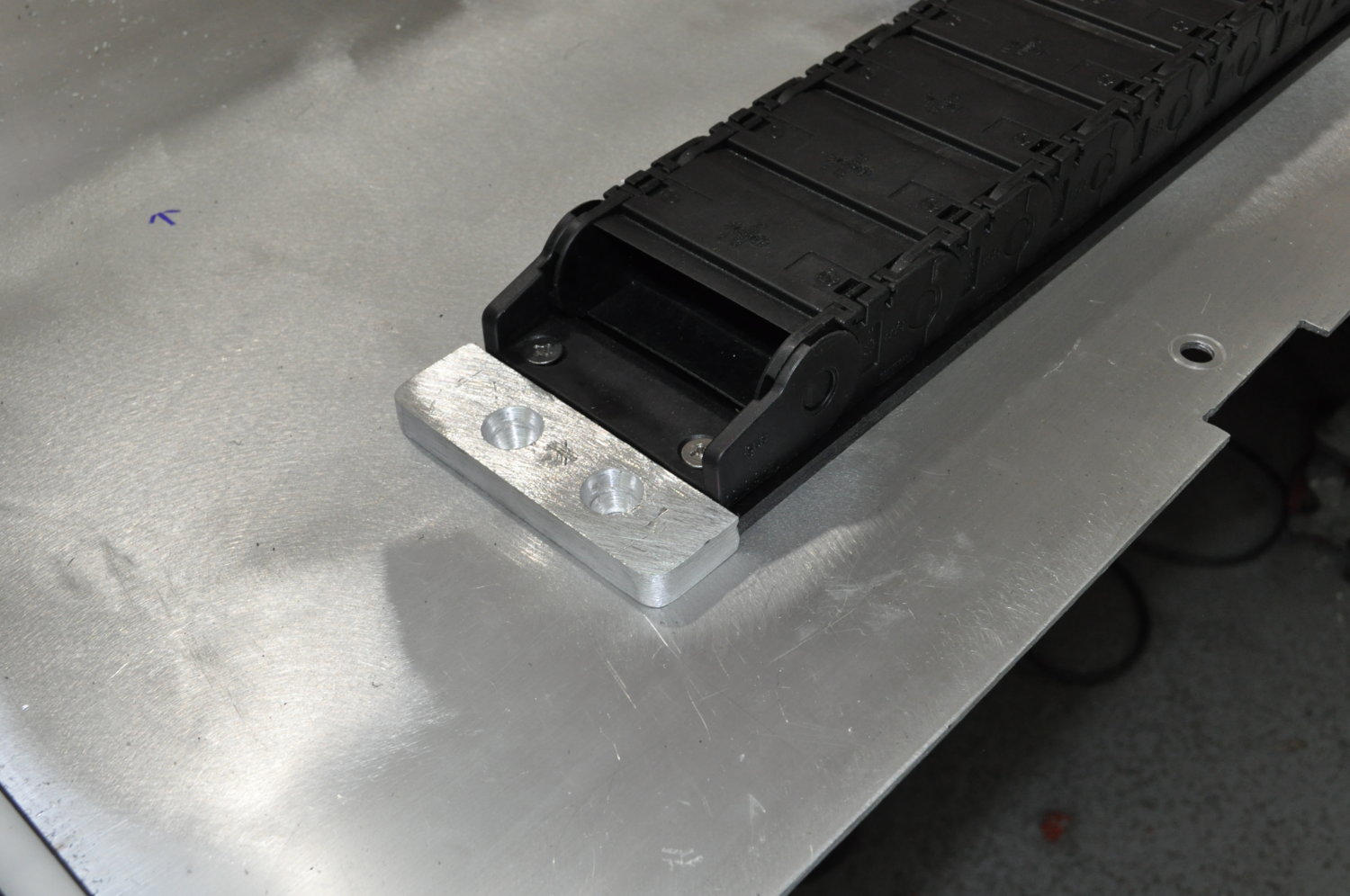

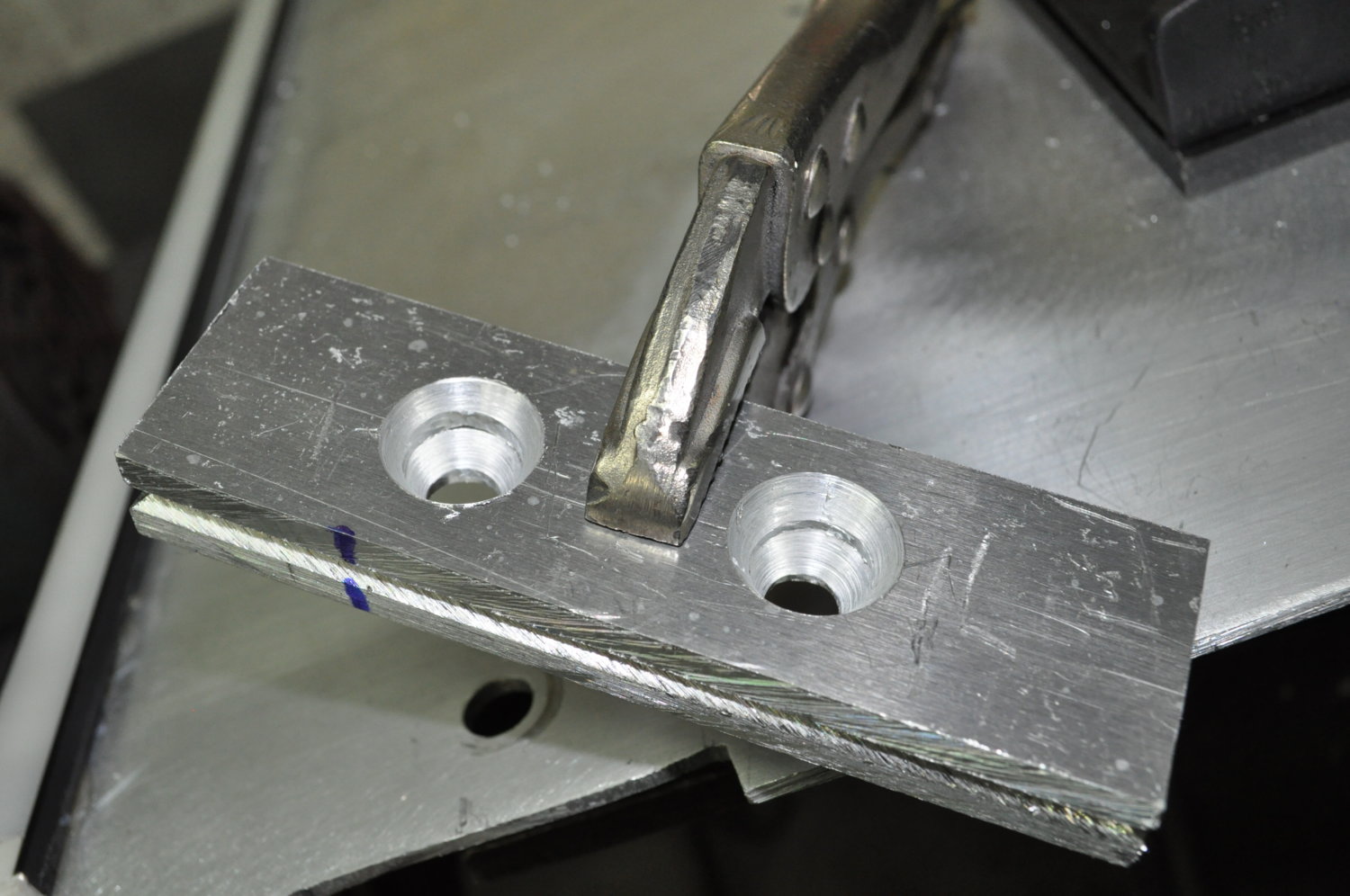

    couple process pics of stuff i do... 2 plates, beveled edges and countersunk......



    [​IMG]






    after the edges are all welded and smoothed...





    [​IMG]

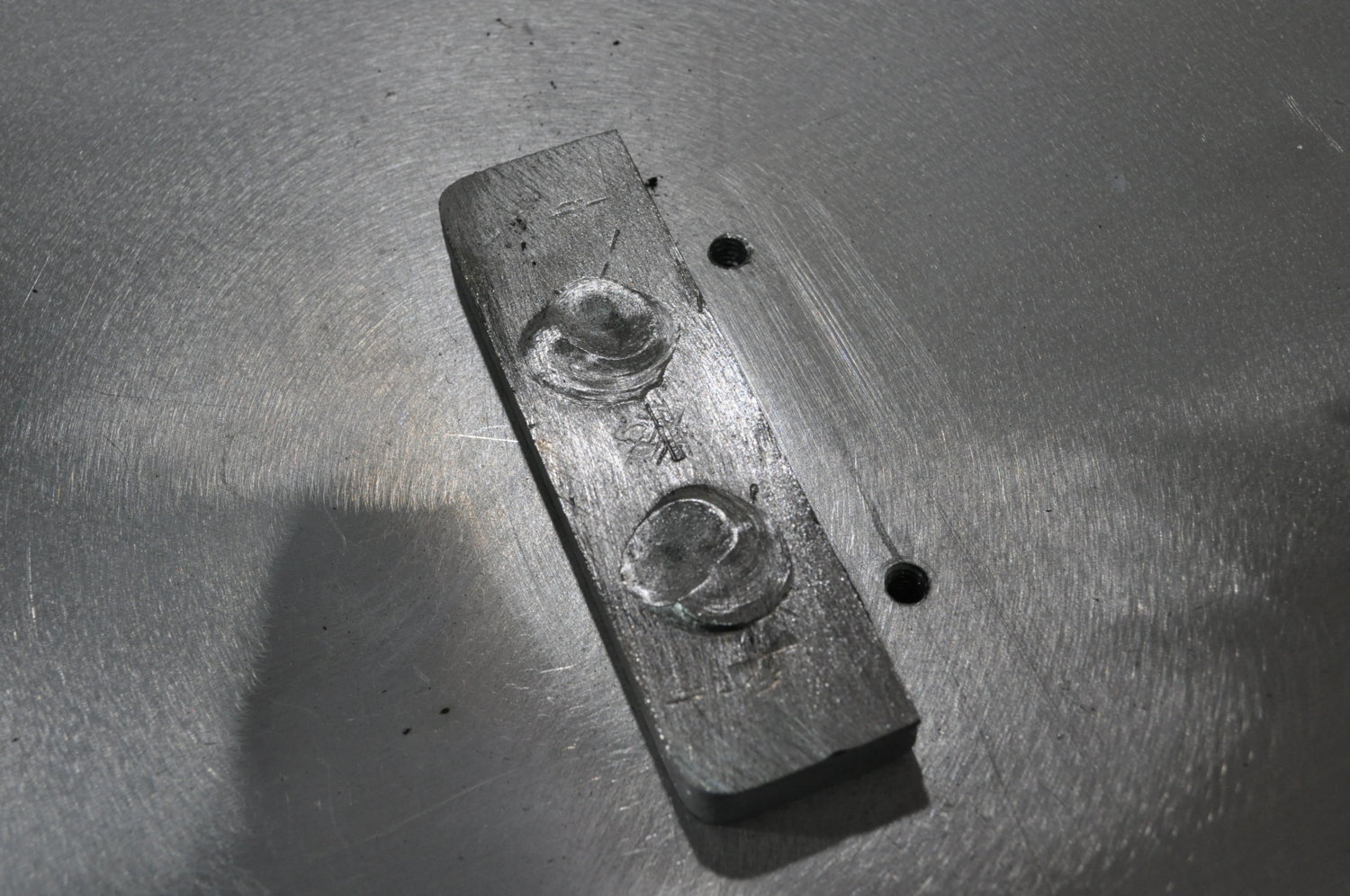

    plugwelded...



    [​IMG]





    upper harness attached.....





    [​IMG]







    here's how they'll route back down the ceiling..... tomorrow I'll make up another delrin block that will sit exactly next to that block.. heading back.... i may still do 1 more at the back of the ceiling too....





    [​IMG]

  18. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3
    it's like building an AFX track.... ;)






    [​IMG]






    [​IMG]





    working on the one at the back now....






    .

  19. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3
    alrighty..... the "contraption" as I'm referring to it, is basically complete.... 4 shorter bolts, bit of wetsanding and sharkhide...





    [​IMG]

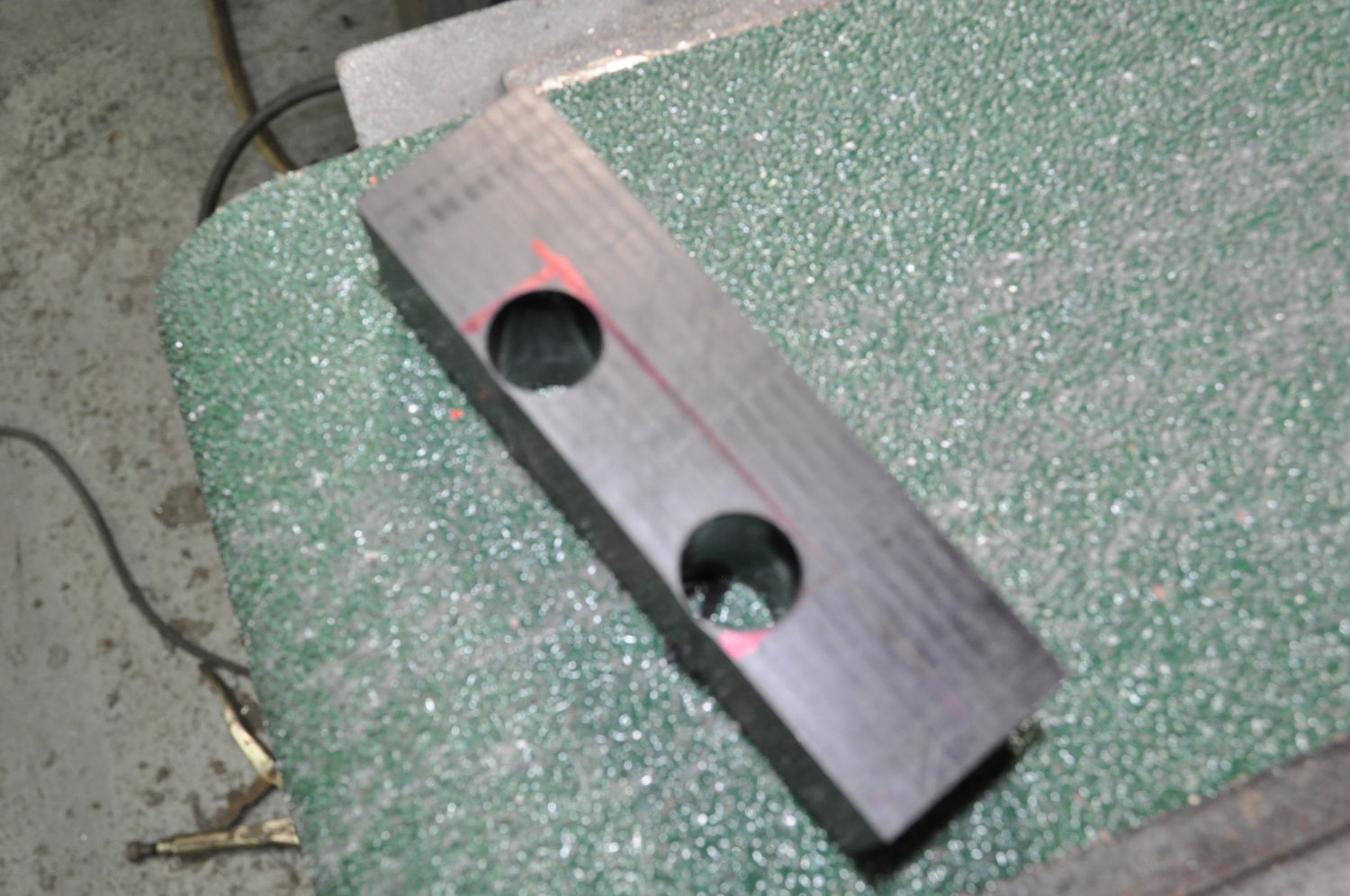

    here's how i machine the delrin blocks... holes for the corners,




    [​IMG]




    than it goes to the vertical bandsaw and finished off with 2" rolocs/file... and shaped on the belt sander....





    [​IMG]





    [​IMG]





    [​IMG]








    so, it's on to the box interior... won't be till thurs tho.....

    that involves the grd bulkhead post on the back wall... #2 pos post on the left.. and running the other 2 cables out of the box thru liquid tights....




    .

    KirsL, Chevy305 and ashman like this.
  20. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,543
    Likes Received:
    6,138
    Location:
    Jersey Shore
    Build(s):
    3
