    hadn't really thought about those, I've certainly installed enough... hadn't really put any thought into tunes.. i have a pretty nice single din in it now, I just figured i would swap over.. but it's literally one of the last things i'm thinking about interior-wise... i'll keep it in mind...

    the fact the rig is a stick complicates things a bit.... but I'm stoked on all the other plans.. the ashtray is a perfect size... always wanted to do something with an ashtray... everything will be vastly easier than doing a full custom floor, etc...

  2. dhcomp

    dhcomp 1 ton status Premium Member

    Joined:
    Mar 17, 2001
    Posts:
    10,388
    Likes Received:
    1,338
    Location:
    Truckee, CA
    ryoken likes this.
  3. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,679
    Likes Received:
    6,450
    Location:
    Jersey Shore
    Build(s):
    3

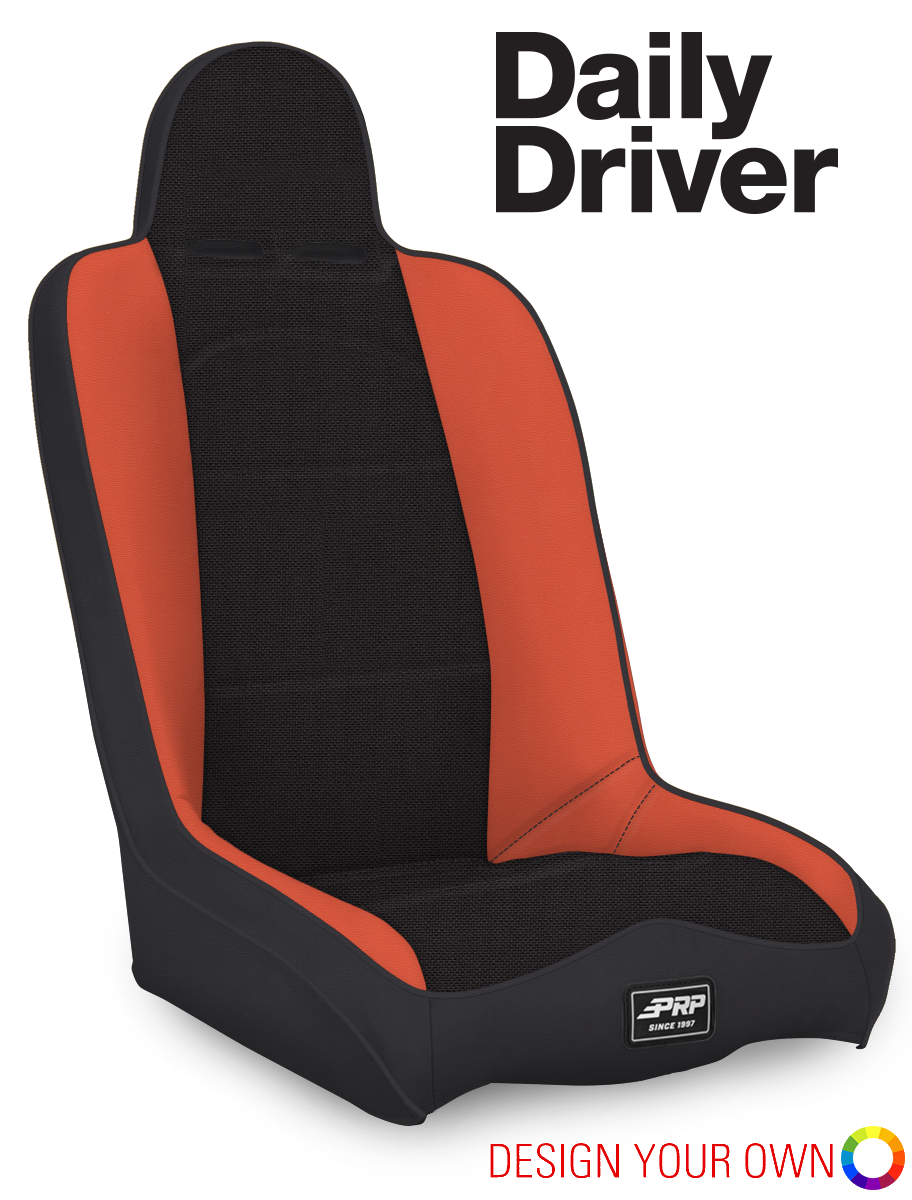

    the seats for Mutt... same scheme as the K5, but DD instead of comps...

    black vinyl back and piping, black tweed center and mandarin orange sides...




    [​IMG]



    they'll be $450 to my door cuz I always go for the wide... really wanted to use the ones from the K5 to save money, but I just think the build calls for the DD's.... # 47 on the purchase list... ;)



    .

  4. ekajkrats

    ekajkrats 1/2 ton status Premium Member

    Joined:
    Mar 6, 2012
    Posts:
    1,312
    Likes Received:
    678
    Location:
    North SF Bay Area, CA
    Will you run harnesses in Mutt?

    ryoken likes this.
  5. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,679
    Likes Received:
    6,450
    Location:
    Jersey Shore
    Build(s):
    3

    I'm gonna see if I can incorporate some tube work into the K9 wall behind the seats to run harnesses... haven't even begun to draw up a plan for that yet tho.

    ekajkrats likes this.
  6. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,679
    Likes Received:
    6,450
    Location:
    Jersey Shore
    Build(s):
    3

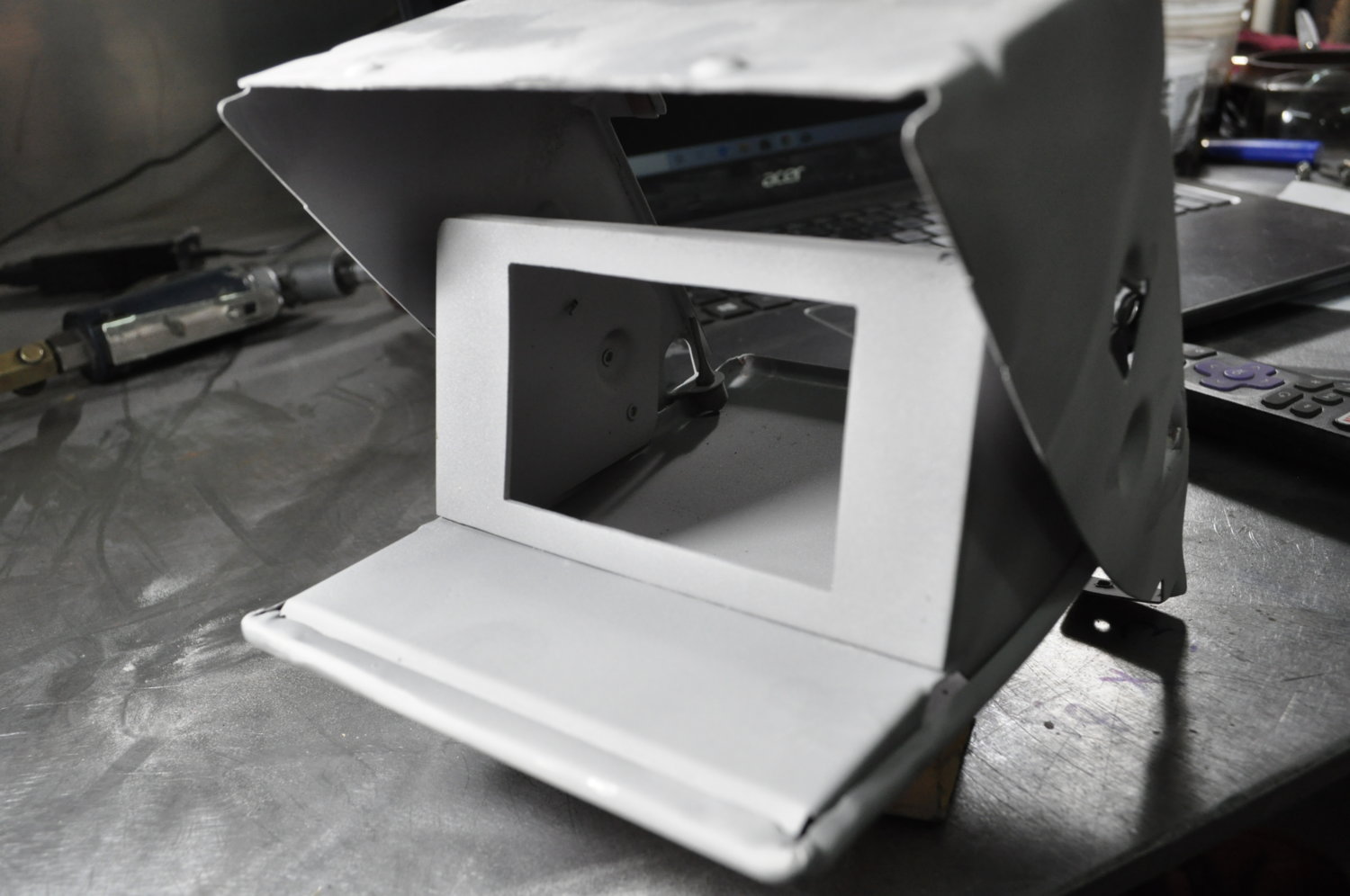

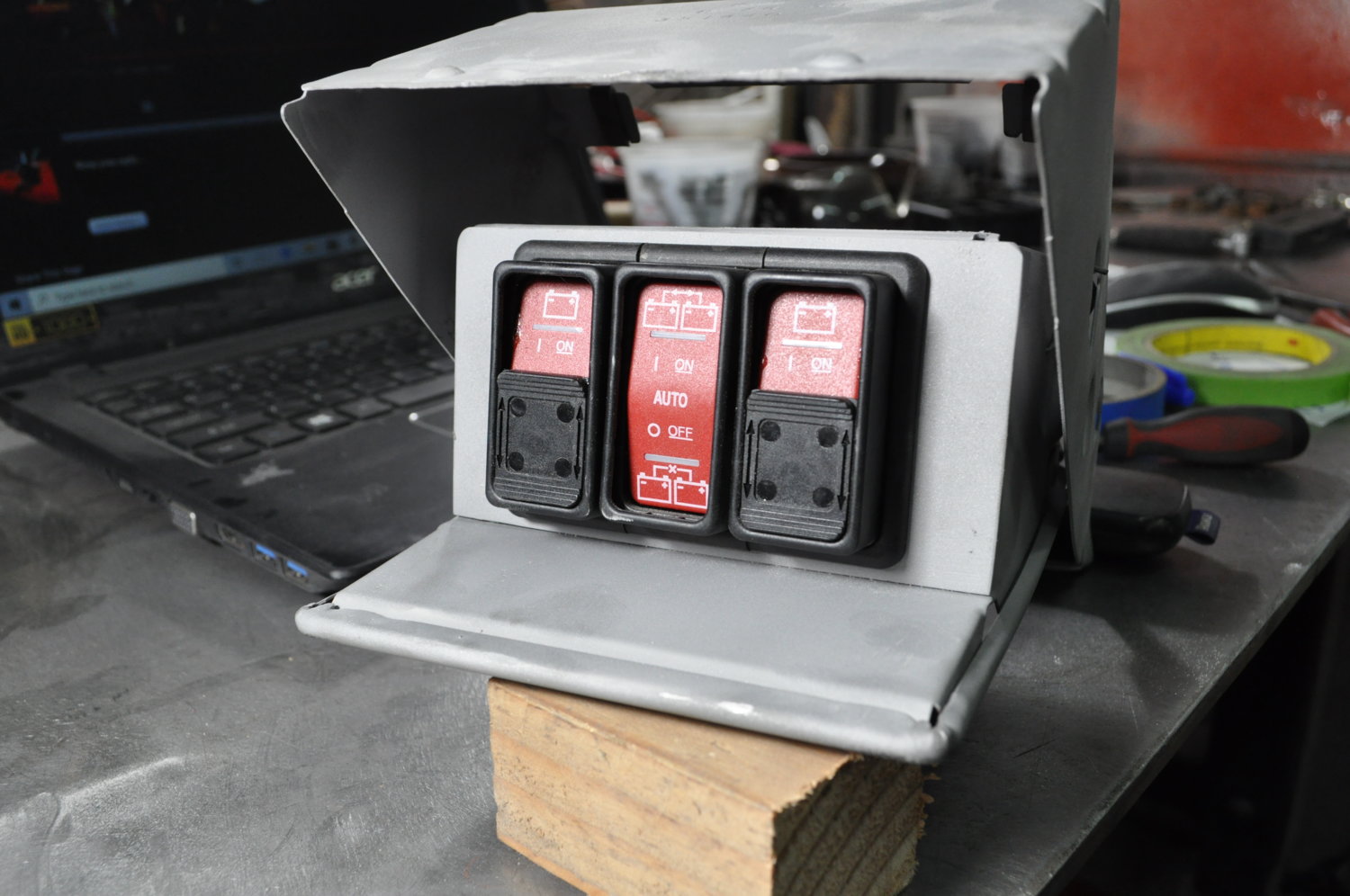

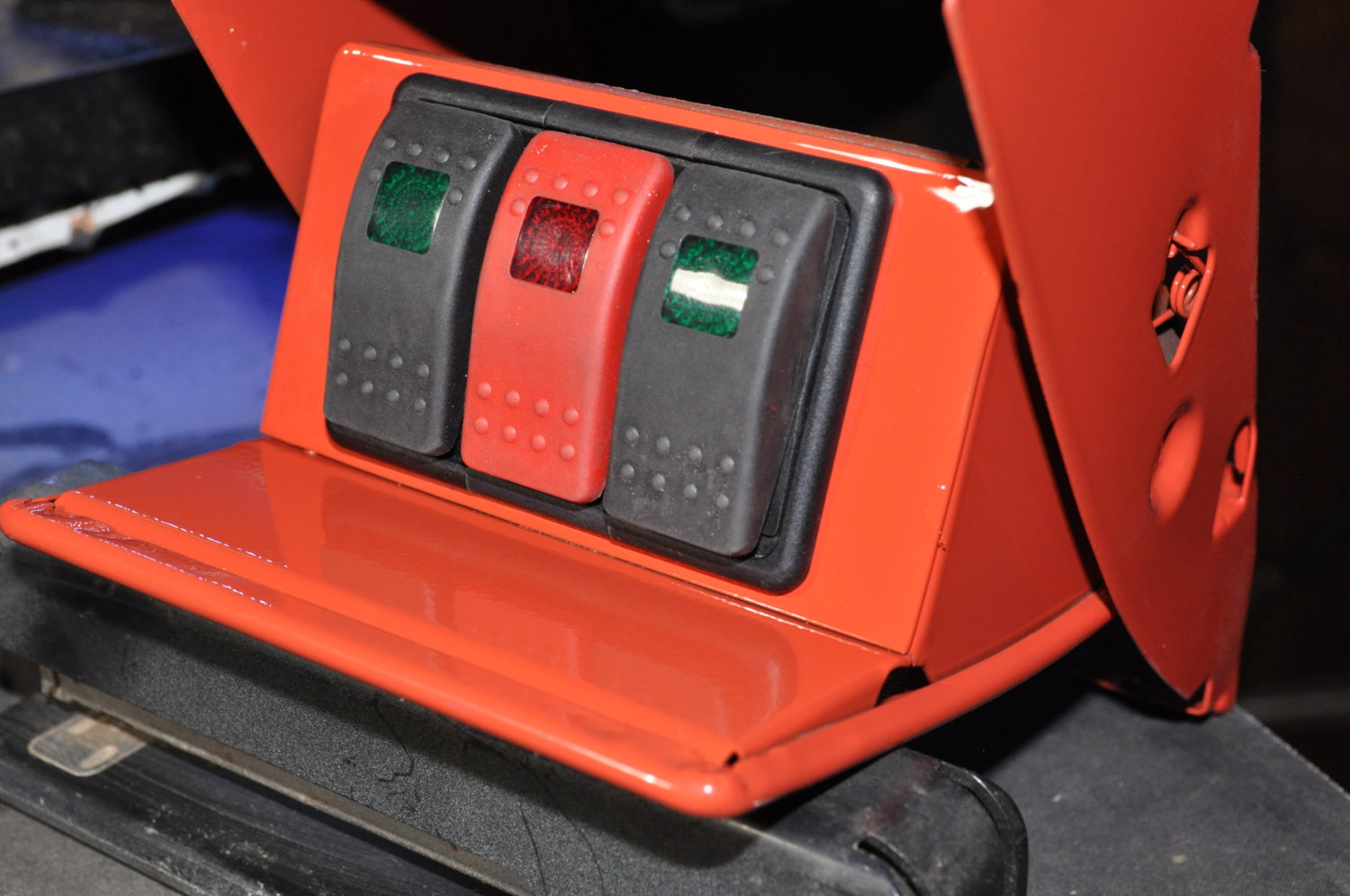

    here's how the ashtray worked out...




    [​IMG]





    eventually, I'll change these out to the standard matching lighted Conturas I run in the rest of the rig... but it'll have to wait till I put a switch order in....







    [​IMG]





    [​IMG]

    max 02, livid4dirt, KirsL and 5 others like this.
  7. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,679
    Likes Received:
    6,450
    Location:
    Jersey Shore
    Build(s):
    3

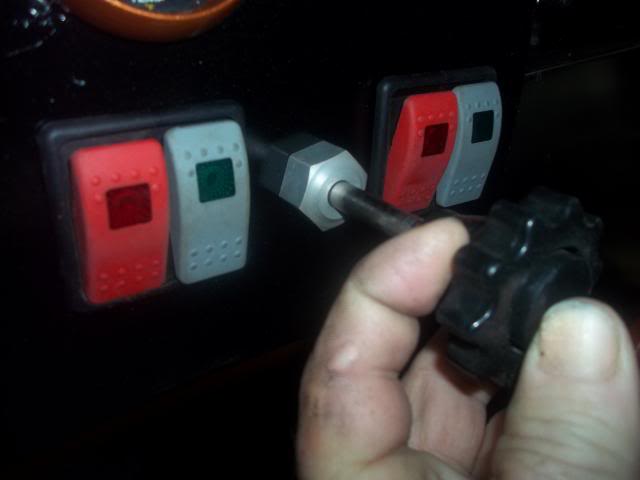

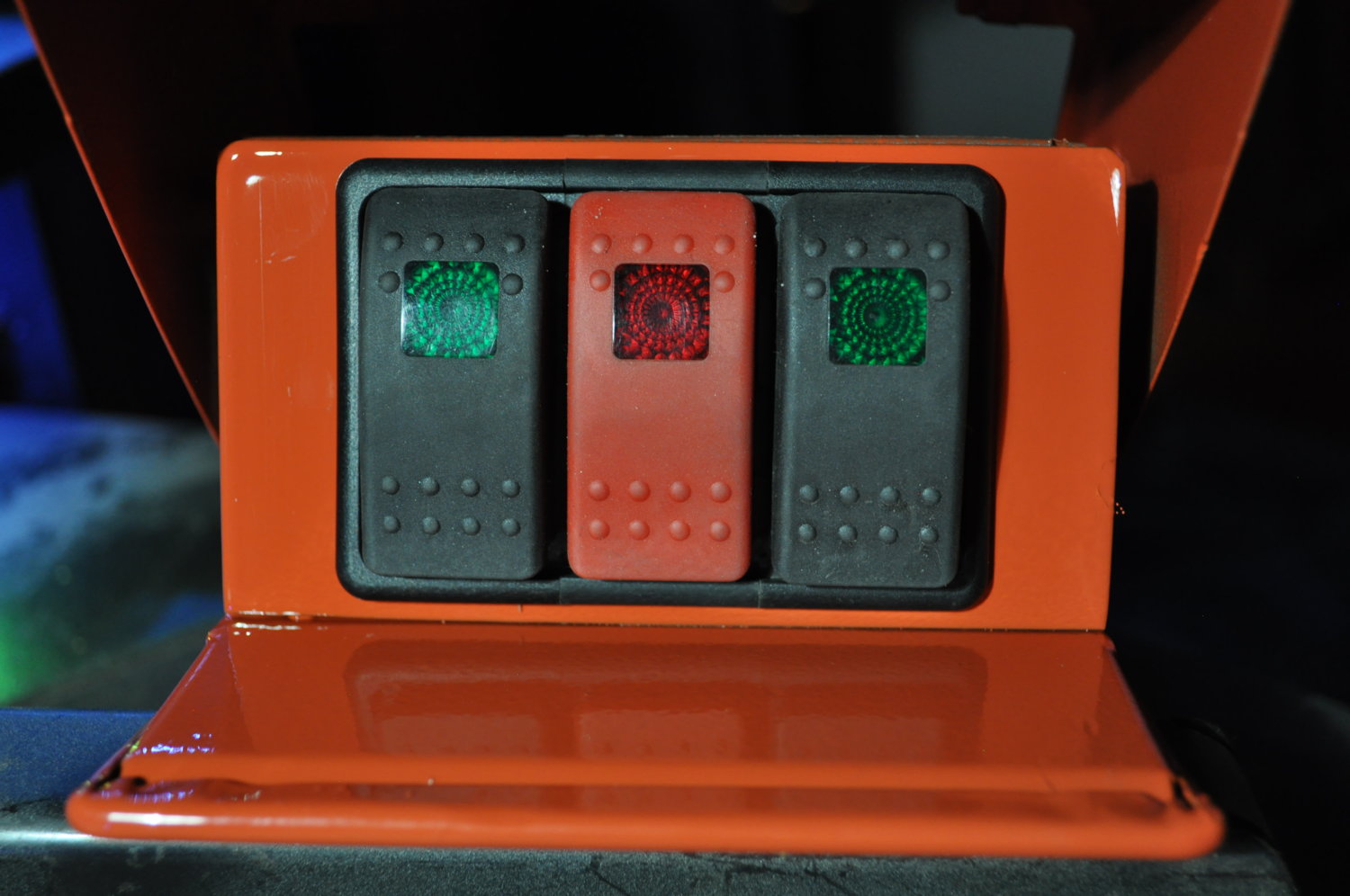

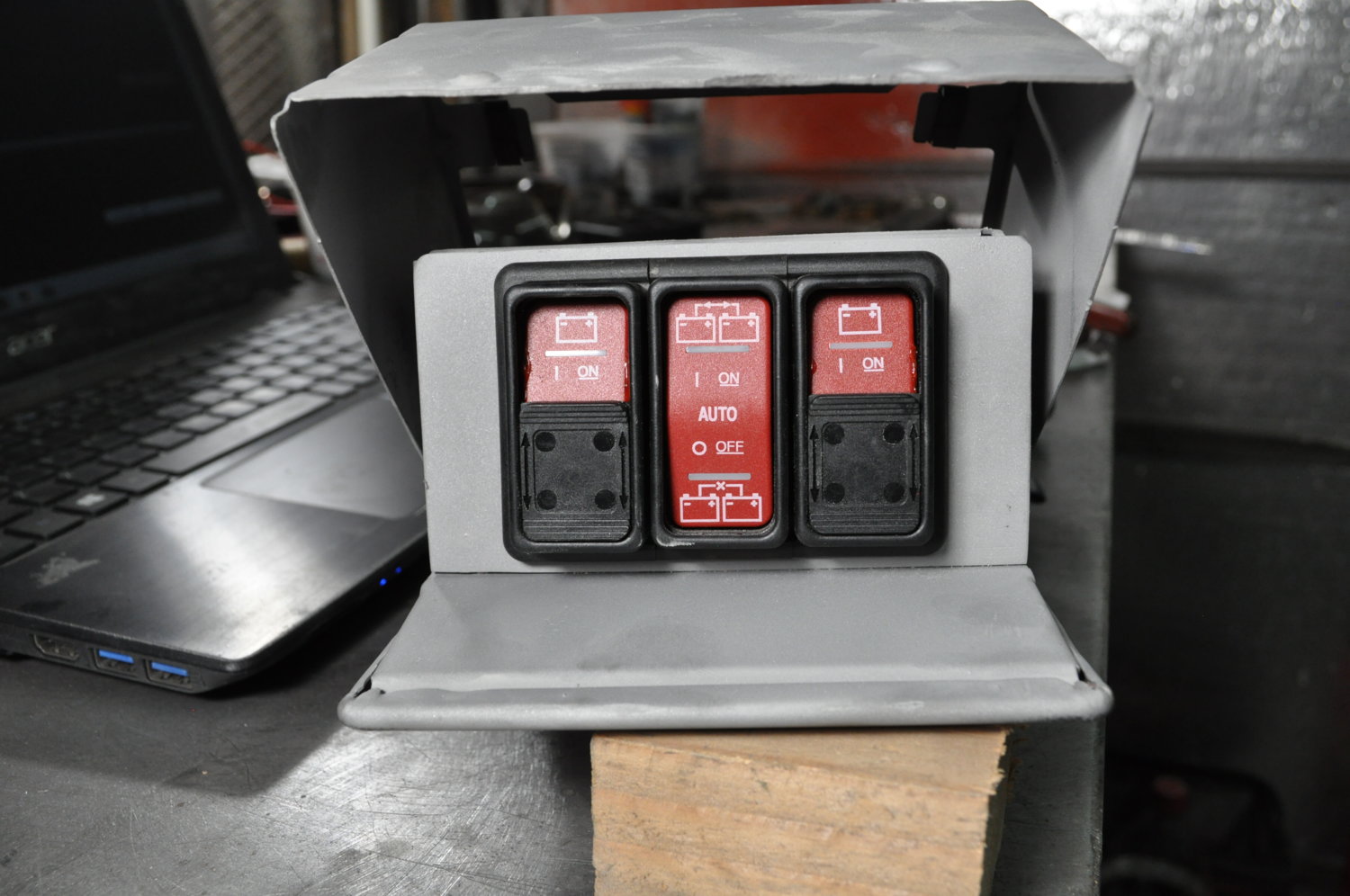

    turns out I did have the correct switches after all.. I was surprised.. here's the finished product.....





    [​IMG]






    [​IMG]






    just to verbalize what the switching is...

    the center ACR is center is auto mode.. bottom is off.. top is parallel..

    the 2 outers are the bat switches.. they are: center is static... up is momentary for on.. the light comes on... down is momentary for off...



    .

    max 02, Alan2smiley, TREA18 and 3 others like this.
  8. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,679
    Likes Received:
    6,450
    Location:
    Jersey Shore
    Build(s):
    3
  9. dhcomp

    dhcomp 1 ton status Premium Member

    Joined:
    Mar 17, 2001
    Posts:
    10,388
    Likes Received:
    1,338
    Location:
    Truckee, CA
    Do they make those in a range closer to what you’ll spin with the 12v?

    ryoken likes this.
  10. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,679
    Likes Received:
    6,450
    Location:
    Jersey Shore
    Build(s):
    3

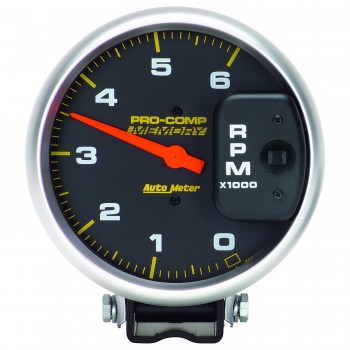

    lol, I'm lucky they have 6 g's.. every other AM tach is 9, 10 0r 12... my old one is a 10... that's it for a dizzle... AND i have to customize the install.. it's only available in pedestal.. if i remove it, it will lay like the in-dash ones according to AM tech.. prob is there is no mounting studs.. but i have a plan...

    this is also, an "eventual" one.. i have to get one cuz the bezel is cut for one.. i also have 2 other 2 5/8's to fill at some point on the right side.. EGT and Boost.. eventually.. i'd prolly get the tach first for a couple reasons.. 1 it's the giant hole in the dash.. and 2, i'd like to get the pick-up worked out early on.. the downside being it's $400 compared to a hundy a piece for the small ones...


    gonna finish the tray tomorrow and start yanking out the heat..


    oh, way cool LAB™ project I'm finishing up.. i finally completely organized the buckets and buckets of bolts, washers, nuts... 2 nice new storage racks and a ton of time... pics soon...

    max 02, dhcomp and ashman like this.
  11. Alan2smiley

    Alan2smiley I'm in the shop Premium Member

    Joined:
    Nov 5, 2007
    Posts:
    843
    Likes Received:
    1,661
    Location:
    WI
    Build(s):
    2
    I used the Stewart Warner, if I had to do it again I would get it with hour meter, orange needle would be neat to.


    red EOD and ryoken like this.
  12. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,679
    Likes Received:
    6,450
    Location:
    Jersey Shore
    Build(s):
    3

    that looks good.. yeah, I'd love like a 4g one.. but I'm stuck with the Pro Comps.... once I finish up my bolts, my evening project will then be prepping my gauges for Ryo red rings.. long ways away, but MAW have them ready to go if I've got the time...

    Alan2smiley likes this.
  13. red EOD

    red EOD 1/2 ton status Premium Member

    Joined:
    Apr 15, 2018
    Posts:
    528
    Likes Received:
    717
    Location:
    Eagle Mountain, Utah
    Build(s):
    5
    That's one thing I don't get with many of the aftermarket gauge companies, even today they still ignore the demand for lower RPM tachs from the diesel crowd. Half the gauge is useless on the typical 8-12k models.

    ryoken likes this.
  14. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,679
    Likes Received:
    6,450
    Location:
    Jersey Shore
    Build(s):
    3

    yup, I don't know what they spin at the track, but... I'm actually grateful that the sweep covers a fair bit to get up to 25 hunge on that one... the 10g tach, it would move like an inch.. :haha:


    what I don't like about that gauge is it has yellow letters.. all the other pro comps have orange...


    if i had to buy all new gauges, i think i would do the carbon fiber, i kinda dig them.. I just despise whiteface...

    red EOD likes this.
  15. red EOD

    red EOD 1/2 ton status Premium Member

    Joined:
    Apr 15, 2018
    Posts:
    528
    Likes Received:
    717
    Location:
    Eagle Mountain, Utah
    Build(s):
    5
    Have heard some guys at the track say around 4-5k rpm with the 6bt Cummins modified, little higher with the v8 diesels.

    Had a Detroit 16v92 runaway on a rig once, usually runs about 1600rpm and the computer clocked it at over 5000rpm (engine is the size of a car). 2 stroke diesels are screamers anyways but wow that was an experience hahaha

    KirsL and ryoken like this.
  16. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,679
    Likes Received:
    6,450
    Location:
    Jersey Shore
    Build(s):
    3

    my only runaway situation was a pair of twin turbo 12 cyl Detroits in a 55' Viking test run.. one started running on it's own juices, luckily I got it shut down before it was unstoppable... bit scary when you've got no place to run in a closet with 5' high ceilings and ones screaming next to your head... that'll get your heart pumpin! ;)

    I'm assuming with my gears, I'll be in the 1800 to 2 cruise range, and 2500 when flogging it thru the gears..

    red EOD likes this.
  17. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,679
    Likes Received:
    6,450
    Location:
    Jersey Shore
    Build(s):
    3
  18. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,679
    Likes Received:
    6,450
    Location:
    Jersey Shore
    Build(s):
    3
    slut warning......

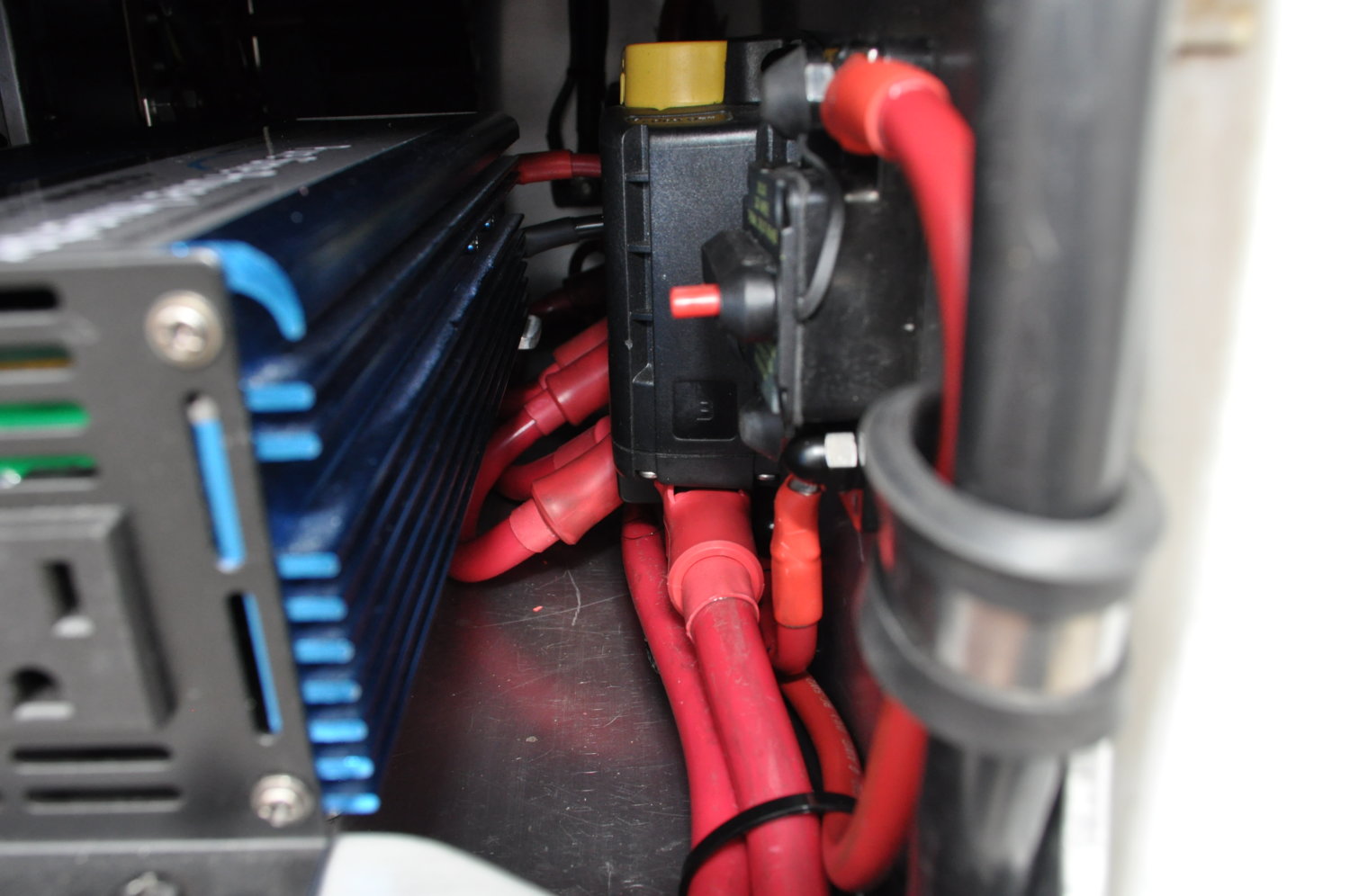

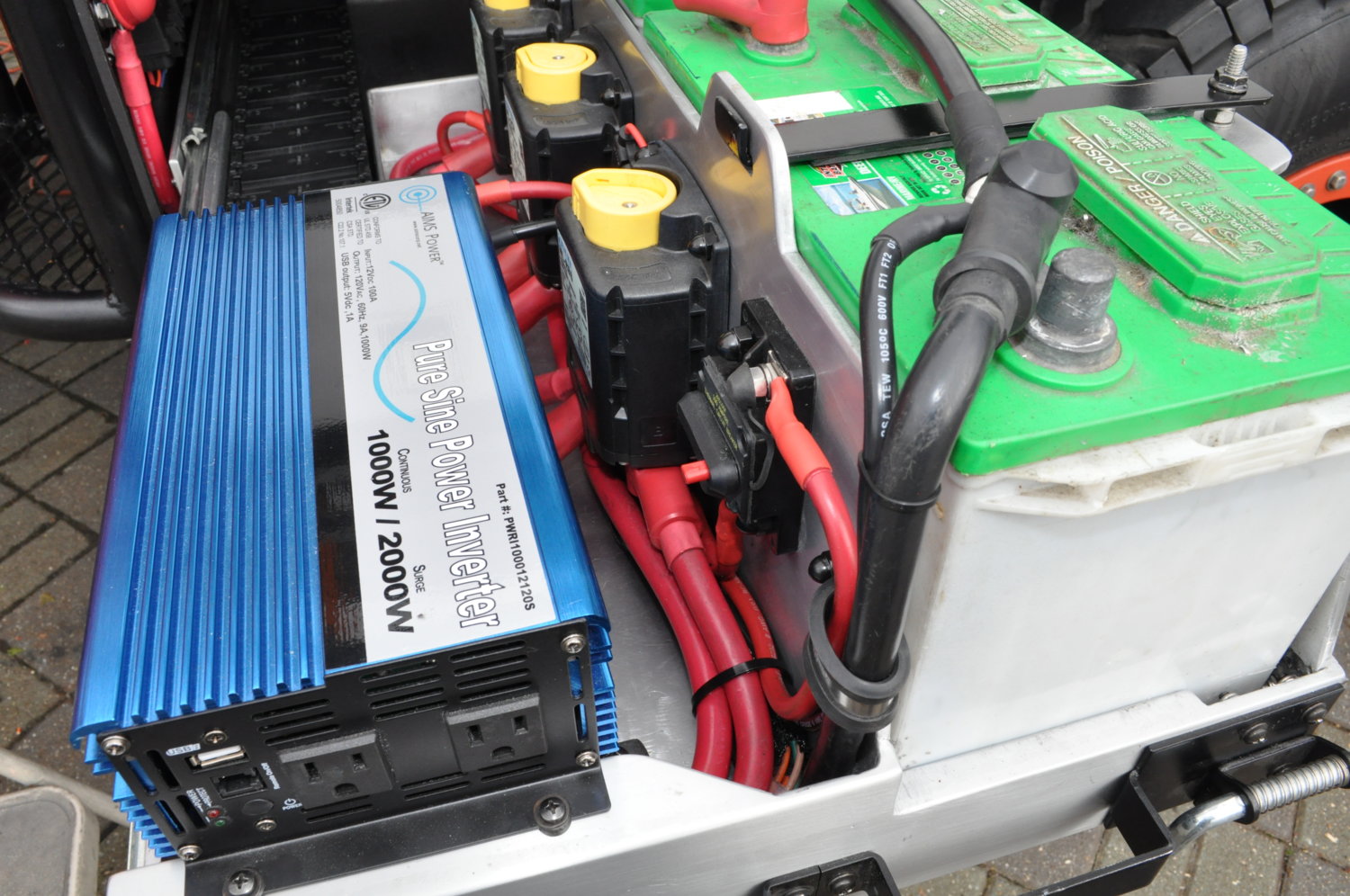

    tray is effectively done... just need to put a jumper on the inverter.. bat switches are on in this pic...


    [​IMG]






    [​IMG]





    [​IMG]






    [​IMG]





    [​IMG]












    working on finishing the winch.......


    .

    KirsL, max 02, red EOD and 4 others like this.
  19. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,679
    Likes Received:
    6,450
    Location:
    Jersey Shore
    Build(s):
    3
    oh, 2 things that I would do differently, one I'll change eventually, the other no.....

    i should have bumped the switches up an inch or so on the divider wall to give a bit more room for the wiring... just tight putting it all together..

    the other is that somehow in my tray/track mockup, my landing points are a bit off .. it doesn't quite come all the way out, like 3/4" of an inch short.. you notice it when the tray stops, it wants to keep going a bit on the opposite side... it's not a huge deal, more annoying that it makes it tough to put the back pos on than anything... I will eventually fix it by putting another link in it.. plenty of room for it and just need to cheat the cables a bit on the ceiling clamp.. it's just I have to buy a foot of it at $35, so i'm in no rush....


    other than that, I think it came out pretty sick..... :saweet:

    Last edited: Feb 14, 2020
  20. mrk5

    mrk5 The Sticker Guy Moderator GMOTM Winner Author

    Joined:
    Apr 20, 2004
    Posts:
    18,385
    Likes Received:
    9,104
    Location:
    Northern Colorado
    Build(s):
    2
    Looks very nice! The tray slides out so smoothly, it seems like there's no weight on it.

    The way you put the bends in the wiring is very interesting. I never thought of something like that. Specifically I'm talking about the wiring on the winch solenoids and the buss bar above the relays. Gives it a cleaner look I think. Is there anything special you do to make those bends, or just bend it with your fingers?

    ryoken likes this.
